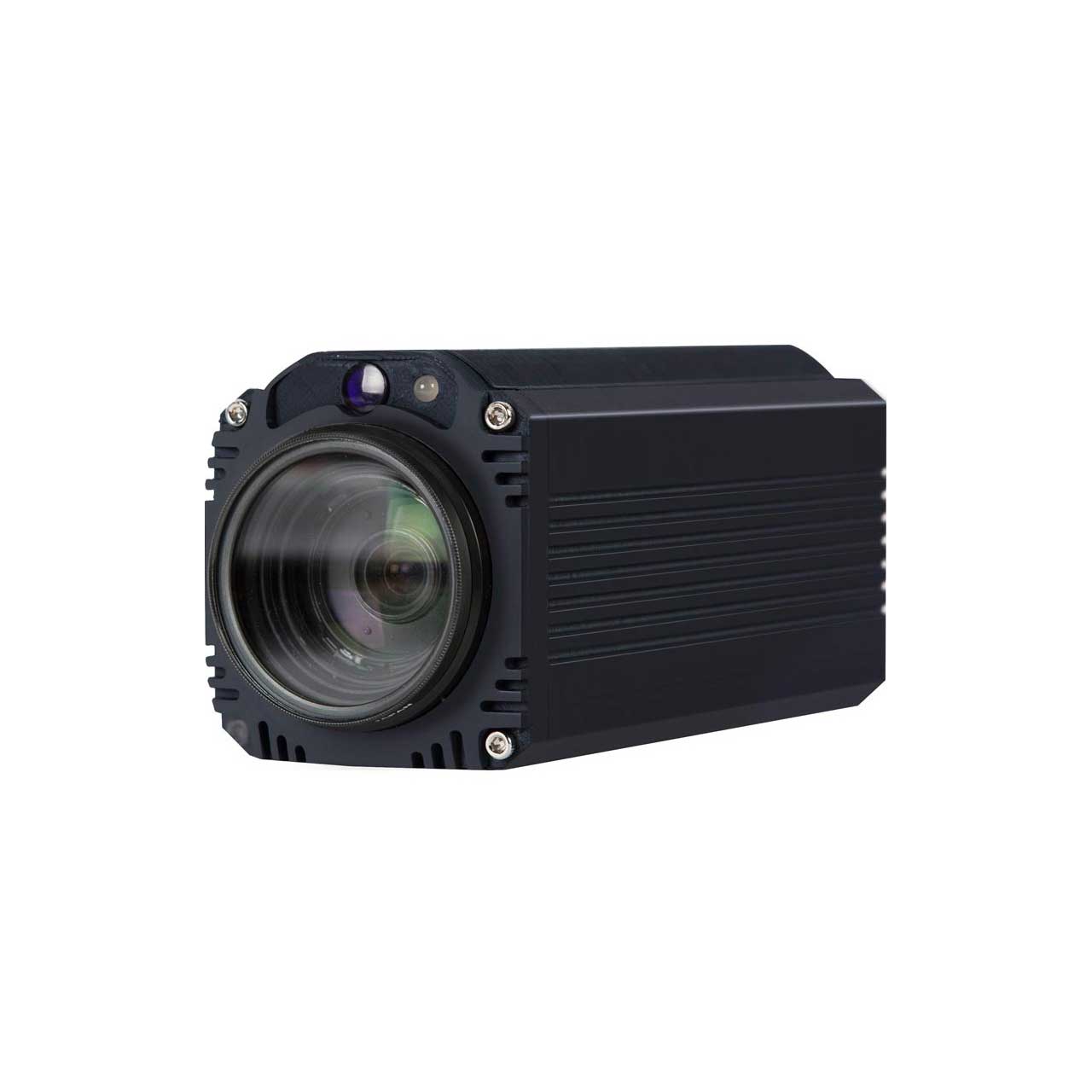

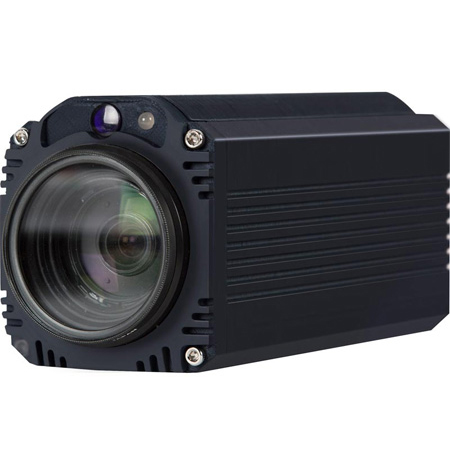

Datavideo BC-80 HD Block Camera with 30x Zoom

BC-80 - Overview

• Features:

  • HD Resolution: 1/2.8" High Definition 2.0 M Pixels progressive CMOS sensor
  • High definition formats supported: 1080/ 59.94p, 1080/ 50p, 1080/ 59.94i, 1080/ 29.97p, 1080/ 25p, 1080/ 50i, 720/ 59.94p, 720/50p
  • Digital Noise Reduction Function (DNR) to reduce the noise and enable sharper image under low light conditions.
  • Video Output: SDI + HDMI synchronously.
  • Tally LED Design (RS-422/ DVIP Operation)
  • Supports SONY VISCA Protocol
  • Supports DVIP Control Protocol


• Specifications:

  • Video format: 1080p 59.94/50/29.97/25 Hz, 1080i 59.94/50 Hz, 720p 59.94/50 Hz
  • Image Sensor: 1/2.8" type progressive scan CMOS sensor
  • Effective Pixels: (approx.) 2.14 Mega pixels
  • Min. Illumination: Color: 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High); B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
  • Electronic Shutter: 1/25 (1/30), 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000 sec
  • Zoom Ratio: 30x Optical Zoom
  • Gamma Control: Off/Normal/Standard Mode 1-4
  • Iris Control: Auto/Manual
  • Digital Noise Reductions: Yes
  • White Balance: AWB/MWB/One push WB/Outdoor/Indoor/Fluorescent
  • AGC/Gain Control: Auto/Manual; Max. Gain Limit
  • Mirror/Flip Image: Yes
  • Focus Mode: Auto/Manual
  • Field of View (Horizontal, Wide): Approx. 63.7° (WIDE END)/2.3° (TELE END)
  • Image Compensation: Day & Night function
  • Video Output: HDMI (V1.3) x1, HD/SD-SDI x1
  • Tally LED: Dual color (Red, Green)
  • Filter: Yes
  • Remote Control Interface: RS-422: Transmits up to 1000m (DVIP RJ45)
  •
    Camera Control Unit: RMC-180


• GTIN:

  0672255007273
