Datavideo DAC-90 HD/SD-SDI Audio De-Embedder
  • Datavideo DAC-90 HD/SD-SDI Audio De-Embedder
  • Datavideo DAC-90 HD/SD-SDI Audio De-Embedder
  • Datavideo DAC-90 HD/SD-SDI Audio De-Embedder
  • Datavideo DAC-90 HD/SD-SDI Audio De-Embedder

Questions? Ask a Markertek Expert:
800-522-2025 Email

Datavideo DAC-90 HD/SD-SDI Audio De-Embedder

Manufacturer: Datavideo Corporation

Item #: DV-DAC-90   •   MFG #: DAC-90




Our Price:$299.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

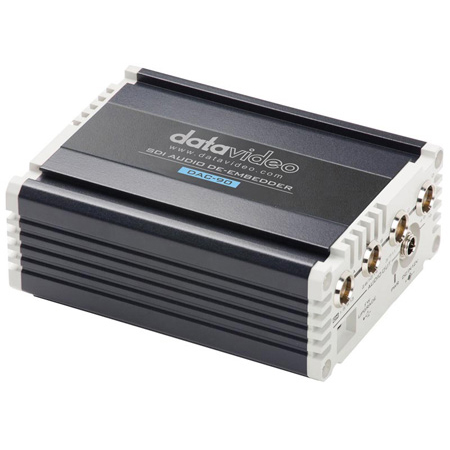

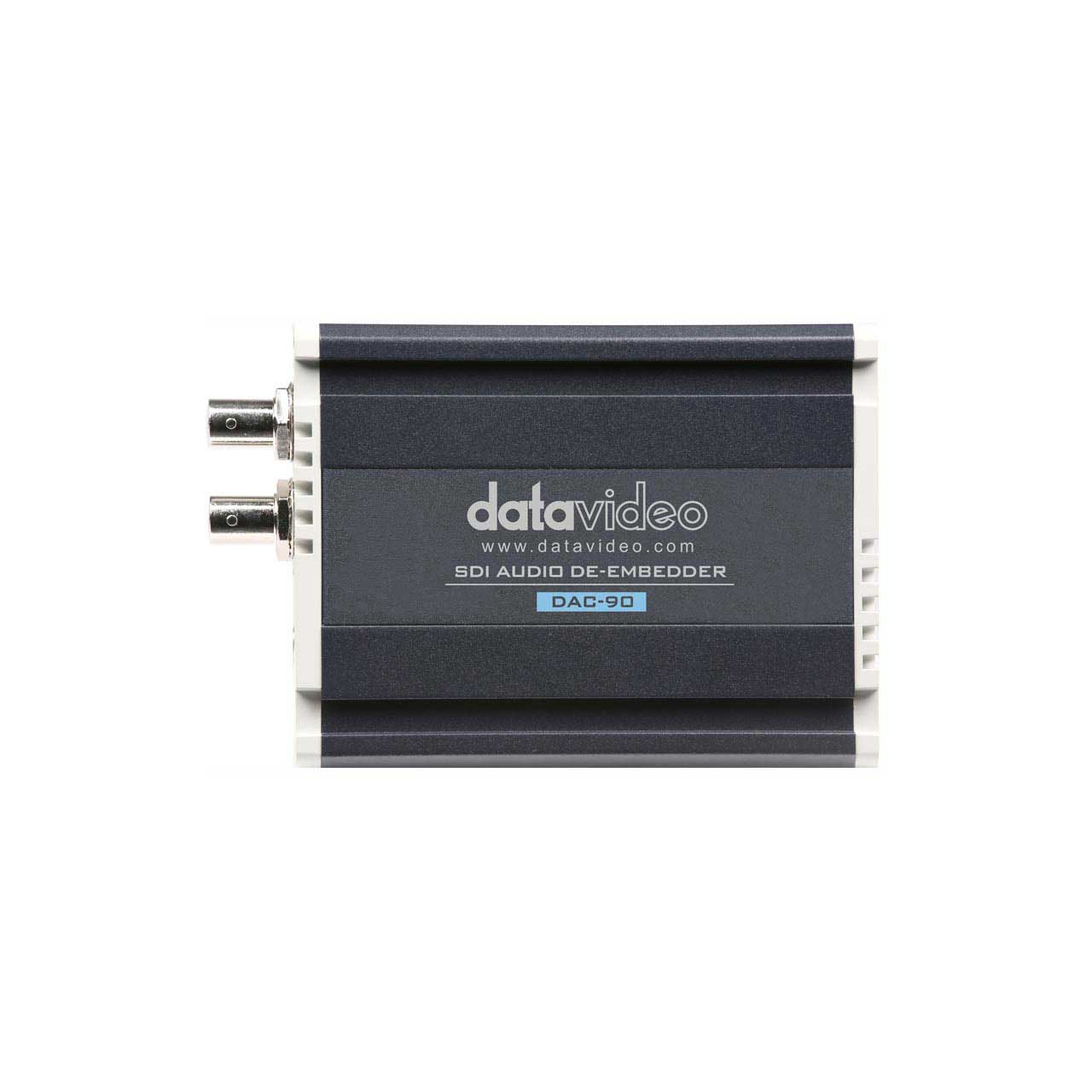

    The DAC-90 is an audio de-embedder box with useful function that allows users to de-embed 16 analogue audio signals (4 at a time) from SDI video signal.

    It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides 4 mini XLR audio connectors for outputting analogue audio to audio devices such as monitors, recorders, switchers, and audio mixers.

    The Audio box also has SMPTE and EBU switchable settings and the De-embedded audio signal can be assigned by using the built-in DIP switches.


    • Features

      • Audio De-Embedder
      • De-Embed Audio from SDI Signal
      • Automatically detects 3G, HD, SD signal
      • 4 x Analogue Mini XLR Audio outputs
      • Assignable De-embedded audio signal

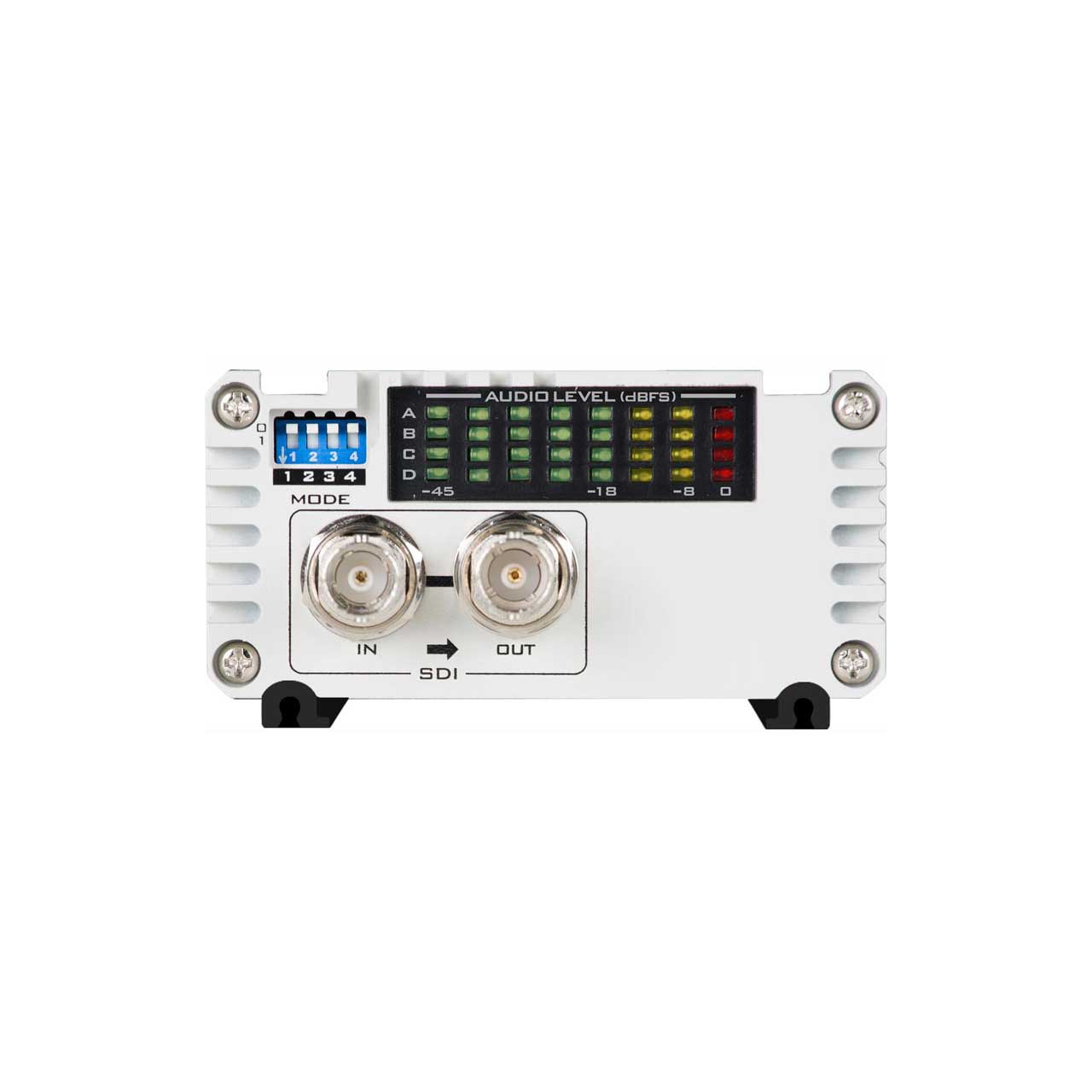

      • Audio level indicator display
      • SMPTE and EBU Audio level switchable
      • Control via DIP Switches

    • Specifications

      • SDI Video Input: 3G/HD/SD SDI x1
      • SDI Video Output: 3G/HD/SD SDI x1 (Re-clocked Loop through)
      • Analog Audio Input: N/A

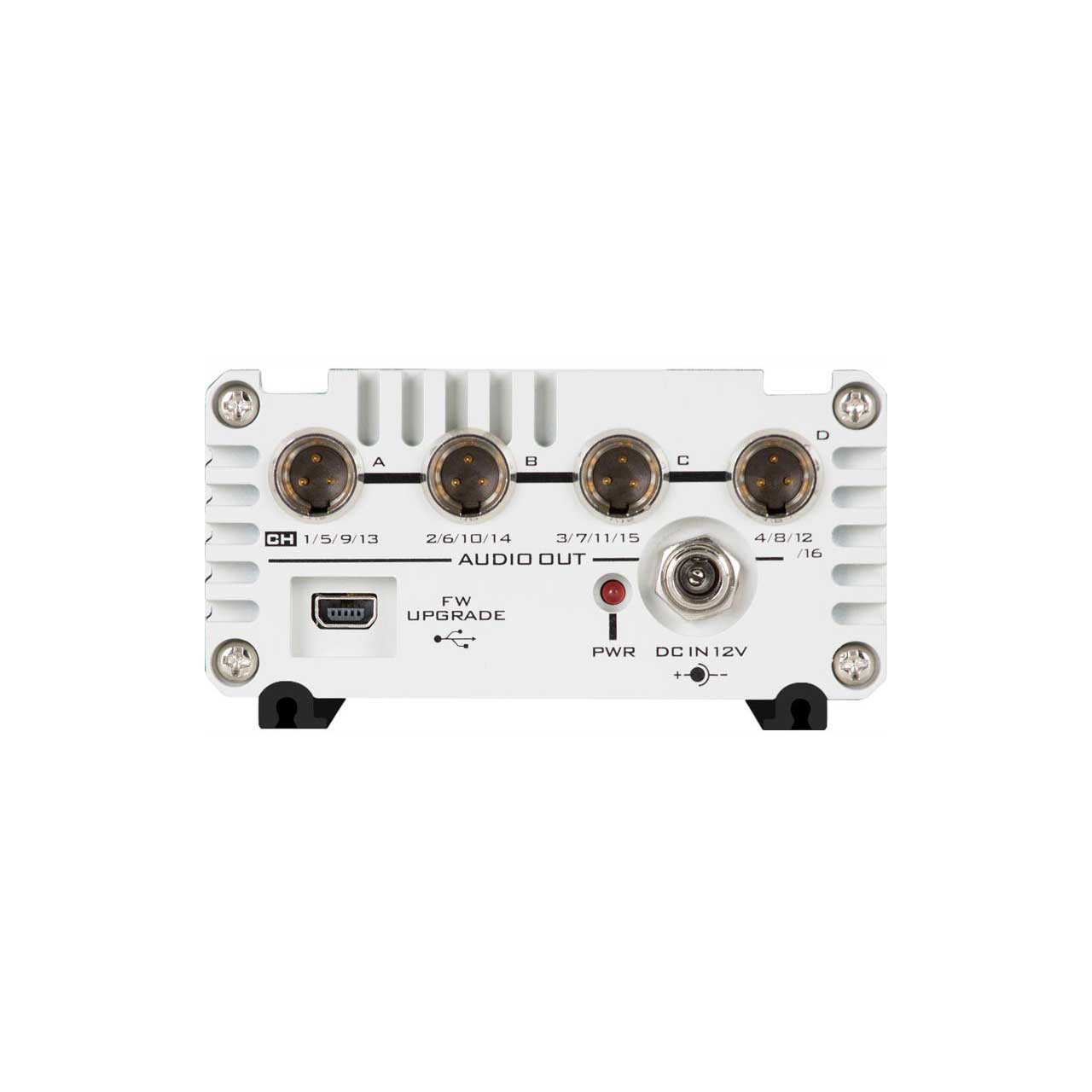

      • Analog Audio Output: Mini XLR (Balanced) x4
      • Indicator: Power LED x1 Audio Level LED: 4 rows
      • Updates and Configuration: Mini USB x1
      • Audio Format Selection: SMPTE, EBU
      • Gain: N/A

    • Item Includes

      • 1x DAC-90 product
      • 1x AD Switch DC 12V
      • 2x Mini XLR to male XLR cable
      • 1x Thank You Card
