Datavideo Portable C-AT Bundle with Two PTC-145T/HS-1600T MarkII/Two Hard Cases/TLM-700 Monitor for Recording/Streaming

PORTABLE-C-AT - Overview

• Features:

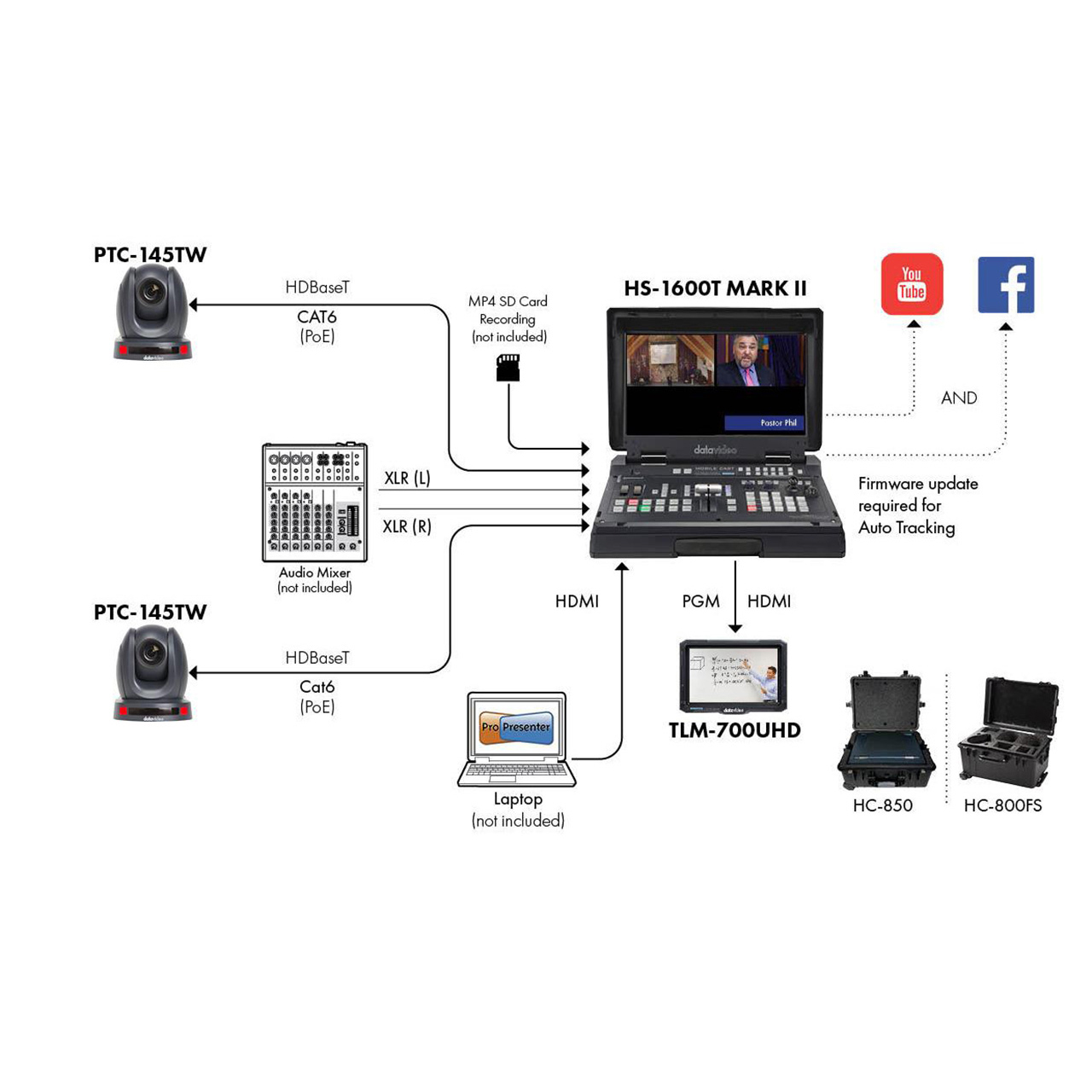

  • Streaming & Recording WorkFlow
  • Hard Cases For Equipment
  • Proffesional Wall Mount For PTC Video Camera


• Specifications:

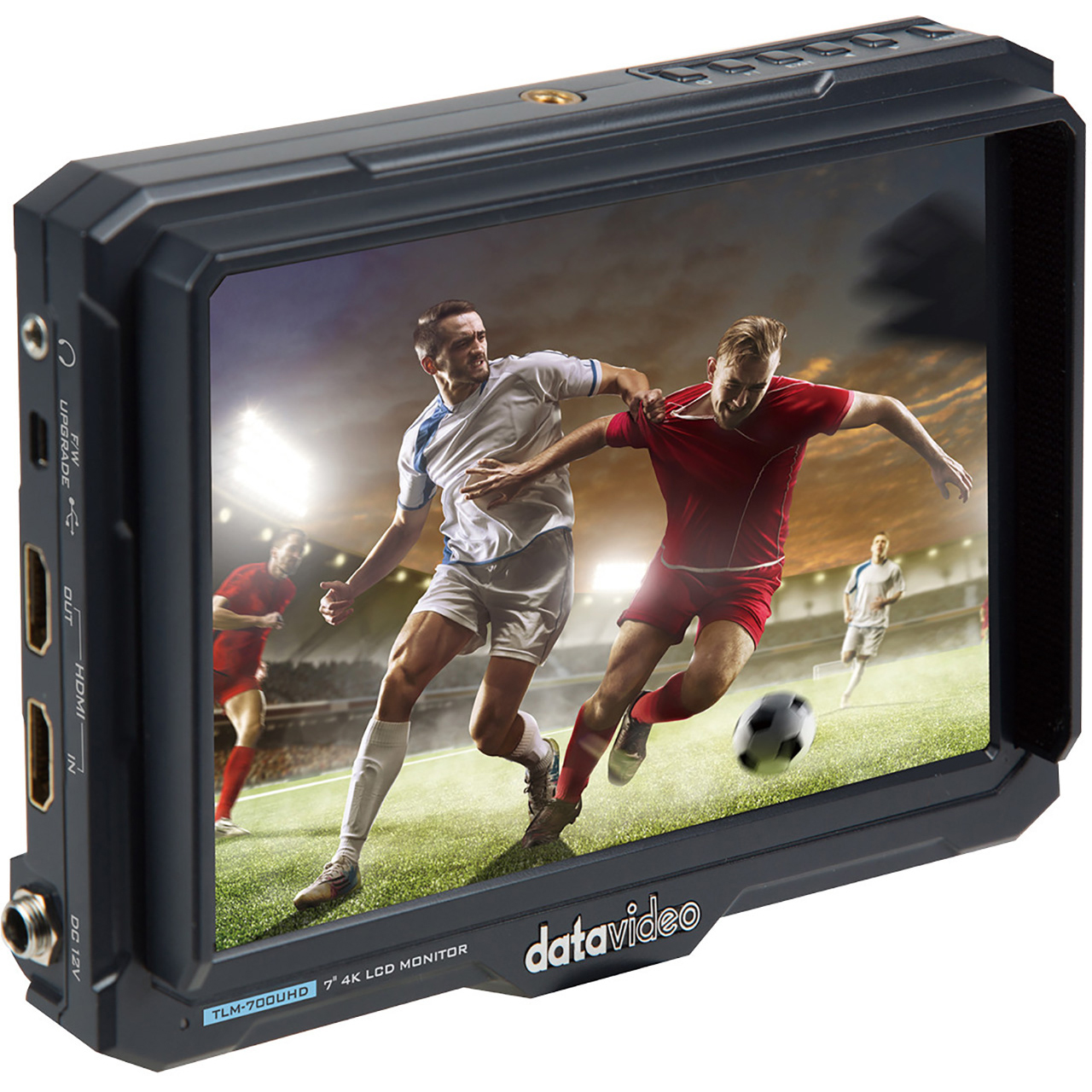

  TLM-700UHD
  • Screen: 7" TFT LCD
  • Chassis: Camera Mount
  • Resolution:1920x1200
  • Viewing Angle:
    - Horizontal: 85°/-85°
    - Vertical: 85°/-85°
  • Luminance/Contrast: 450cd/m²/1000:1
  • Video Inputs:
    - 1x HDMI (2.0)
    - HDCP 2.2
    - Loop Through
    - 1x HDMI (2.0)
  • Supported Input Resolutions:
    - 4096x2160p (23.98/24/25/29.97/30/50/59.94/60Hz)
    - 3840x2160p (23.98/24/25/29.97/30/50/59.94/60Hz)
    - 2048x1080p (50/59.94/60Hz)
    - 1080p (23.98/24/25/29.97/30/50/59.94/60Hz)50i/59.94i/60i)
    - 1080i (50/59.94/60Hz)
    - 720p (23.98/24/25/29.97/30/50/59.94/60Hz)
    - 576i (50Hz)/576p (50Hz)
    - 480i (59.94/60Hz), 480p (59.94/60Hz)
  • Aspect Ratio: Full/16:9/1.85:1/2.35:1/4:3/3:2
  • Aspect Marker: Off/16:9/1.85:1/2.35:1/4:3/3:2/9:16
  • Safety Marker: Off/95%/93%/90%/88%/85%/80%
  • Audio In/Out:
    - Embedded Audio (48KHz sampling)
    - Analog Stereo (Phone Jack)
    - Speaker 1x (2W)
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)
  • Power: DC 12V, 12W

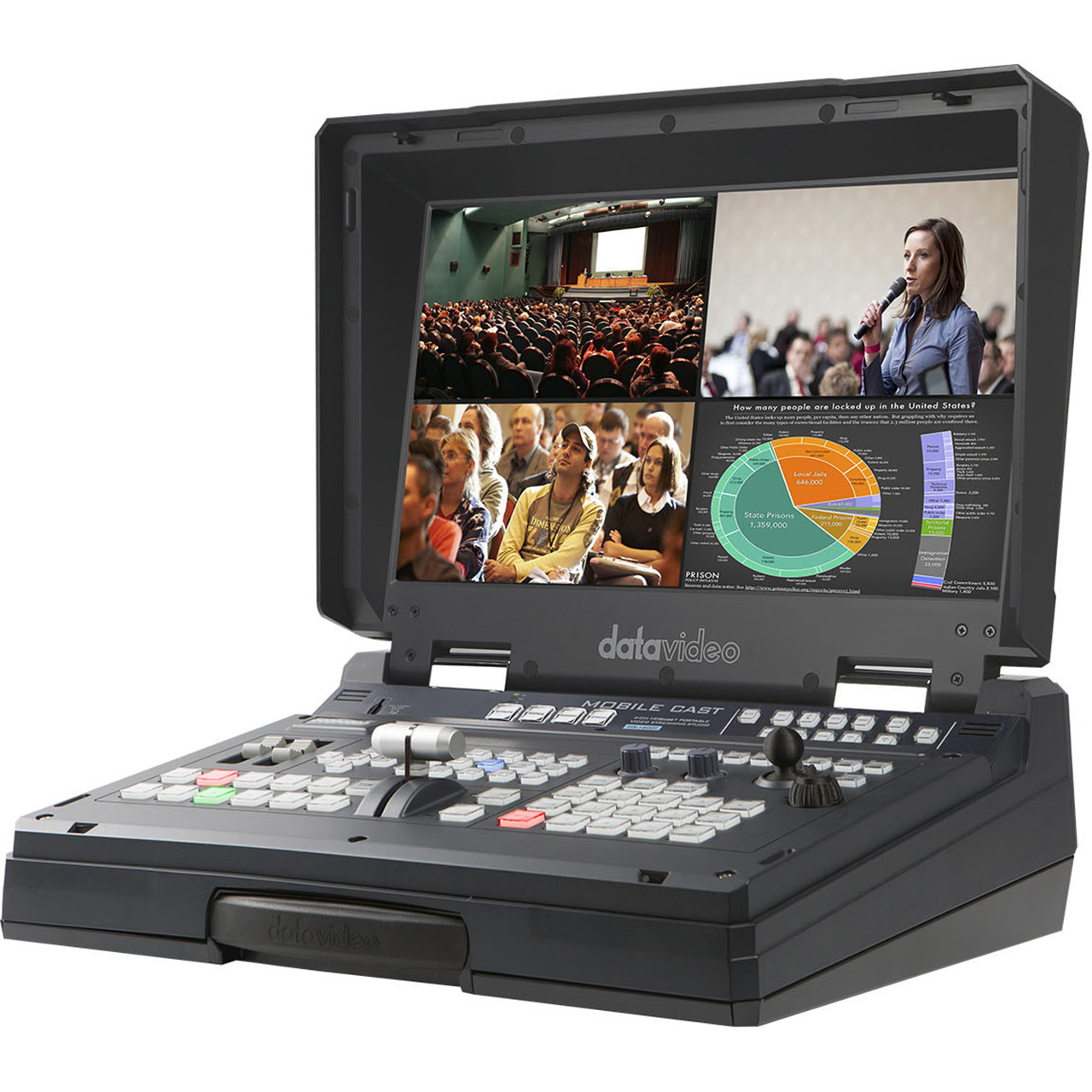

    HS-1600T MARKII
  • Video Standard: HD/SD
  • Video Format:
    - 1080p 50/59.94/60Hz
    - 1080i 50/59.94/60Hz
    - 720p 50/59.94/60Hz
    - 576i/p 50Hz
    - 480i/p 59.94Hz
  • Video Input:
    - 3x HDBaseT
    - 1x HDMI
  • Computer Graphic Interface: 1 via HDMI
  • Down-converted Output: Yes
  • Video Output:
    - 3x HDMI PGM
    - 1x HDBaseT PGM
    - 1x STREAM (RJ-45)
  • Cable Type: Cat6A shielded
  • Analog Audio Input:
    - 2x Balanced XLR
    - 1x Stereo RCA (L/R)
  • Analog Audio Output: 1 x Stereo headphone
  • Digital Embedded Audio: Support Input 2 channels - Output 2 channel
  • USK: 1x USK support Lumakey
  • Built-In Audio Mixer: Yes - 4 channels
  • Built-In Monitor Display: 17.3" HD TFT LED backlit/1920x1080 pix
  • Sample Rate: 48KHz, 16bit
  • Streaming Protocol:
    - TS over TCP/UDP (unicast & multicast)
    - RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    - RTMP/RTMPS (Publish)
    - HLS
    - SRT
  • Recording File System: FAT, exFAT, NTFS
  • Recording File Format: MP4
  • Streaming & Recording: Setting Control Web UI for system configuration and control
  • Power DC 48V, 4.16A
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)

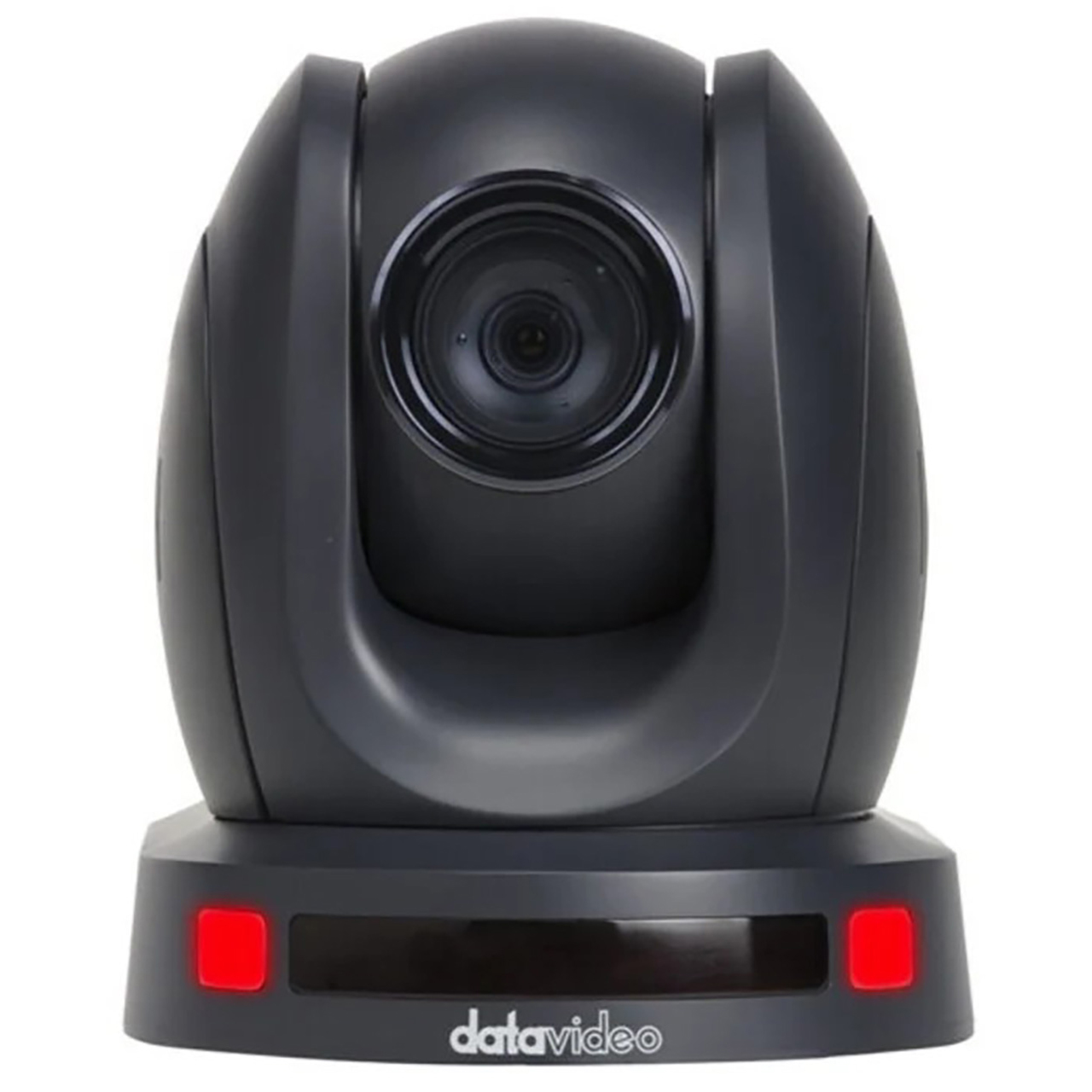

    PTC-145T
  • Video Format/Resolution:
    - 1080p 60/59.94/50/30/29.97/25
    - 1080i 60/59.94/50
    - 720p 60/59.94/50
  • Image Sensor: Sony 1/2.8" CMOS
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: >55dB
  • Min. Illumination: 0.5Lux (F1.8, AGC ON)
  • Electronic Shutter: Auto/Manual
  • Zoom Ratio: 20x Optical Zoom, 10x Digital Zoom
  • Effective Zoom Ratio: 18.85x
  • Digital Noise: Reductions Yes
  • White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
  • AGC/Gain Control: Auto/Manual
  • Mirror/Flip Image: Yes
  • Focus Mode: Auto/Manual
  • Panning/Tilting Range:
    - Pan: 340°
    - Tilt: +90° - -30°
  • Panning/Tilting Speed:
    - Pan: 0.1~60°/sec
    - Tilt: 0.1~30°/sec
  • Preset: 255 Position
  • Focal Length: f=5.2 (wide) to 98mm (tele), F1.6 to F3.5
  • Field of View: (Horizontal,Wide) Approx. 54.7° (WIDE END)/3.3° (TELE END)
  • Image Compensation: Backlight Compensation
  • Video Output:
    - 1x HDBaseT (PoE)
    - 1x RJ-45
  • Cable Type: Cat6A Shielded
  • Audio Input: 3.5mm Line in
  • Tally LED: Dual color (Red, Green)
  • Lens Filter: M52.0 x 0.75 Thread with UV Protection
  • Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
  • Remote Control Interface:
    - IR
    - Web GUI
    - RS-422/DVIP
    - HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
  • Video Compression Format: H.264/H.265
  • Audio Compression Format: AAC, G711
  • Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
  • HD IP Interface: 100M IP port(100BASE-TX); Support DVIP
  • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT
  • F/W: Update Via Web GUI
  • IR Control: Yes
  • Camera Control Unit: HS-1650T/HS-1600T Mark II/RMC-2P/RMC-180 series/RMC-300 series/PTZ View Assist APP
  • Tripod Mount: ¼"-20 UNC
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)
  • Power: DC 12V 12W

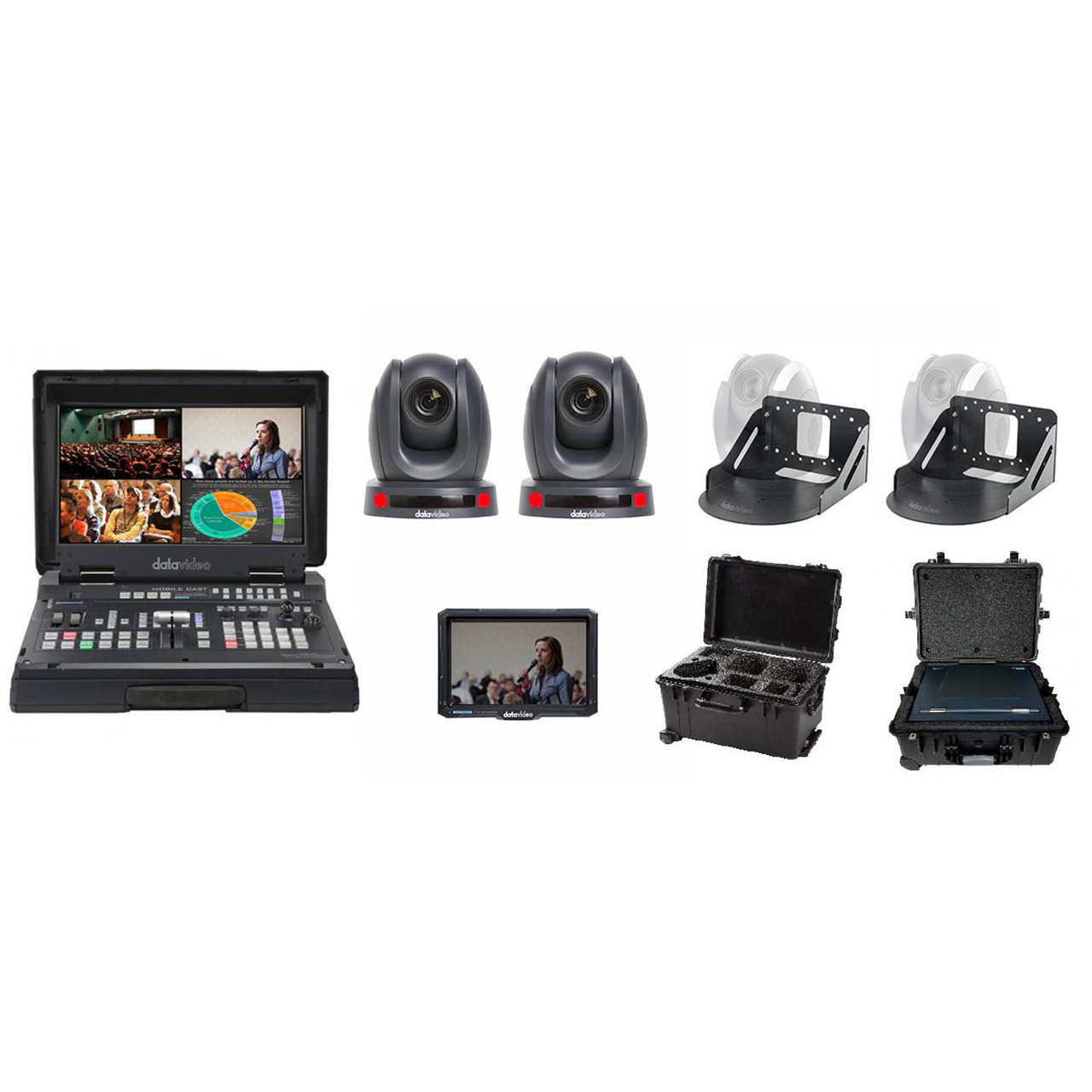

• Item Includes:

  • 1x HS-1600T II - Production Switcher with Streaming Encoder and Recorder
  • 1x HC-850 - Equipment Travel Case
  • 2x PTC-145T - AI Tracking PTZ Camera
  • 1x HC-800FS - Camera Case
  • 1x TLM-700UHD - 7 Inch 4K 50/60P LCD Monitor
