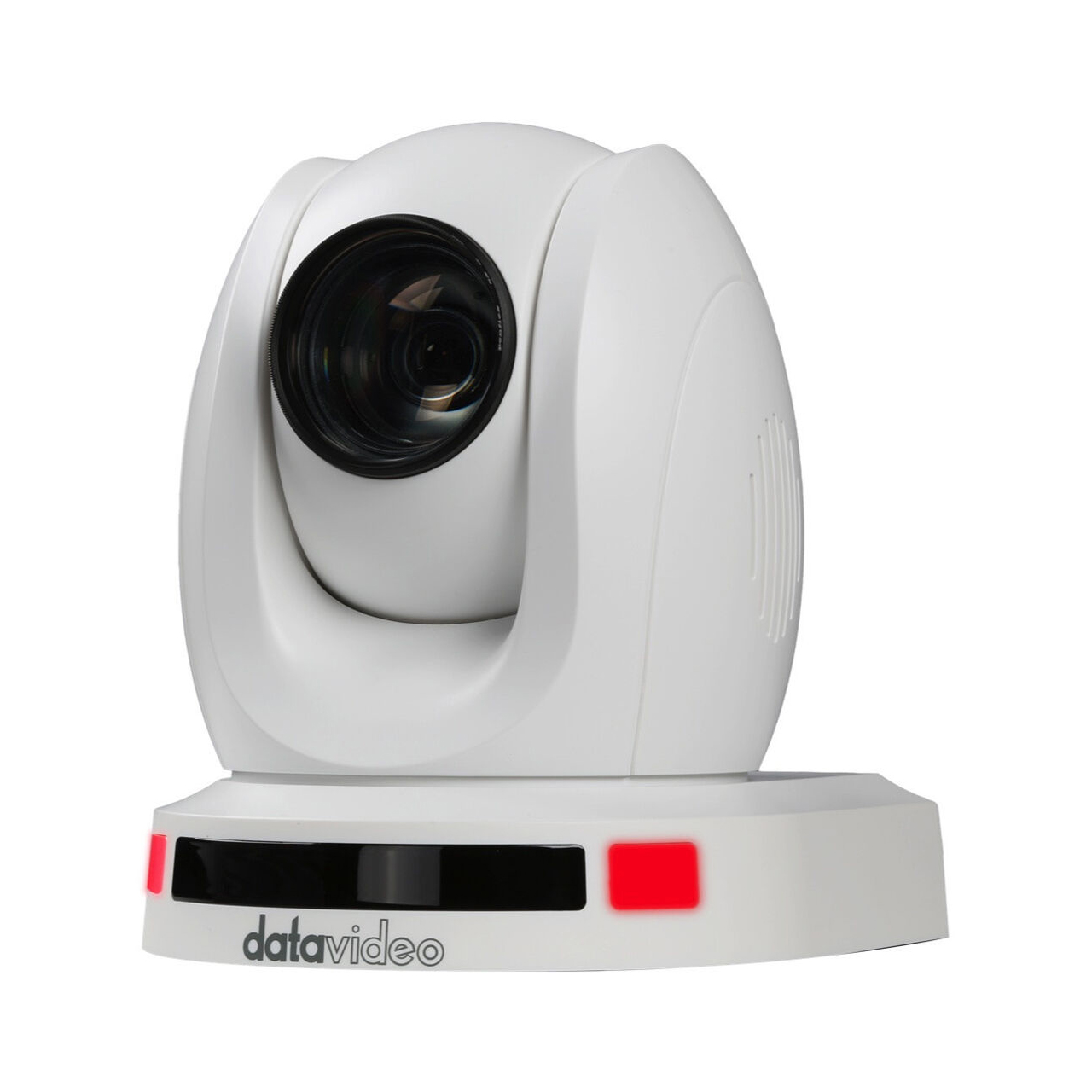

Datavideo PTC-145NDIW NDI HX/HD/HD-SDI/HDMI Tracking PTZ Camera - 20x Zoom - White

ITEM #: DV-PTC-145NDIW MFG #: PTC-145NDIW

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,429.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTC-145NDIW - Overview

Elevate your production with theDatavideo PTC-145NDI, a PTZ camera featuring NDI technology for seamless integration. With a 1/2.8" CMOS sensor, 20x optical zoom, and 8x digital zoom, enjoy stunning Full HD resolution. Connect effortlessly to devices via HDMI, 3G-SDI, and streaming outputs. Experience superior audio with line-in and 3.5mm microphone inputs. The one-click AI Tracking ensures smooth camera movements without a dedicated operator, and simultaneous streaming to two platforms is a breeze.Choose from stylish dark blue or white options to complement your indoor design. The PTC-145NDI brings a new level of connectivity and convenience to your production setup, delivering enhanced visual excellence.

Simultaneous Outputs

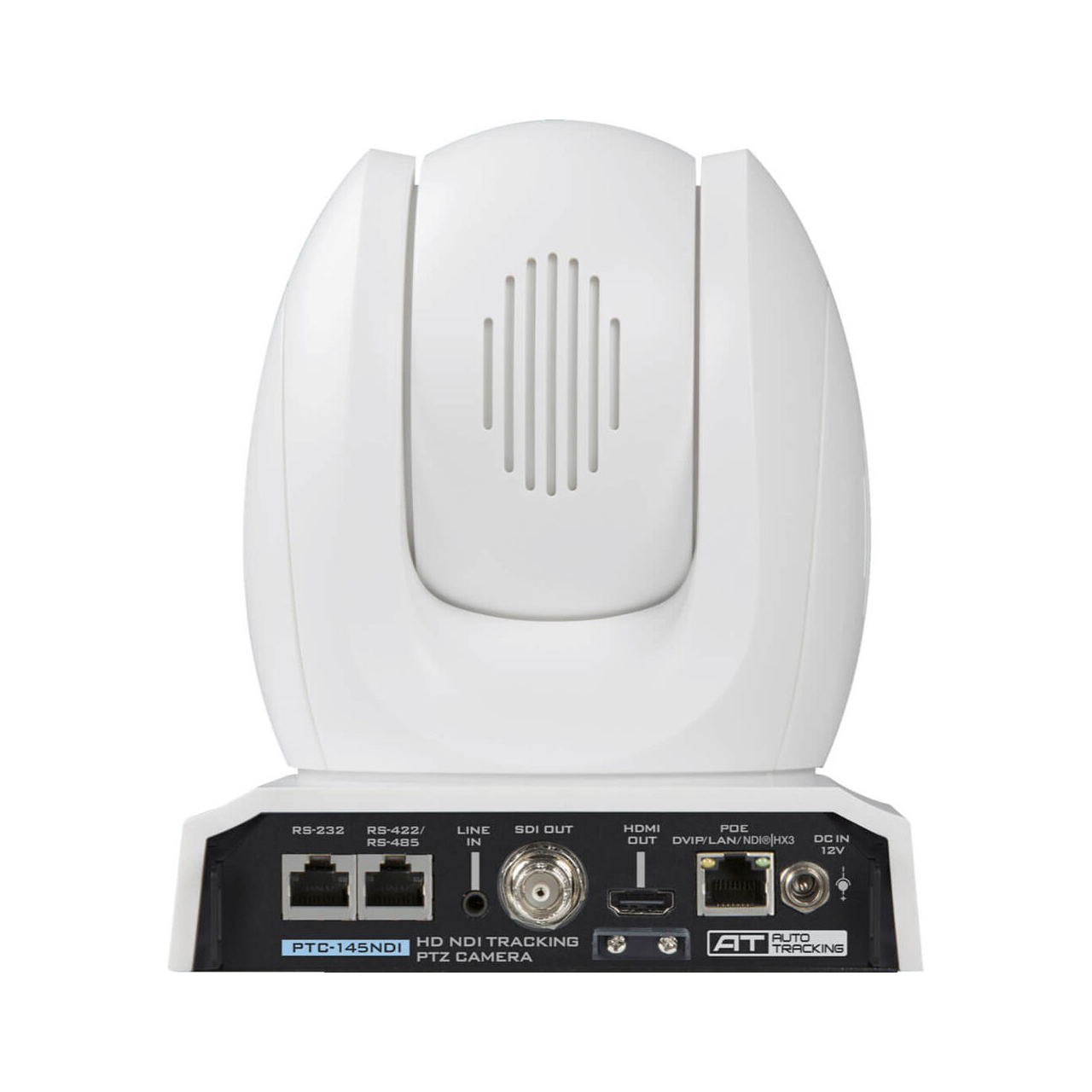

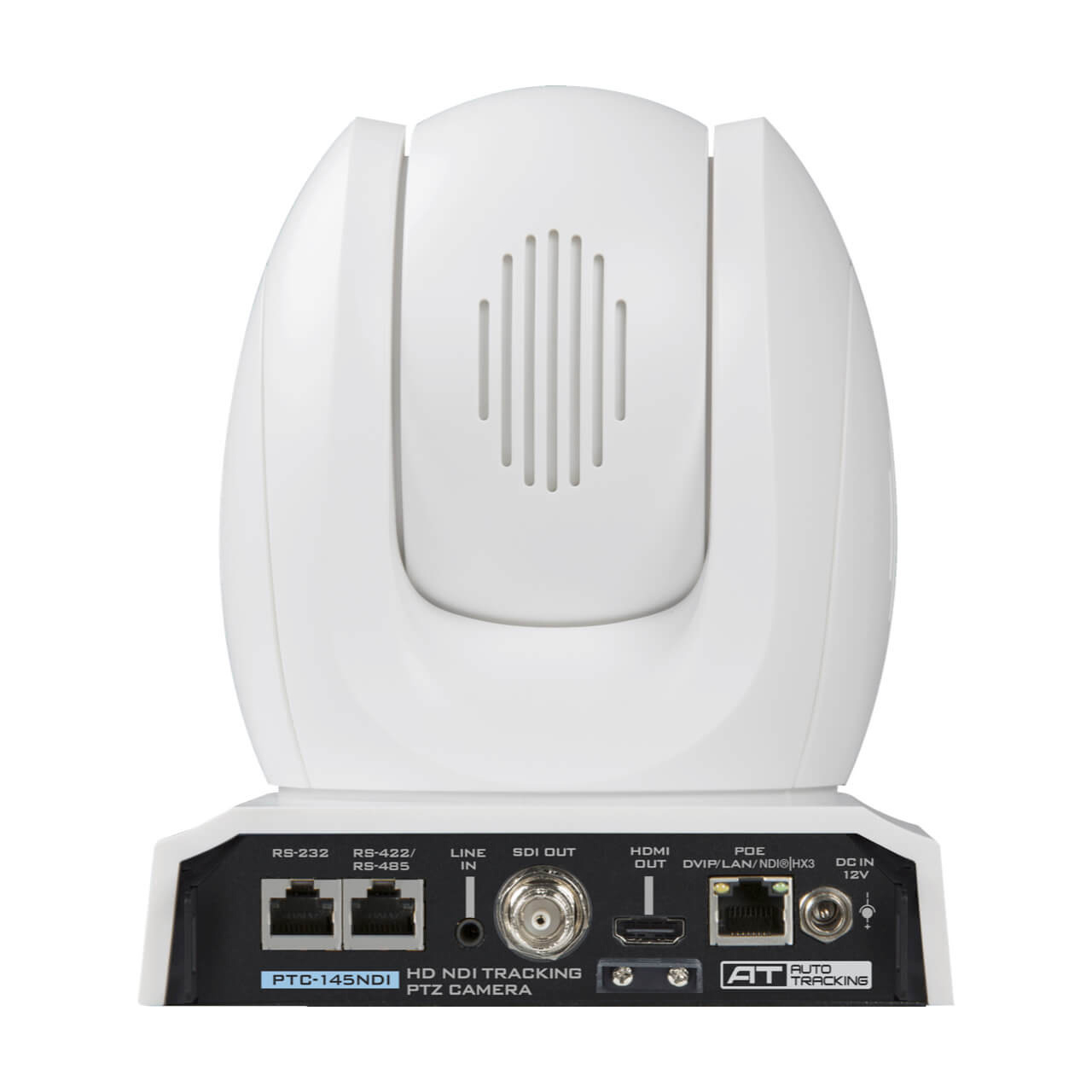

For added flexibility in your workflow, connect your PTC-145NDI to multiple devices simultaneously using its versatile output connection options: RS-232, RS-422/485, HDMI, SDI, and RJ-45 PoE. All of these output options can be active at the same time, ensuring seamless integration into your setup.The PTC-145NDI's 20x optical zoom and 8x digital zoom allows you to mount it near or far and still get great, sharp shots.

The PTC-145NDI supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.

  • Specifications:

    • Video Format/Resolution: 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
    • Image Sensor: 1/2.8 inch high quality HD CMOS sensor
    • Effective Pixels: 2.07 Mega pixels
    • S/N Ratio: =50dB
    • Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
    • Electronic Shutter: 1/30s - 1/10000s
    • Zoom Ratio: 20x Optical Zoom, 8x Digital Zoom
    • Iris Control: Auto/Manual
    • Digital Noise Reductions: 3D
    • On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
    • White Balance: Auto, Indoor, Outdoor, Manual, One Push
    • AGC/Gain Control: Yes
    • Mirror/Flip Image: Yes
    • Panning/Tilting Range:
      - Pan: 340°
      - Tilt: +90° - -30°
    • Panning/Tilting Speed:
      - Pan: 0.1~60°/sec
      - Tilt: 0.1~30°/sec
    • Preset: 255 Positions
    • Focal Length: f = 5.05mm (Wide) to 91.49mm (Tele), F1.8(Wide) ~ F2.9 (Tele)
    • Field of View (Horizontal, Wide): 60°
    • Image Compensation: Backlight Compensation
    • Video Output:
      - 1x HDMI
      - 1x 3G-SDI
      - 1x RJ-45 PoE
    • Audio Input: 3.5mm Line in
    • Tally LED: Dual color (Red, Green)
    • Lens Filter: M52.0 x 0.75 Thread with UV Protection
    • Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
    • Video Compression Format: H.264/H.265/MJPEG
    • Audio Compression Format: AAC, G711
    • Power: DC 12V 14W
    • POE: IEEE 802.3af

  • Item Includes:

    • 1x PTC-145NDI Unit

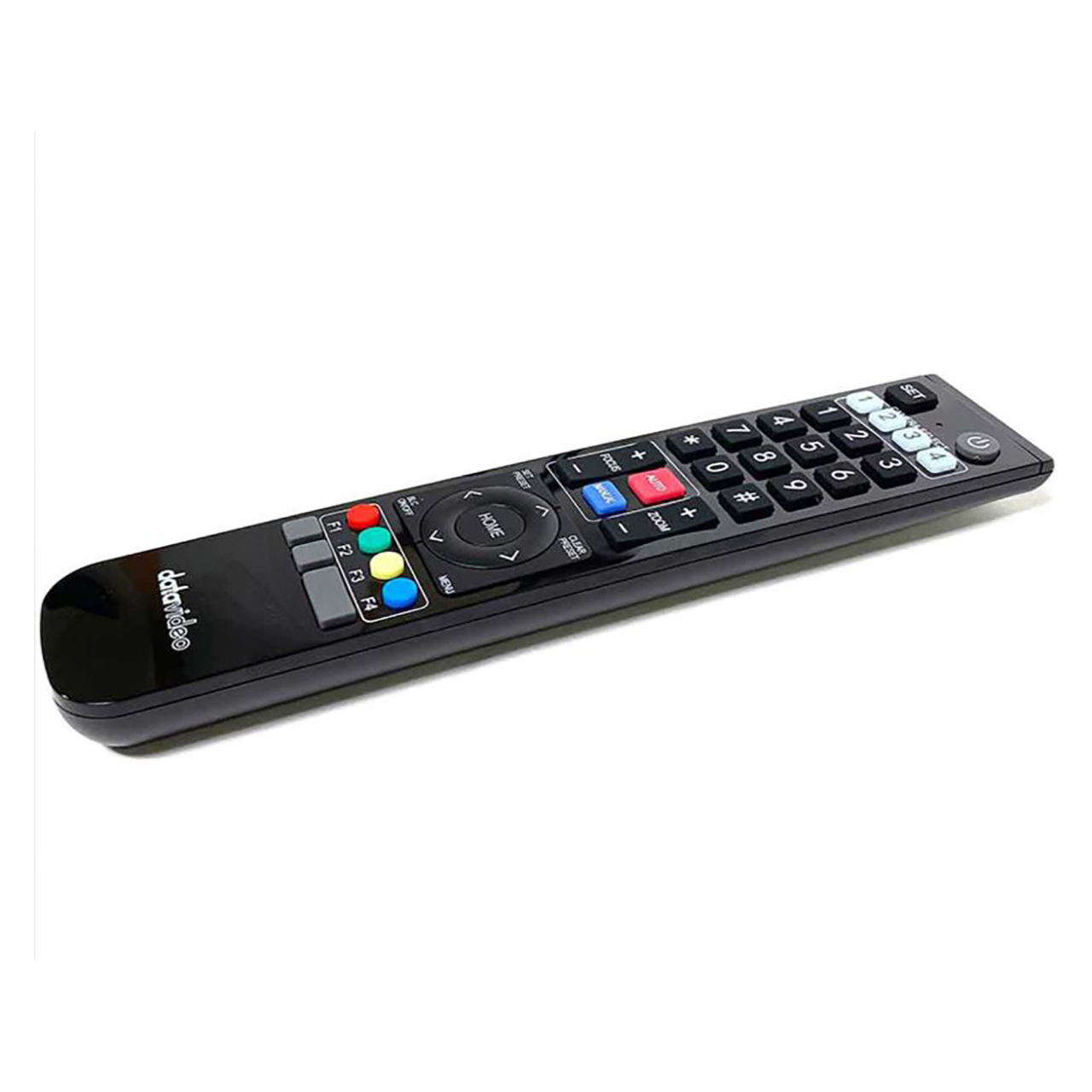

    • 1x IR remote controller
    • 1x Ceiling mount bracket-A
    • 1x Ceiling mount bracket -B
    • 6x Ceiling mount bracket screw M3*4mm
    • 1x DC 12V Power Adaptor
    • 1x Power Cord
    • 1x Safety cable
