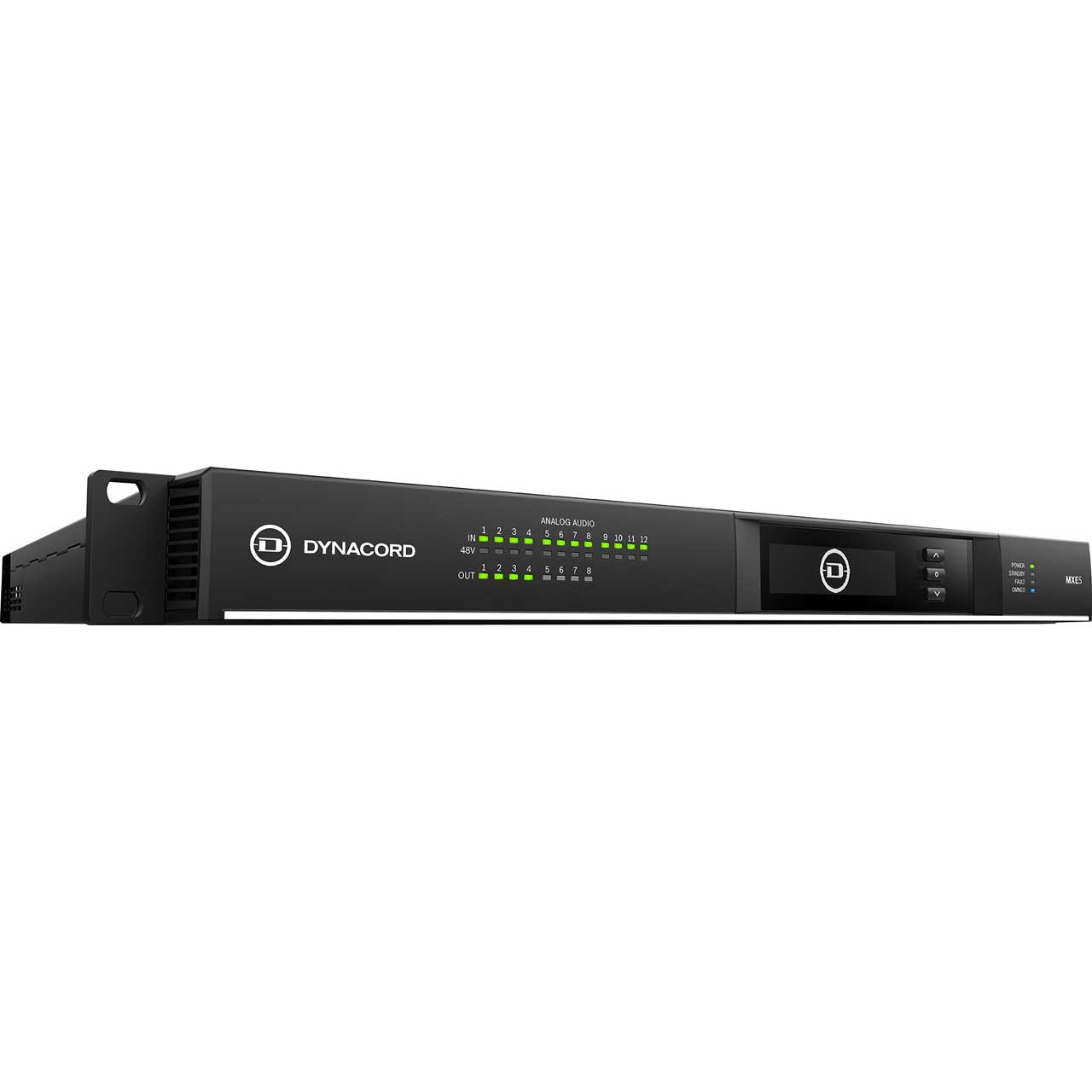

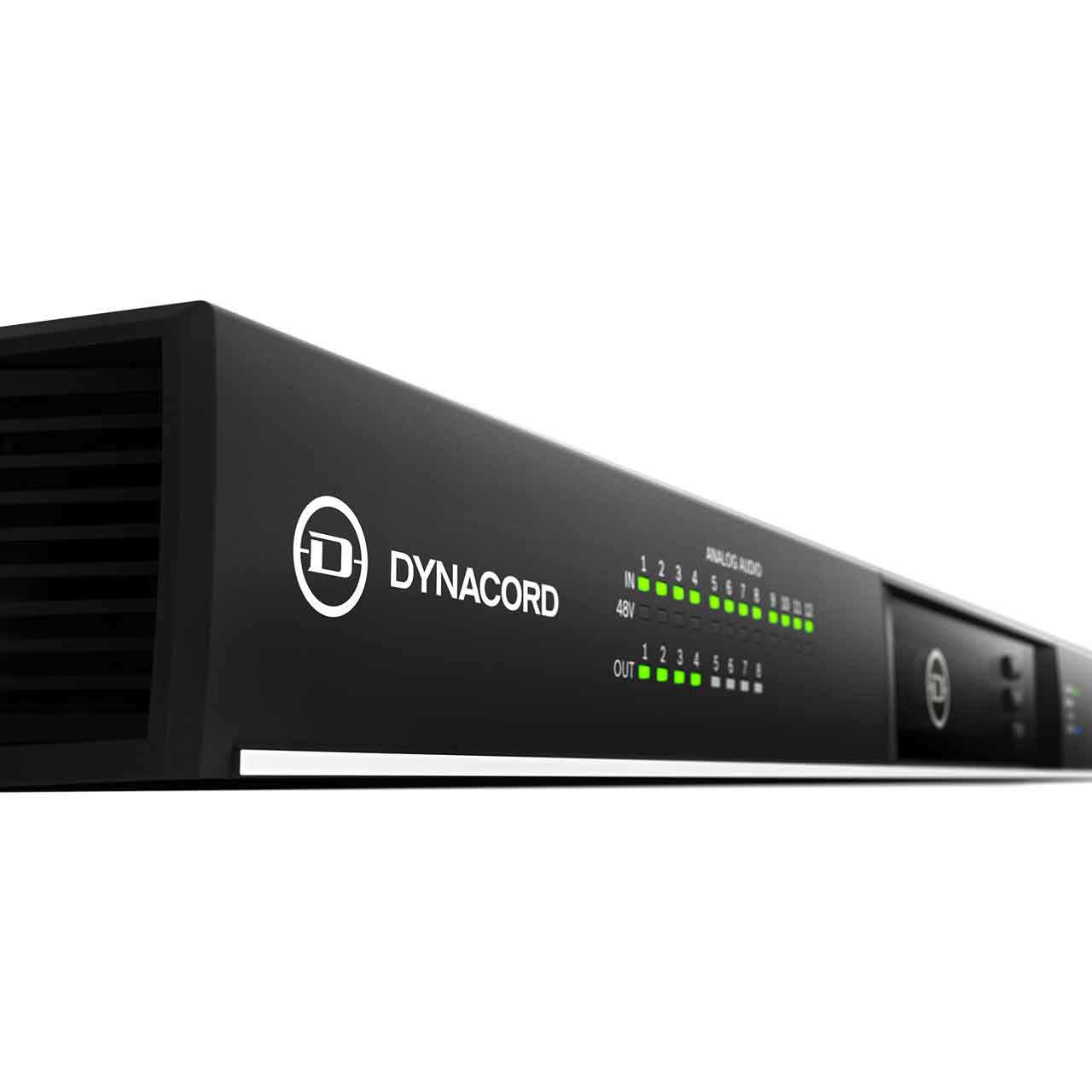

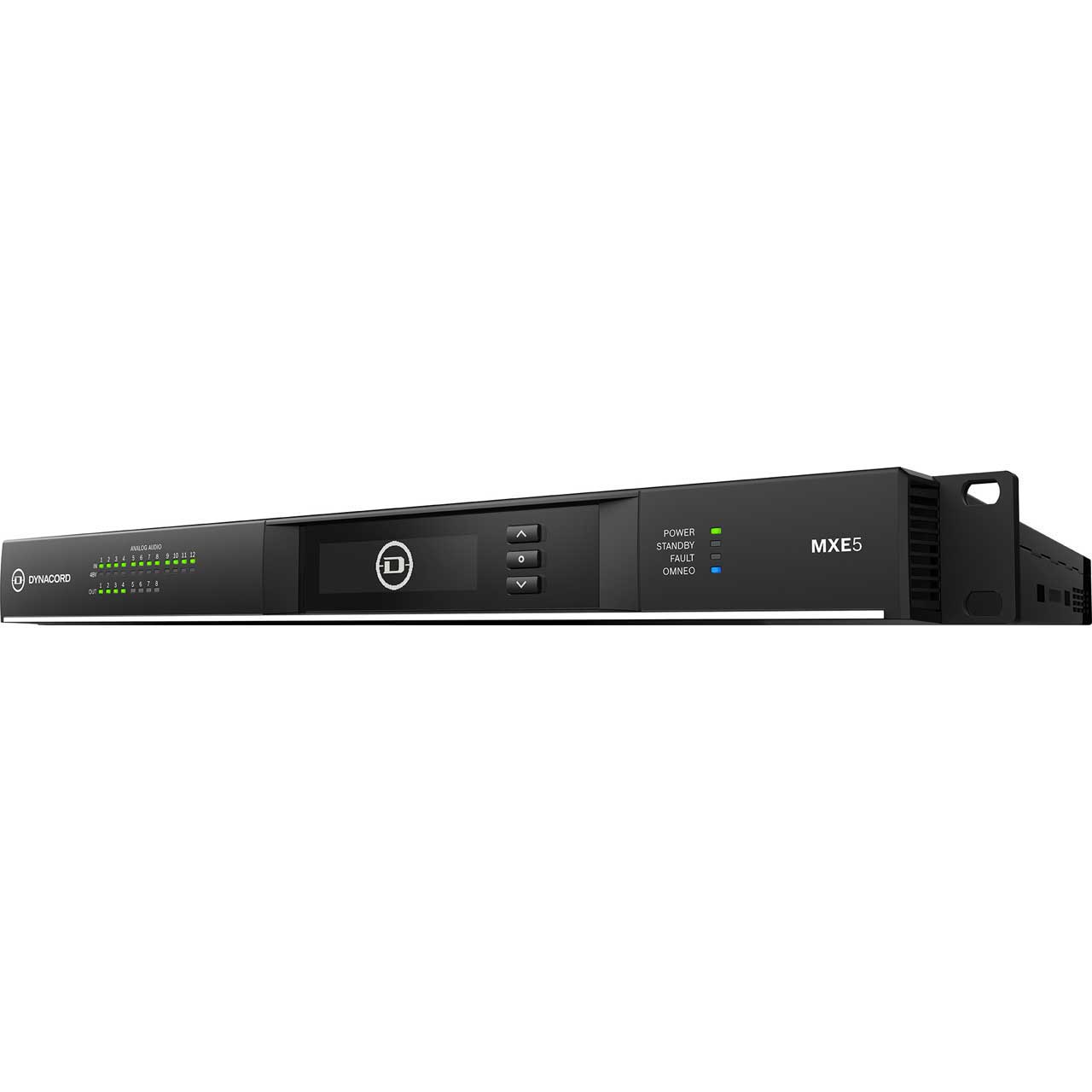

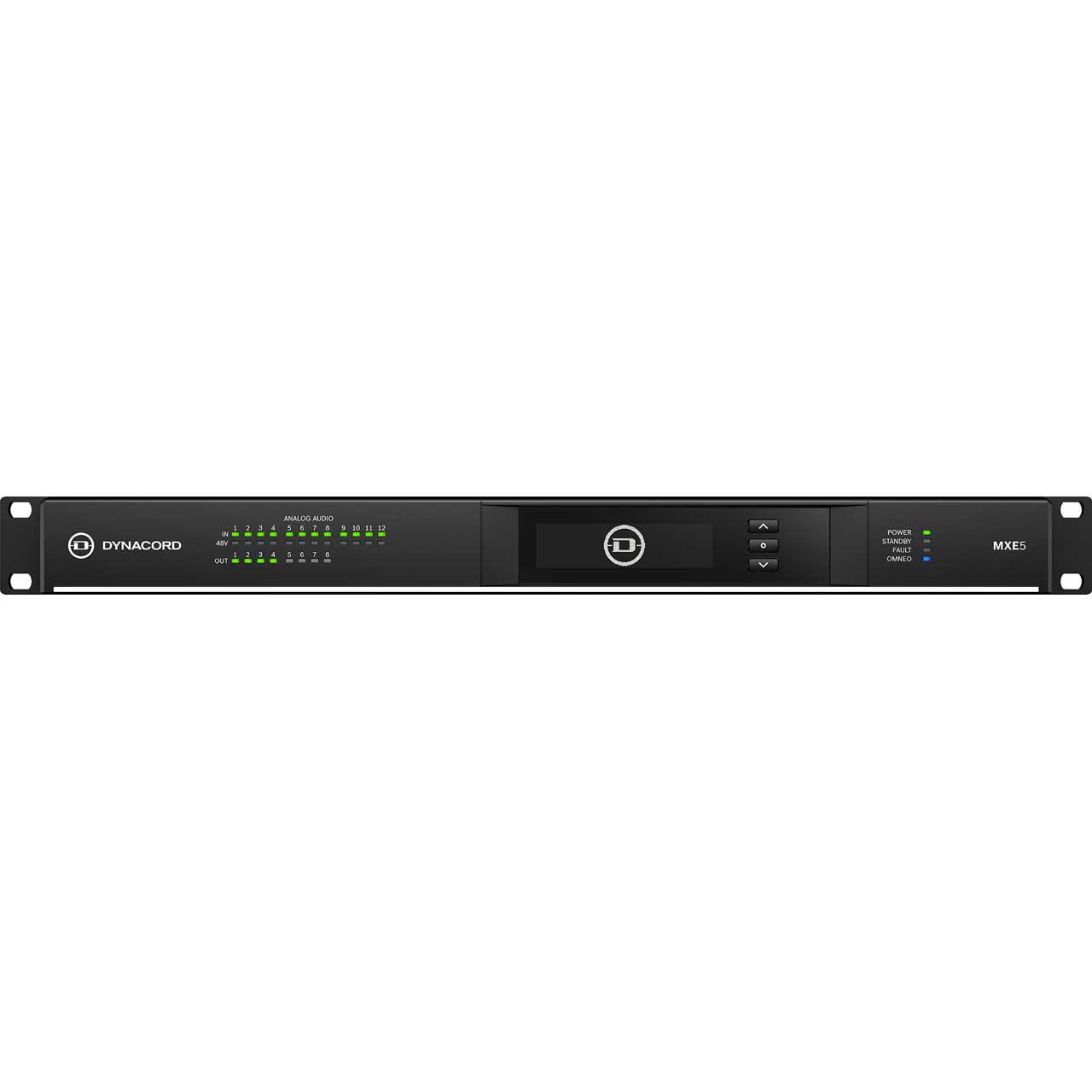

Dynacord MXE5 DSP Matrix Mix Engine 24x24 Channels

ITEM #: DYN-MXE5 MFG #: MXE5

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,853.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MXE5 - Overview

    The Dynacord MXE5 Matrix Mix Engine is a 24 x 24 audio matrix and system controller with professional sound quality, intuitive zone mixing features, Dante network and AES70 control. Featuring leading-edge 48 / 96 kHz signal processing, extremely low audio signal latencies, professional routing and mixing functionalities, it is the perfect fit for venues requiring high quality foreground music, such as stadiums and sports facilities, live music venues, contemporary churches, performing art centers, theatres, conference centers and clubs.

    MXE5 is completely integrated into Dynacord'sSONICUE Sound System Software for easy control. Dedicated user control is possible via the Touch Panel Controller with intelligent zone control and unique universal wall box compatibility.

    • Features:

      • DSP matrix mixer focused on performance audio
      • Combining matrix control with mixing functionality
      • 24x24 matrix with Dante/OCA
      • Controlled via SONICUE
      • 12 mic/line inputs, 8 line outputs
      • Highest-grade audio quality/latency specifications (>118 dB SNR, .002% THD, .22 ms @ 96 kHz)
      • Great solution for performance audio applications-house of worship, stadiums, theaters, conference centers, etc.
      • 24 x 24 channel matrix mixer

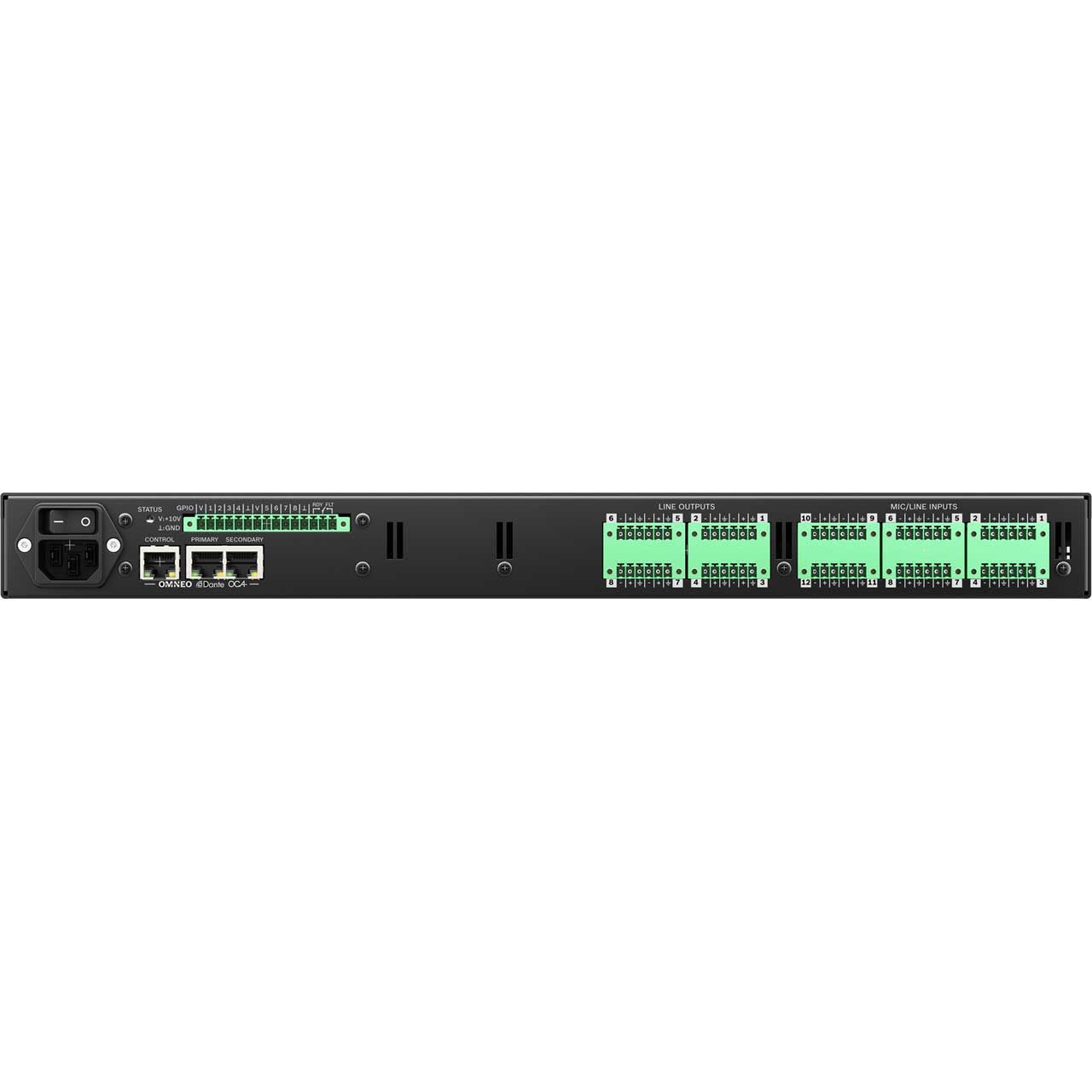

      • No cards required-system comes fully equipped with 12 analog inputs, 8 analog outputs, OMNEO ports (Dante, OCA), and 8 GPIOs for control & supervision
      • System can be run in multiple network topologies (Transparent, RSTP, Glitch Free)
      • Sonicue control/configuration software provides a user-friendly experience through its projected view of the entire system, as well as its guided workflow
      • Software comes with all Electro-Voice loudspeaker presets preloaded, while giving the user the option to upload custom preset files
      • Optional TPC-1 provides a completely customizable control interface that can be tailored to any customer's needs

    • Specifications:

      • Audio Specifications
      • Frequency Response:
        Ref. 1 kHz, Analog in to Analog Out, 48 kHz: 20 Hz to 20 kHz (±0.5 dB)
        Ref. 1 kHz, Analog in to Analog Out, 96 kHz: 20 Hz to 40 kHz (±0.5 dB)
      • Signal-to-Noise Ratio, A-weighted:
        Analog Input: > 118 dB
        Analog Output: > 118 dB
        Analog Input to Analog Output: > 115 dB
      • EIN Equivalent Input Noise 20 Hz to 20 kHz, A-weighted: < -128 dB
      • THD+N 1 dB below max., @ 1 kHz: < 0.002 %
      • Common Mode Rejection @ 1 kHz, nominal Level: > 70 dB
      • Phantom Power - Voltage @ Current: +48 V / 10 mA, switchable per analog input
      • Input Gain: 0 dB to +60 dB

        General Specifications
      • Power Requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
      • Power Consumption:
      • Operating Mode: 50 W typical, 55 W max
      • Standby Mode: < 27 W
      • Protections: High Temperature, Mains Over-/Undervoltage Protection
      • Cooling: Front-to-rear, temperature controlled fan
      • Ambient Temperature Limits: 23° to 113°F (-5° to +45°C)
      • Operating Altitude: 6561' (2000m)
      • IEC Protection Class: Class I (grounded)
      • Electromagnetic Environment: E1, E2, E3
      • Certifications CE, IEC 62368, IEC 60065, CAN/CSA 60065:16, UL Std No. 60065-2015, EN55032, EN61000-3-2, EN61000-3-3, EN55103-2, FCC Part 15 Class B, ICES-003, RoHS/WEEE compliant
      • Color: Black
      • Dimensions (WxHxD): 19.01 x 1.71 x 18.54" (483 x 43.5 x 471mm) (19", 1HU)
      • Weight: 13.2Lbs (6.0kg)
      • Shipping Weight: 17.9Lbs (8.1kg)

        Please Note: for a list of full specifications please see the Data Sheets Tab.

    • Item Includes:

      • 1x MXE5 DSP Matrix Mix Engine
      • 10x 6-pin Euroblock-type connector, inputs/outputs
      • 1x 15-pin Euroblock-type connector, control port/GPIO
      • 2x Mains input AC power cables, US- and EU-types
      • 1x Installation manual
      • 1x Safety instruction booklet

    • GTIN:

      4260451089962
