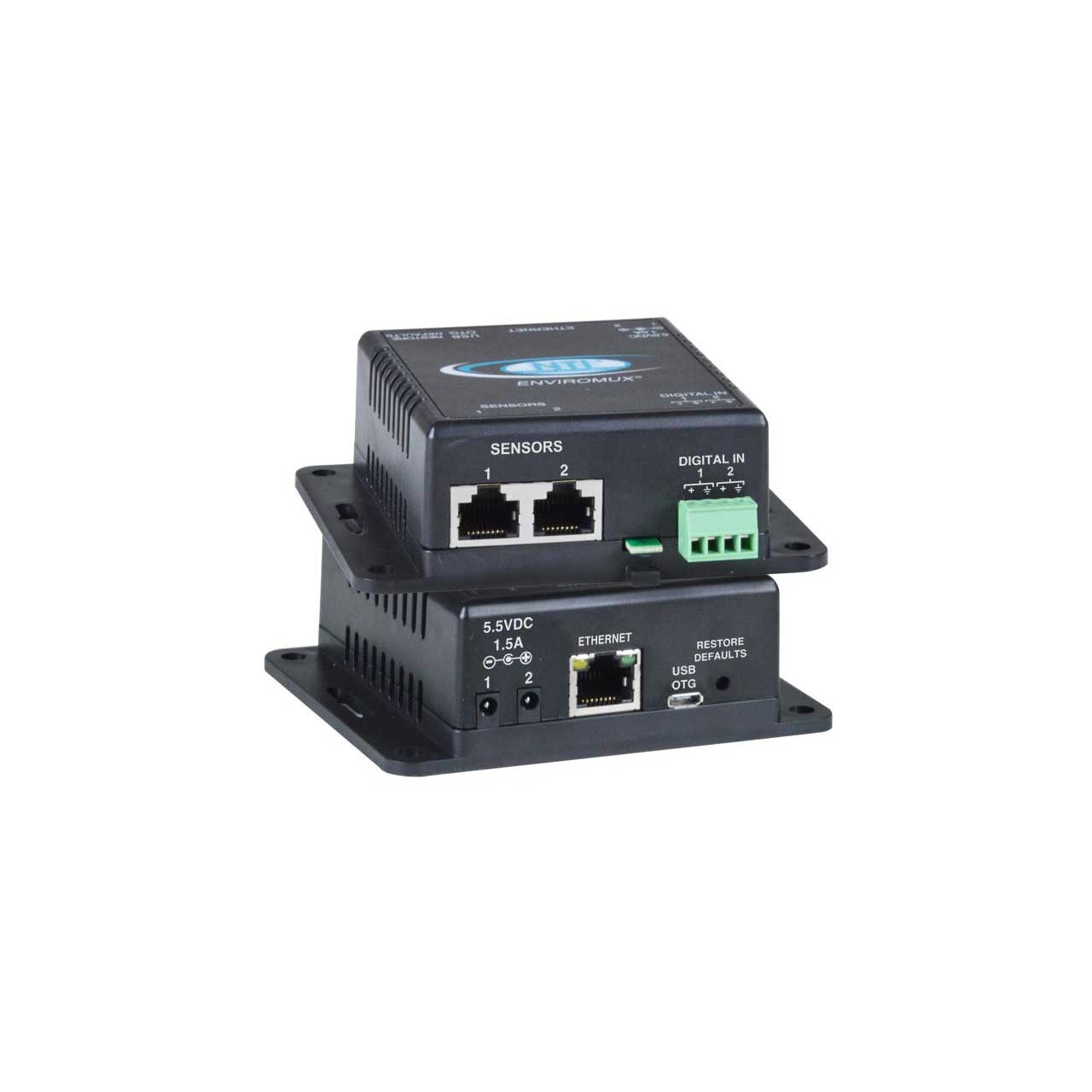

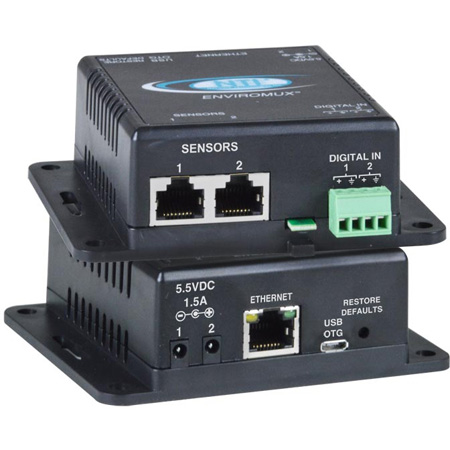

NTI ENVIROMUX MICRO-TRHP-TAA Micro Environment Monitoring System - Integrated Temp/Humidity Sensor - PoE


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    E-MICRO-TRHP-TAA - Overview

    The NTI E-MICRO-TRHP-TAA ENVIROMUX® Micro Environment Monitoring System (EMS) monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via email-to-SMS).

    The system functions independently or as an IP-connected remote sensor for the E-2D/5D/16D. The E-MICRO-T features an integrated temperature sensor, two RJ45 sensor ports for external temperature/humidity sensors, and two dry contact inputs. The E-MICRO-TRHP features an integrated temperature/humidity sensor, two RJ45 sensor ports for external temperature/humidity sensors, two dry contact inputs and built-in Power over Ethernet (PoE).

    • Features:

      • Sensors supported by a single E-MICRO:
      • 1 integrated temperature/humidity combination sensor
      • 2 RJ45 ports for external temperature/humidity sensors
      • 2 digital inputs sensitive to contact closure.
      • Dual DC power provides dual redundancy.
      • Available with optional built-in Power over Ethernet.
      • Sensors are hot pluggable.
      • Monitor (ping) up to 4 IP network devices - alerts are sent if devices are not responding.
      • Create multiple alerts for any installed sensor.
      • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
      • Configure up to 32 alerts, and one Smart Alert.
      • Alerts are posted in message log, which is accessible through Web user interface.
      • Supports NTI's IP network video cameras for live view of any facility.
      • Integrates with various Open Source SNMP monitoring packages - Nagios.
      • The unit can be polled via SNMP.
      • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
      • Choose between Enterprise Management Software or Low-Cost Management Software.
      • Optional iOS App or Android App provides an easy-to-use interface for monitoring sensor statuses and acknowledging/dismissing sensor alerts from an unlimited number of E-MICRO units.
      • Security: HTTPS, TLS v1.2, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
      • Integrated mounting brackets for easy surface/wall mounting.
      • Optional DIN mounting available.
      • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
      • Use the E-MICRO-TRH(P) with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
      • Configure, monitor, and receive alerts without the use of a wired network connection.
    • Specifications:

      • RJ45 Sensor Ports
      • Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
      • Three levels of user-defined alerts - normal, warning, critical.

        Dry Contact Closures
      • Two screw terminal pairs for connecting dry contact devices and the liquid detection sensor.

        USB Port
      • One female Micro USB connector - reserved for future use.

        Ethernet Port
      • One female RJ45 connector.
      • 10/100 Base-T Ethernet interface.

      • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, TLS v1.2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour.
      • Compatible with any SNMP management software.
      • The unit can be polled via SNMP.
      • Operates and configures via HTTP/HTTPS web page.
      • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
      • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
      • An IP address can be assigned to the E-MICRO automatically by a DHCP server.
      • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via email-to-SMS).
      • Alerts are posted in event log, which is accessible through Web user interface.
      • Email alerts can be sent to 9 addresses.
      • Users can configure the schedule for when they will be alerted.
      • Supports HTTP REST API to poll sensor data with response in JSON format.

      • Built-in Power over Ethernet and dual DC power provides triple redundancy.
      • Power over Ethernet standards supported: IEEE 802.3af, 802.3at.
      • Proprietary schemes such as Cisco Discovery Protocol are not supported.
      • Similar legacy switches and routers will have to use PWR-SPLY-ELC.
      • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
      • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
      • If two or more sources have exactly the same voltage, it will draw in part from each of them.
      • 110 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
      • Country-specific AC adapters sold separately (PWR-SPLY-ELC).
      • Input voltage: 5.5VDC ±5%
      • Power consumption: 4W max.
      • Use the PWR-48V-5-5V4A DC-DC power converter to install the E-MICRO in a 48V or 24V Telecom environment.

      • E-MICRO-TRHP: 628,394 hours.

      • Operating & Storage Temperature: -4 to 167™F (-20 to 75™C).
      • Operating & Storage Relative Humidity: 0 to 90% non-condensing RH.

      • Regulatory Approvals: CE, RoHS.
    • Warranty:

      • Two years
