Elation Professional ENO435 eNode2 Compact 2-Universe Ethernet DMX Node Powered over Ethernet

ITEM #: ELAT-ENO435 MFG #: ENO435

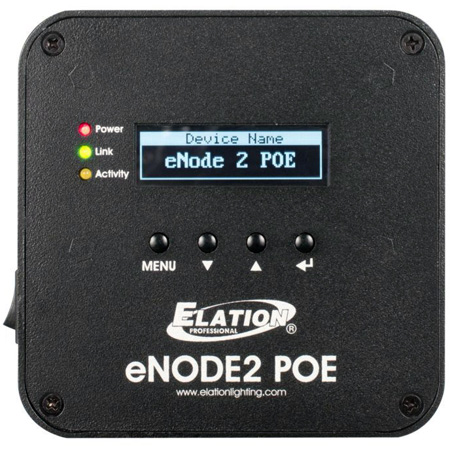

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ELAT-ENO435

ENO435 - Overview

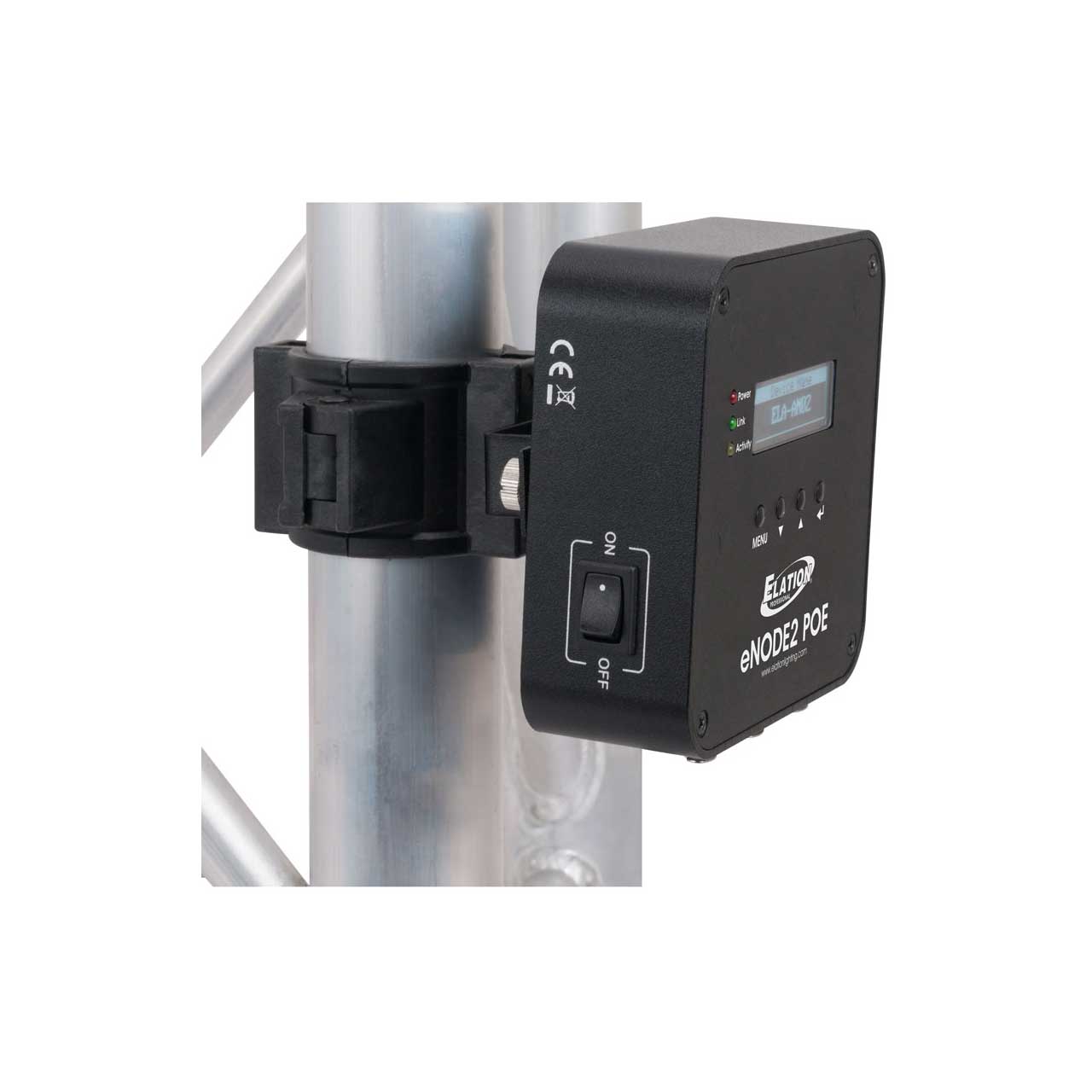

The eNode 2 POE™ is a compact 2-universe Ethernet-DMX node powered over Ethernet (POE), no external power supply or cord is needed. Supports Art-Net, sACN and RDM compatible DMX control systems utilizing a single RJ45 auto-switching 10/100Mbps ethernet. input and two multi-configuration 5pin DMX data outputs. Features include DMX bilateral conversion support, sACN auto-detection, variable MAC address assignable, a 4-button control panel, an OLED system menu display, 3 LED status indicators, compact and lightweight die-cast aluminum housing, and a mini omega bracket for easy clamp/truss mounting

  • Features:

    • Compact 2-Universe Ethernet-DMX Node
    • POE (Power over Ethernet)
    • DMX, RDM, Art-Net, and sACN Protocol Support
    • DMX Bilateral Conversion Support Compact
    • sACN Auto-Detection
    • Variable MAC Address Assignable
    • Compact Lightweight Die-Cast Aluminum Housing
    • Easy Clamp/Truss Mounting

  • Specifications:

    • Control / Connections:
    • 2-Universe Support
    • DMX, RDM, Art-Net, and sACN Protocol Support
    • DMX Bilateral Conversion
    • sACN Auto-Detection
    • 4-Button Control Panel

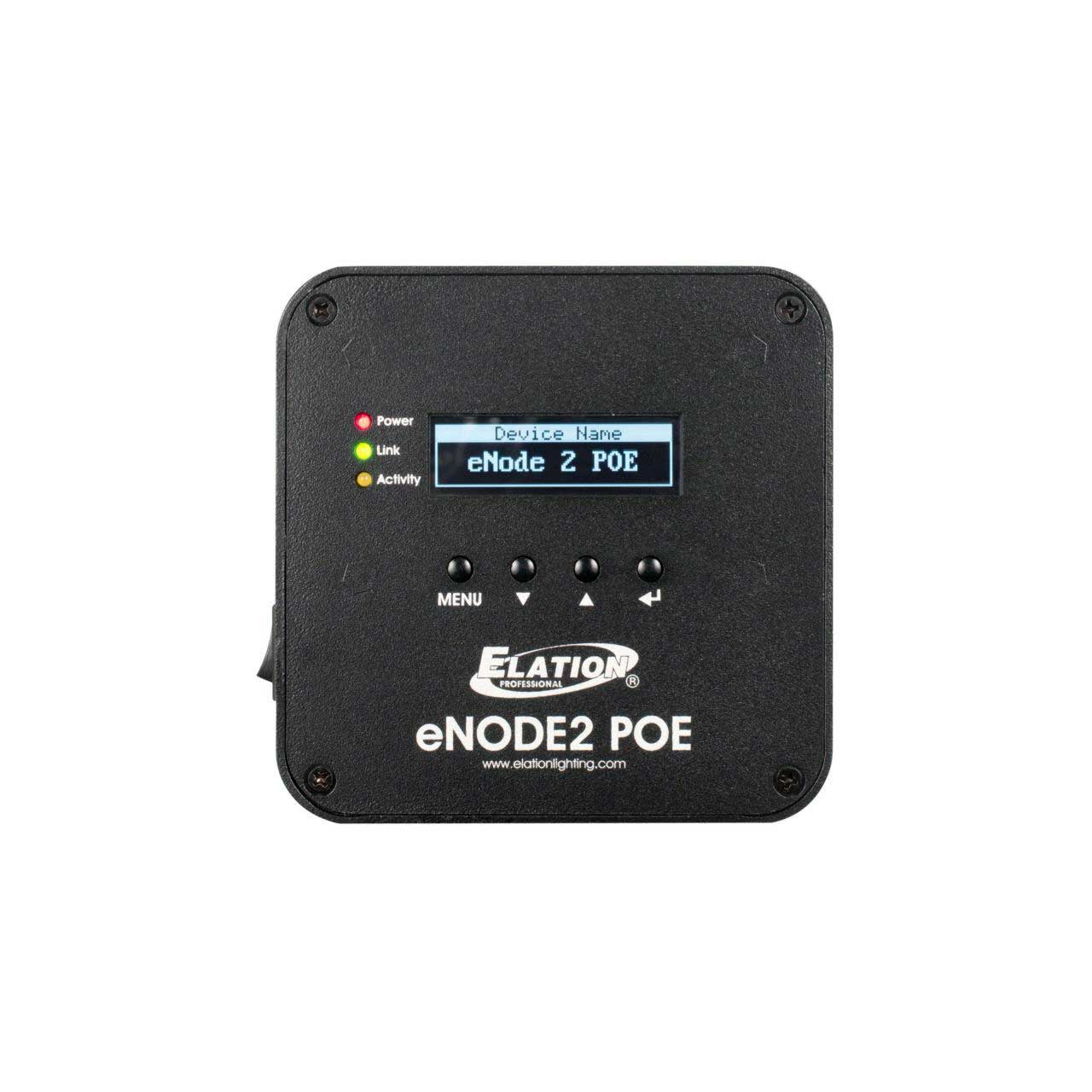

    • OLED System Menu Display
    • (3) LED Status Indicators

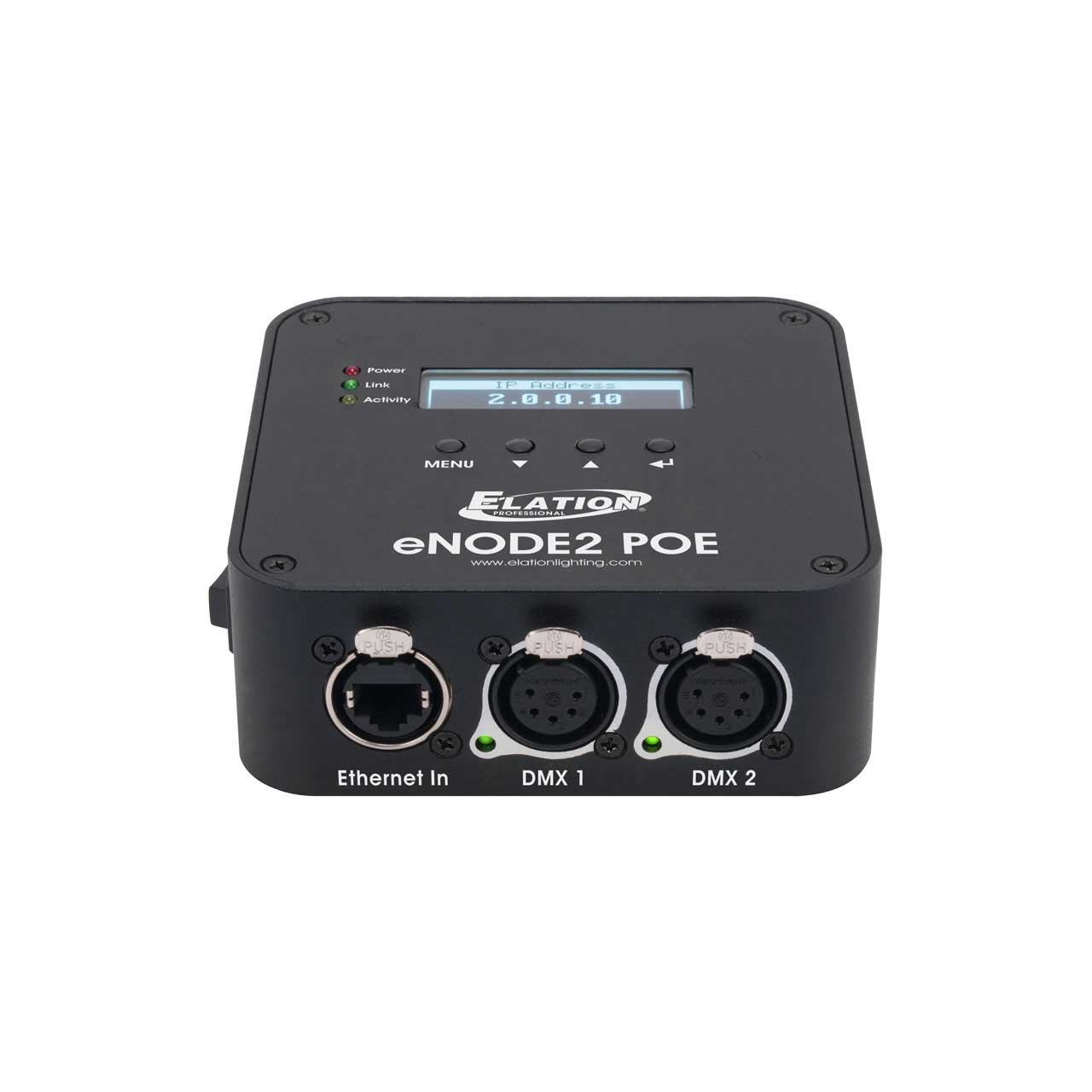

    • (1) Auto-Switching 10/100Mbps RJ45 EtherCON Input
    • (2) Multi-Configuration 5pin DMX Data Outputs

      Size / Weight:
    • Length: 10"" (255mm)
    • Width: 6.8"" (173mm)
    • Vertical Height: 1.7"" (43mm)
    • Weight: 3.5 lbs. (1.6kg)

      Electrical:
    • POE (Power over Ethernet)
    • 2.6W Max Power Consumption

      Approval / Ratings:
    • ETL Approved

  • Item Includes:

    • 1x ENO435 DMX Node Powered over Ethernet
    • 1x Power Cable

  • Warranty:

    • 2 Year

  • GTIN:

    0837874005004
