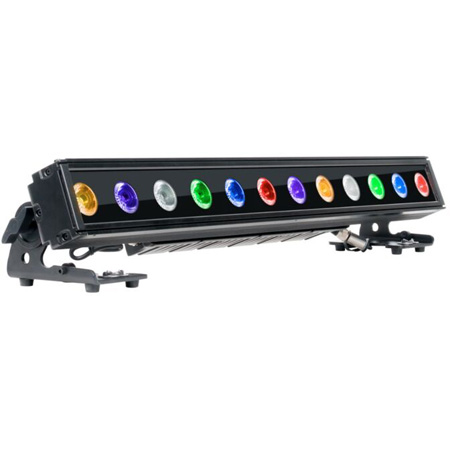

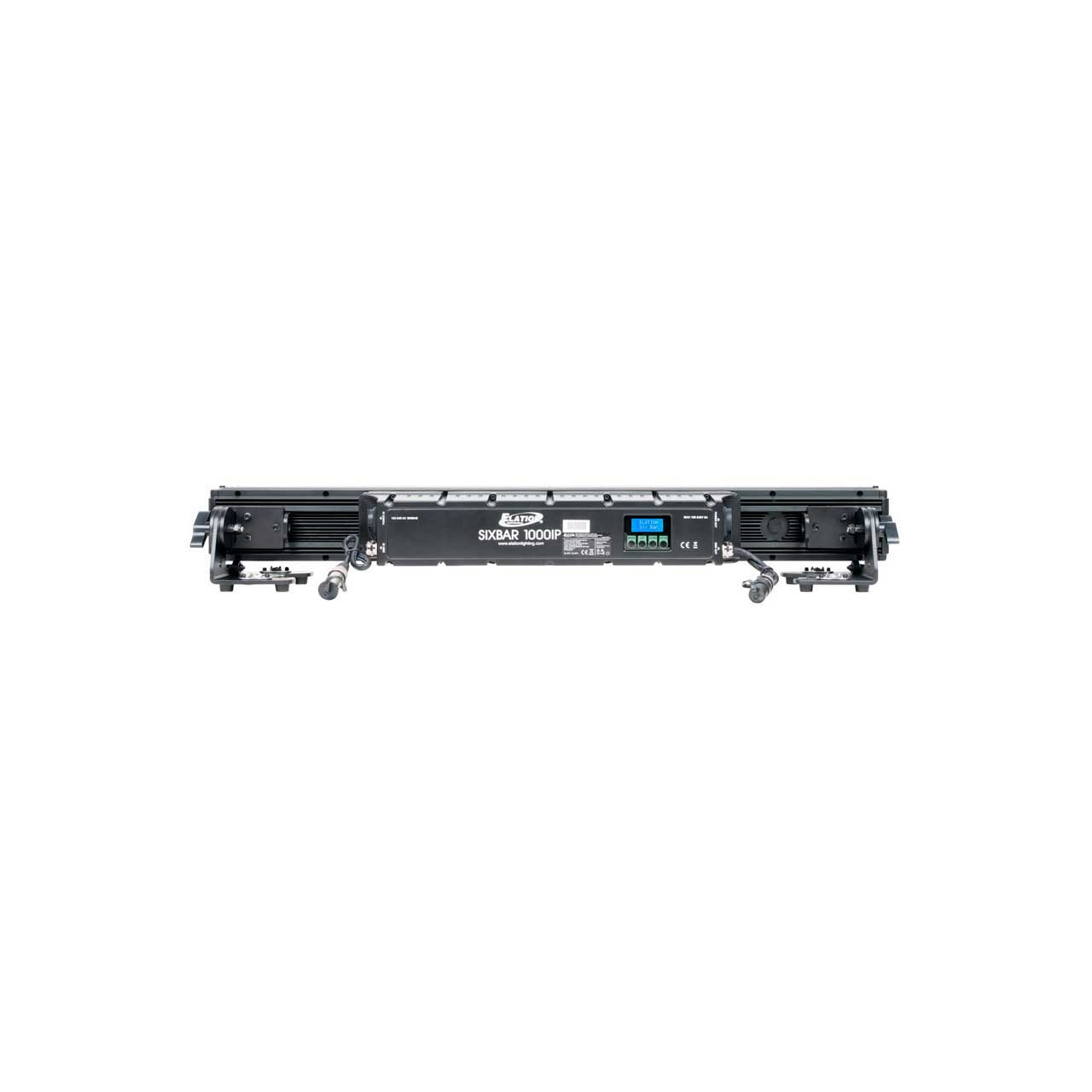

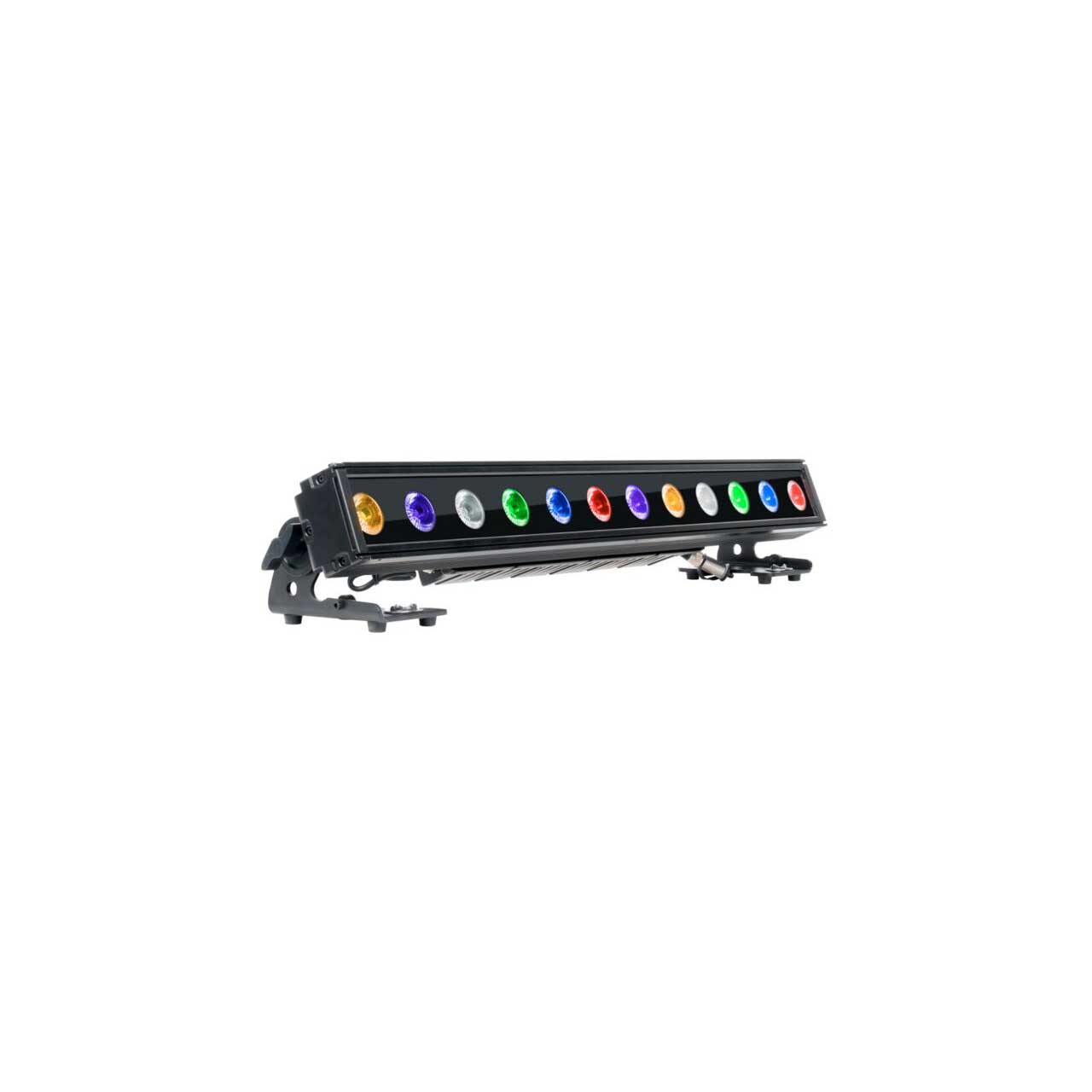

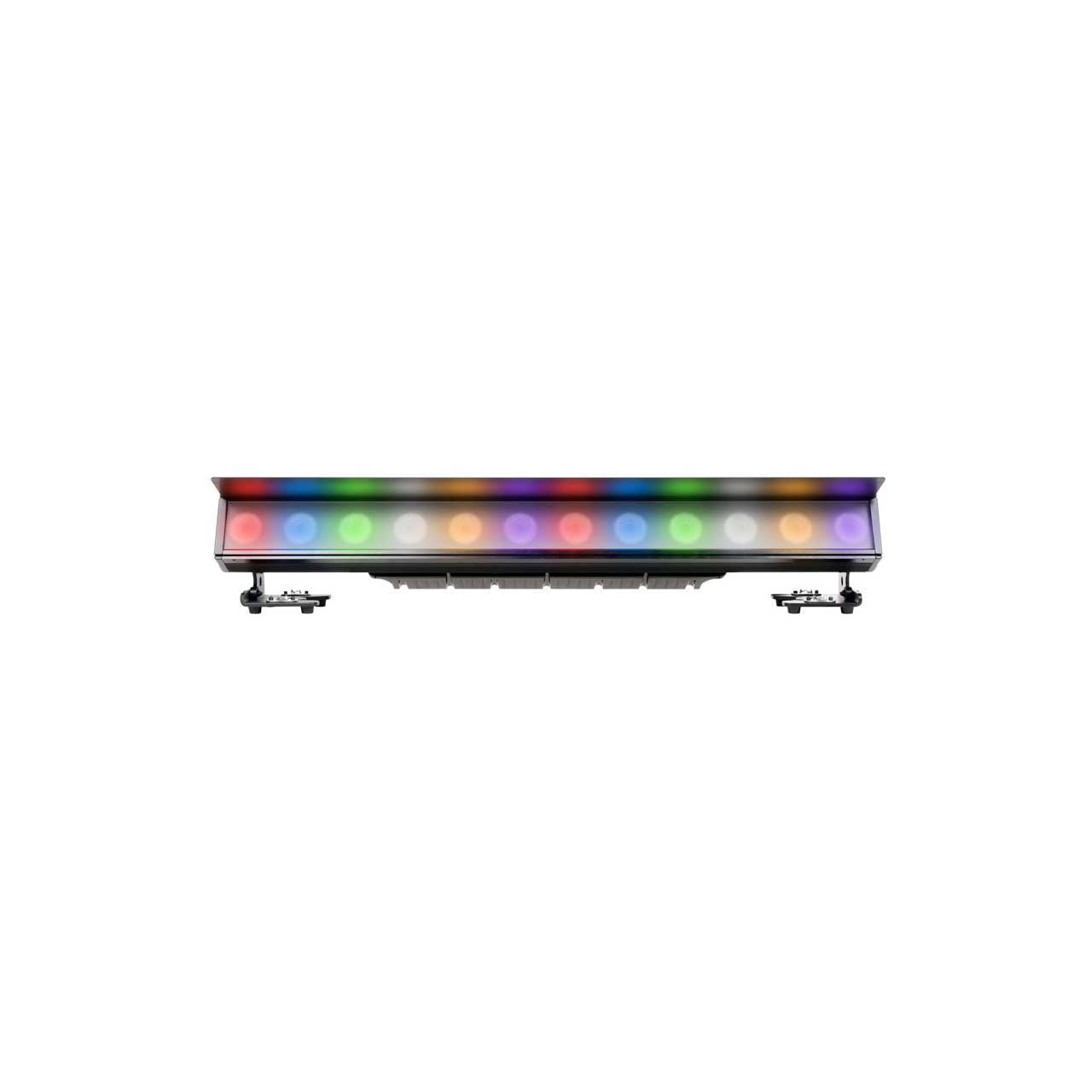

Elation Professional SIX098 Sixbar 1000 IP65 Rated 6-in-1 RGBAW Plus UV LEDs Batten Fixture

SIX098 - Overview

• Features:

  • IP65 Rated
  • 12 x 12W 6-in-1 RGBAW+UV LEDs
  • 25° Beam Angle
  • Pixel Control
  • Rugged Die-Cast Aluminum Exterior
  • Glare Shield and (2) Lens Filters Included


• Specifications:

  • Source:
  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 Hour Average LED Life**
  • **LED Life may vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

    Photometric Data:
  • 7,149 LUX 664 FC @3.3’ (1m) (25° Full ON)

    Effects:
  • Pixel Control
  • Strobe and Chase Effects
  • Variable and Selectable Dimming Curves

    Control / Connections:
  • (8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
  • 4 Button Touch Control Panel and LCD Menu Display
  • RDM (Remote Device Management)
  • IP Rated 5pin DMX In/Out
  • IP65 Locking Power Cable In/Out
  • With Wired Digital Communication Network

    Size / Weight (Dimensions Without Glare Shield):
  • Length: 33.6” (853mm)
  • Width: 5.6” (141.4mm)
  • Vertical Height: 4.7” (120.5mm)
  • Weight: 19.0 lbs. (8.6 kg)

    Electrical / Thermal:
  • AC 110-240V - 50/60Hz
  • 145W Max Power Consumption
  • Multiple Unit Power Linking
  • 5°F to 113°F (-15°C to 45°C)
  • UV Wavelength: 395nm

    Approvals / Ratings:
  • CE
  • cETLus
  • IP65


• Item Includes:

  • 1x Power Cable


• Warranty:

  • 2 Year


• GTIN:

  0837874019643
