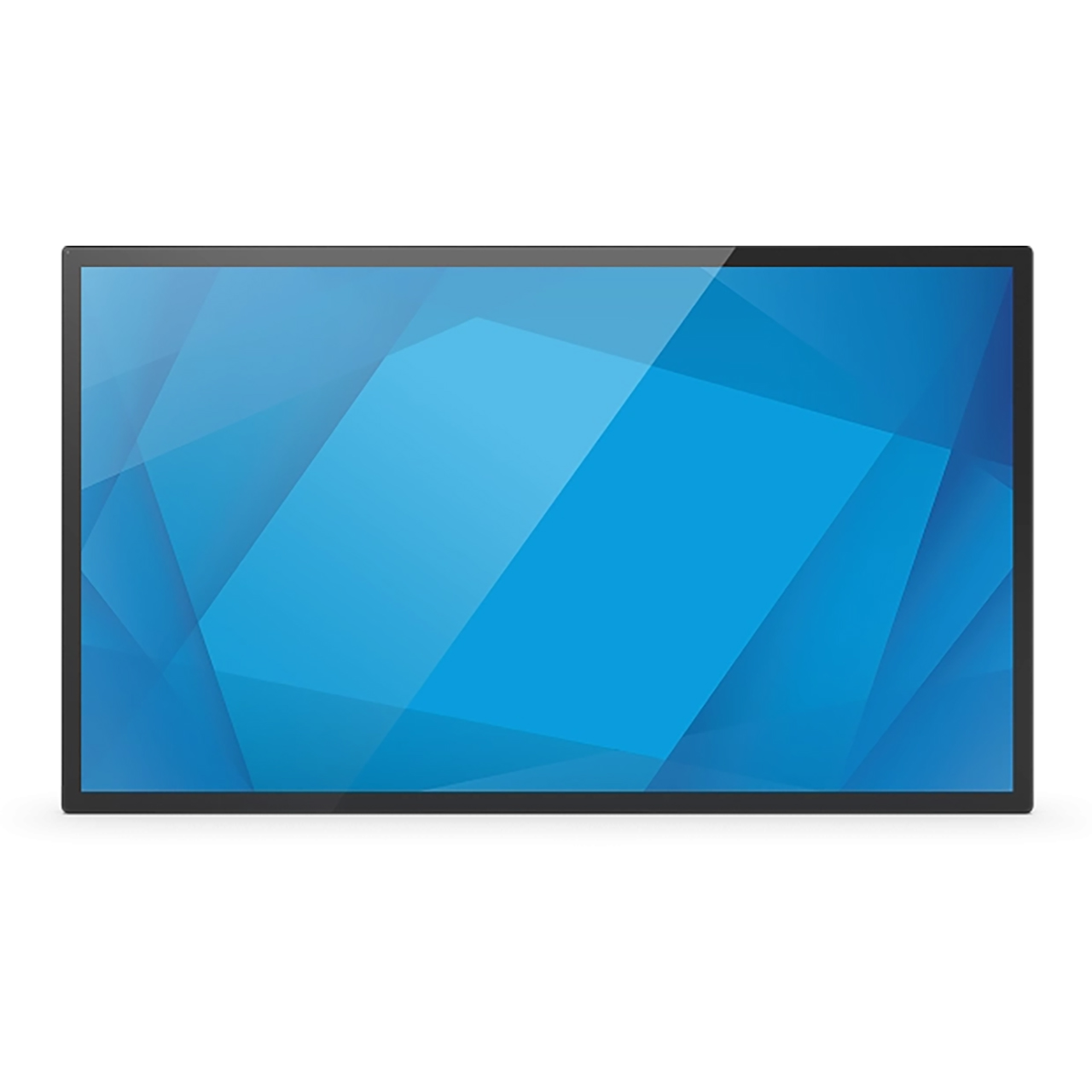

ELO 5554L 55 Inch Commercial Grade 4K LED Anti-Glare Touchscreen Interactive Digital Signage Monitor

ITEM #: ELO-E104520 MFG #: ELO-E104520-N

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,161.00

Our Price:

$3,119.94

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


ELO-E104520-N - Overview

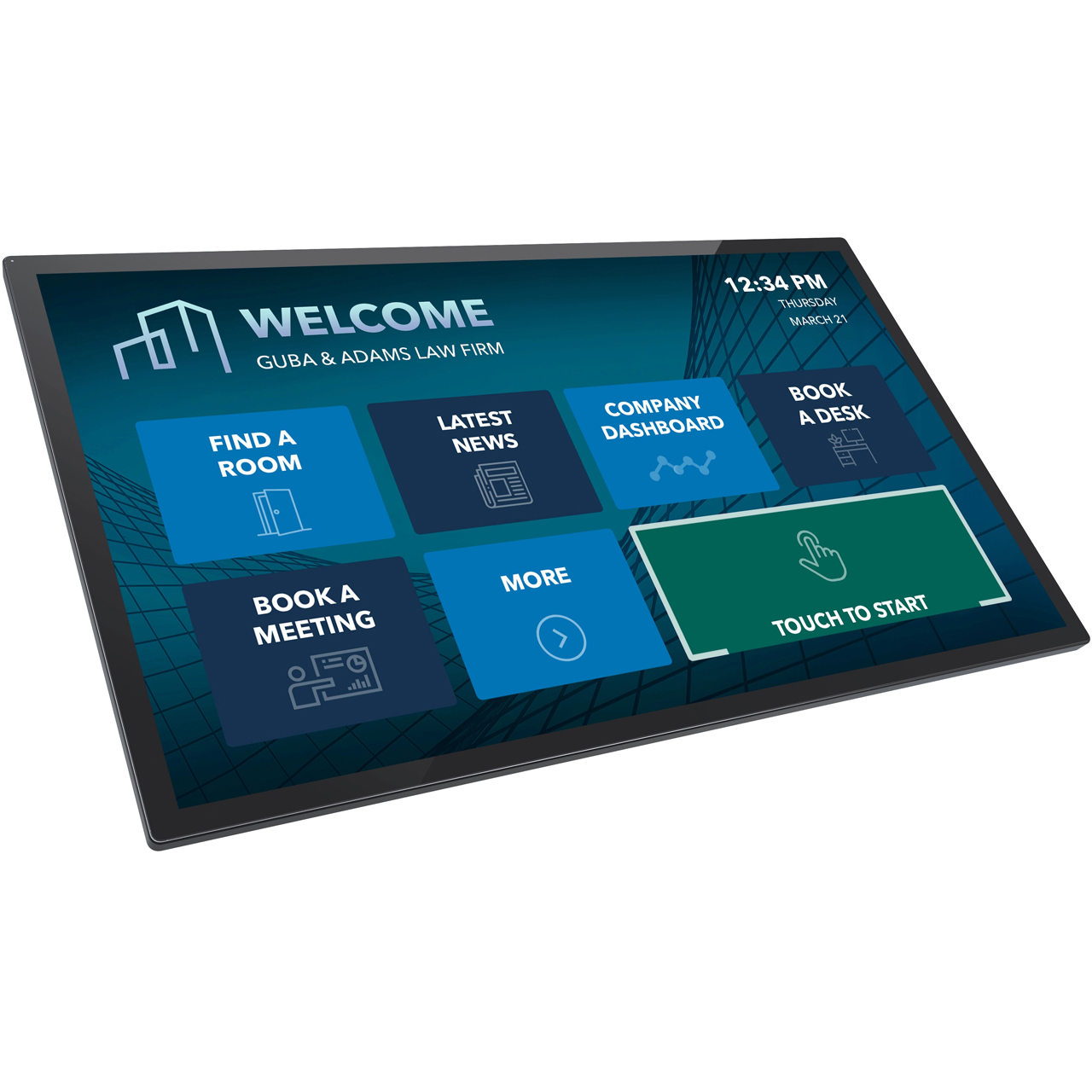

The ELO E104520-N 54.6-inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5554L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 54.6-inch tablet.

Touch Thru Glass Enabled with PCAP

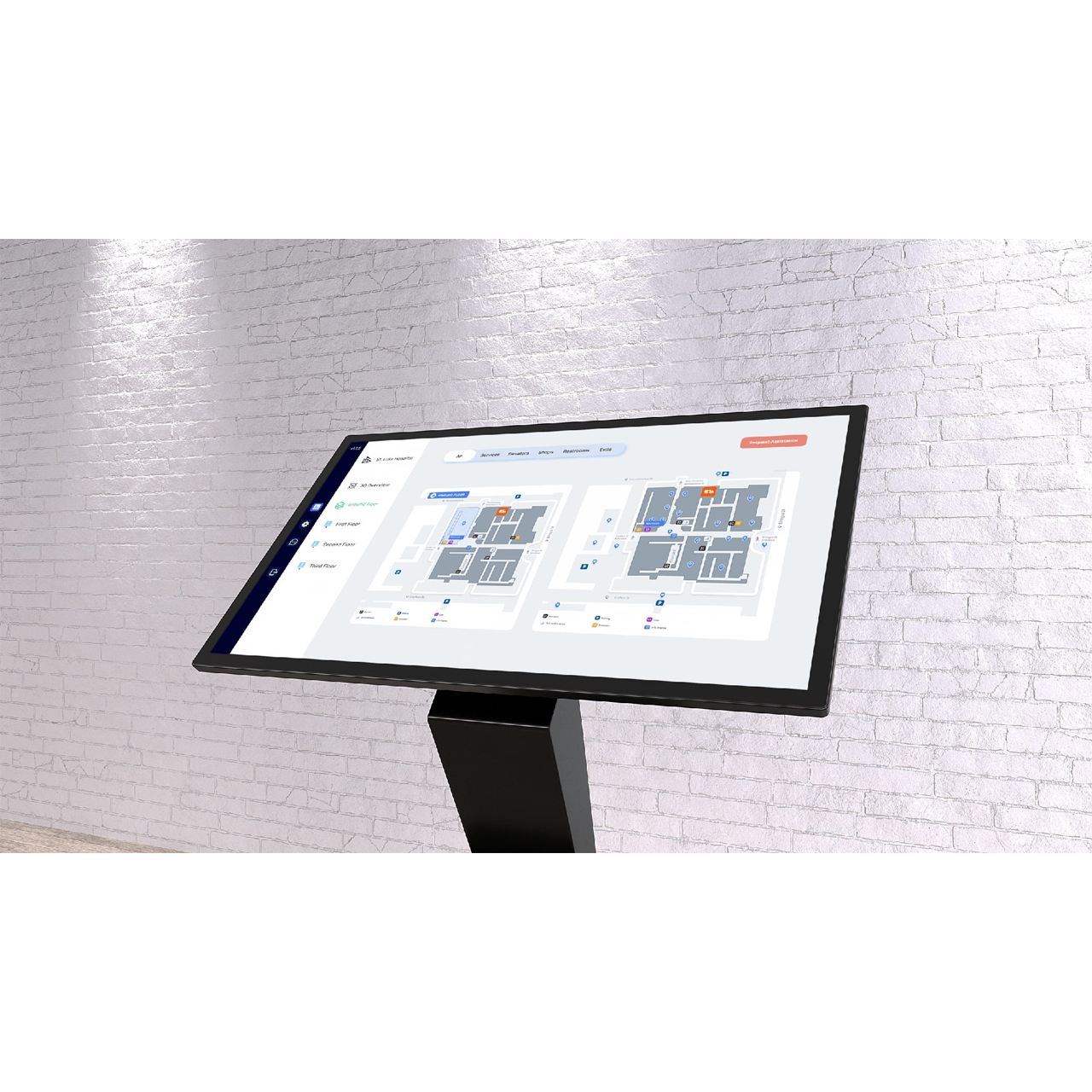

With touch thru capability, Elo's TouchPro PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Remote Device Management Enabled with EloView
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

Designed for the Demands of Commercial Environments
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo's 5554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5554L for diverse international markets.

  • Features:

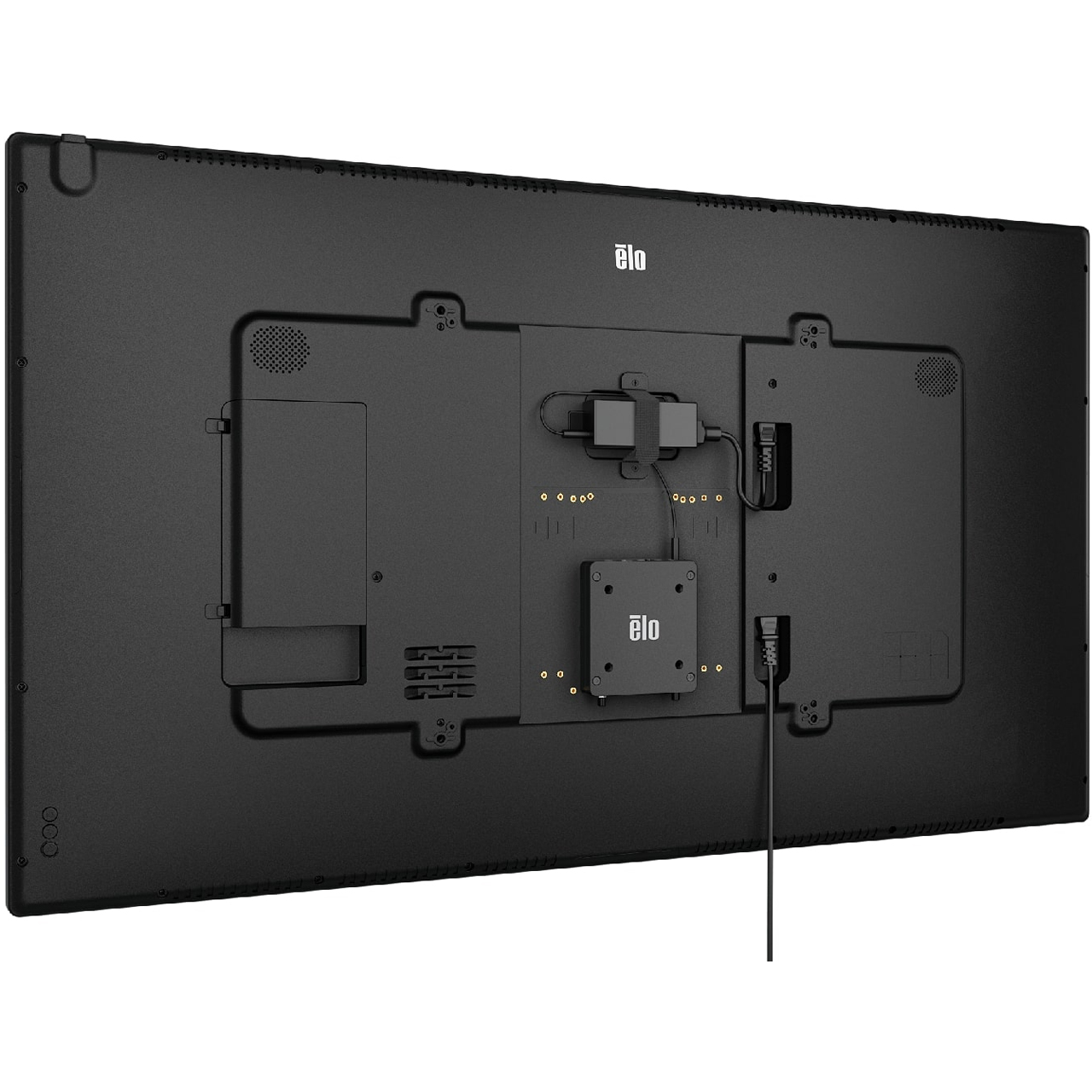

    • VESA for PC mounting
    • Power brick and power cable mounting
    • External PC power passthrough
    • Contained cable routing
    • Touch thru glass

  • Specifications:

    • Display Type: LCD Monitor
    • Display Format: 4K Ultra HD
    • Display Technology: TFT
    • Max Resolution: 3840x2160 @ 60HZ
    • Other Resolutions:
      - 640x480 @ 60Hz
      - 800x600 @ 56/60Hz
      - 1024x768 @ 60Hz
      - 1280x720 @ 60Hz
      - 1280x960 @ 60Hz
      - 1280x1024 @ 60Hz
      - 1920x1080 @ 50/60Hz
      - 2560x1440 @ 60Hz
      - 2560x1600 @ 60Hz
      - 3840x2160 @ 30/60Hz
    • Display Diagonal Size: 54.6 Inch
    • Color Support: 10-Bit (1.07 Billion Colors)
    • Response Time: 8msec
    • Refresh Rate: 60Hz
    • Image Contrast Ratio: 1100:1
    • Brightness: 450 nits
    • Image Aspect Ratio: 16:9
    • Screen Type: Anti-glare
    • Modes: Energy Saving Mode; Picture Mode
    • Picture Enhancements: None
    • Network Connectivity: LAN

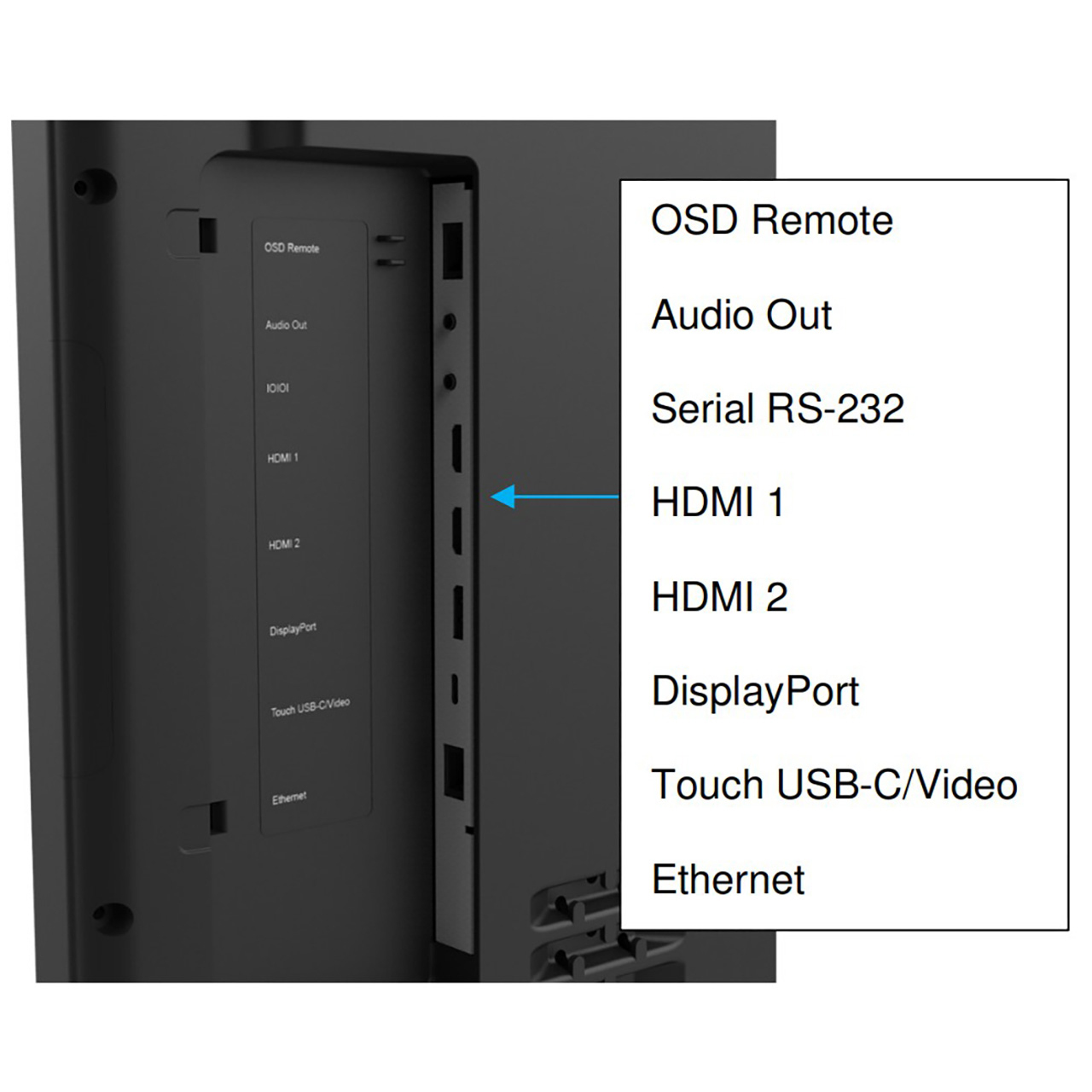

    • Interfaces:
      - 2x HDMI 2.0
      - 1x USB-C (for Touch control and Video input)
      - 1x USB-A (for Wi-Fi Adapter only)
      - 1x RJ45 (for IoT LAN port)
      - 1x RJ45 (for optional OSD remote)
      - 1x DisplayPort 1.4
      - 1x 3.5mm TRS jack (for RS232/MDC)
      - 1x 3.5mm Audio Headphones out
      - 4x Elo Edge Connect Micro USB 2.0
    • Video Interfaces:
      - 2x HDMI on Type A connector (HDCP-capable)
      - 1x DisplayPort 1.2 connector (HDCP-capable)
      - 1x USB-C connector (HDCP-capable)
    • Power Consumption Operational: 110.72W
    • Power Consumption Sleeping: 1.52W
    • Power Consumption (Off Mode): 0.38W
    • Power/Voltage Required: 100-240VAC 50/60Hz
    • Color: Black
    • Stand: None
    • VESA Mount Compatible: 400mm x 400mm; 600mm x 600mm
    • Dimensions (WxDxH): 50.07" x 29.24" x 2.76"
    • Weight: 66.6lbs (30.2kg)
    • Humidity Range Operating: 20% - 80%

  • Item Includes:

    • 1x 5554L Interactive Display
    • 1x Quick Install Guide
    • 1x AC (in) Power cable, IEC 60320-C13 to NA plug
    • 1x AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m) (With PSE certified)
    • 1x USB cable (1m) (Connector: Type-C to Type-C)
    • 4x M4x6mm flat head screws (for BrightSign players)

  • Warranty:

    • 1 Year Limited Warranty
