ELO E155834 1002L 10-Inch Class LCD Touchscreen Digital Signage Monitor - 16:10 - 29ms - TouchPro Projected Capacitive

ITEM #: ELO-E155834 MFG #: E155834

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$470.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


E155834 - Overview

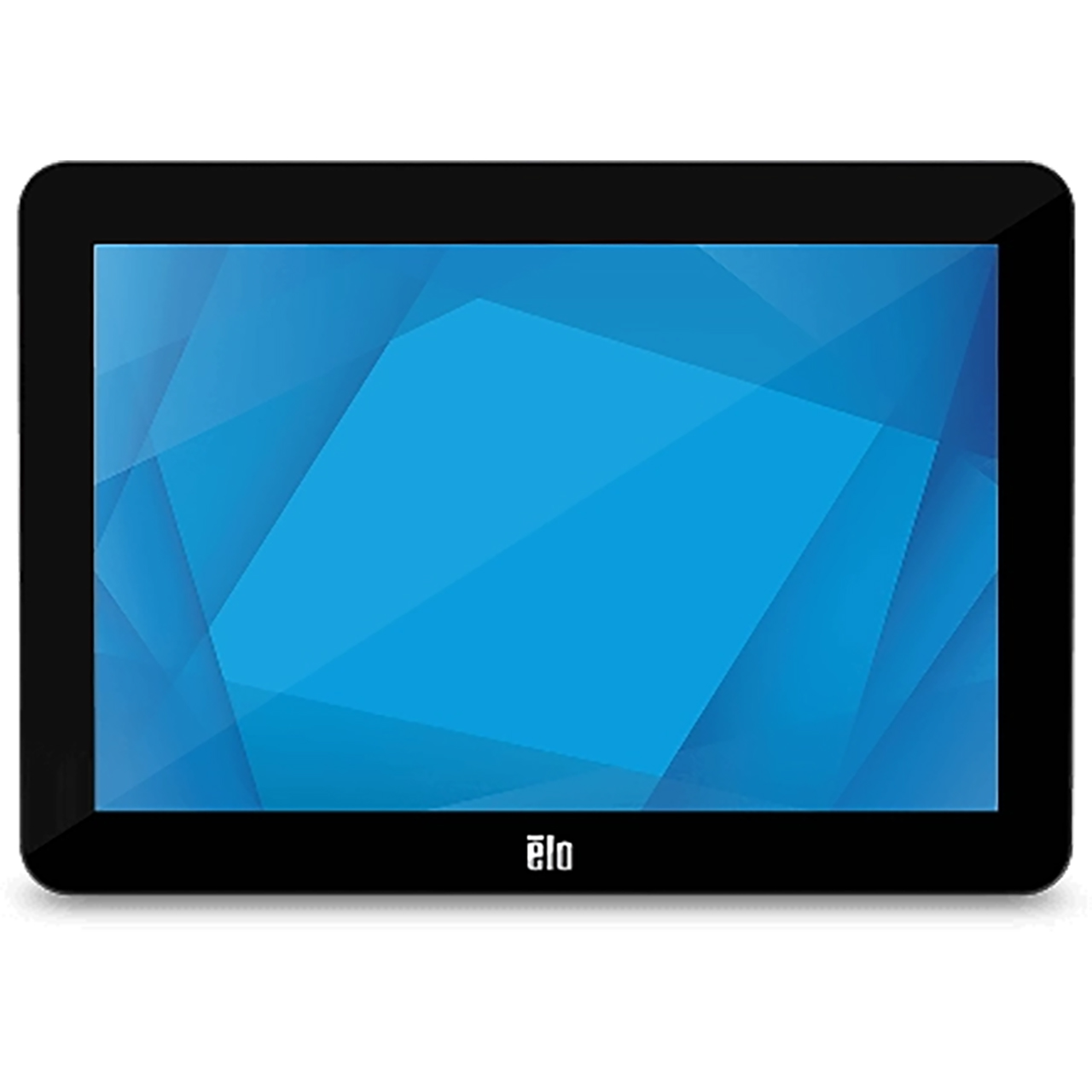

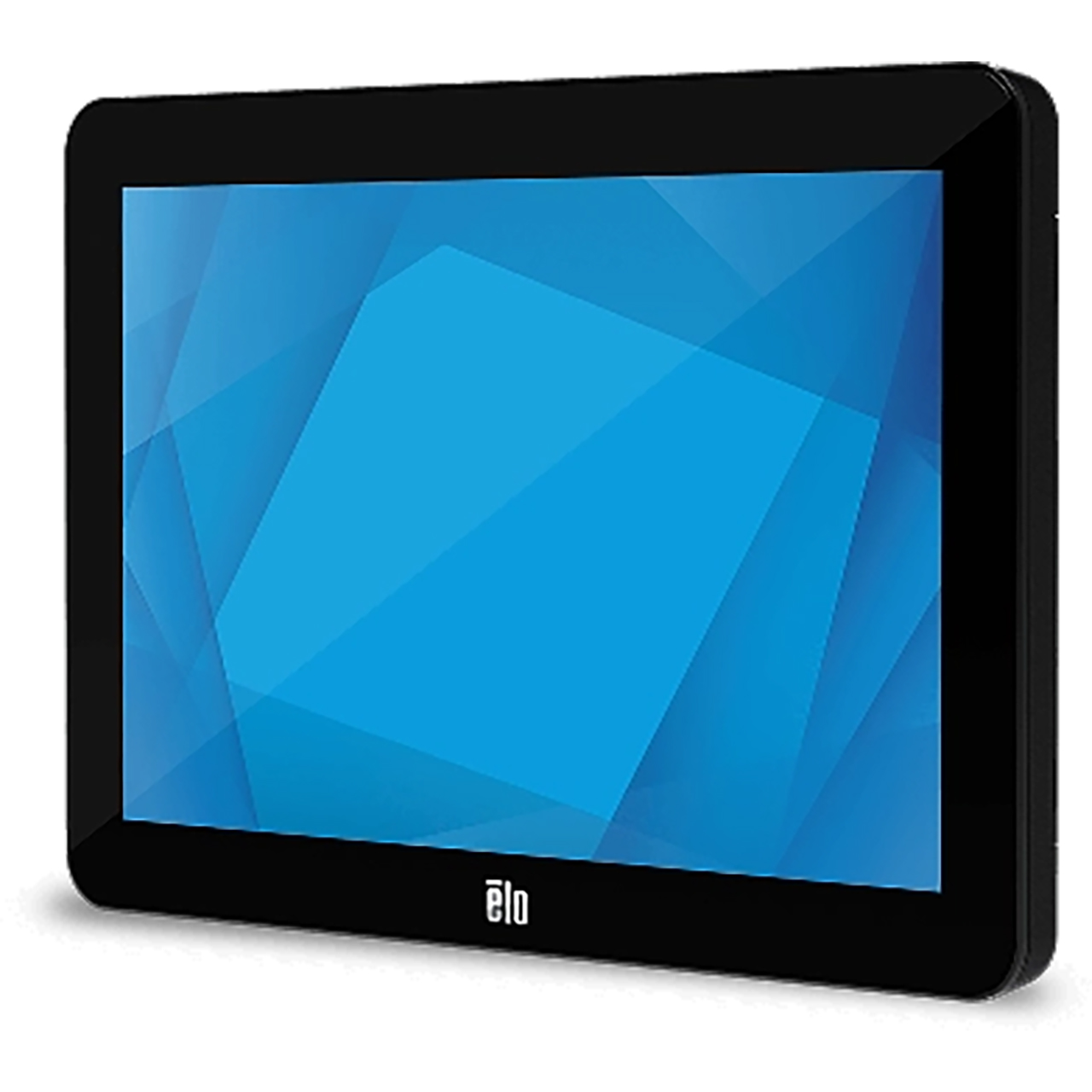

Elo's 1002L Touchscreen Monitor
The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection
The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You. One for Your Customers.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

Applications:
- Retail
- Hospitality
- Government
- Restaurant
- Industrial

  • Features:

    • USB Type-C interface that provides touch, video and power connectivity
    • Multiple mounting options including - stand, wall mount and pole mount
    • Touchscreen is compatible with use of finger, glove and stylus
    • IK05 Impact protection
    • TouchPro PCAP Technology

  • Specifications:

    • Color: Black
    • Active Display Area: 8.54" x 5.34" (216.96mm x 135.6mm)
    • LCD Technology: Active matrix TFT LCD
    • Diagonal Size: 10.1" (256.54mm)
    • Native Resolution: 1280 x 800
    • Other Supported Resolutions: 640 x 480 60Hz, 800 x 600 60Hz, 1024 x 768 60Hz, 1280 x 800 60Hz, 1920 x 1080 60Hz, 1920 x 1200 60Hz
    • Aspect Ratio: 16:10
    • Number of Colors: 262,000
    • Touch Technology: TouchPro PCAP
    • Number of Touches: 10-touch
    • Brightness (typical): LCD Panel: 350 nits; PCAP + DC power: 315 nits; PCAP + USB-C 5V power: 200 nits
    • Response Time (Tr + Tf) (typical): 29 msec
    • Viewing Angle (typical):
      - Horizontal: ±85° or 170° total
      - Vertical: ±85° or 170° total
    • Contrast Ratio (typical): 800:1
    • On-Screen Display (OSD):
      - Accessible through switches along the bottom. Controls: Menu, Power, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port;
      - Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
      - Lockouts: OSD, Power
    • I/O Ports: USB Type-C, Audio jack (Line-in), VGA (Micro-HDMI female connecter), HDMI, 12V D/C input , 3x Micro-USB ports (Top, Left, Right)
    • Video:
      - Analog VGA, HDMI, USB Type-C (Suggest using Elo USB Type-C to Type-C cable (E710364) to prevent any compatibility issues)
      - Input Video Horizontal Sync frequency range: 31.5 - 80KHz; Input Video Vertical Sync (frame rate); frequency range: 60Hz
    • Power:
      - Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A
      - Option 2: External DC Adapter 12V/36W in box
      - Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (±0.3mm) barrel inner diameter, 8.8mm (±0.3mm) Barrel depth)
      - Monitor input voltage range: 12VDC ±5%
      - Adapter output power connector: DC barrel plug (2.1mm (±0.1mm) pin inner diameter, 5.5mm (±0.05mm) barrel outer diameter, 9.5mm (±0.3mm) Barrel length)
      - Adapter Input Voltage Range: 100V - 240VAC
      - Input Frequency: 50-60Hz
      - Power Consumption (Typical) monitor + AC/DC adapter: ON: 7.43W; SLEEP: 1.26W; OFF: 0.2W
    • Speakers: 2x 2W internal speakers
    • Weight:
      - Unpackaged: 1.95lbs (0.8842kg)
      - Packaged: 4.02lbs (1.8266kg)
    • Dimensions: 9.86" x 6.51" x 1.12" (250.42mm x 165.31mm x 28.45mm)
    • Shipping Dimensions: 12.4" x 9.57" x 5.67" (315mm x 243mm x 144mm)

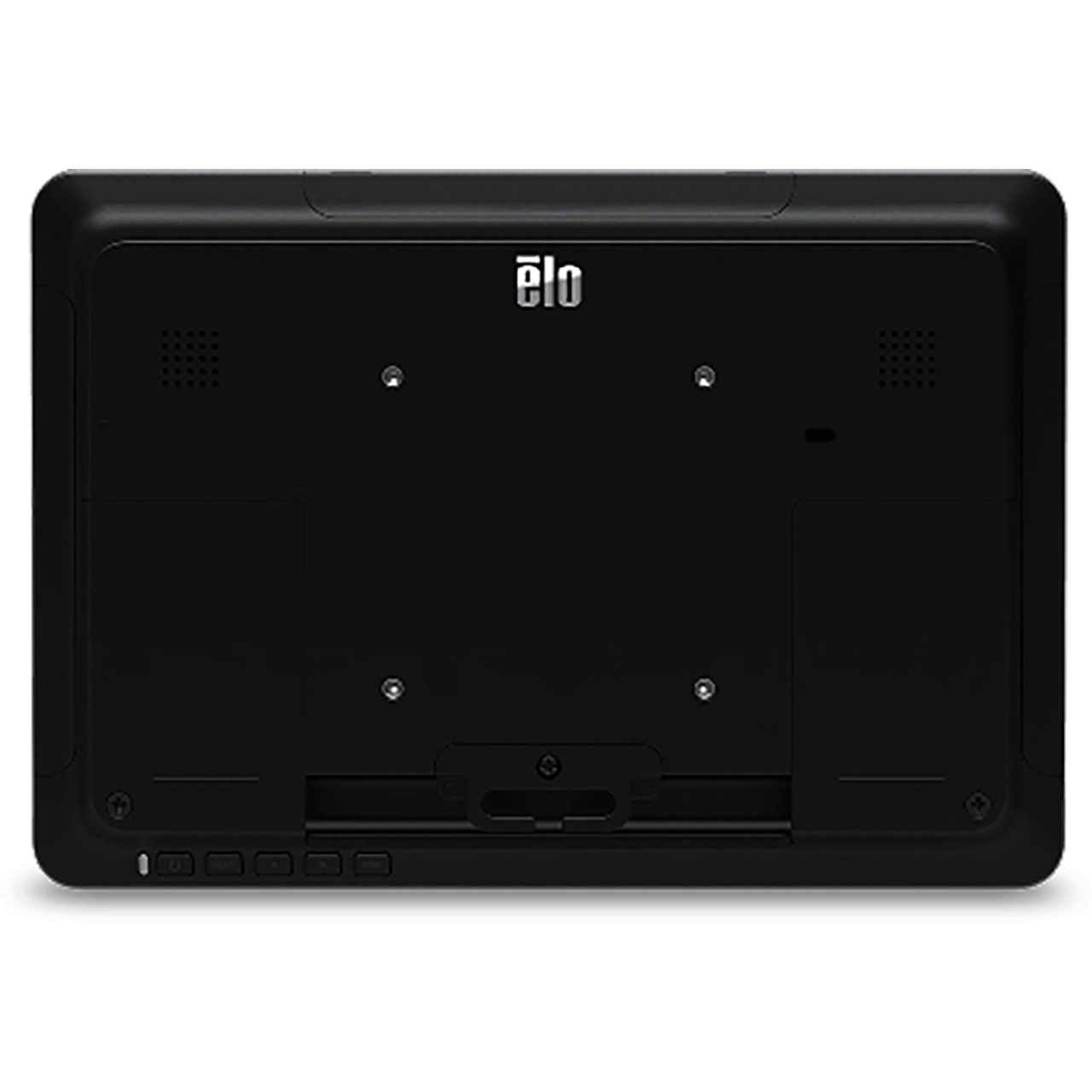

    • Mounting Options: VESA 4-hole 75mm mounting interface on rear of unit; Optional tabletop and pole mount stands available for purchase
    • Temperature:
      - Operating: 32°F - 104°F (0°C - 40°C)
      - Storage: -4°F - 140°F (-20°C - 60°C)
    • Humidity (non-condensing):
      - Operating: 20% - 80%
      - Storage: 10% - 95% (38.7° max wet bulb temperature)
    • Ingress Protection: IPX1 for front side
    • MTBF: 50,000 hours demonstrated

  • Item Includes:

    • 1x Touch Monitor
    • 1x HDMI cable
    • 1x USB Cable (USB Type-A to Type-C)
    • 1x Quick Install Guide
    • 1x EEI Label
    • 1x Power brick
    • 1x NA Power cable
    • 1x EU Power cable
    • 2x Cable clamps
    • 2x Tie wraps
    • 3x Screws (M3x8mm) for cable clamps
    • 2x Screws (M3x10mm) for cable doors

  • Warranty:

    • 3 Year Limited Warranty
