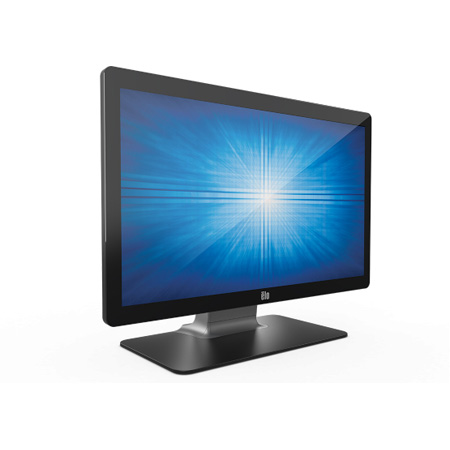

Elo E351806 2402L 24 Inch LCD Touchscreen Monitor

ITEM #: ELO-E351806 MFG #: E351806

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

E351806 - Overview

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Fingerprint Scanner
The Biometric Fingerprint Scanner can be attached to provide secure and quick login.

Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Barcode Scanner
Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

  • Features:

    • TFT Active Matrix Display Technology
    • VGA & HDMI Inputs
    • 1920 x 1080 Resolution
    • 1000:1 Contrast Ratio
    • 250 cd/m² Brightness
    • 178°/178° Viewing Angles
    • 15 ms Response Time
    • 16.7M Colors
    • 10-Point Multi-Touch Functionality
    • Attaches to Optional Peripherals
  • Specifications:

    • Enclosure Color: Black
    • Touch Technology & Capacity: PCAP (TouchPror Projected Capacitive) - 10 Touch
    • Diagonal Size: 23.8'' diagonal, Active matrix TFT LCD (LED)
    • Aspect Ratio: 16:9
    • Active Area (mm): 20.75" x 11.67" / 527.04 mm x 296.46 mm
    • Resolution: 1920 x 1080 @ 50, 60Hz
    • Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
    • Number of Colors: 16.7 million
    • Brightness (typical): LCD Panel: 250 nits
    • TouchPro PCAP: 225 nits
    • Response Time-total (typical): 16 msec
    • Contrast Ratio: 1000:1
    • Touch Interface: USB
    • Surface Treatment: Clear
    • I/O Ports:
      Combo Jack
      DC jack
      USB Type B
      USB 2.0 Type A
      4x Micro USB
    • Speakers: Two x 2W internal speakers
    • Input Video Format: VGA (VGA DE-15 (DB-15) Male connecter cable included) HDMI (HDMI cable included)
    • Input Video Frequency: Horizontal: 30 - 82KHz Vertical: 50 - 75Hz
    • Power Consumption (Typical):
      Monitor + AC/DC adapter
      ON (Default - 75% Brightness): 14.33 W
      ON (Typical - 100% Brightness): 16.81 W
      SLEEP: 0.974 W
      OFF: 0.279 W
    • Input Voltage: 12VDC +/- 5%, 100-240VAC, 50/60Hz
    • Input Connector: Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
    • Peripheral Mounting: 4x Micro USB side ports (Top, Bottom, Left, Right)
    • Monitor Dimensions (without Stand): 13.28" x 22.62" x 1.69" / 337.2 mm x 574.6 mm x 42.8 mm
    • Monitor Dimensions (with Stand): 17.04" x 22.62" x 9.17" / 432.9 mm x 574.6 mm x 233 mm
    • Shipping Box Dimensions: With Stand: 20.71" x 26.77" x 12.52" / 526 mm x 680 mm x 318 mm
  • GTIN:
