Ensemble Designs BrightEye 57 3G/HD/SD/Composite TSG & SPG w/Audio
  • Ensemble Designs BrightEye 57 3G/HD/SD/Composite TSG & SPG w/Audio
  • Ensemble Designs BrightEye 57 3G/HD/SD/Composite TSG & SPG w/Audio
  • Ensemble Designs BrightEye 57 3G/HD/SD/Composite TSG & SPG w/Audio
Questions? Ask a Markertek Expert:
800-522-2025 Email

Ensemble Designs BrightEye 57 3G/HD/SD/Composite TSG & SPG w/Audio

Manufacturer: Ensemble Designs

Item #: ENDE-BE57   •   MFG #: BE57


List Price:$4,500.00
Our Price:$4,275.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -

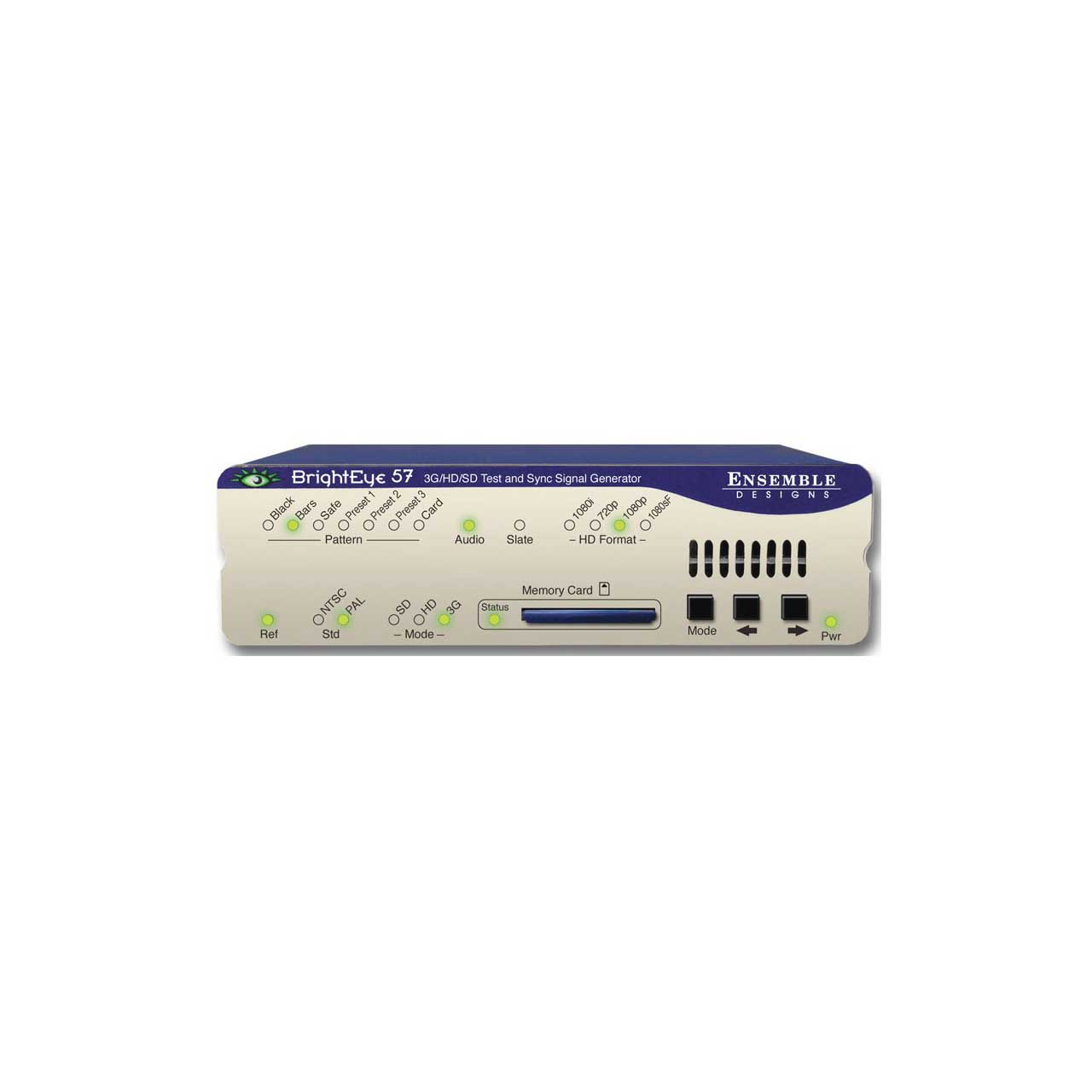

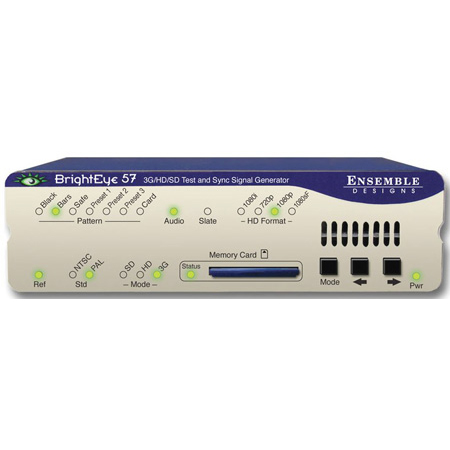

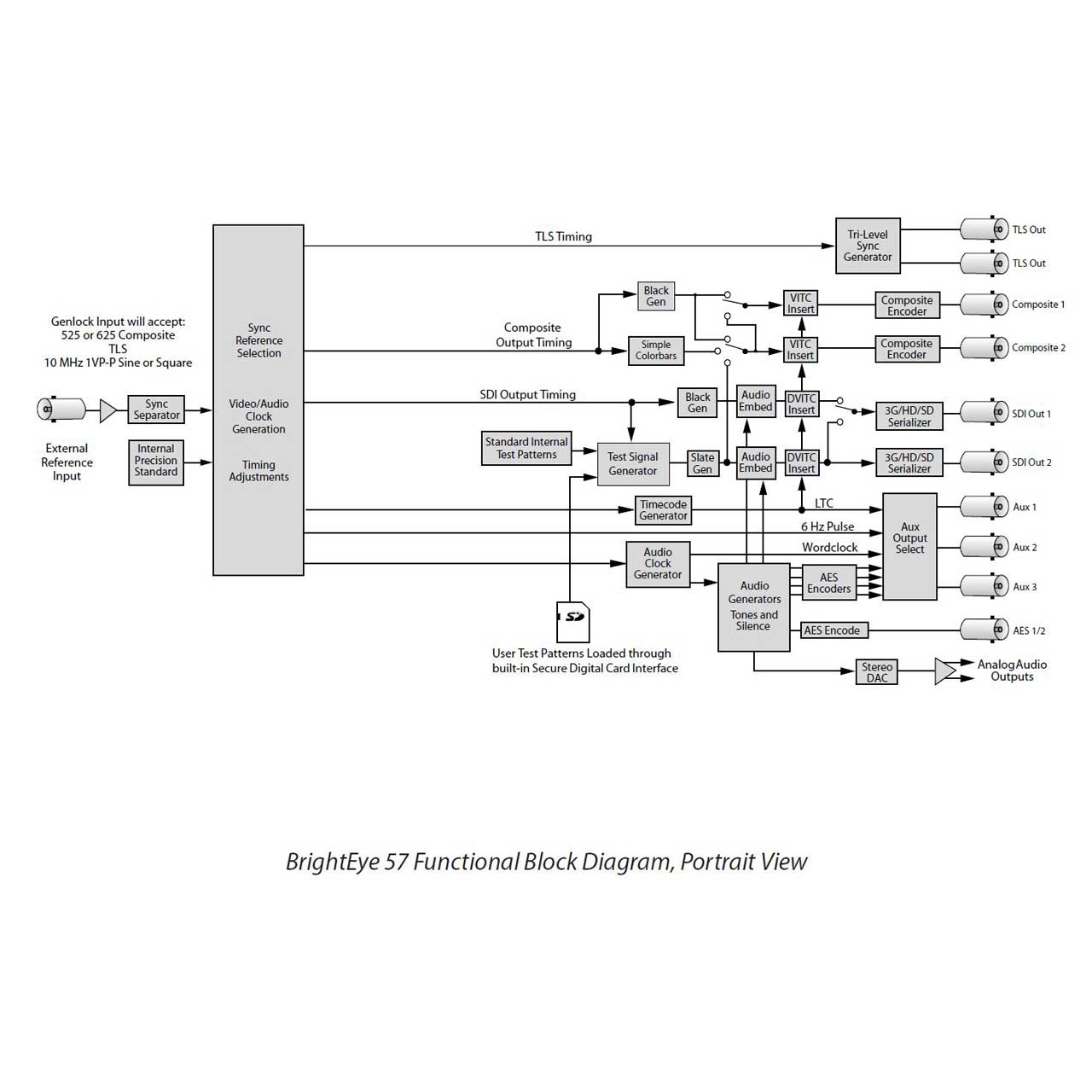

    BrightEye 57 is a genlockable sync generator and test signal generator that can be used as either a slave or master reference generator. It can lock to house reference or it can lock to its own internal precision standard. BrightEye 57 is well suited for remote trucks, post, helicopters and fly packs.

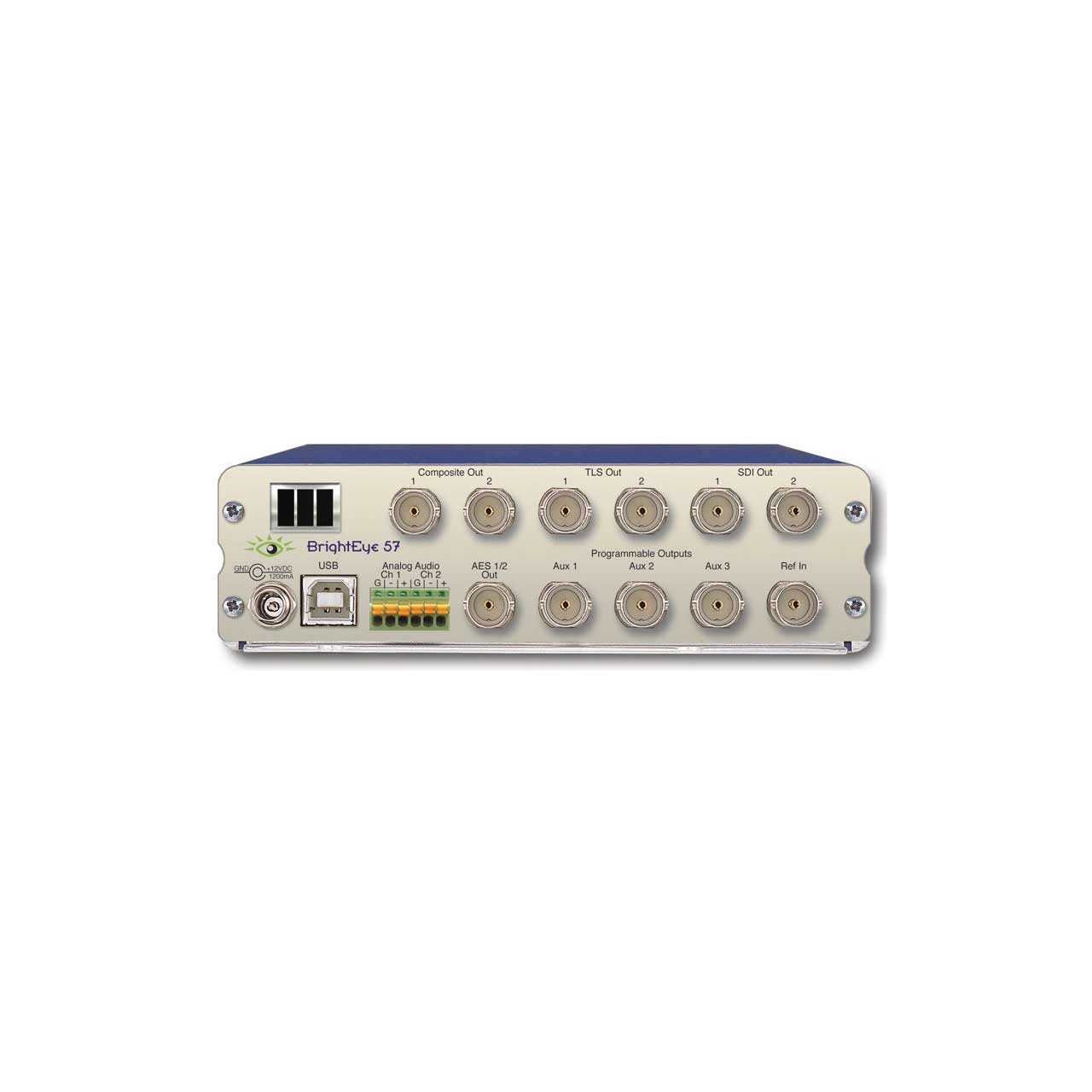

    1.5 Gb/s HD, 3 Gb/s HD or SD SDI test signals or black with embedder is output on the SDI BNCs. 3G Level A and Level B are supported. Composite, HD Tri-Level Sync and AES digital audio outputs are also provided. There are three user Programmable Outputs that are selectable between AES, LTC, Wordclock or 6 Hz Pulse. Analog audio and AES outputs provide tone or silence.

    Color Black, Bars, Crosshatch, Multi-burst, and SDI Checkfield (Pathogenic) are just some of the signals simultaneously available on the SDI and analog composite outputs. The Cyclops feature adds a motion element to the selected video test signal. An ID slate with user programmable text can overlay the test pattern.

    The internal Time Code Generator feeds DVITC on the SDI outputs and VITC on the composite outputs, Time Code can also be selected in LTC form on the programmable Aux outputs.

    In addition to the standard suite of test patterns, users can create custom test patterns on a computer. Using BrightEye Pattern Generator software, simply transfer test patterns to the included Secure Digital flash memory card and then insert the memory card into the front of the BrightEye 57. Test patterns can include motion and an associated audio clip such as voice over or station ID. File formats supported: .tga, .wav, .mp3, .wma.

    Many controls can be adjusted through the intuitive front panel. BrightEye Mac and PC software provide a complete user interface for all adjustments and controls.

    For facilities and manufacturers using 3 Gb/s video, BrightEye units can be combined to form a complete 3G signal chain. The BrightEye 57 test signal generator's 3G output can be distributed through the BrightEye 43 3G distribution amplifier or the BrightEye 46 and BrightEye 48 E/O 3G fiber optical transmitter/receiver set.

    Power supply and 2 GB SD Flash Memory Card are included.

    • Specifications

      • Reference Input
      • Number: One
      • Signal Type: 1V P-P PAL, NTSC, 10 MHz or HD Tri-Level Sync
      • Return Loss: >40 dB DC to 5.5 MHz Composite Output
      • Number: Two
      • Signal Type: NTSC / PAL
      • Impedance: 75 Ohm
      • Return Loss: >40 dB DC to 5.5 MHz
      • Frequency Response: -0.1 dB 10 KHz to 5.0 MHz
      • Output DC: Ý50 mV
      • K Factor: <1.0%
      • Differential Phase: <1.0 degree
      • SCH Phase: Ý5 degrees

        Accuracy and Timing Stability
      • Internal: TCXO
      • PAL Fsc: 4.43361875 MHz +/- 1 Hz
      • NTSC Fsc: 3.579545 MHz +/- 1 Hz
      • 601 Fs: 27.000000 MHz +/- 5 Hz
      • Long Term Drift: <1 ppm/year
      • Analog Jitter: <1 ns
      • Digital Jitter: <0.2 UI (0.13 UI typical)

        Serial Digital Output
      • Number: Two
      • Signal Type:
      • 270 Mb/s SD Serial Digital (SMPTE 259M)1.485 Gb/s HD Serial Digital (SMPTE 274M, 292M or 296M)2.97 Gb/s HD Serial Digital (SMPTE 424M, 425M)
      • Return Loss:
      • >15 dB to 1.485 GHz
      • >10 dB to 2.97 GHz
      • Max Cable Length:
      • 300 meters for 270 Mb/s
      • 100 meters for 1.485 Gb/s
      • 70 meters for 2.97 Gb/s (Belden 1694A)

        Tri-Level Sync Output
      • Number: Two, 75 Ohm
      • Output DC: Ý50 mV
      • Return Loss: >30 dB to 30 MHz
      • Standards Supported:
      • 1080i (SMPTE 274M -4, 5, 6) 50, 59.94 or 60 Hz
      • 720p (SMPTE 296M -1, 2, 3) 50, 59.94 or 60 Hz
      • 1080p (SMPTE 274M -9, 10, 11) 23.98, 24, 25 Hz
      • 1080sF (RP211 -14, 15, 16) 23.98, 24, 25 Hz
      • 3 Gb/s Level A or Level B (SMPTE 424M, 425M)
      • 625i 50, 525i 59.94, Composite PAL, NTSC

        AES Audio Output
      • Number: One
      • Type: AES3id, 1 KHz tone or silence
      • Resolution: 24 bit

        Analog Audio Output
      • Number: One stereo pair or two mono
      • Type: 1 KHz tone or silence
      • Impedance: 30 Ohm, balanced
      • Reference Level: -10 to + 4 dBu, adjustable

        Programmable Outputs
      • Number: Three
      • Type: Selectable between AES, LTC, VITC, Word clock or 6 Hz Pulse
      • Impedance: 75 Ohm

        Flash Memory
      • Number: One
      • Type: Secure Digital SD Flash Memory Card
      • Size: 2 GB card included

        General Specifications
      • Size: 5.625" W x 1.7" H x 5.5" D (143 mm x 40 mm x 140 mm) including connectors
      • Power: 12 volts, 12 watts (100-230 VAC modular power supply not included)
      • Temperature Range: 0 to 40Ý C ambient
      • Relative Humidity: 0 to 95%, non-condensing
