    MITTO - Overview

    YouTube Video to Air Made Simple

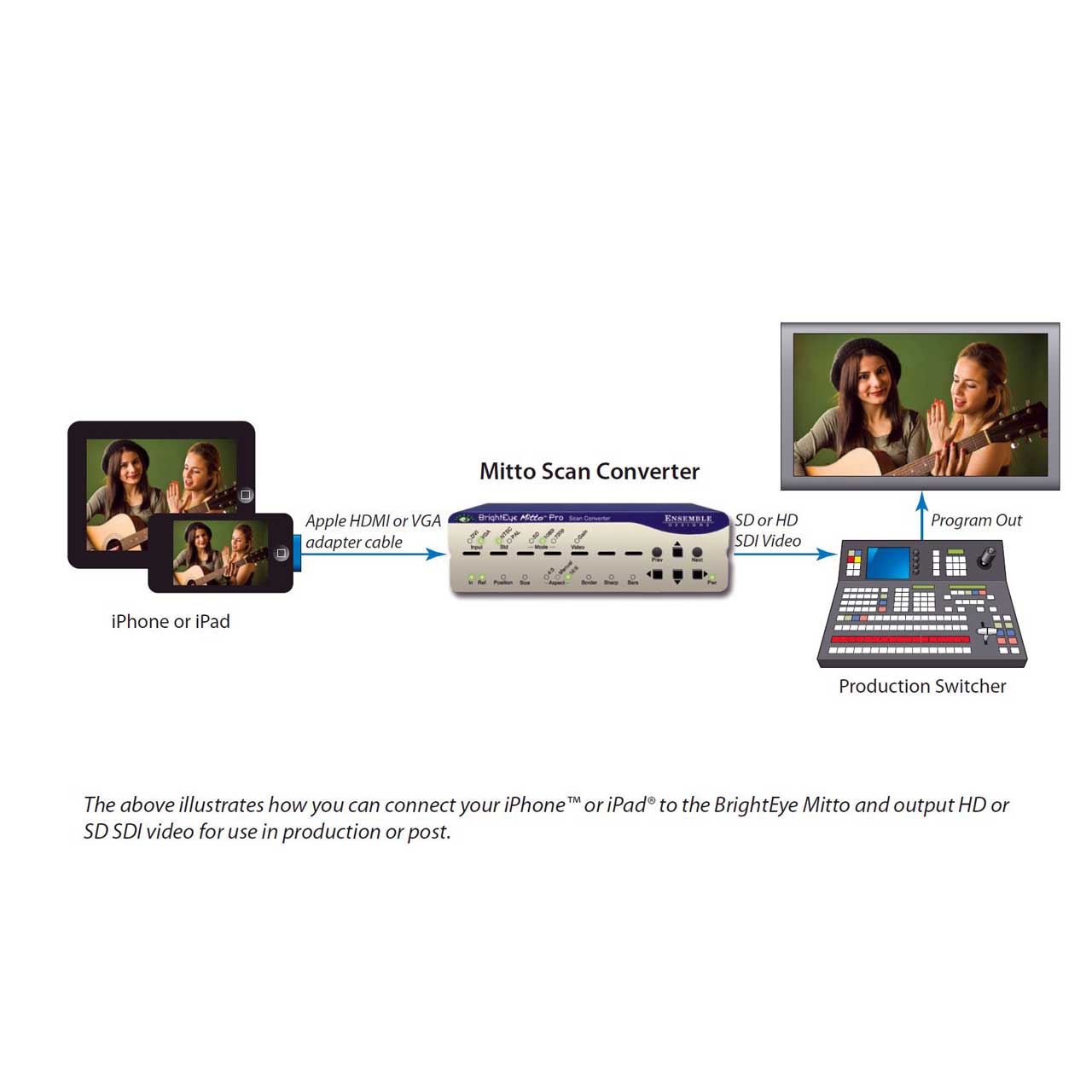

    BrightEye Mitto is a high performance scan converter that supports SD, HD and 3G video signals. For broadcasters who find they are relying on video content from the web, BrightEye Mitto offers the best way to take computer video to air. Video that once seemed constrained by your computer desktop can now be used for the most demanding broadcast and display applications.

    A superior quality scan converter, BrightEye Mitto has the advantage of proprietary scaling technology and exclusive multi-tap filtering. The region selected for output determines if Mitto acts as an upconverter or downconverter. The filters automatically adjust in accordance with the conversion being performed.

    Bringing progressive images from the desktop into the interlaced world of video used to be a compromise between sharp details versus interfield flicker. Mitto's advanced filtering satisfies both of these seemingly contradictory requirements. The result is that the output looks as good, or better, than the original and passes the most stringent testing.

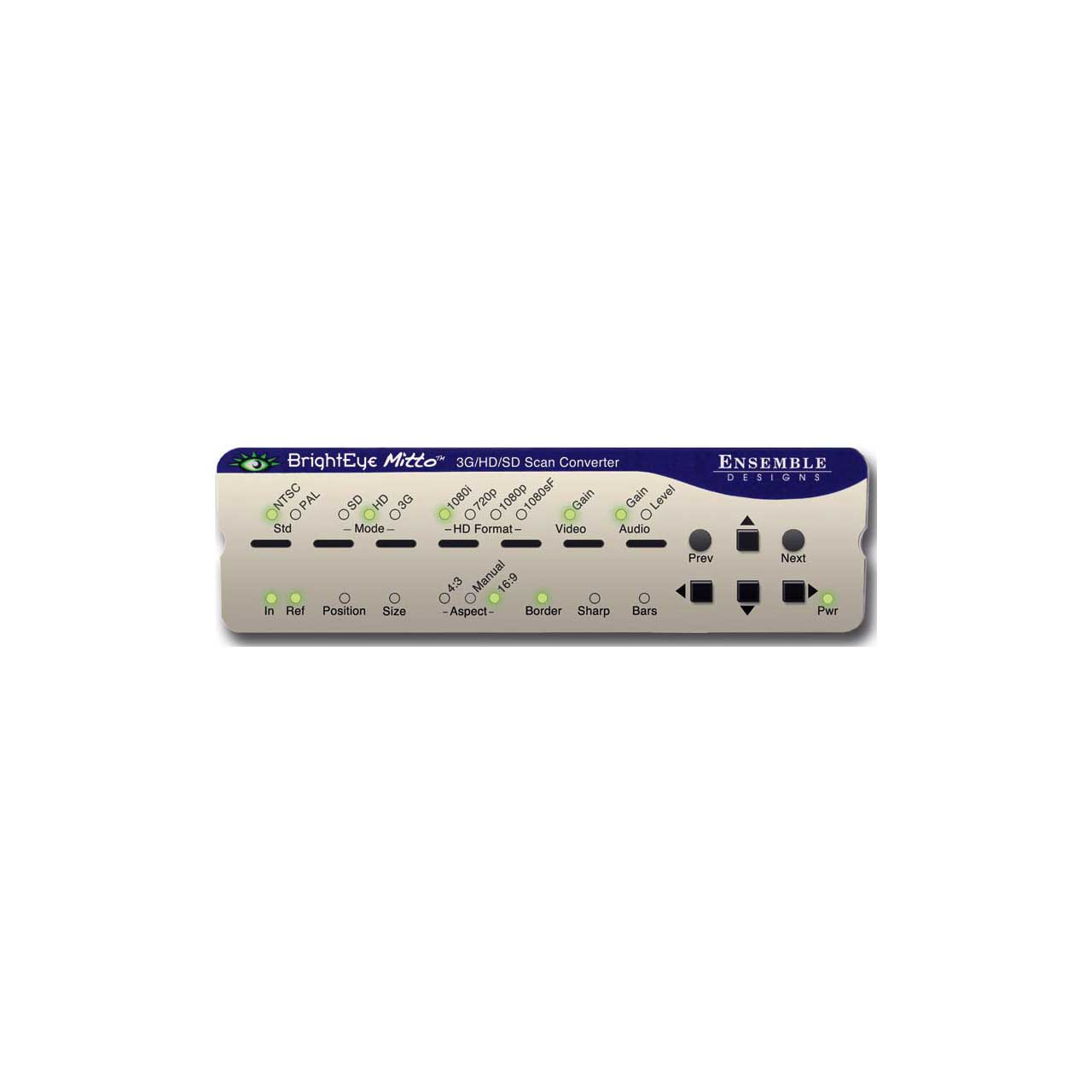

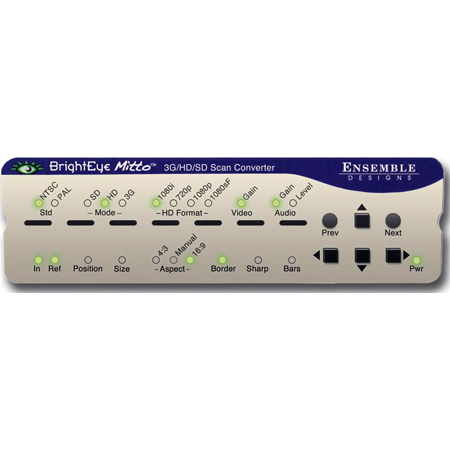

    The intuitive front panel interface makes it easy to choose the desired video output format. Choices are 1.5 and 3 Gb/s HD SDI and SD SDI. Composite video is simultaneously output on a separate BNC. The genlock reference input allows the video outputs to be timed to house.

    The audio input accepts either AES digital audio or analog audio. Audio is embedded into the SDI outputs which is required for many high-end applications.

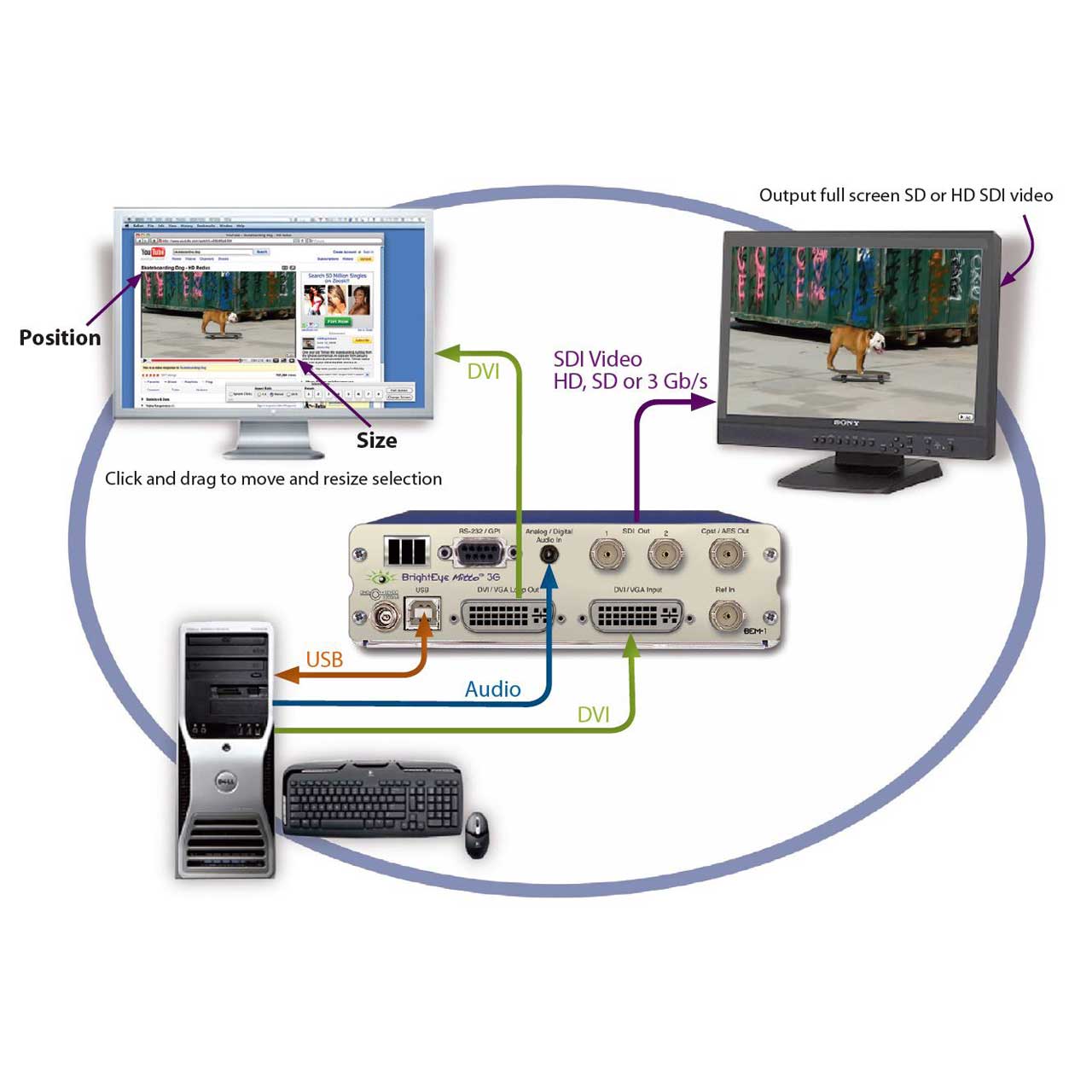

    The included Mac/PC application let's you simply use your mouse to click and drag over the specific portion of computer video that you want to output. The beauty of this user interface is that you can see which parts of the screen you don't want to output, as well as the parts you do want to use. The perspective of seeing the whole screen gives you the ability to choose exactly which portion of the video you want to output. And it's easy to use. Whether you output the entire screen or just a selected portion, you'll be able to see exactly what you are doing. Plus, presets enable you to store your favorite settings.

    Order the BrightEye BEM-1F if you need or want an SDI optical output.The BEM-1F sports a simplex (single) LC/UPC connector output that transmits a Singlemode signal. (Multi-mode compatible with attenuation at transmit end). So if you need to convert your HDMI/DVI/VGA signal to SDI fiber this is your unit.

    • Features:

      • Outputs 1.5 and 3 Gb/s HD, SD SDI and composite video
      • DVI and VGA I/O - HDMI support with an adaptor
      • Analog audio and AES digital audio input
      • Easy-to-use Mac and PC user interface
      • Use a mouse to select what part of the video you want to output
      • Easily adjust video parameters and select video output format
      • Genlock and Time to House Reference, Fully Timeable
      • Proprietary scaling and multi-tap filtering system
      • Rackmountable
      • 5-year warranty and free software upgrades
    • Specifications:

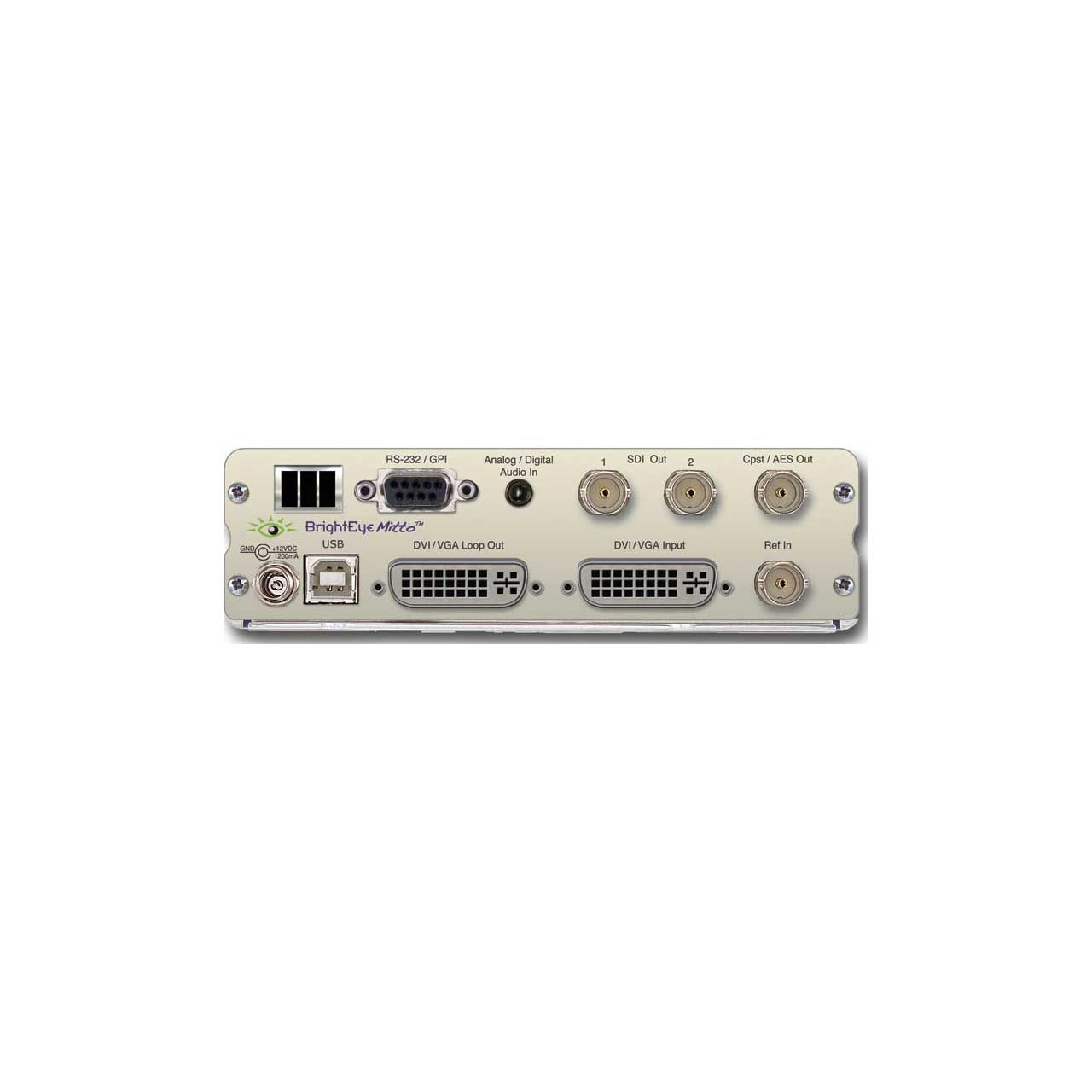

      • Computer Input
      • Type DVI (Supports HDMI or VGA with adapter)
      • Connector DVI-I
      • Resolution Up to 1920 x 1200
      • Reference Input
      • BNC
      • Type 1 V P-P Composite Video
      • PAL, NTSC, Tri-Level Sync
      • Impedance 75 U
      • Return Loss >40 dB
      • Note: When no reference is provided, Mitto runs from an internal
      • "sync gen grade" precision frequency reference.
      • Analog Audio Inputs
      • stereo pair, Connector 1/8" mini jack
      • Impedance >15K U
      • Max Input Level 24 dBu
      • Quantization 24 bits, 128 x oversampled
      • Sample Rate 48 KHz
      • Reference Level -10 dBu or +4 dBu
      • Frequency Response ±0.1 dB, 20 Hz to 20 KHz
      • Crosstalk <106 dB
      • Dynamic Range >106 dB
      • AES/EBU Digital Inputs (BEM-1, 1F, 2, 2F)
      • Type AES3id, S/PDIF
      • Connector 1/8" mini jack
      • Bit Depth 20 and 24 Bit
      • Sample Rate 30 KHz to 192 KHz (Sample Rate Converted
      • Internally to 48 KHz)
      • Serial Digital Output BNC
      • One for BEM-1F and 2F
      • Signal Type 270 Mb/s SD SDI, SMPTE 259M
      • 1.485 Gb/s HD SDI,SMPTE 274M, 292M, 296M
      • 2.97 Gb/s HD SDI (BEM-1 and BEM-1F only)
      • SMPTE 424M, 425M
      • Processing 16 bit processing
      • 12 and 14 bit upconversion
      • Delay Adjustable from 16 msec to 40 msec
      • Note: Output is fully timeable with respect to the reference input.
      • Audio Embedded
      • Impedance 75 U
      • Return Loss >15 dB to 1.485 GHz
      • >10 dB to 2.97 GHz
      • Output DC None (AC coupled)
      • Standards Supported
      • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
      • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
      • 525i, 625i (SMPTE 259M)
      • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A (BEM-1 and BEM-1F only)
      • Optical Output (BEM-1F, 2F)
      • One, LC/UPC
      • Type Follows SDI configuration
      • Wavelength 1310 nm (non-CWDM)
      • Wavelengths 170 nm -1610 nm
      • at 20 nm CWDM spacing available..
      • Power -7 dBm
      • Max Cable Length 20 km
      • Fiber Type Single Mode
      • Multi-mode compatible with
      • attenuation at transmit end
      • Analog Video Output
      • BNC
      • Type Composite PAL or NTSC
      • (when SD is selected on the SDI output)
      • Return Loss >40 dB
      • Output DC <100 mV
      • Computer Monitor Output
      • looping
      • Type DVI (Supports HDMI or VGA with adapter)
      • Connector DVI-I
      • Format Follows input
      • Control (BEM-1, 1F, 2, 2F)
      • Connector 9 pin D
      • Type RS-232, GPI
      • General Specifications
      • Size 5.63" W x 0.8" H x 5.98" D
      • (143 mm x 21 mm x 152 mm)
      • including connectors and flange
      • Weight 1 lb 6 oz
      • Power 12 volts, 12 watts
      • (100-230 VAC modular power supply)
      • Temperature Range 0 to 40° C ambient (all specs met)
      • Relative Humidity 0 to 95° non-condensing
      • Altitude 0 to 10,000 ft.
