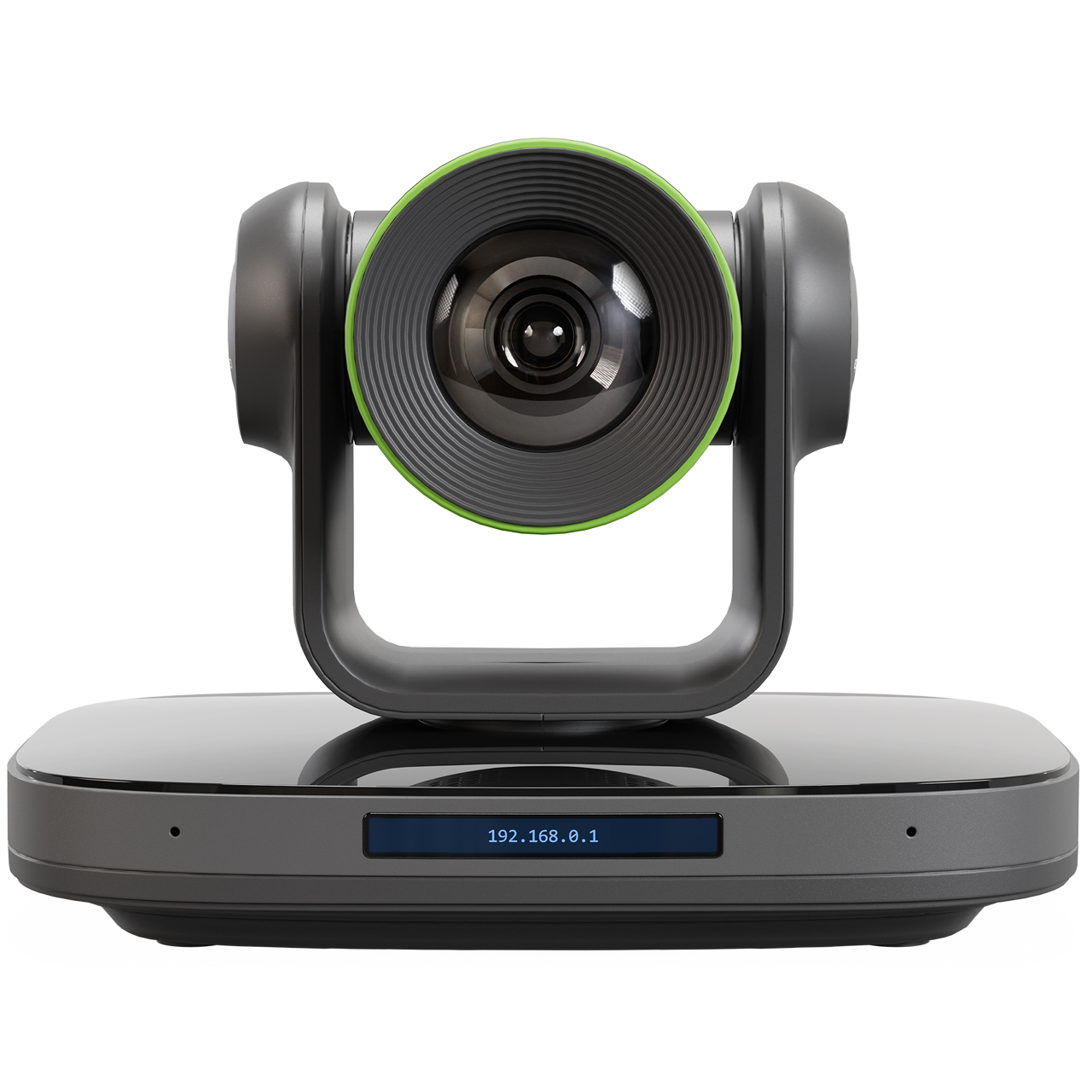

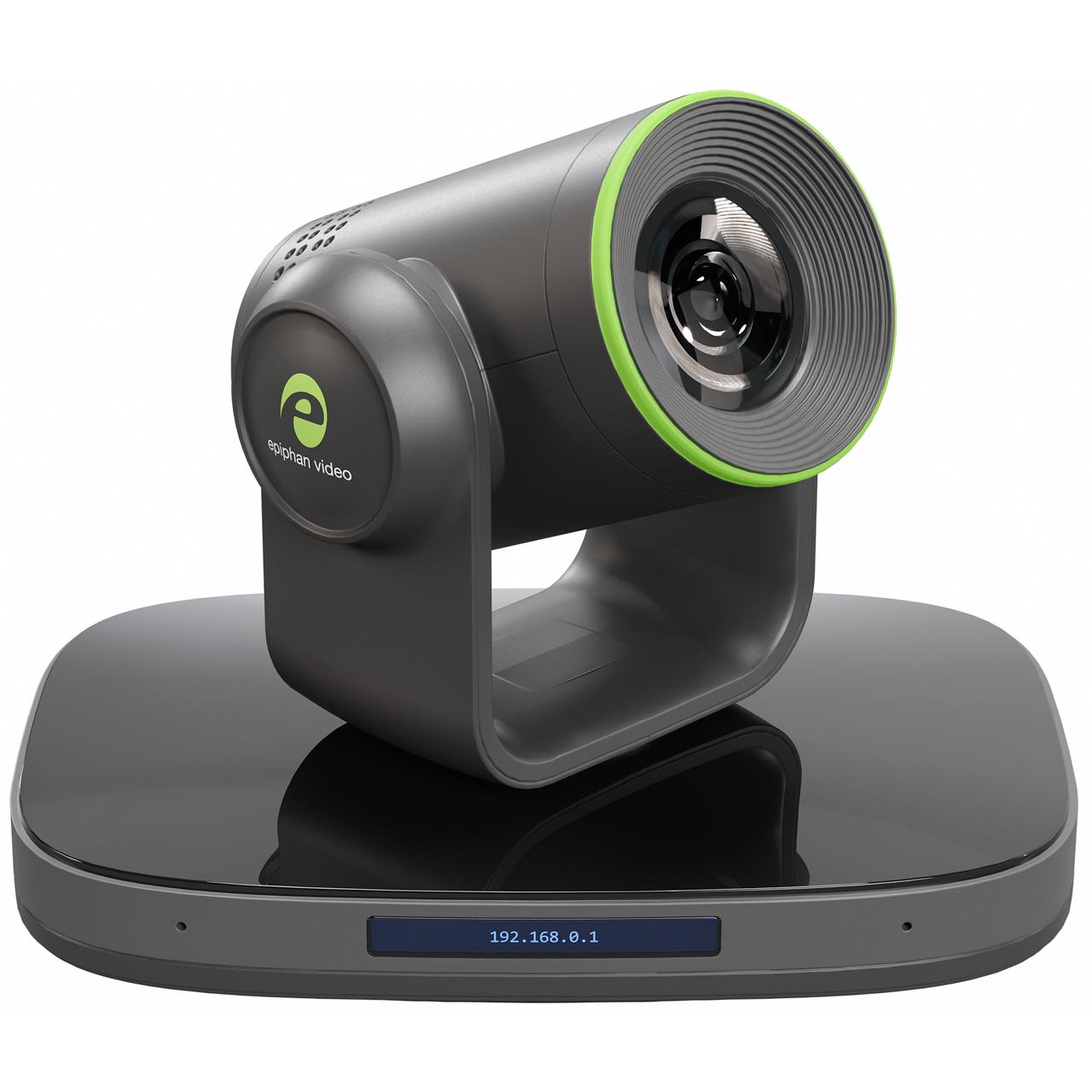

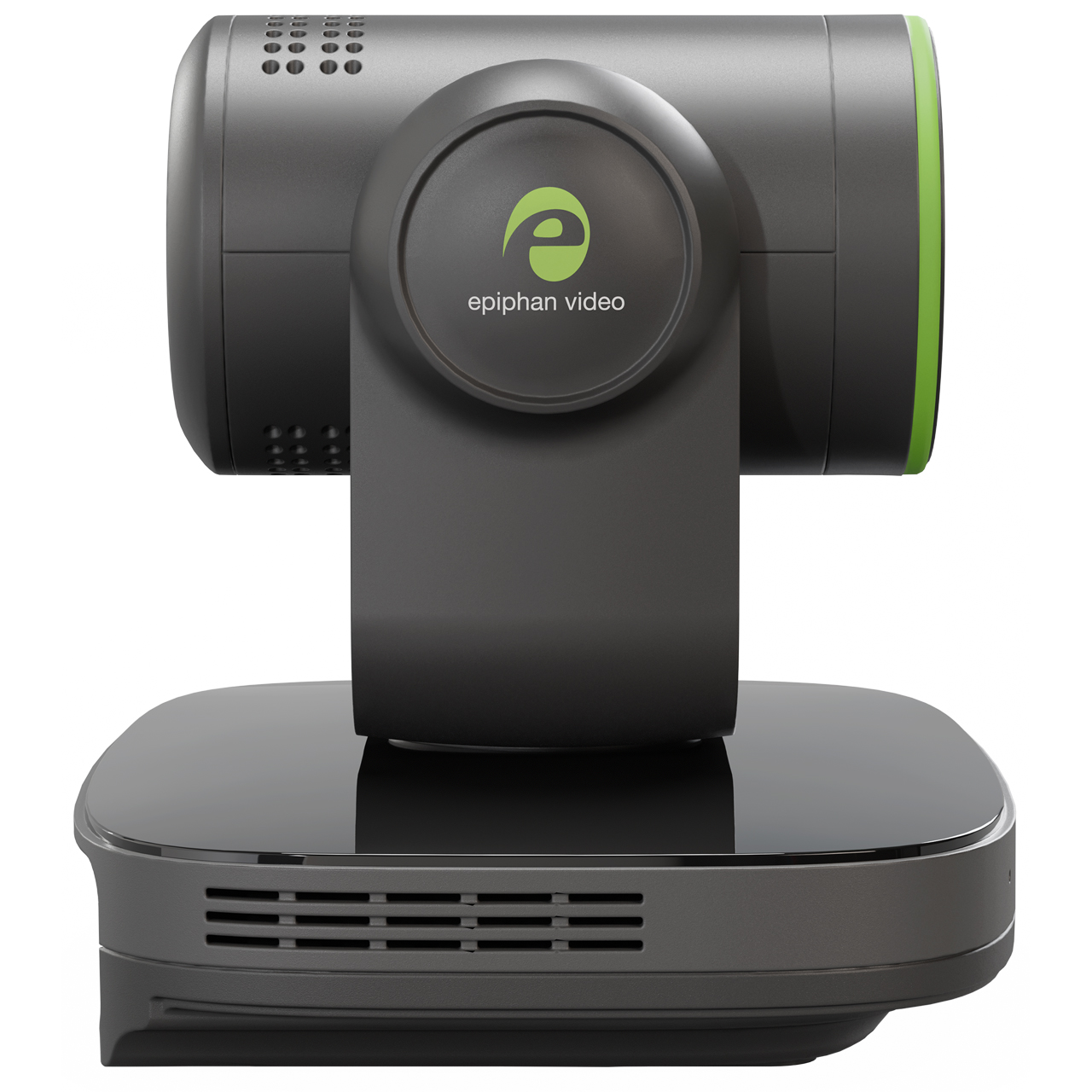

Epiphan EC20 High-Performance 4K60 PTZ Camera with 20x Zoom/AI-Powered Tracking/HDMI/SDI/NDI HX2/PoE+

ESP1899 - Overview

• Features:

  • Native Integration with other Epiphan Products
  • Up to 4K60 HDMI
  • Up to 1080p60 SDI
  • 20x Optical Zoom and 16x Digital
  • Advanced AI-Powered Tracking
  • Effortless Automation
  • NDI Enabled
  • Uncompromising Quality
  • Tally Light Included
  • Up to 255 Presets
  • PoE+ Support


• Specifications:

  Image Sensor and Lens
  • Video Sensor: 1/1.8", CMOS, effective pixels: 8.42 Megapixels
  • Lens: 20x, f = 6.25mm - 125mm, F1.58 - F3.95
  • Minimum Illumination (Lux): 0.5 Lux @ (F1.8, AGC ON)
  • Field of View:
    - Horizontal: 60° - 3.5°
    - Vertical: 35.7° - 2.0°
  • Shutter: 1/30s - 1/10000s
  • White Balance: Auto, Indoor, Outdoor, One push, Manual, VAR
  • Signal to Noise Ratio (SNR): ≥55dB

    Physical Video Output (Resolution and Framerate)
  • HDMI:
    - 3840x2160p @ 60, 59.94, 50, 30, 29.97, 25
    - 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25
    - 1920x1080i @ 60, 59.94, 50
    - 1280x720p @ 60, 59.94, 50
  • SDI:
    - 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25
    - 1920x1080i @ 60, 59.94, 50
    - 1280x720p @ 60, 50
  • USB:
    - YUY2: Max 1920x1080p @ 30 (USB3.0)
    - YUY2: Max 1920x1080p @ 5 (USB2.0)
    - H.264: Max 3840x2160p @ 30
    - H.265 HEVC: Max 3840x2160p @ 30
    - MJPEG: Max 3840x2160p @ 30

    Network Video Output
  • Protocols: NDI|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, Multicast
  • Video Encoding: H.265/H.264/MJPEG
  • Max Streams: 1x high quality, 1x preview
  • High Quality Stream Resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
  • Preview Stream Resolution: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240
  • Frame Rate:
    - 50Hz: 1fps - 50fps
    - 60Hz: 1fps - 60fps
  • Bitrate Control Method: CBR, VBR
  • Video Bitrate: HQ stream: 32Kbps - 51200Kbps
  • Preview Stream: 32Kbps - 20480Kbps
  • Audio Encoding: AAC
  • Audio Bitrate: 96Kbps, 128Kbps

    Pan/Tilt/Zoom (PTZ)
  • Pan Movement Angle: ±162.5°
  • Pan Speed: 1.8° - 80°/S
  • Tilt Movement Angle: ~30° - +90°
  • Tilt Speed: 1.5° ~ 49°/S
  • Zoom:
    - Optical: 20x (Max.)
    - Digital: 16x (Max.)
  • Presets Max: 255
  • Preset Accuracy: 0.1°

    Special Features
  • AI Tracking:
    - Modes: Presenter, Zone
    - Figure Size: Full, half, close up, custom
  • Image Flip: Supported
  • Modes: Automatic via gravity sensor, Manual
  • Image Freeze: Supported
  • Image Mirror: Supported
  • Digital Noise Reduction (DNR): 3D digital noise reduction
  • Backlight Compensation: Supported
  • PoE+: Supported
  • Front LED Display: View IP Address, Resolution
  • Built-In Microphones: 2x Beam forming, Range: 6m
  • LED Ring Light: Configurable, tally light

    Physical

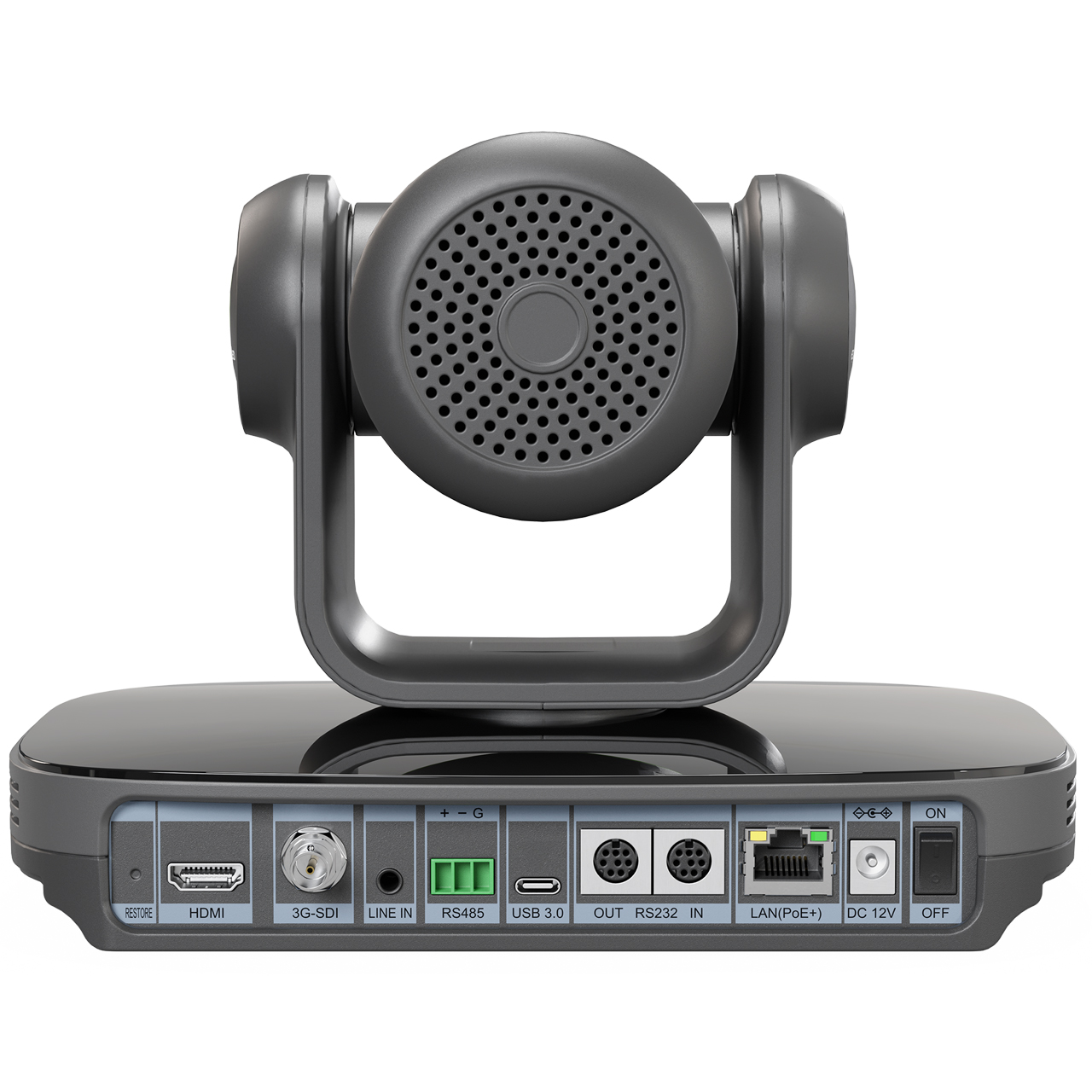

  • Video Interface:
    - 1x HDMI, Version 2.0
    - 1x SDI, BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard
  • USB Interface: 1x USB 3.0 Type-C
  • Audio Interface: 1x 3.5mm LINE IN Jack
  • Network Interface: 1x RJ45, 10M/100M/1000M adaptive, PoE+ support
  • Control Interface:
    - Remote control (included)
    - Network Based Control: REST API, VISCA over IP, NDIr, ONVIF, Browser interface
    - 1x RS485, 3-pin phoenix contact port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
    - 1x RS232 IN, 8-pin Mini DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
    - 1x RS232 OUT, 8-pin Mini DIN, Max Distance: 30m, Protocol: VISCA only
  • Material: Plastic, metal, electronics
  • Color: Black, Green
  • Dimensions (WxDxH): 8.78" x 6.09" x 6.50" (223mm x 154.8mm x 165mm)
  • Weight: 3.97lbs (1.8kg)
  • Power:
    - Interface: EIAJ type (DC IN 12V), RJ45: PoE+ (802.3at)
    - Input Voltage: DC 12V/PoE+ (802.3at)
    - Input Current: Max. 2A
    - Consumption: Max. 18W
  • Environmental:
    - Working Environment: Indoors
    - Operating Temperature: 32°F - 104°F (0°C - 40°C)
    - Storage Temperature: -40°F - 140°F (-40°C - 60°C)


• Item Includes:

  • 1x EC20 High-Performance 4K60 PTZ Camera
  • 1x Power Cable


• Warranty:

  • 1 Year Limited Warranty
