Epiphan ESP1910 Production Essentials Pearl-2 Bundle with 2x EC20 PTZ Camera and Pearl-2 Base Video Mixer

ITEM #: EPIP-ESP1910 MFG #: ESP1910

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$11,849.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ESP1910 - Overview

The easiest solution for 4K streaming, recording, and switching

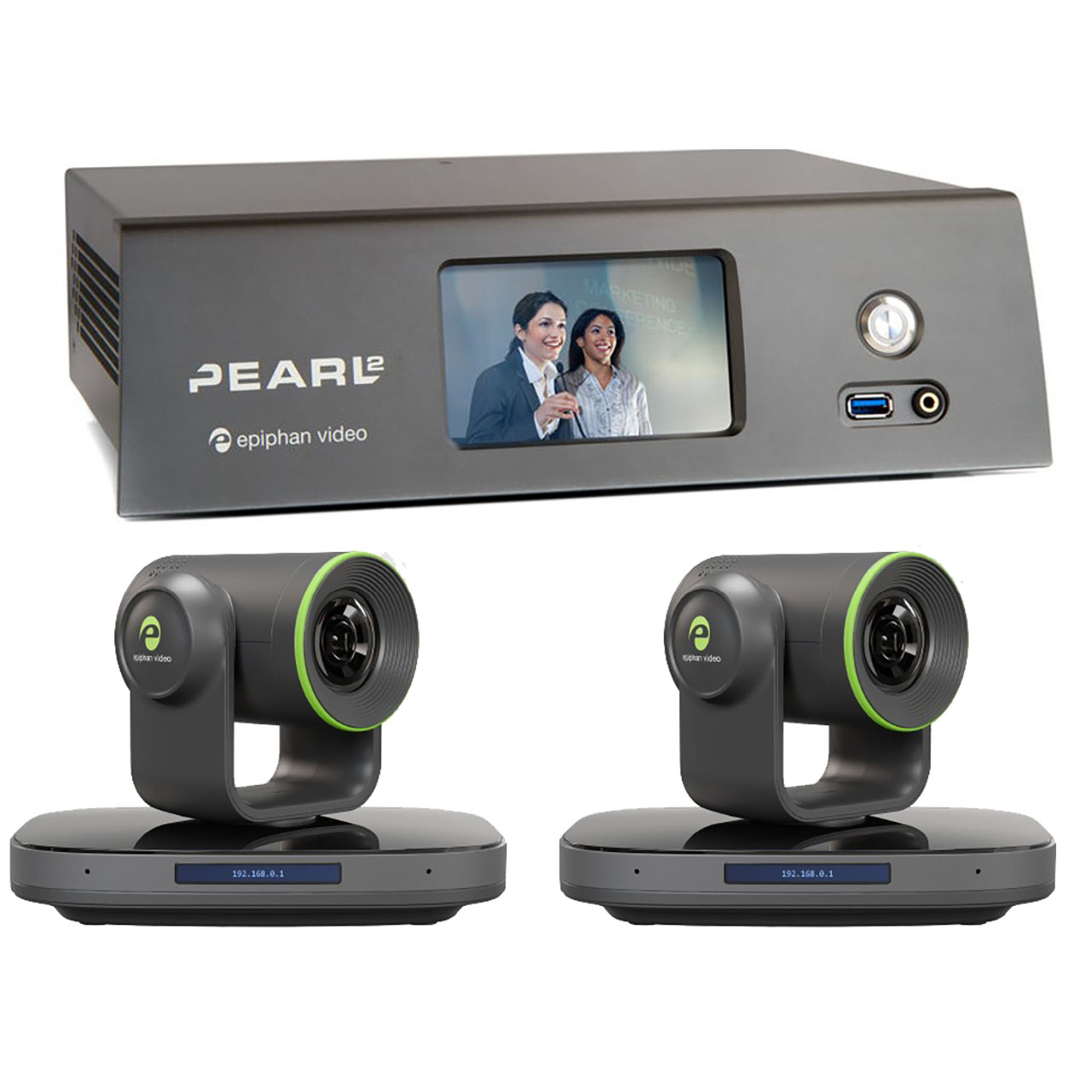

The Epiphan ESP1910 Production Essentials Pearl 2 Bundle is a package deal that includes the Pearl 2 ESP1150 base unit and two EC20 PTZ Cameras with wall and ceiling mounts.

Pearl 2 brings the pro features and processing power required for the most demanding live events including 4K streaming and recording, live switching, NDI support, and chroma keying. Add Epiphan Edge and you can control Pearl-2 from anywhere to produce broadcast-quality content from a distance.

NDI and NDI|HX for Network Video Production
Pearl 2 supports High Bandwidth NDI with alpha channels and NDI|HX for broadcast-quality video with low-latency over Gigabit Ethernet networks. No extra HDMI or SDI cables are required. The system accepts video and audio from a wide variety of NDI-enabled devices and cameras, and it's just as easy to share the output from Pearl 2 with other NDI devices on the network.

Digital Certificate Management
Pearl 2 supports PEAP, EAP-TLS, and EAP-TTLS authentication access control methods on 802.1x networks using passwords, usernames, and digital certificates. Easily upload and manage digital certificates on Pearl 2 via the Admin panel.

Role-Based Access Control and LDAP Support
Log in to Pearl 2 with administrator, operator, or viewer privileges. LDAP authentication support lets you define domain name (DN) groups to assign user roles in bulk to let users log in with their LDAP credentials.

Secure Streaming
Get end-to-end secure streaming with up to 256-bit AES encryption using SRT, encrypt content over TLS/SSL connections with RTMPS, or use HLS for secure live streaming over HTTPS.

HTTPS and SFTP Secure Data Transport
Securely access the Admin panel and configure Pearl 2 over an HTTPS connection. Encrypt and send sensitive recordings from the system to offsite SFTP servers with Automatic File Upload.

Dual Network Support
Split streaming and control traffic with the dual Ethernet feature and enjoy enhanced network performance and improved security.

  • Features:

    • Configuration Presets: Quickly apply settings to Pearl 2 and reconfigure on the fly for a consistent setup every time. You can even download a configuration preset and upload it to another Pearl 2 system.
    • AV Sync: Adjust AV synchronization on each video input from -300 ms to 300 ms and instantly preview the results.
    • Custom No-Signal Images: Prepare for signal loss by setting a custom image to keep viewers engaged.
    • Deinterlacing: Convert an interlaced video input signal to a non-interlaced signal.
    • USB Camera Control: Control the contrast, brightness, saturation, and other settings of connected USB webcams from Pearl's Admin panel.
    • API and RS-232: Pearl 2 features comprehensive HTTP/HTTPS and RS-232 APIs for third-party integrations.
    • Dual Network: Route streaming and control traffic through separate networks by connecting a USB to Ethernet adapter to one of Pearl's USB ports.
    • On-Air Status Light: Connect a USB status light* to signal when streaming or recording is underway.
    • Multi-Track Recording: Record multiple channels in a single, multi-track file and ensure recordings start and stop at the same time. The built-in synchronization tool lets you split files into individual tracks for post-processing.
    • Built-In EDID Compatibility: Pearl 2 features a robust, factory-set Extended Display Identification Data (EDID), ensuring video input ports correctly emulate a monitor for the connected source. The system also supports custom EDIDs.
    • Local Admin Panel: No need to bring along a laptop to configure Pearl 2. Connect a USB mouse, keyboard, and HDMI monitor for easy Admin panel access. You can even use a touch screen monitor for added ease.
    • Time Sync: Use an NTP (RFC 868) or PTP v1 (IEEE-1588-2002 V1) server to synchronize the time the system uses for timestamps and labelling recordings, or set the system time manually.

  • Specifications:

    • For full Specifications for the Pearl 2 and EC20, please see Attachments.


ESP1910 - Required Accessories
