ESE ES-943U Universal Time Code Reader - 6-digit - 4 inch Red LED Display w/ Option W - 3-Wire Power Cord

ITEM #: ES-943U-W MFG #: ES-943U-W

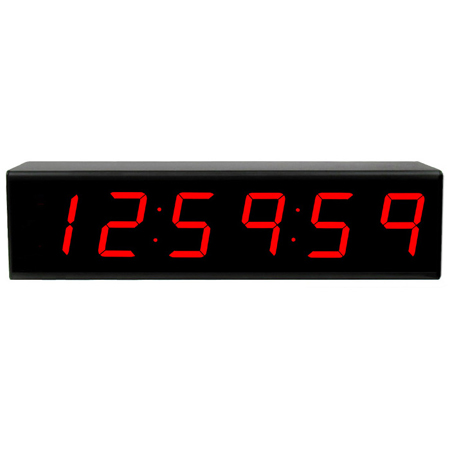

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$891.00

Our Price:

$846.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ES-943U-W - Overview

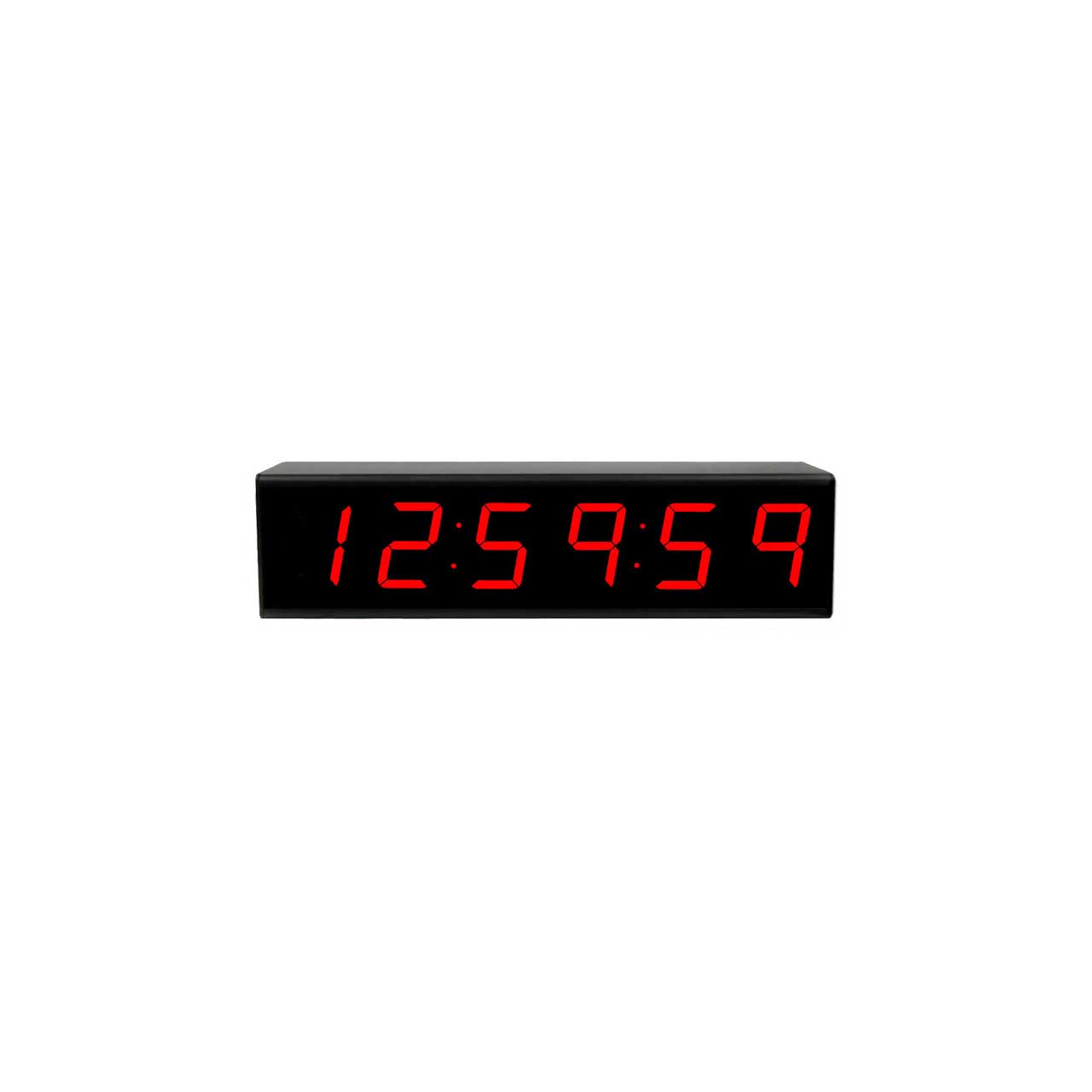

    The ES-943U is a Time Code display featuring 4.0" bright red LED displays. The unit is housed in a black-textured aluminum wall-mount enclosure (7" H x 26" W x 3.5" D). The unit accepts, via the rear-mounted terminal block, either ESE Time Code (TC76T, TC89T, or TC90T) or SMPTE/EBU Time Code. RS-232C ASCII Time Code (format "0", "1" or "A" at 9600 baud) may be input via the rear-mounted 9-pin connector. The ES-943U will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time Code from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).

    ESE Option "W" unit: Option "W" is a code for ESE to provide a 3-Wire Power Cord on this unit. Recommended where static charges can occur. Standard on many units, otherwise a 2-wire cord is supplied

    • Features:

      • Wall Mount Display
      • Reads SMPTE/EBU, ASCII & ESE Time Code
      • Automatic Code Detection
      • Six 4.0" Red LED Displays
      • Viewing Distance 120'
      • Switchable Between 12 & 24 Hour Format Display
      • Switchable to Date display
      • Optional Time Zone Offset

        Product Options:
      • Red, Amber, Green or Blue LED Displays
      • Ceiling/Wall Mount Bracket
      • 220 VAC/50 Hz Operation: Configured to operate from 220 VAC line voltage.
      • NTP Client: NTP Client Displays synchronize exclusively with an NTP server (replaces all standard inputs).
      • POE - Receives 48V operating power via Ethernet cable.
      • Time Zone Offset: Internal DIP switch allows the hours (and half-hour) to be independently offset to any time zone.
      • "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
      • 3-Wire Power Cord: Recommended where static charges can occur. Standard on many units, otherwise a 2-wire cord is supplied.

    • Specifications:

      • Power: 8-10 Watts
      • Electrical: 117 VAC, 50/60 Hz
      • Viewing Distance: 120 foot
      • Time Code Input: ESE, SMPTE/EBU, ASCII
      • Enclosure: 4.0in, 6-Digit Wall Mount
      • Design: Black Textured Aluminum
      • Dimensions (H x W x D): 7 x 26 x 3.5"

    • Item Includes:

      • such as ESE TC90

    • a rear-accessible DIP switch is installed for this function. If receiving ESE Time Code from a timer

      :

      • the unit will display Minutes
