ESE ES 362U P X 100 Minute Master Timer with 19in. Front Panel and Three Relay outputs

ITEM #: ESE-ES-362U-PX MFG #: ES 362U P X

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$570.00

Our Price:

$552.29

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ES 362U P X - Overview

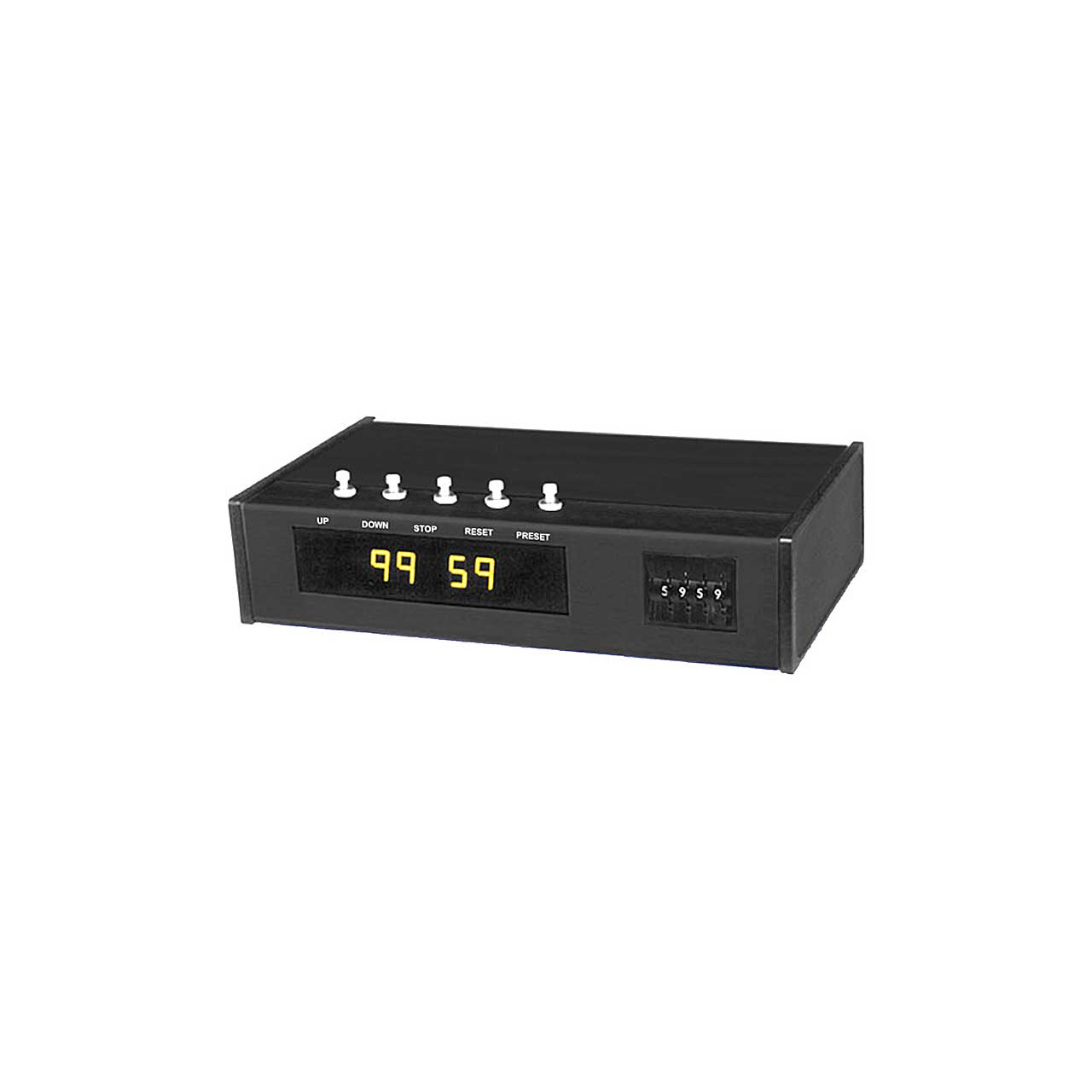

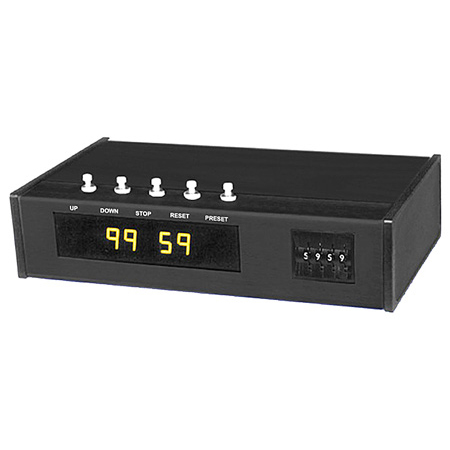

    The ES-362U from ESE is a 100 Minute Up/Down Timer. The ES-362U is housed in a folded aluminum/plastic case. The timer is presettable via the front-mounted thumbwheel switch. Up, Down, Stop, Reset-to-zero, and Preset controls are provided on the top of the case. A rear-mounted BNC connector provides the ESE Timer Code for driving remote slave displays. Up to 100 slave displays may be driven, using up to 4000 feet of coaxial cable or twisted pair. A rear-mounted DB-9 connector provides access to remotely control the five pushbutton switch functions. If the relay contact closure option is ordered, the contacts are also accessible on this connector.

    This item is the ES 362U P X model which includes the P and X options. If you need assistance with additional options (listed below), please contact our top-notch sales team!

    C: Crystal Time Base: A crystal reference is employed for those applications requiring independence from the line frequency. A trimming function is included for greater accuracy (2-3 seconds/week).
    Clear: Clear Anodized Front Panel
    D: Remote Control: This option consists of a connector wired to switches on a control plate via a six-foot cable. Extra cable available.
    J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
    N: Reverse Count at Zero: Changes count direction from Down to Up at Zero.
    P: 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
    P2: Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel. Must be ordered in place of option 'P' if specifying option 'D'.
    Q: Console Mount: The unit is housed in an enclosure 8" deep, front panel is 3.5" x 9" 1/8" clear anodized aluminum. 'Q' can only be ordered if option 'D' is included.
    T: Tenths of Seconds: Tenths of Seconds LED Display added.
    UL: "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
    X: Three Relay Outputs: Three Relay Outputs (two are programmable, 3rd @ "00:00") (Option 'Z' is included).
    Y: Relay Closure at Zero: Reed Relay for Control Applications (10W max load; 500ma switching current).
    Z: Stop with reed relay closure at Zero (10W max load; 500ma switching current).

    • Features:

      • .56" Yellow LED Display
      • 100 Minute Up/Down count range (00:00 - 99:59)
      • Thumbwheel Preset
      • ESE Timer Code output
      • Remote Control input
      • Optional relay-contact closure output at zero
      • Optional Stop at zero
      • Optional Tenths of Seconds display
      • Optional 1.75" Rackmount enclosure (option "P")
      • 220-240 VAC (110-120 VAC is standard) & UL options available

    • Specifications:

      • Power: 5 Watts
      • Line Cord: 3-wire, 6’
      • Electrical: 117 VAC, 50/60 Hz
      • Enclosure: Anodized Aluminum/Walnut Grain Sides & Top
      • Mechanical: 10” W x 2.5” H x 6” D
      • Number of Digits: Four (Minutes & Seconds)
      • Display Height: .56” Yellow LED
      • Viewing Distance: 20 Feet
      • Output: ESE TC-89; BNC
      • Inputs: Up, Down, Stop, Reset, Preset; DB-9
      • Options: Black, C, D, J, N, P, P2, Q(if ‘D’ is ordered), T, UL, X, Y, Z
