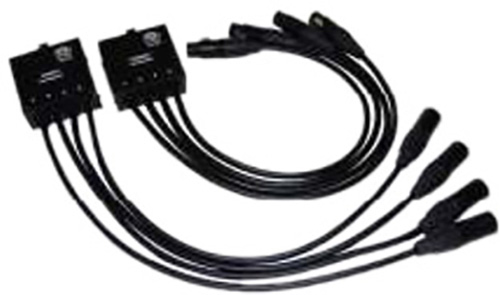

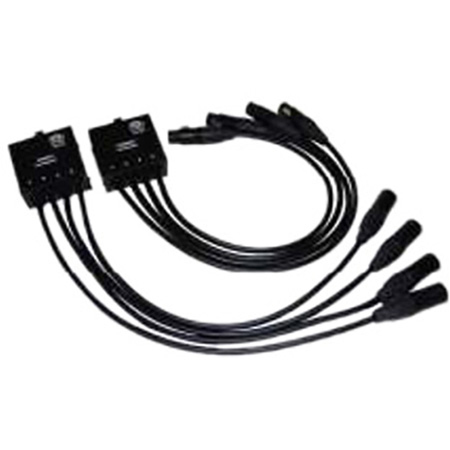

ETS SDS902 InstaSnake (4) FXLR 3 Foot Pigtail to RJ45 Jack all Pins
  • ETS SDS902 InstaSnake (4) FXLR 3 Foot Pigtail to RJ45 Jack all Pins
  • ETS SDS902 InstaSnake (4) FXLR 3 Foot Pigtail to RJ45 Jack all Pins
Questions? Ask a Markertek Expert:
800-522-2025 Email

ETS SDS902 InstaSnake (4) FXLR 3 Foot Pigtail to RJ45 Jack all Pins

Item #: ETS-SDS902   •   MFG #: SDS902


Our Price:$236.95

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -


    The ETS InstaSnake™ Series (SDS900 Series) is a compact,
    lightweight, versatile passive group of components allowing you to
    run audio signals over a single run of CAT5, 5E or 6 cables. With a
    roll of wire, these compact units are easily transported and/or stored
    solving dozens of live and/or recording sound problems.

    The InstaSnake™ is a passive unit, so you do not need power. The InstaSnake™ accepts `mic 'level, line level, analog or digital audio and supports phantom power when using shielded Cat5 or Cat6
    cables. The basic units are a pair of passive units with bi-directional
    capability which can be input directly into analog or digital consoles.
    Designed to the highest professional standards the InstaSnake™ has a wide, flat frequency response, low THD and residual noise. The InstaSnake™ has been factory tested to 1900 feet over CAT5 using low Z dynamic microphones. Phantom power has been tested to 850 feet over shielded cable. (*Phantom Power - Shielded Cat5 or 6 cables are required to pass phantom power.)

    The SDS901 and SDS902 with (4) 3.00 foot pigtails lets you
    access the mixer without the need for additional 4 microphone

    • Features

      • Easily transported
      • Low cost
      • No ground loops
      • Add second unit to increase the number of channels
      • May be used for analog or digital audio
      • Supports 48V phantom power
      • Rugged, road-ready construction
      • RoHS compliant
      • USA Made
      • 100% tested
    • Specifications

      • Distance: UTP - 1900 ft.
      • Connectors: FTP or STP 850 ft - Phantom power only Female or Male XLR 3.00' pigtail to Ethercon RJ45 jack
      • Dimensions: 69mm x 62mm (+ pigtail) x 36mm (L x W x H)
      • Weight: 0.60 Kg
