Electro-Voice EVID 6.2T Speaker System w/Transformer - Black - Pair

ITEM #: EV-ED62T MFG #: EVID 6.2T

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$760.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    EVID 6.2T - Overview

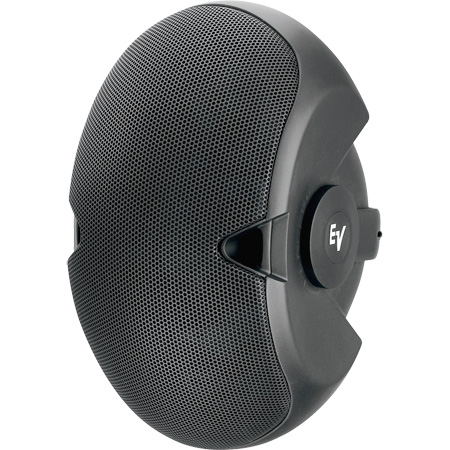

    The EVID 6.2 is an extended-range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. Its extended range and smooth bass provide ample SPL levels in larger environments such as shopping malls, sports bars, health clubs, and more. The 6.2's three-dimensional elliptic baffle symmetrically locates the 1" Ti direct radiator high-frequency element with a Coherent Coverage Waveguide in front of and between the 6" low-frequency drivers. The careful shaping, location, and 10° splaying of the LF units provide coverage control by the resulting line array. Lobing is controlled by physically "shadowing" the LF transducers from each other over the bandwidth where they would normally exhibit interference. EVID's mounting system provides greater range of aiming angles in both horizontal and vertical planes than other types. The curved grill features designed-in weather resistance and a hidden leash for safety. All models are available in black or white, and can easily be painted to match the decor. Transformer versions are also available for constant voltage systems.

    • Features:

      • Line-array enhanced coverage control
      • Organic, unobtrusive shape
      • Strong-Arm-Mount for easy, flexible aiming
      • Full-bandwidth overload protection
      • Weather resistant - Conforms to Mil Spec 810 and IEC 529 IP 34
      • Dual 6-inch LF transducers for extended bass and greater power handling and output
      • Ti direct-radiator HF transducer, Neodymium structure
      • High sensitivity
      • Magnetically shielded
      • Zinc-plated grilles
      • Transformer Versions

    • Specifications:

      • Frequency Response 1(-10 dB) 62 Hz - 20 kHz
      • Power Handling 2 300W Cont. Prog./600W Peak
      • Sensitivity 3 94 dB, 1W/1m
      • Impedance 8 ohms
      • Max SPL 118 dB
      • Horizontal Coverage4 100°
      • Vertical Coverage4 80°
      • Crossover Frequency 1.6 kHz
      • LF Transducer 2 x 6" (100 mm)
      • HF Transducer 1" (25 mm)
      • Protection Full System
      • Weather Resistance
      • Meets Mil Spec 810 humidity,
      • salt spray, temperature and
      • UV, and IEC 529 IP 34
      • splashproof ratings
      • Swing x Rotation 100° x 90°
      • Terminals Phoenix Connector
      • Enclosure Material ABS (paintable)
      • "t" Version Wattage Taps
      • 70V: 7.5 W
      • 70V/100V:15W, 30W, 60W,
      • 8 ohm bypass
      • Dim (H x W x D) 16.5" x 9" x 11.75" (419 mm x
      • 228 mm x 298 mm)
      • Net Weight (each) 12 lbs (5.3kg)
      • Shipping Weight (pair) 27 lbs (12.3 kg)
      • Included Accessories SAM, hex key

    • GTIN:

      0800549415682
