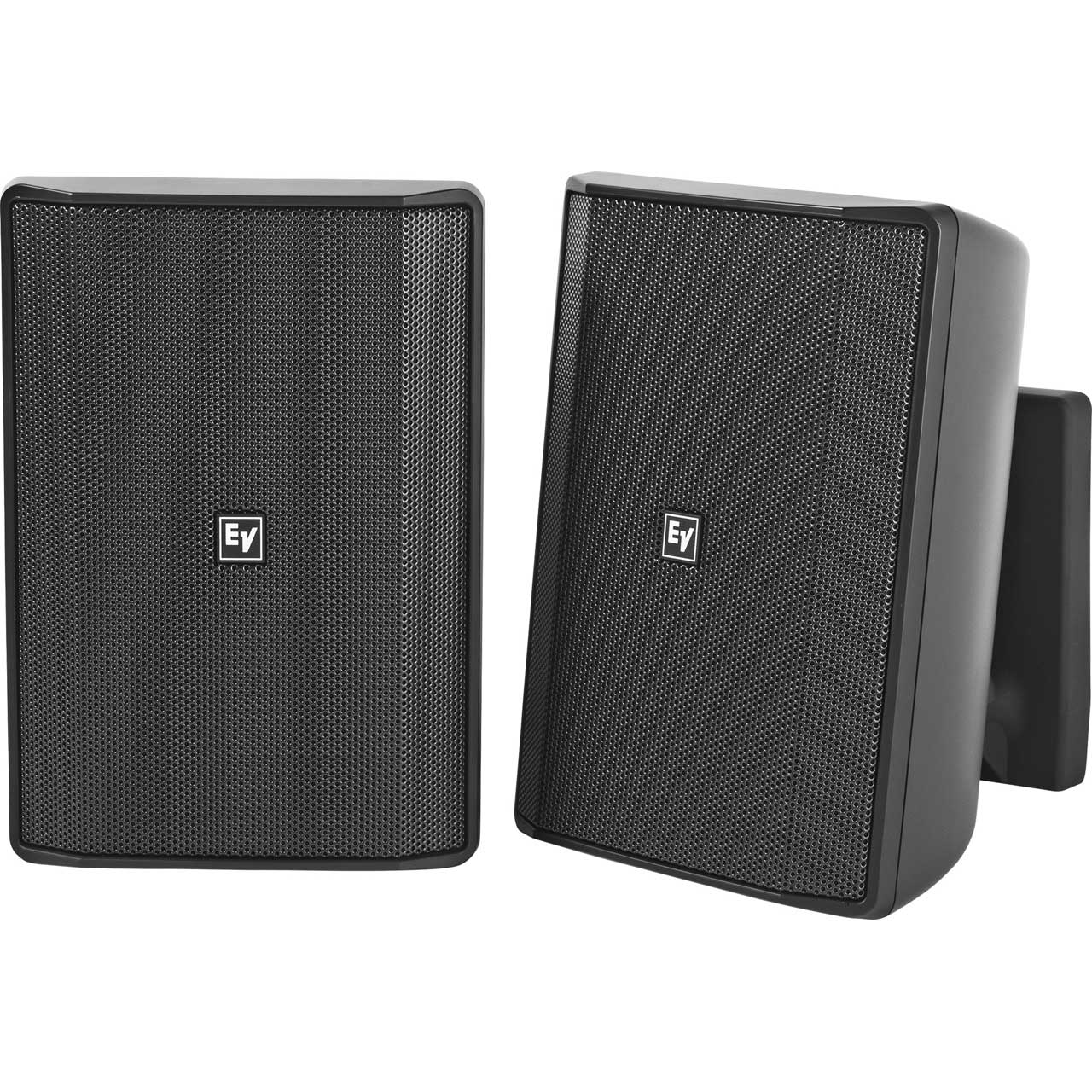

Electro-Voice EVID-S5-2TB Quick install Speaker 5 Inch Cabinet 70/100V - Black - IP54 - 4-Pin Connector (Euroblock)

ITEM #: EV-EVID-S5-2TB MFG #: EVID-S5-2TB

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$498.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EVID-S5-2TB - Overview

    The EVID-S5.2T from Electro-Voice is a highperformance, two-way, full-range, 5.25"" (133 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

    With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2T is the perfect solution for a wide variety of surface mount applications.

    The EVID-S5.2T includes the unique and innovative mounting system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.

    The EVID-S5.2T utilizes a 30 W transformer, that offers a selection of 3.7 W (70 V only), 7.5 W, 15 W, or 30 W delivered to the speaker system using either 70 V or 100 V lines, or 8 ? bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.

    The EVID-S5.2T has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The full-range speaker is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.

    All EVID-S models are available in black or white, and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.

    The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.

    • Features:

      • Innovative mount system is included for quick, simple, and reliable installations.
      • Carefully engineered for outdoor environments (IP54), without compromising performance.
      • Long throw 4" (102 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 75 Hz
      • 40 W power handling provides for 103 dB maximum SPL (109 dB peak)
      • Sold in pairs

    • Specifications:

      • Frequency response (-3 dB): 85 Hz - 20 kHz
      • Frequency response (-10 dB): 60 Hz - 20 kHz
      • Sensitivity: 90 dB2
      • Max SPL (calculated): 109 dB (115 dB Peak)
      • Coverage angle: Horizontal 90°, Vertical 90°
      • Power handling: 75 W (300 W Peak) Continuous, Pink Noise (100 hours)
      • Low Z: Yes
      • Nominal impedance:
      • Minimum impedance:
      • Recommended High-Pass: 60 Hz (24 dB/octave)
      • Input transformer (70V/100V): No
      • LF transducer: 5.25 inch (102 mm)
      • HF transducer: 0.75 inch (20 mm)
      • Connectors: Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) - (2) for connection to
        additional speakers in a distributed line.
      • Max. wire size: 12AWG (2.5 mm)
      • Environmental: IP54 (per IEC-60529)
      • Color: Black (RAL 9004) or white (RAL9003)
      • Dimensions (HxWxD): 255 mm x 180 mm x 151 mm, (10.0 in x 7.1 in x 6.0 in)
      • Net weight: 3.2 kg (7.0 lb)
      • Shipping weight (pair): 7.9 kg (17.5 lb)
      • Included hardware: Mounting bracket and 4-mm, Allen wrench
      • Packaged quantity: 2

    • Item Includes:

      • 1x Pair of Loudspeakers
      • 1x Mounting Hardware
      • 1x Manual

    • Warranty:

      • 5 years

    • GTIN:

      0800549845342
