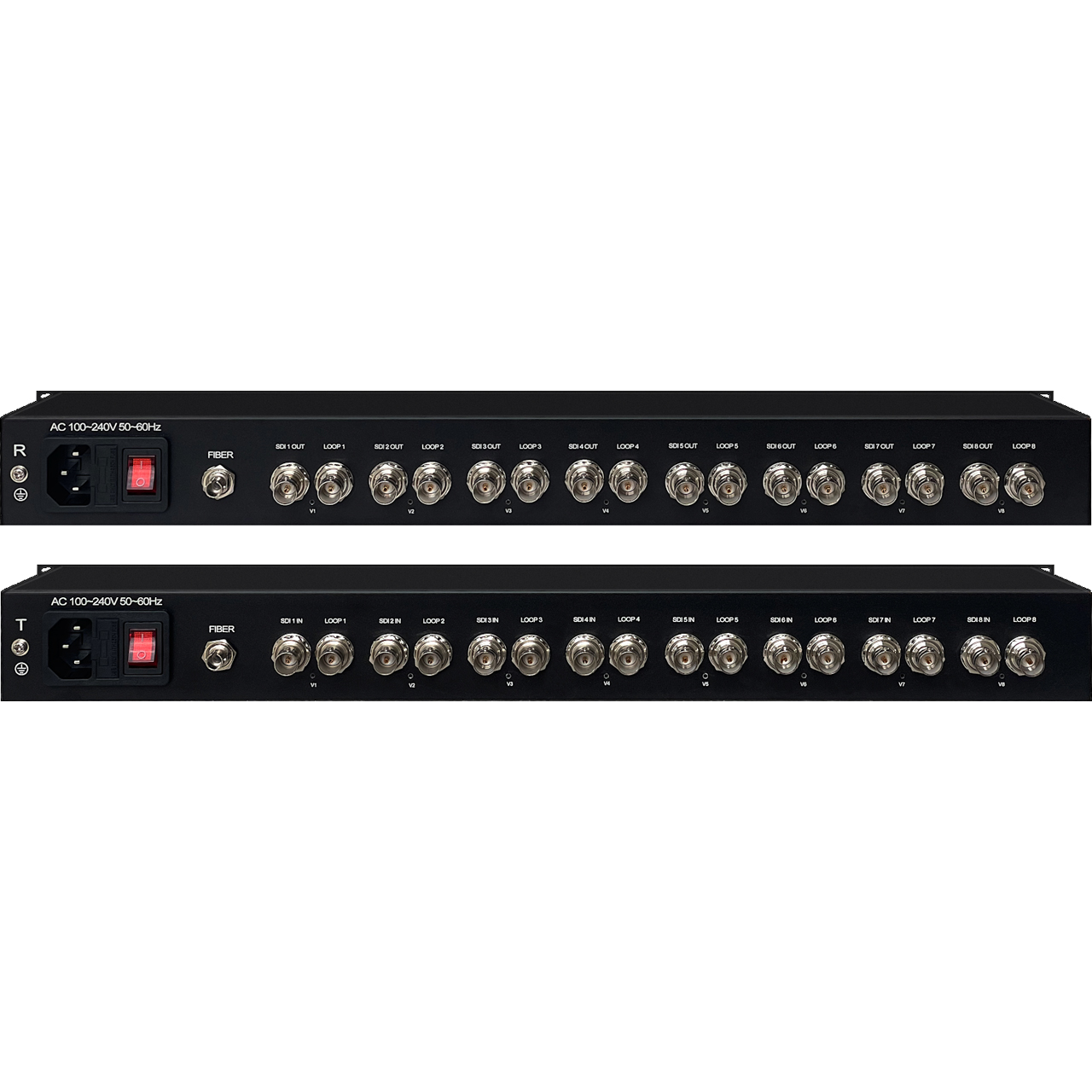

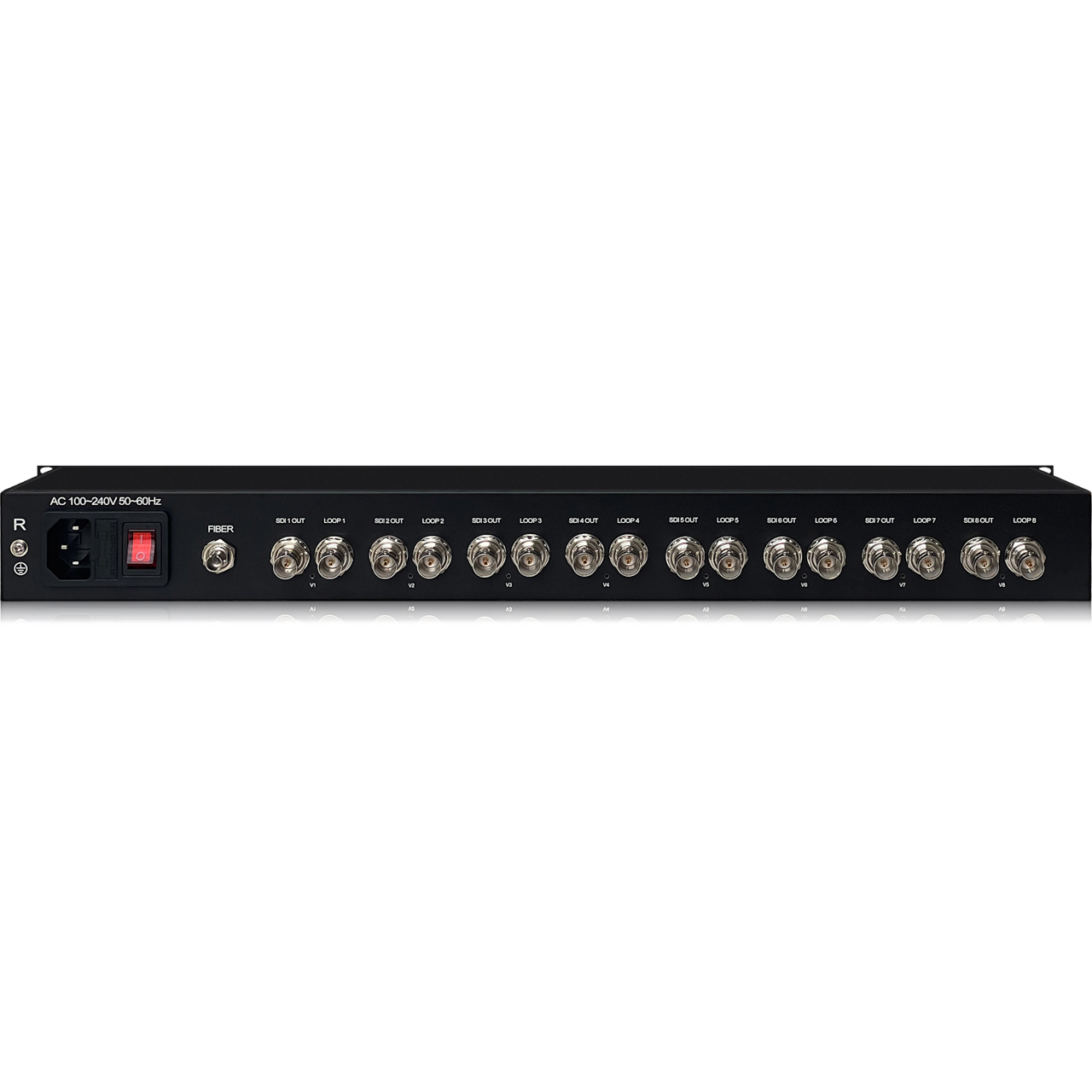

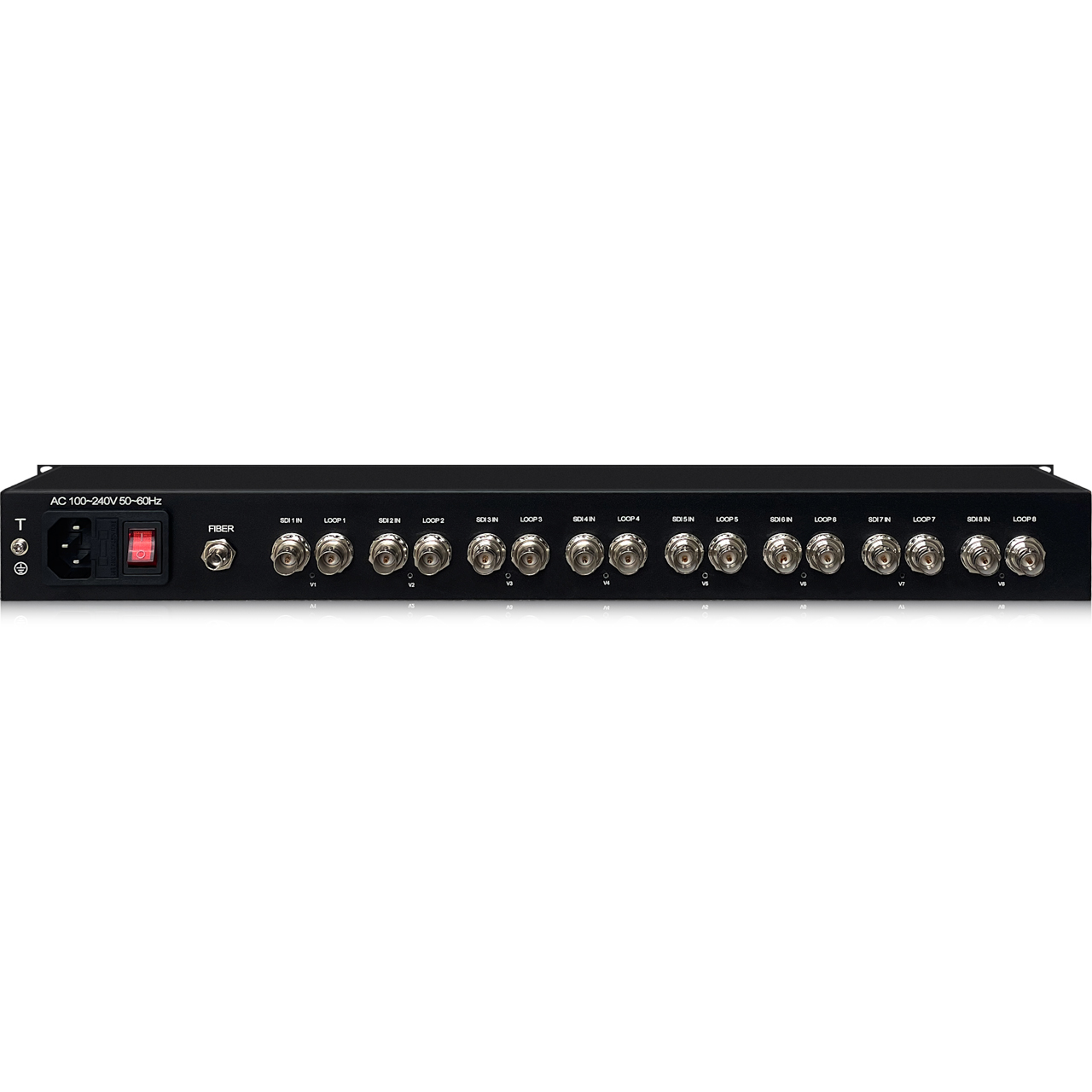

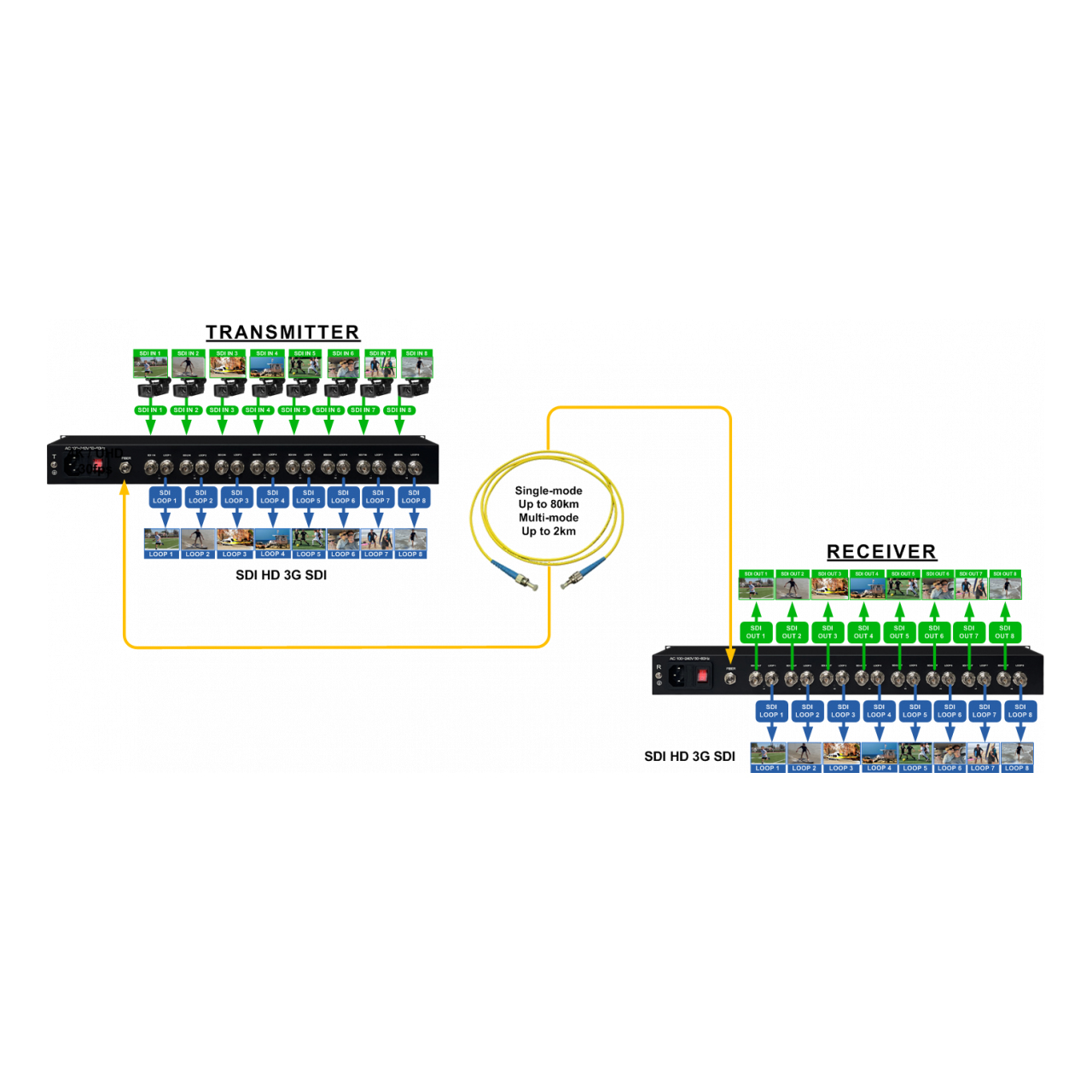

Thor Fiber F-8SDI-3G-LOOP-TX/RX 8-Channel 3G SDI Fiber Optic Multiplexer with SDI Loop-Outs

F-8SDI-3G-LOOP-TX/RX - Overview

• Features:

  • CWDM optical multiplexing technology, Each SDI signal has its own laser and its beeing convert to the different optical wavelength
  • Compliant with SMPTE ST 425-3, ST 425-5, 259M-2006, 292-2006, 424M-2006
  • Ttransmission of SMPTE 305M-2005, 310M-2004, 344M-2000
  • SDI with or without embedded audio and data
  • Signal is equalized and re-clocked prior to fiber optic transmission
  • Receiver features re-clocked SDI outputs
  • Pathological patterns over entire link budget
  • Single Mode fiber up to 20km
  • Supports 3G/HD/SD-SDI inputs with or without embedded audio and data
  • Supports 4K/UHD resolutions up to 60 fps
  • 21 dB Optical Link Budget @ 2.97 Gbps for High Power, Longer Distance version
  • Standard & High Powered, long distance transmitter versions available
  • 1RU 19" rackmount version


• Specifications:

  • Support:
    - 2 Channel 4K/UHD signals at 60 fps
    - 4 Channel 4K/UHD signals at 30 fps
    - 8 Channel SD/HD/3G SDI up to 1080p/60
  • Supported Standards: SMPTE ST 425-3, ST 425-5, 259M, 292, 297-2006, 424M-2006, 305M, 310M, 344M, DVB-ASI

    Optical Characteristics
  • Wavelength - 1310 nm CWDM Band:
    - 1271nm, 1291nm, 1311nm, 1331nm
    - 1351nm, 1371nm, 1411nm, 1431nm
  • Wavelength - 1550 nm CWDM Band:
    - 1471nm, 1491nm, 1511nm, 1531nm
    - 1551nm, 1571nm, 1591nm, 1611nm
    *Other Wavelengths Available By Request
    *DWDM up to 160 Ch/Fiber By Request
  • Fiber Cable: Singlemode
  • Optical Data Rate: Up to 3 Gbps
  • Optical Source: DFB Laser Module - CWDM
  • Optical Budget: 15 dB - Standard, 25 dB - Long Range
  • Fiber Connectors: ST/PC

    Electrical Characteristics
  • Input: Any Serial Digital Signal up to 3.0 Gbps
  • Input Level: 1.00 V Peak to Peak
  • I/O Impedance: 75 Ohm
  • Electrical Connectors: BNC - 75 Ohm

    Mechanical/Environmental
  • Dimensions (LxWxH): 19" x 8.86" x 3.46" (480mm x 225mm x 88mm)
  • Weight: 8lbs - 15lbs (depending on configuration)
  • Temperature Range:
    - Operating: 14°F - 131°F (-10°C - 55°C)
    - Storage: -22°F - 158°F (-30°C - 70°C)
  • Humidity Range: 0% - 95%, non-condensing
  • Power: 100 - 240 VAC Auto Switching PSU, 10 - 30 Watt, depending on configuration


• Item Includes:

  • 1x Thor Fiber F-8SDI-3G-LOOP-TX/RX 8-Channel 3G SDI Fiber Optic Multiplexer with SDI Loop-Outs
