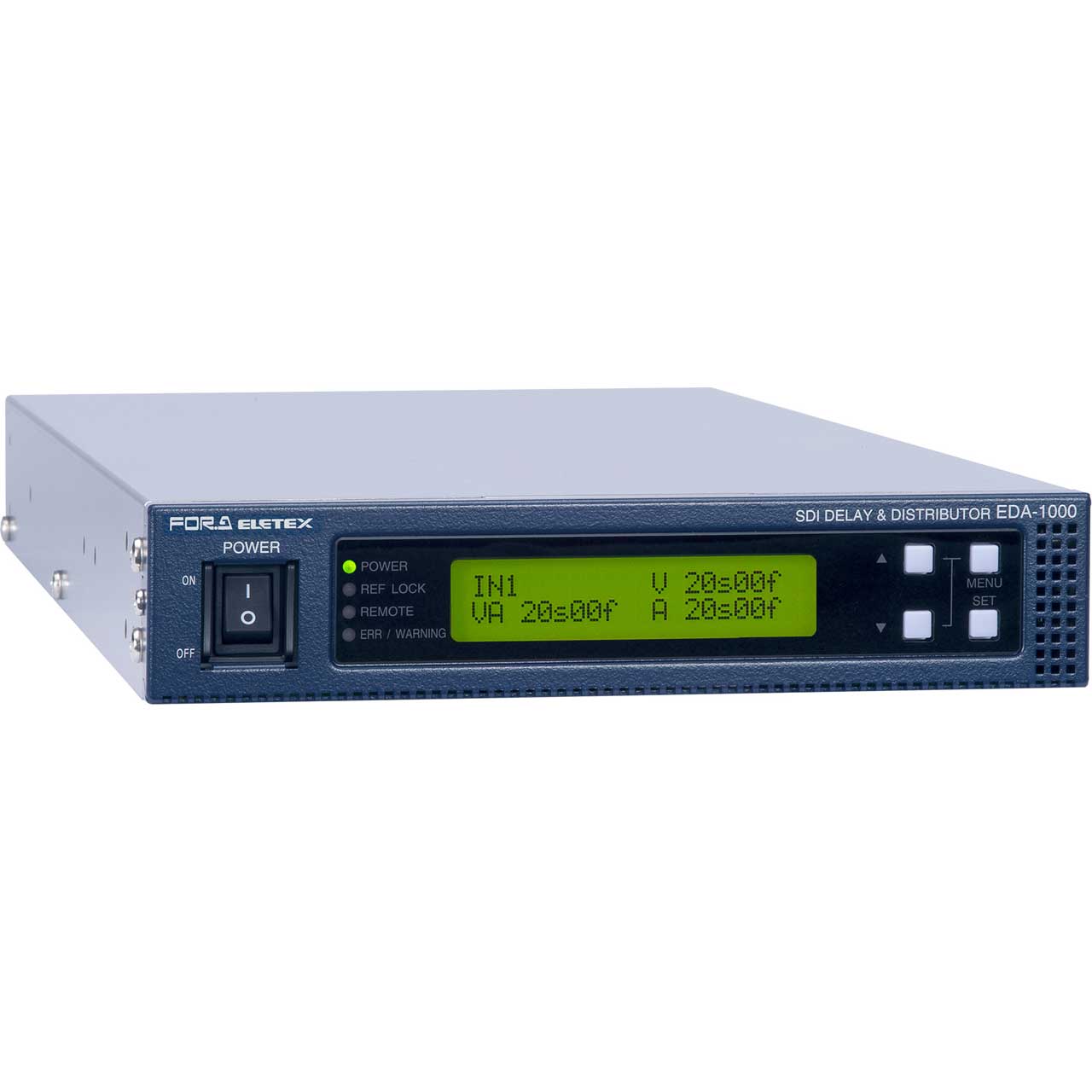

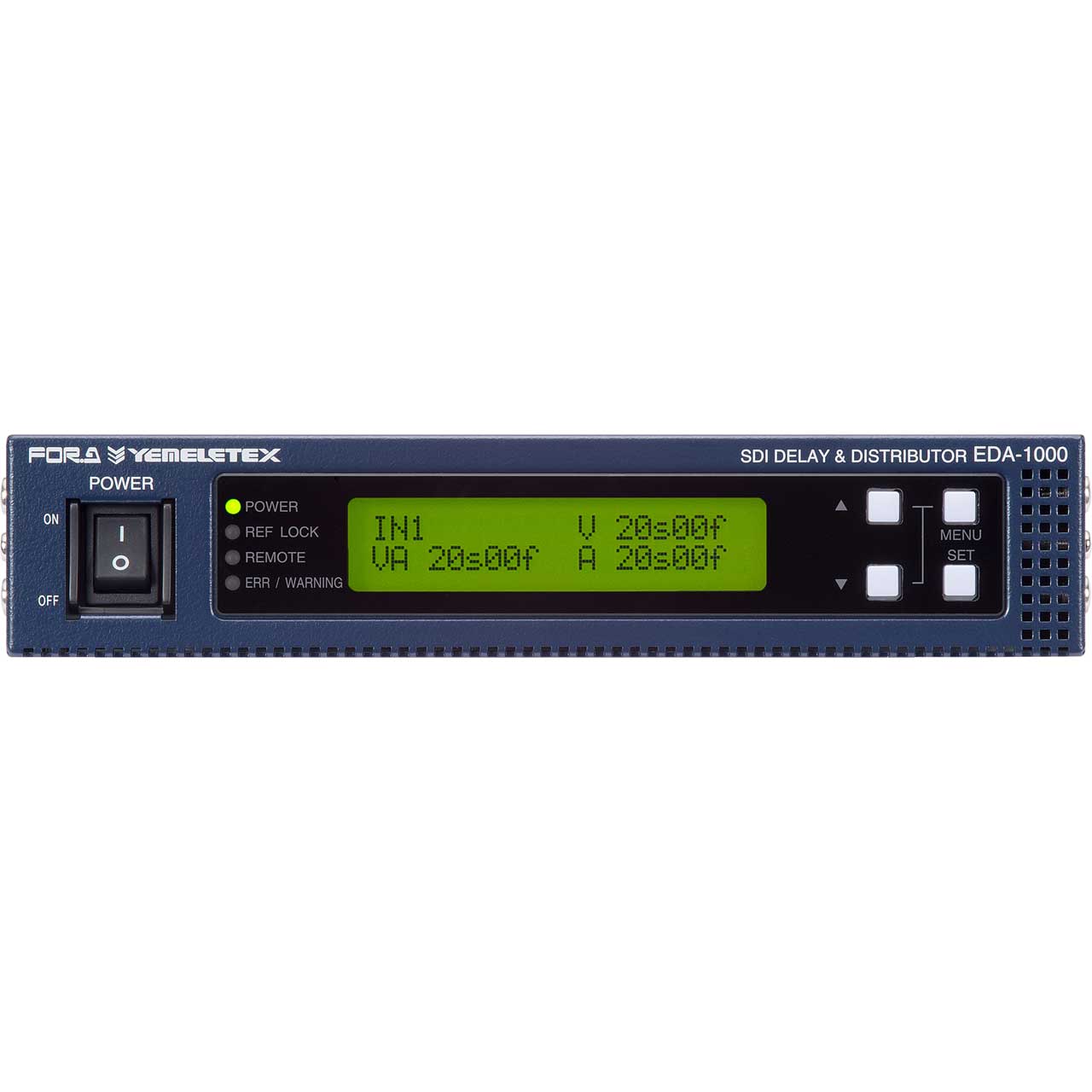

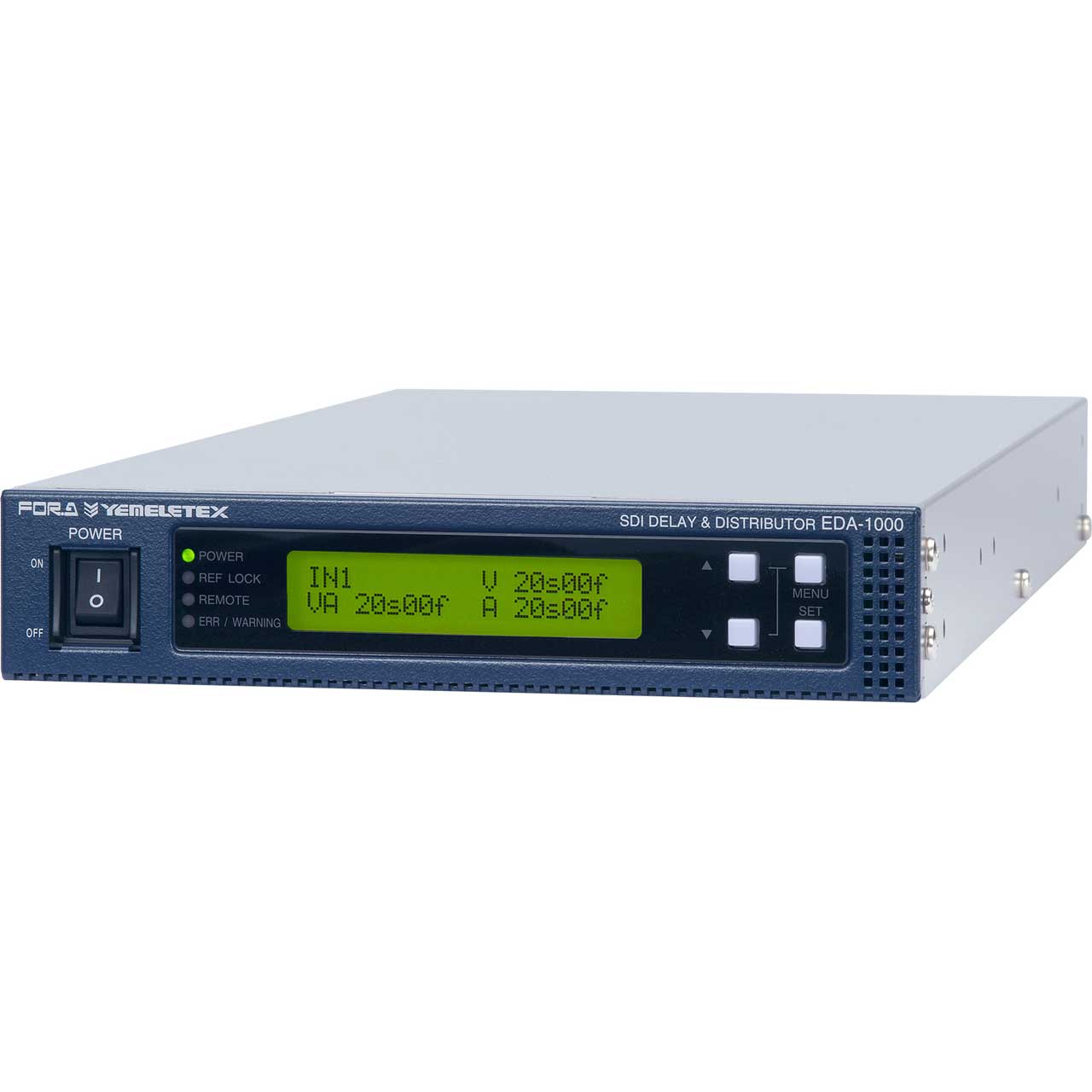

FOR-A EDA-1000 1U Half Size SDI Audio/Video Delay Unit & Distributor - Supports 4K

Manufacturer: FOR-A Company Limited

Item #: FORA-EDA-1000   •   MFG #: EDA-1000



List Price:$9,200.00
Our Price:$8,695.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The FOR-A EDA-1000 is a 3G/HD/SD-SDI 4 input audio/video delay unit where audio, video and VANC delay can be set separately. Using an HD-SDI input, you can set a delay of up to 40 sec. You can add an EDA-20EX option for delay up to 80 sec. You can set separate delays for each of the four inputs, as needed. For VANC data delay, minimum delay can be set per line for specific VANC within each input channel. They also support 4K (quad link 3G-SDI) input.

    With the EDA-1000, it provides distribution for up to 4 outputs when one channel of input is used. The unit is a compact 1RU half-size model with a single power supply.


    • Features

      • Use SNMP for trap output or to check or configure settings
      • Remote control via Telnet with dedicated remote unit, the EDA-20RU
      • Genlock using external reference signals is enabled

    • Specifications

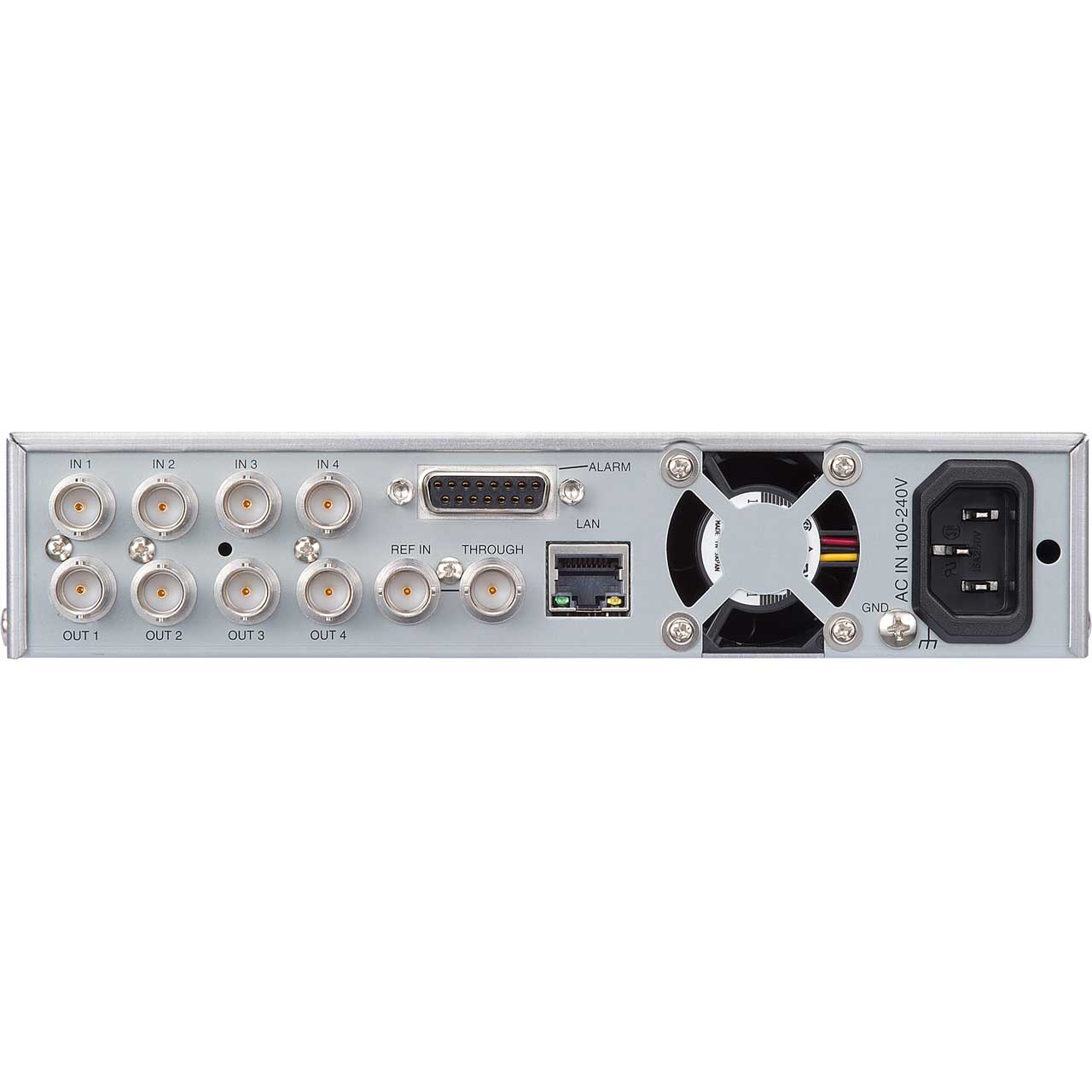

      • Video Inputs:
        3G-SDI: 1080/59.94p, 1080/50p, SMPTE ST 424 compliant
        HD-SDI: 1080/59.94i, 1080/50i, SMPTE ST 292-1 compliant
        SD-SDI: 720/59.94i, 720/50i, SMPTE ST 259 compliant

      • Video Outputs:
        3G-SDI: 1080/59.94p, 1080/50p, SMPTE ST 424 compliant
        HD-SDI: 1080/59.94i, 1080/50i, SMPTE ST 292-1 compliant
        SD-SDI: 720/59.94i, 720/50i, SMPTE ST 259 compliant; 75Ω BNC x4 (4 lines, up to 4 distributed outputs when 1 line is used)

      • Delay (Max.):
        3G-SDI: approx. 20 sec. (40 sec.)
        HD-SDI: approx. 40 sec. (80 sec.)
        SD-SDI: approx. 120 sec. (240 sec.)
        *1/4 the delay available when 4 lines are used, 1/2 the delay available when 2 lines are used.

      • Delay Adjustment:
        VIDEO: Effective video section
        AUDIO: HANC space including audio signals
        VANC: VANC space

      • Reference Input:
        BB: NTSC: 0.429 Vp-p/PAL: 0.45Vp-p
        Tri-Level Sync: 0.6 Vp-p, 75Ω, BNC x1 with loop-through

      • Phase Adjustment:
        H Phase: ±0.5 Line, 1 Sample Step
        V Phase: ±0.5 Frame, 1 Line Step

      • LAN: 100Base-TX, RJ-45 x1 (remote control, SNMP v2c monitoring/control)
      • ALARM: 15-pin D-sub (female), Fixed inch screw thread x1 (Alarm output)
      • Alarm Output: Power, FAN, Input signal fault detection, Genlock signal fault detection, Output from SNMP-trap, ALARM connector
      • Temperature/Humidity: 41°F - 104°F/10% - 80% (no condensation)
      • Power/Consumption: 100V AC - 240V AC ±10%, 50/60Hz/50W (@ 100V AC)
      • Dimensions (HxWxD): 1.7" x 8.3" x 17.7"
      • Weight: Approx. 11lbs
      • Consumables: Cooling fans (replace every 5 years), Power unit (replace every 3 years)
