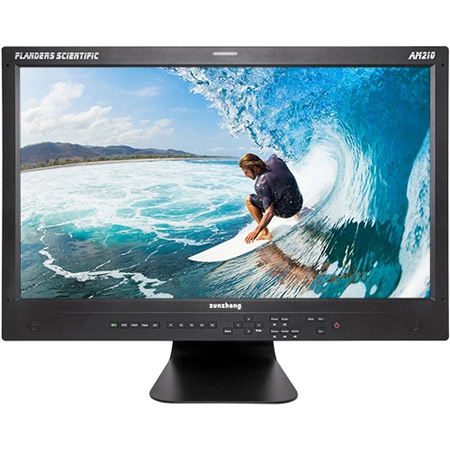

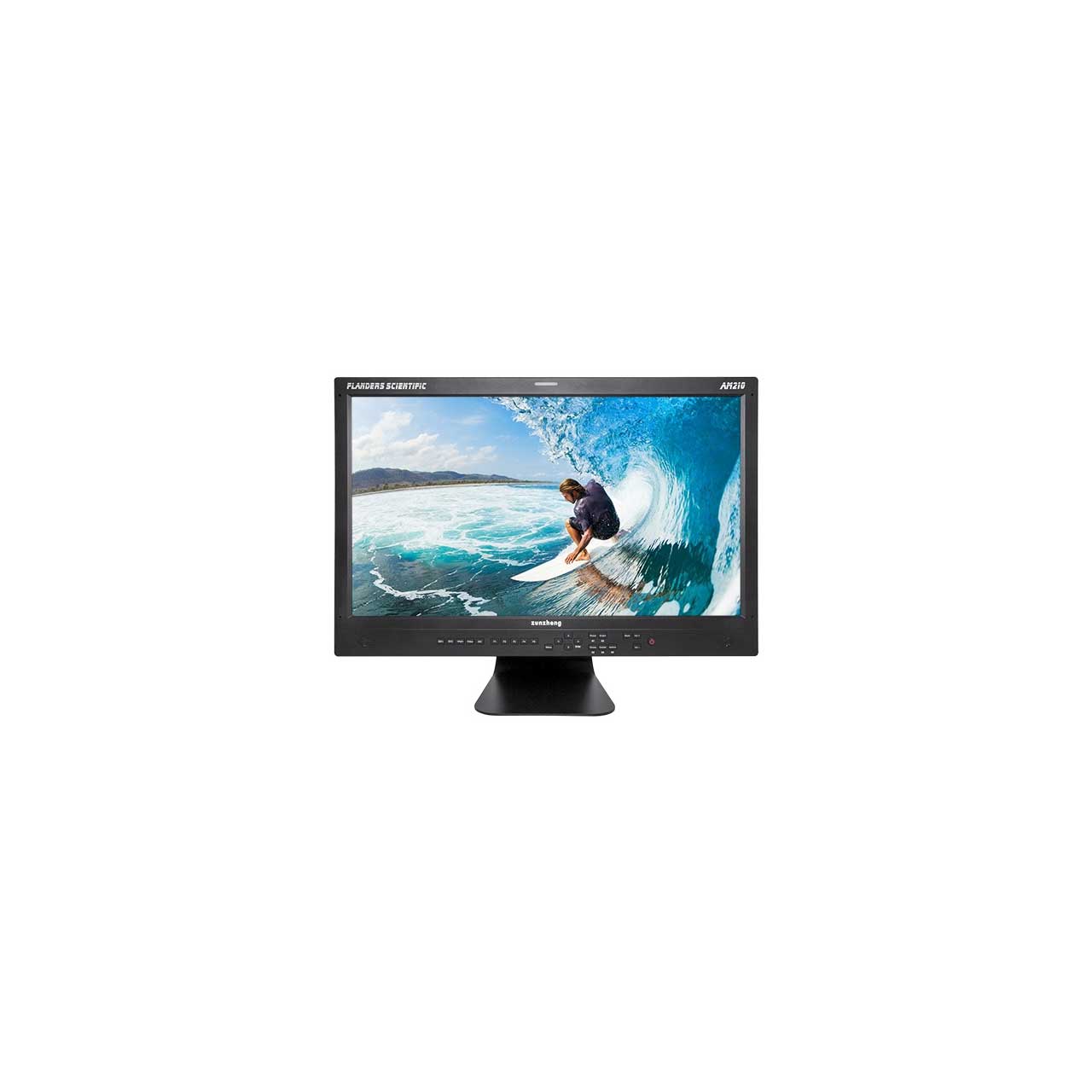

Flanders Scientific AM210 21.5-Inch 1920 x 1080 DVI-D/BNC LCD Monitor

ITEM #: FSI-AM210 MFG #: AM210

free ship

Our Price:

$2,150.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


AM210 - Overview

The Flanders Scientific AM210 has been designed specifically to offer a level of affordability in accurate and capable broadcast monitoring. The AM210 is large enough to be used in an edit suite yet lightweight, durable, and compact enough to work exceptionally well as a field monitor.

Color Management
FSI's Color Fidelity and LUT Interpolation Engine houses multiple 4,913 point (17³) calibration LUTs for accurate and reliable color reproduction. Instantly select from Rec709, EBU, SMPTE-C, and custom user generated color spaces.

Additional gamma, peak luminance, and color temperature toggles further add to the versatility of this monitor.

Calibration
FSI monitors come pre-calibrated from the factory and free recalibration is always available for customers that would like to send their units in to an FSI service department.

Quickly and easily perform your own 3D LUT based calibration with advanced color management solutions like LightIllusion's ColourSpace CMS or SpectraCal's CalMAN.

Enterprise-level clients that own a large number of AM210 can also take advantage of FSI's Volumetric AutoCal using a Minolta CA310.

Video Scopes
A wide variety of scopes and meters are available. Display up to two scopes on screen at a time. Scopes can be positioned in any of 6 on-screen positions. When using two scopes the scope windows can be stacked horizontally or vertically depending on your preference. Video scopes work across all inputs, even DVI.

RGB Parade
Parade waveform. Adjustable parade intensity. Levels above or below 100IRE show in white for easier identification.

Audio Meters
This monitor features several audio metering tools as well as the ability to disembed any single channel or stereo pair of audio to the monitor's internal speakers or audio line out. Disembedded audio is always delayed by the exact amount of video processing time to ensure proper lip-sync.

Horizontal Audio Level Meters
Display 2, 8, or 16 channels of audio arranged in audio groups or stereo pairs with real-time numerical display of dB levels per channel. Meters feature adjustable Alignment Level, Permitted Max Level, and Peak Hold Time. Select between True Peak, PPM Type I, or PPM Type II ballistics. Meters will indicate NO DATA if an audio group is not embedded in the signal to differentiate it from audio channels that may be mute, but still embedded.

  • Features:

    • Horizontal Audio Level Meters
    • Vertical Audio Level Meters
    • CIE Measurement
    • Lum Coloring (Adjustable Exposure Check)
    • Timecode
    • Tally Lights & Record Status Tally
    • Pixel Zoom, Zoom, DSLR Zoom, Full Screen, CX Scale, Overscan
    • Pixel Mapping
    • SD Aspect Ratio & PAL SD FHA
    • Anamorphic De-Squeeze
    • Onscreen Alarms
    • Max Sharpness & Focus Assist

  • Specifications:

    • Panel Specifications
    • Screen Size: 21.5"
    • Resolution: 1920x1080
    • Bit Depth (Color): 8bit (16.7 Million Colors)
    • Contrast Ratio: 1000:1
    • Backlight: White LED
    • Pixel Efficiency: 99.999%
    • Max Luminance: 250nits
    • Viewing Angle: 178°

      Inputs
    • 1 x DVI-DDVI-I (Analog/Digital)
    • 2 x BNC 3Gbps/HD/SD-SDI
    • 1 x BNC Composite
    • 3 x BNC Component (YPbPr/RGB)

      Outputs
    • 2 x BNC 3Gbps/HD/SD-SDI
    • 1 x BNC Composite
    • 3 x BNC Component (YPbPr/RGB)

      Supported SDI Formats
    • ITU-R BT.656 (PAL): 576i (50)
    • SMPTE-125M: 480i (59.94)
    • SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
    • SMPTE-296M: 720p (60/59.94/50/30/29/25/24/23.98)
    • 2K: 2048x1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
    • SMPTE-372M: 1080p (50/59.94/60) 4:2:2 YCbCr, RGB, 1080i (29.97/25/24/23.98) 4:4:4 YCbCr, RGB, 1080p (30/29.97/25/24/23.98) 4:4:4 YCbCr, RGB, 720p (60/59.94/50) 4:4:4 YCbCr, RGB
    • SMPTE-425M-AB:
      12 & 10bit 4:2:2 1920x1080p (60/59.94/50)
      4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98)
      12 & 10bit 4:4:4 1920x1080i (60/59.94/50)
      12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
      12 & 10bit 2k (2048x1080) (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
      12 & 10bit 2K (2048x1080) (60p/59.94p/50p/48p/47.95p)
      *XYZ mapped to Selected Color Gamut on Color Management Menu
      Level A & Level B supported
      Level B supports 2 x SMPTE
      292M image format mapping, 372M image format mapping
      RGB, YCbCr, & XYZ supported

      Supported DVI Formats
    • DVI-Analog & DVI-Digital: VGA (640x480), NTSC (720x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024)
    • DVI Digital Only: 1280x720, 1440x900, 1920x1080

      Audio
    • Audio Disembedding: Yes
    • Audio Level Meters: Yes
    • Internal Speakers: 2
    • Audio In (Mini-Jack): 1
    • Audio Out (Mini-Jack): 1

      Features
    • Rack Mount Kit: Optional
    • Desktop Stand: Standard
    • External Mounting Points: 100mm VESA
    • VESA to Light Stand Mount: Optional
    • Carrying Case with Integrated Hood: FSI Solutions CH21
    • Clear Protective Cover: Optional
    • Scopes: Yes
    • Measurement Function: Yes
    • Timecode Display (SD/HD-SDI): LTC, VITC 1, VITC 2
    • Color Fidelity Engine: CFE
    • 1:1 Pixel Mapping: Yes
    • Blue Only & Mono Mode: Yes
    • Side by Side Monitoring: No
    • 3D LUT Color Space Selection: SMPTE C/EBU/REC709/DCI P3/USER
    • Color Temperature Select: 3200K, 5000K, 5600K, 6500K, 9300K
    • Gamma Selection: 1.0 / 1.8 / 2.0 / 2.2 / 2.35 / 2.4 / 2.6 / 2.8

      Power
    • AC Input: IEC / C14
    • DC Input: 4 PIN XLR
    • Battery Plate: Optional
    • Power Requirement: 100~240 VAC / 12~24 VDC
    • DC Power Consumption (Appx.): 28 Watts

      Physical Characteristics
    • Weight (without stand): 9 lbs (4.1 Kg)
    • Weight with Basic Desktop Stand: 11.2 lbs (5.1 Kg)
    • Weight in Carrying Case with Hood: 17.8 lbs (8.1 Kg)
    • Chassis: Aluminum Frame

  • Item Includes:

    • 1x Flanders Scientific AM210 21.5-Inch 1920 x 1080 LCD Monitor
