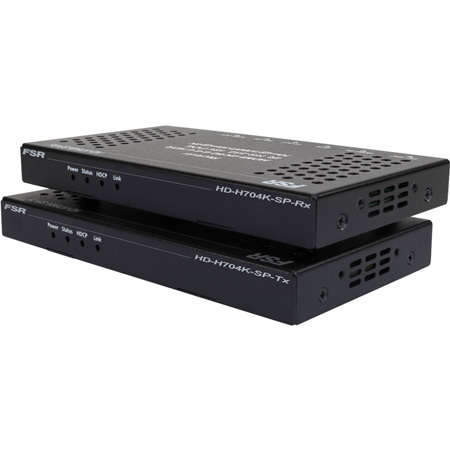

FSR HD-H704K-SP 70 Meter Compressed HDBaseT Extender Set - Compressed 4K-60 4;4;4 / IR & RS-232 18v PoE

HD-H704K-SP - Overview

• Features:

  • Visual Lossless Compression enables 4K@60 HDR extension over HDBaseT.
  • Via Cat 6a/7 cables, 4Kx2K@60Hz output up to 40m, while 1080P up to 70m.
  • Via Cat 5e/6 cables, 4Kx2K@60Hz output up to 35m, while 1080P up to 60m.
  • HDMI 2.0 with 4k@60Hz YUV 4:4:4 and HDCP 2.2 compliance.
  • Bi-directional PoE, only one power adapter is needed at either TX or RX side.
  • Two-way RS-232 pass-through over HDBaseT.
  • Two-way IR pass-through over HDBaseT.
  • Automatic EDID management.

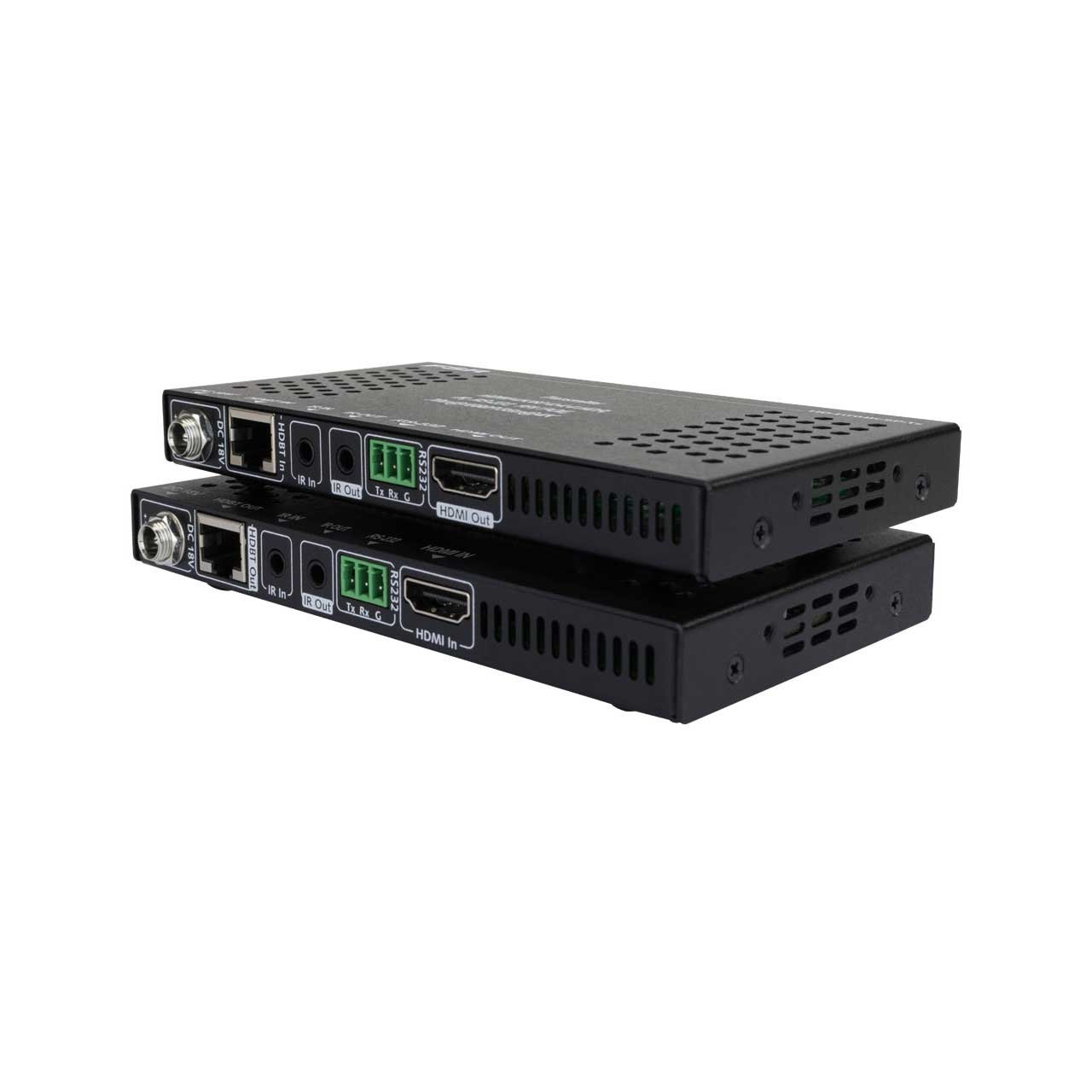

  • All connections on same side of the device

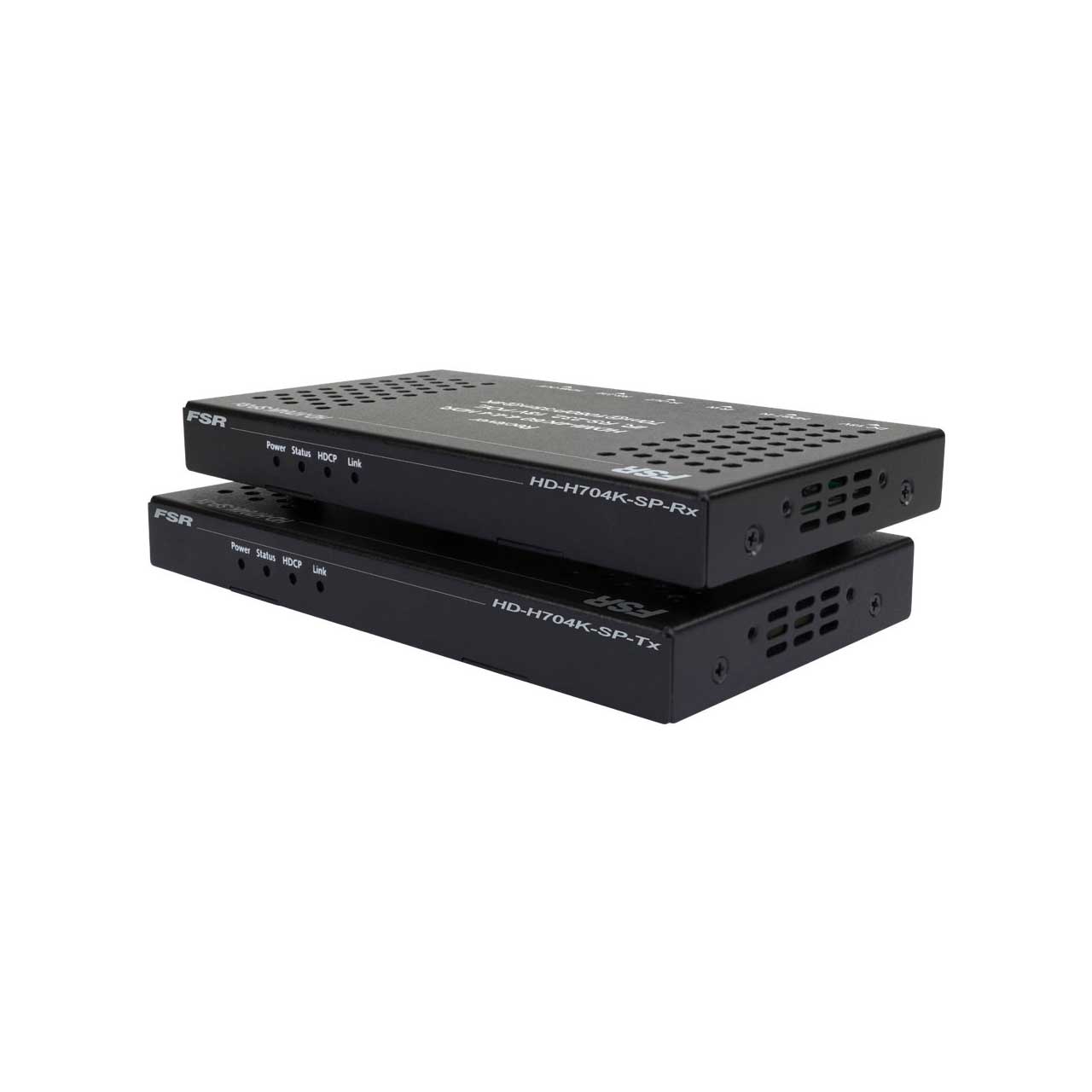

  • Visual LED indication (POWER, STATUS, HDCP, LINK)
  • 18V DC power


• Specifications:

  • Transmitter
  • Technical
  • Input: 1 x HDMI IN
  • Input Signal Type: HDMI with 4K@60Hz 4:4:4, HDCP 2.2
  • Input/Output Resolution Supported:
  • SMPTE: 1280x720P, 1920x1080I, 1920x1080, 3840x2160, 4096x2160
  • VESA: 800x6008, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1400x1050
    1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200
  • Maximum Data Rate: 18 Gbps
  • Input Video Level: 0.5-1.0 V p-p
  • Maximum Pixel Clock: 600MHz
  • Output: 1 x HDBT
  • Output Signal Type: HDBT
  • Video Impedance: 100ohms

    General
  • Operating Temperature: 0°C to 45°C (32°F to 113°F),
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Storage Humidity: 10% to 90% RH, non-condensing
  • Power Supply: DC 18V 1A
  • Power Consumption (Max): 13W (When connect the power adapter to transmitter to power both units.)
  • Device Dimension (W x H x D): 136.8 mm x15.4 mm x 74.5 mm/ 5.39'' x 0.61'' x 2.93''
  • Product Weight: 0.24kg/0.53lb
  • Certification: CE, FCC

    Receiver
  • Technical
  • Input: 1 x HDBT
  • Input Signal Type: HDBT
  • Input/Output Resolution Supported:
  • SMPTE: 1280x720P, 1920x1080I, 1920x1080, 3840x2160, 4096x2160
  • VESA: 800x6008, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1400x1050
    1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200
  • Maximum Data Rate: 18 Gbps
  • Input Video Level: 0.5-1.0 V p-p
  • Maximum Pixel Clock: 600MHz
  • Output: 1 x HDMI
  • Output Signal Type: HDMI
  • Video Impedance: 100ohms

    General
  • Operating Temperature: 0°C to 45°C (32°F to 113°F),
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Storage Humidity: 10% to 90% RH, non-condensing
  • Power Supply: DC 18V 1A
  • Power Consumption (Max): 13W (When connect the power adapter to transmitter to power both units.)
  • Device Dimension (W x H x D): 136.8 mm x15.4 mm x 74.5 mm/ 5.39'' x 0.61'' x 2.93''
  • Product Weight: 0.24kg/0.53lb
  • Certification: CE, FCC
