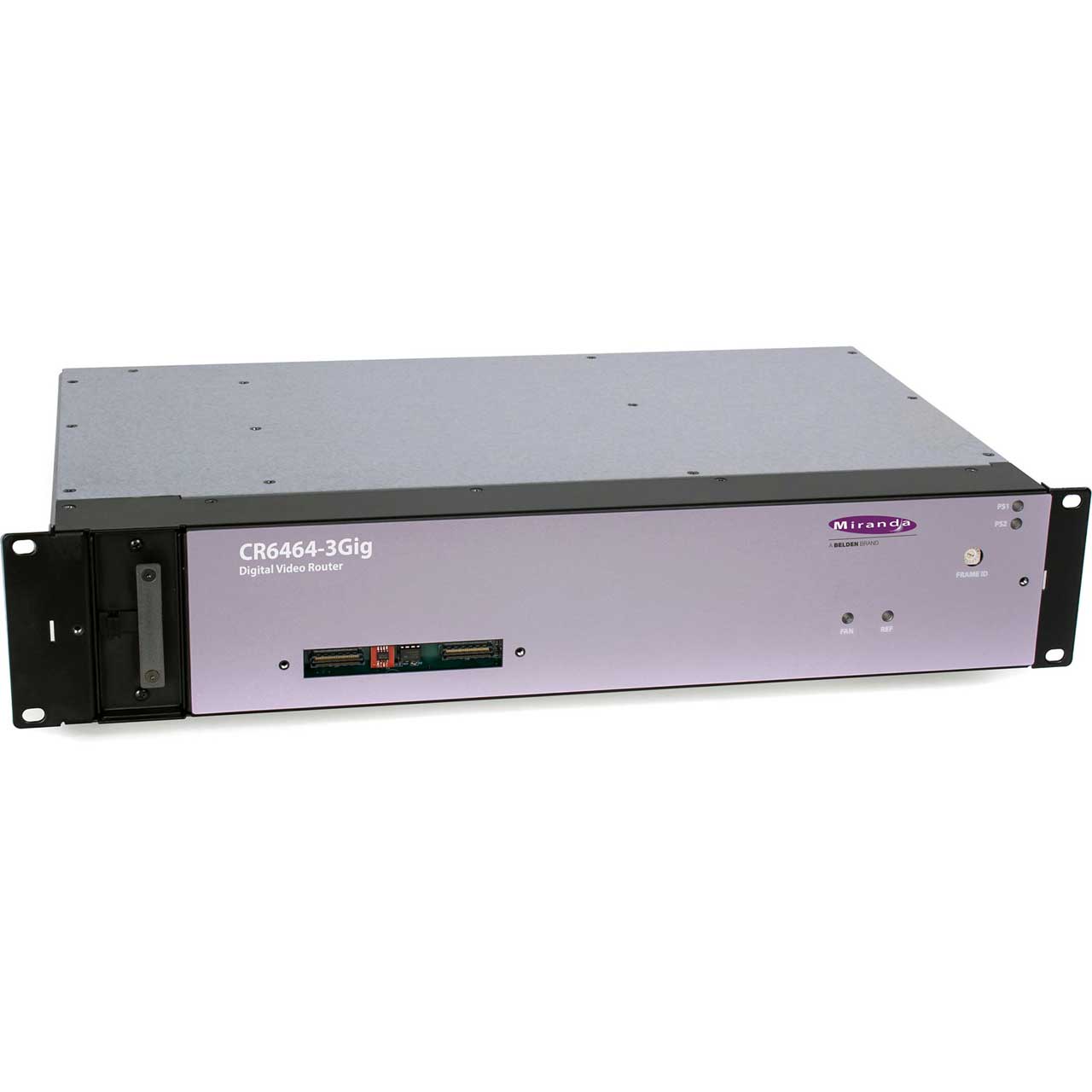

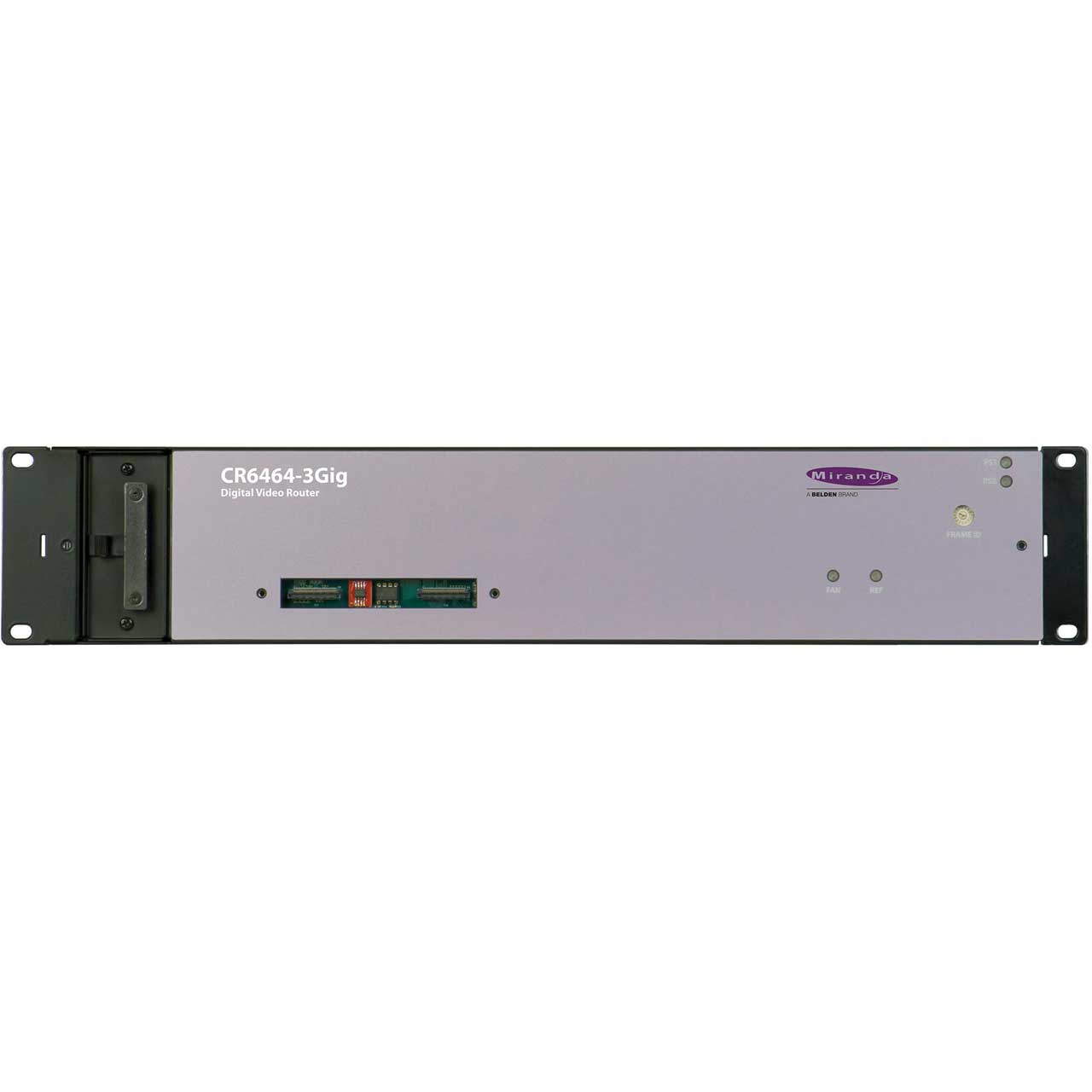

Grass Valley CR6464-3GIG 64x64 3Gb/ss HD Serial Digital Video Router - 2RU
  • Grass Valley CR6464-3GIG 64x64 3Gb/ss HD Serial Digital Video Router - 2RU
  • Grass Valley CR6464-3GIG 64x64 3Gb/ss HD Serial Digital Video Router - 2RU
  • Grass Valley CR6464-3GIG 64x64 3Gb/ss HD Serial Digital Video Router - 2RU

Questions? Ask a Markertek Expert:
800-522-2025 Email

Grass Valley CR6464-3GIG 64x64 3Gb/ss HD Serial Digital Video Router - 2RU

Manufacturer: Grass Valley

Item #: GVLY-CR6464-3GIG   •   MFG #: CR6464-3GIG



List Price:$26,145.00
Our Price:$23,345.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Grass Valley NVISION CR6400 (CP6464-3GIG) Series compact router fits 64 inputs and 64 outputs in a slim 2 RU frame and is an ideal choice for small facilities, trucks, stadiums or any location that is space-constrained such as editing suites, post-production and playout facilities. The robust matrix supports its 64-squared matrix thanks to the introduction of DIN connectors rather than the typical BNC connectors. Initially available in two versions - 64x64 3G-SDI and 64x64 stereo async AES utility router - these durable and ultra-reliable routers contain hot swappable modules for easy serviceability and are tested for performance from 32-113F. 64x64 single link 3G HD serial digital video router, 2 RU


    • Features

      • DIN connectors
      • High-density 64x64 matrix in 2 RU
      • Optional, redundant power supply
      • Broadcast quality components for superior signal performance
      • Rugged design to smoothly handle both movement and temperature extremes
      • Local control panel option, CP6464, mounts to the front of the router or can be used for remote access using an RP32
      • Operates with or without external control system
      • Field serviceable modules are hot swappable
      • Crosspoint card
      • Control card
      • Input and output cards
      • Fan module

    • Specifications

      • Electrical
      • DC power: External power supply: 12 VDC ± 10%, 5A.
      • Power consumption: 77W max (CR6464-3G-SDI router); 55W max (CR6464-AES router)

        Dimensions
      • Height: 88.1 mm (3.47 in.), fits EIA 2 RU (88.9 mm / 3.50 in.)
      • Width: 482.6 mm (19.0 in.)
      • Depth: 258.6 ±0.25mm (10.18 ±0.01 in.), enclosure <273.1 mm (10.75 in.) from front of rack to extended ground screw

        Weight
      • 5.35 kg (11.8 lbs.) with no I/O cards, without control panel.
      • 6.94 kg (15.3 lbs.) with 4 I/O cards, without control panel.

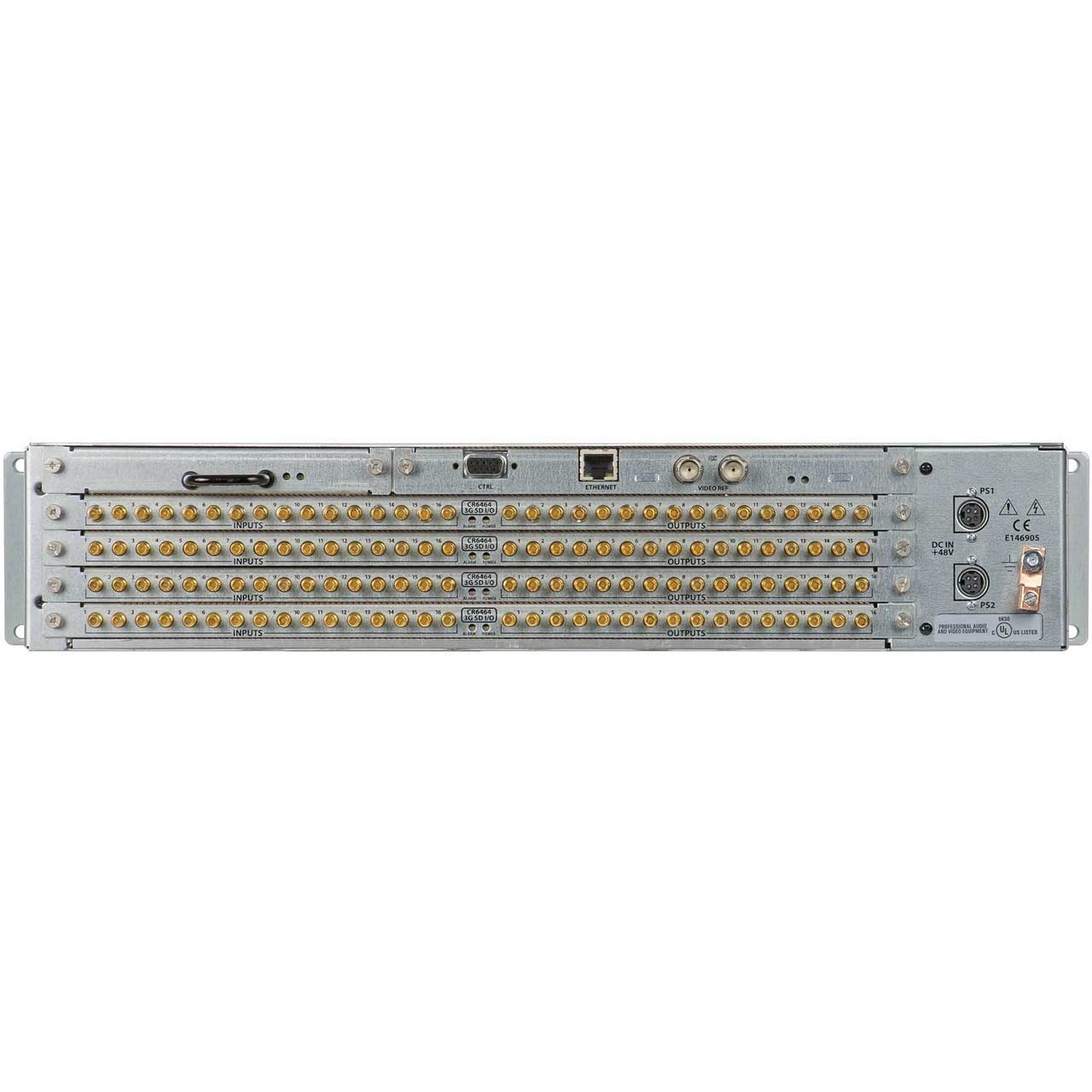

        Connectors
      • Power: 2 connectors, DIN 4
      • Ethernet: 1 connector , 10/100BaseT, RJ-45 jack
      • RS-422: 1 connector, 9-pin D type, usage determined by software, SMPTE 207M
      • Video reference: 2 connectors, BNC, 75Ω
      • Optional control panel: Two 2x60 connectors
      • Removable module: 4 I/O card slots at rear; 1 crosspoint card slot at rear; 1 control card slot at rear; 1 fan module removable at the front; I/O module types: SDI, AES
      • Grounding terminal: Copper, accepts 14-6 AWG
      • CR6400 Power Supply AC power: 120-240 VAC, 50-60 Hz, up to 2.0A
      • DC power: 48 VDC, 160W max, 3.34A max
      • Ripple and Noise: <240 mVp-p
      • Efficiency: Typically 94%
      • Weight: 0.66 kg (1.45 lbs.)
      • Regulatory: UL listed and CE compliant.
      • CR Series Digital Video Specifications1 Input & output impedance: 75Ω; >400m (1,312 ft.), Belden 1694A or equivalent, 270 Mb/s; >150m (492 ft.), Belden 1694A or equivalent, near 1.5 Gb/s; >100m (328 ft.), Belden 1694A or equivalent, near 3.0 Gb/s; 3G-SDI Specification Detail
      • Auto re-clocking: 270 Mb/s, and 1.483, 1.485, 2.966, and 2.970 Gb/s, or auto bypass. Pass-through: 10 Mb/s to 3.0 Gb/s
      • Input & output impedance: 75Ω; >400m (1,312 ft.), Belden 1694A or equivalent, 270 MB/s; >150m (492 ft.), Belden 1694A or equivalent, near 1.5 GB/s; >100m (328 ft.), Belden 1694A or equivalent, near 3.0 GB/s; >80m (262 ft.), Belden 1694A or equivalent, near 3.0 GB/s for CQX routers
      • Input return loss: >15 dB, 5 MHz to 1.5 GHz
      • Output level: 800 mVpp±10%
      • Output offset: 0 VDC±0.5V
      • Output rise/fall time: ≤135 ps
      • Output overshoot: ≤10% of amplitude
      • Output timing jitter: ≤0.2 UI p-p
      • Output alignment jitter: ≤0.3 UI at 100 kHz
      • Output return loss: > 10 dB, 1.5 GHz to 3.0 GHz

        HD-SDI Specification Detail
      • Data rates: Up to 1.5 Gb/s, reclocking at 143, 177, 270, 360 & 540 Mb/s and 1.483 & 1.485 Gb/s rates, automatic bypass for other rates
      • Input & output impedance: 75Ω
      • Cable equalization: Up to 150m (492 ft.) Belden 1694A or equivalent cable, at 1.483 Gb/s and 1.485 Gb/s; Up to 400m (1,312 ft.) Belden 1694A or equivalent cable, at 143-540Mb/s
      • Input return loss: > 15 dB, 5 MHz to 1.5 GHz
      • Output level: 800 mVpp±10%
      • Output offset: 0 VDC±0.5V
      • Output rise/fall time: ≤270 ps (20% to 80%)
      • Output overshoot: ≤10% of amplitude
      • Output jitter: ≤0.2 UI p-p
      • Output return loss: ≥15 dB, 5 MHz to 1.5 GHz

        SD-SDI Specification Detail
      • Data rates: Auto reclocking at 143, 177, 270, 360 & 540 Mb/s and automatic bypass for other rates
      • Input & output impedance: 75Ω
      • Cable equalization: Up to 300m (984 ft.) Belden 1694A or equivalent cable
      • Input return loss: ≥15 dB, 5 to 540 MHz
      • Output level: 800 mVpp&
