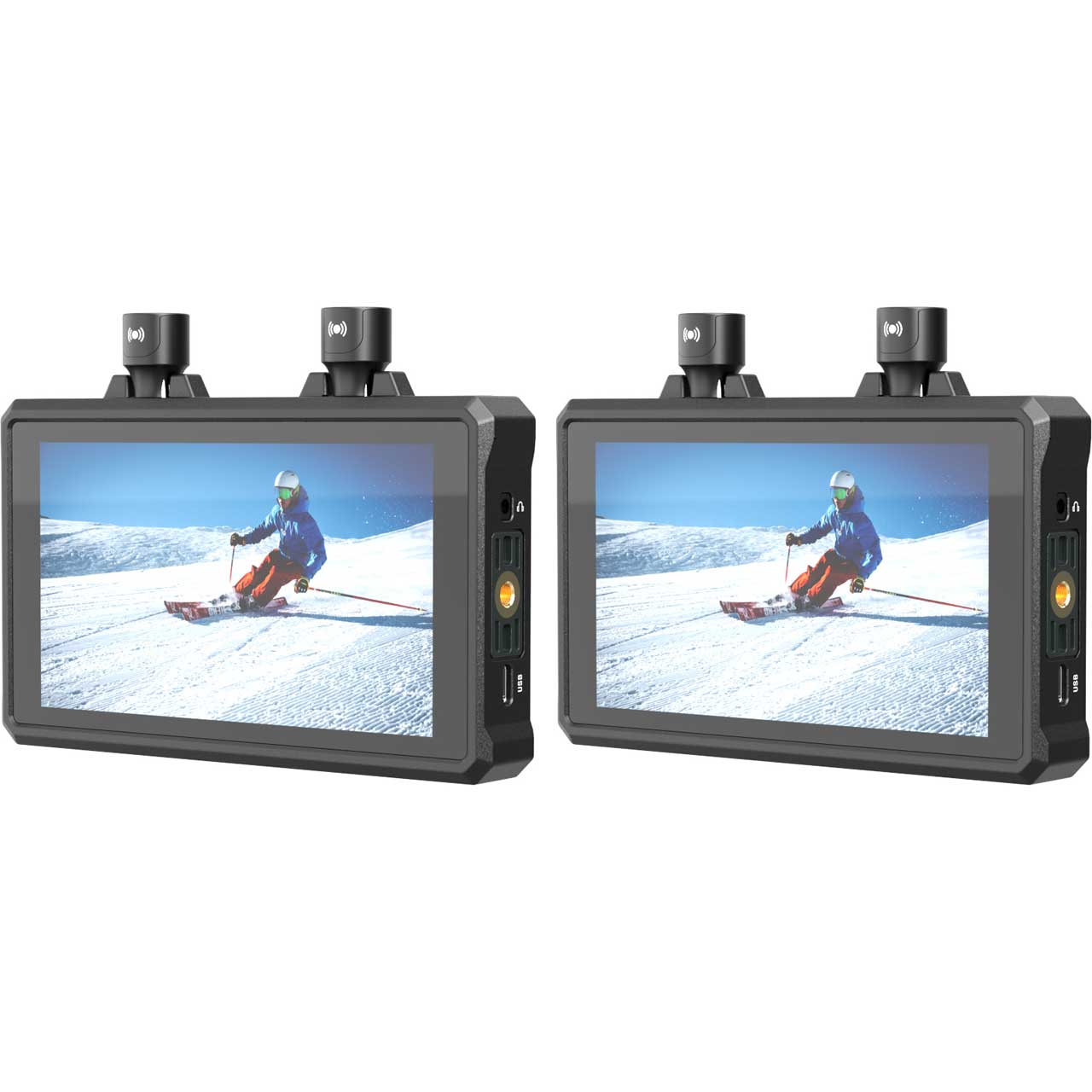

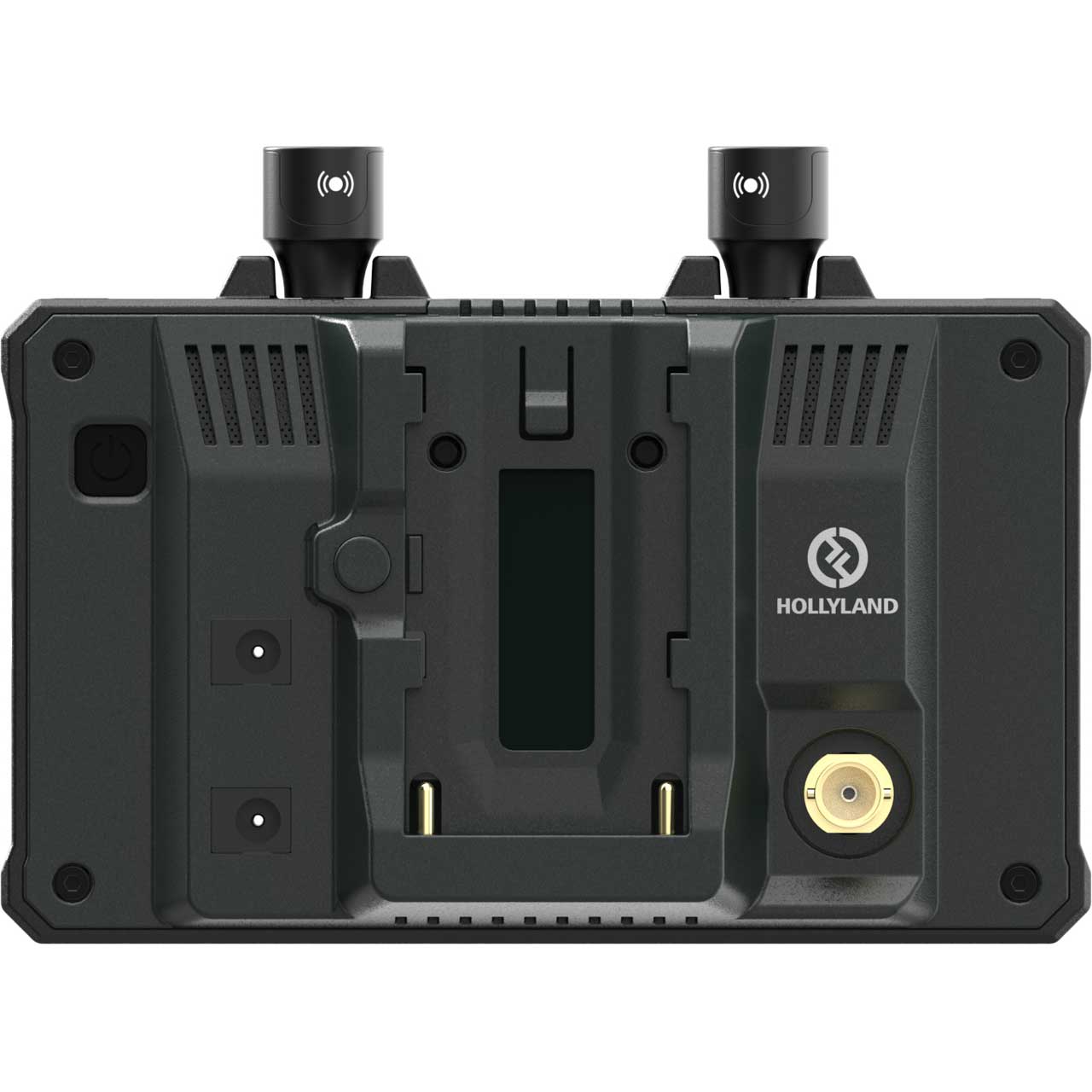

Hollyland Mars M1 4K 5.5 Inch Wireless LCD Touch Camera Mount Transceiver Monitor - Duo Pack

MARS M1 DUO - Overview

MARS M1 DUO - Overview

High 1000 cd/m² Brightness!

MARS M1 DUO - Details

• Features:

  • 3D LUT file import
  • 4x zoom
  • Exposure Assist
  • Color Temperature Adjustment
  • Focus Assist
  • Waveform display


• Specifications:

  • Transmitter Mode

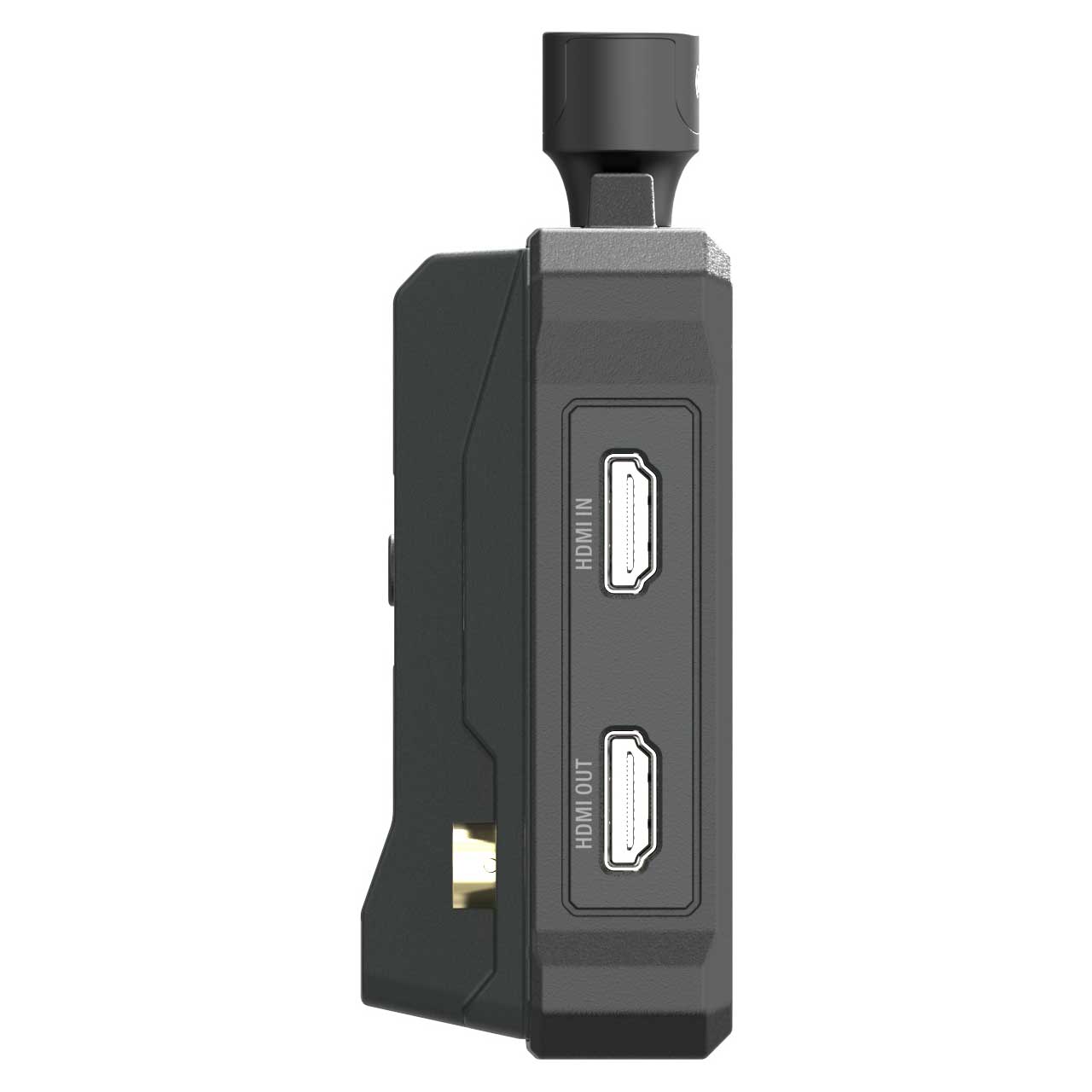

  • Video Input Interface: SDI input (BNC female), HDMI input (Type-A female)
  • Video Output Interface: HDMI output (Type-A female)
  • Antenna Interface: Two RP-SMA male interfaces
  • Power Input Interface: DC power input
  • Power Output Interface: DC power output
  • Headphone Jack: 3.5mm jack
  • Firmware Upgrade Interface: USB Type-C
  • Screen Size (diagonal): 5.5" touch screen
  • Screen Resolution: 1920 x 10080px
  • Pixel Density: 403 ppi
  • Aspect Ratio: 16:9
  • Brightness: 1000 nits
  • Contrast Ratio: 1000:1
  • Supply Voltage Rating: 6 - 16V DC, nominal 12V
  • Power Consumption: <14.5W (without DC output)
  • Net Weight (lbs): 380g (antennas excluded)
  • Dimensions (L x W x H): 5.98 x 3.77 x 1.57" (152 x 96 x 40mm)
  • Input Video Formats: HDMI:720P50/59.94/60 Hz, 1080i50/59.92/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz
  • SDI: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz,1080p23.98/24/25/29.97/30/50/59.94/60 Hz
  • Output Video Formats: HDMI in HDMI out: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1089p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz
  • SDI in HDMI out: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
  • Operating Frequency: 5.1 - 5.8 GHz
  • Codec Technology: H.264
  • Bit Rate: 12Mbps
  • Tx Power: Max. 22dBm
  • Rx Sensitivity: -80dBm
  • Transmission Latency: <0.08s
  • Bandwidth: 20MHz

    Receiver Mode
  • Video Input Interface: SDI input (BNC female)/HDMI input (Type-A female)
  • Video Output Interface: HDMI output (Type-A female)
  • Antenna Interface: Two RP-SMA male interfaces
  • Power Input Interface: DC power input
  • Power Output Interface: DC power output
  • Power Output Interface: DC power output
  • Headphone Jack: 3.5mm jack
  • Firmware Upgrade Interface: USB Type-C
  • Screen Size (diagonal): 5.5" touch screen
  • Screen Resolution: 1920 x 10080px
  • Pixel Density: 403 ppi
  • Aspect Ratio: 16:9
  • Brightness: 1000 nits
  • Contrast Ratio: 1000:1
  • Supply Voltage Rating: 6 - 16V DC, nominal 12V
  • Power Consumption: <10W (without DC output)
  • Net Weight (lbs): 380g (antennas excluded)
  • Dimensions (L x W x H): 5.98 x 3.77 x 1.57" (152 x 96 x 40mm)
  • Output Video Formats: HDMI out: 720p50/60 Hz, 1080i50/60 Hz, 1080p24/25/30/50/59.94/60 Hz, 1080p24/25/30, 1080p24/25/30, 720p50/60 Hz, 720p50/60 Hz, 1080p24/25/30/50/59.94/60 Hz
  • Operating Frequency: 5.1~5.8GHz
  • Codec Technology: HJ.264
  • Bit Rate: 12Mbps
  • Rx Sensitivity: -80dBm
  • Transmission Latency: <0.08s
  • Bandwidth: 20MHz


• Item Includes:

  • 2x MARS M1
  • 4x Capsule Antenna
  • 2x Tempered Glass Screen Protector
  • 2x OTG Adapter
  • 2x D-Tap to DC
  • 1x User Manual
  • 1x Warranty Card


MARS M1 DUO - Required Accessories

MARS M1 DUO - Recommended Accessories

MARS M1 DUO - Attachments
