Hall Technologies EX-4KU 4K HDMI USB 2.0 Single Gang Wall-Plate Extender with HDBaseT

ITEM #: HRT-EX-4KU MFG #: EX-4KU

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$715.00

Our Price:

$679.25

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


EX-4KU - Overview

The Hall Technologies EX-4KU is a kit comprised of a single-gang wall plate transmitter together with a low profile Receiver and associated power supply. The wall plate provides an HDMI video input plus a USB Host port for connection to a host such as a PC or Mac computer. The system uses HDBaseT™ 2.0 for the most reliable operation and widest compatibility possible. HDMI input supports all PC or HDTV resolutions up to and including 4K.

The USB Extension is compatible with keyboard, mouse, touch-screen or any other USB 1.1 and 2.0 device such as Smartboards, interactive displays, and USB webcams.

EX-4KU HDBaseT™ Wall Plate Extender is perfect for all commercial AV and Educational (K-12) installations. No programming is required and the system can be installed and operational in minutes.

The EX-4KU can transmit HDMI signal over CAT6/6a/7 to a distance up to 130 ft for [email protected] (4:2:0) or up to 230ft for 1080p60Hz. Full duplex RS-232 is also extended for installations that need added serial control. The wall plate provides two USB charging ports for added convenience.

Power is sent from the receiver to the wall plate

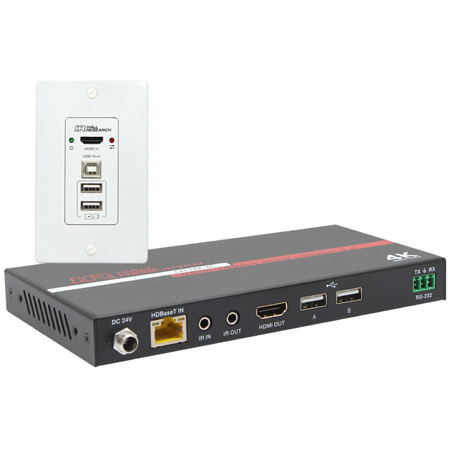

This versatile extender includes 1 wall plate transmitter and 1 box-style receiver with corresponding universal power supply.

  • Features:

    • 1 HDMI and 2 USB Charging Ports on a single-gang wall plate
    • Uses HDBaseT™ 2.0 chipset
    • Extends 4K video and USB 2.0 to 40 m (130 ft)
    • Extends 1080p video and USB 2.0 to 70 m (230 ft)
    • Receiver provides USB port with two outputs
    • Supports all USB 1.1 and 2.0 peripherals including touch-screen LCDs
    • Extends RS-232 for control
    • Wall plate provides two USB charging ports for convenience
    • HDCP 2.2 compliant
    • Wall plate is powered from the Receiver
    • Perfect for conference rooms and classrooms with Interactive displays
    • Includes compact Receiver (UHB-R)

  • Specifications:

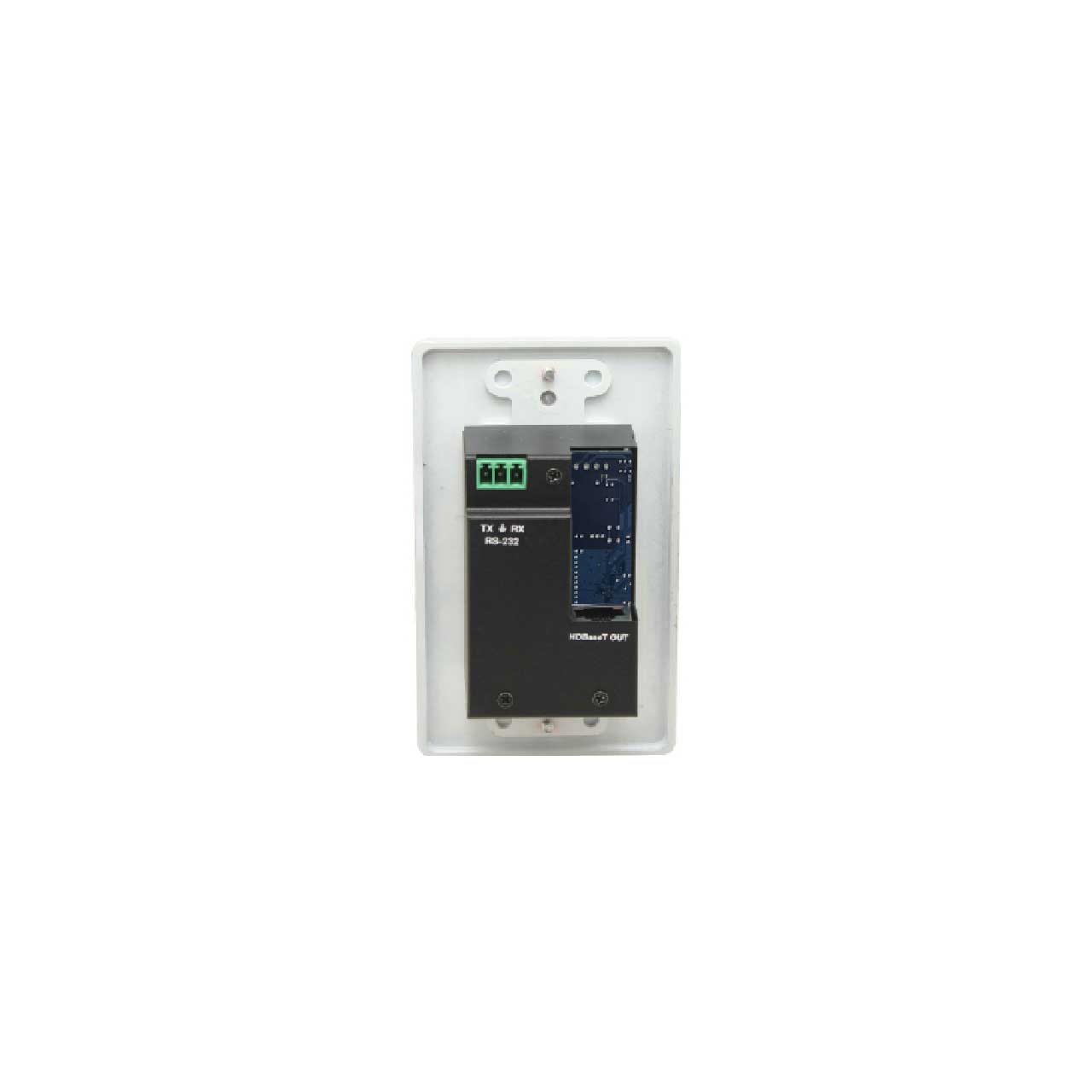

    • Wall plate Transmitter
    • Ports
      HDMI In x1
      USB Type-B
      USB Type-A
      Charge Ports x2
      RS-232 x1
      HDBaseT (RJ45) x1
    • Max Video Resolutions
      HDMI: [email protected] 4:4:4
      [email protected] 4:2:0 to 130 ft
    • Dimension (LxWxH): 2.6 x 1.30 x 1.8 Inches
    • Weight: 0.7lbs (1.2 lbs shipping)

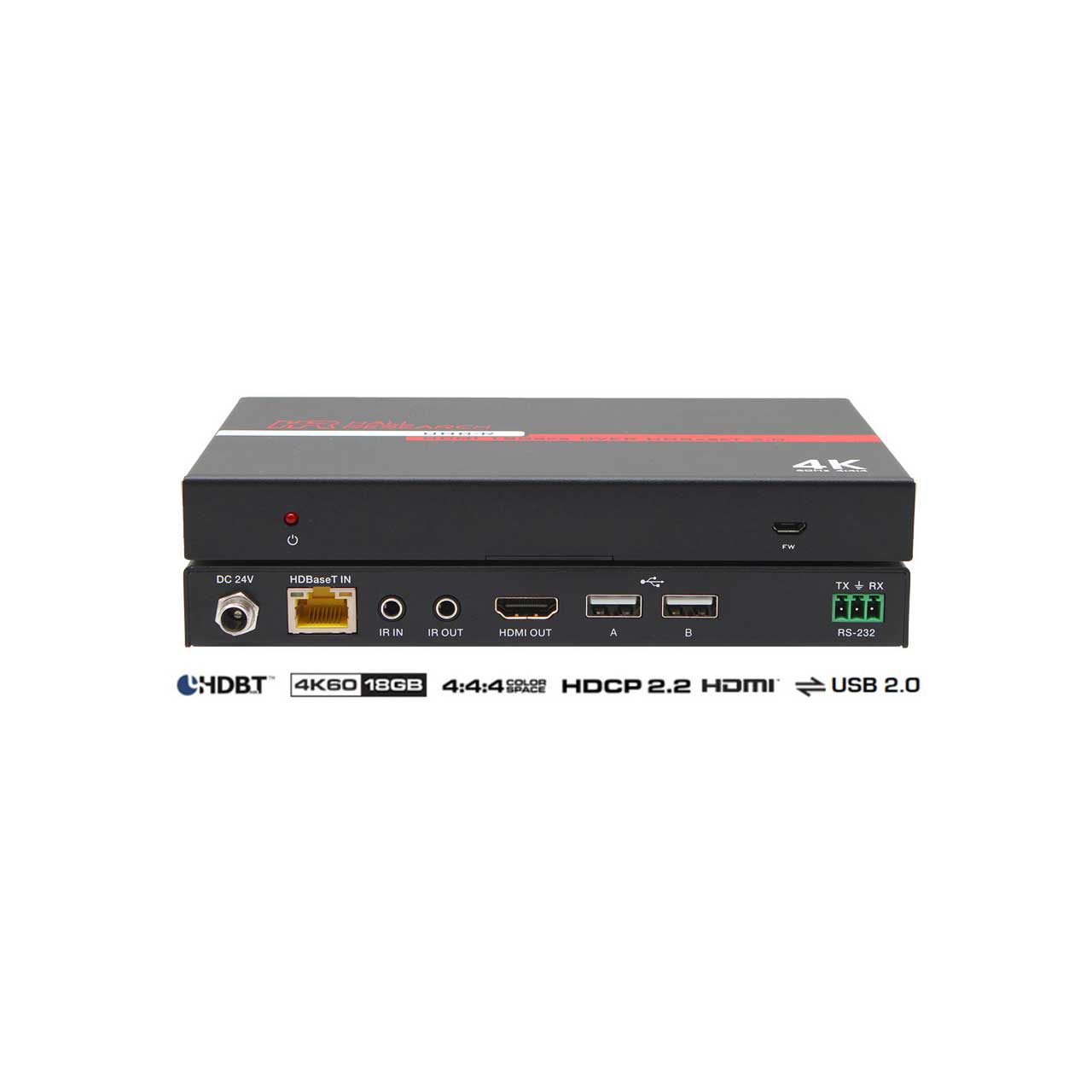

      Receiver
    • Ports
      HDBaseT (RJ45) x1
      IR In (3.5mm) x1
      IR Out (3.5mm) x1
      RS-232 (screw terminal) x1
      USB 2.0 HUB (Type A) x2
      Service (micro-USB) x1
    • Video Resolutions
      Up to [email protected] (4:4:4) to 130 feet (40 meters)
      [email protected] to 230 feet (70 meters)
    • HDMI Compliance: 2.0b
    • HDCP Compliance: 2.2 & 1.4
    • Power Supply: Input AC100-240V 50/60Hz, Output DC 24V/1A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 7.5 Watts
    • ESD Protection: Human Body Model: ±8kV (Air Discharge) & ±4kV (Contact Discharge)
    • Weight: 1.8lbs (2.25 shipping)

      General
    • Operating Temperature 0°C - 40°C/32°F - 104°F
    • Storage Temperature: -20°C - 60°C/-4°F - 140°F
    • Total Shipping Weight: 3 lbs

  • GTIN:

    0608415712510
