    FXT-460 - Overview

    The Hall Technologies FXT-460 is a compact, high-performance extender for full-bandwidth HDMI 2.0 audio/video with HDR. Send signal up to 10 Kilometers over a single strand of LC-terminated fiber-optic cable. The FXT-460 supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency and can extend your 4K 60 Hz video with multi-channel audio and RS232.

    The FXT-460 provides advanced capabilities such as embedding and de-embedding audio, 4K UHD video (4:4:4 with HDR), HDCP 2.0, bidirectional RS-232 and EDID management.

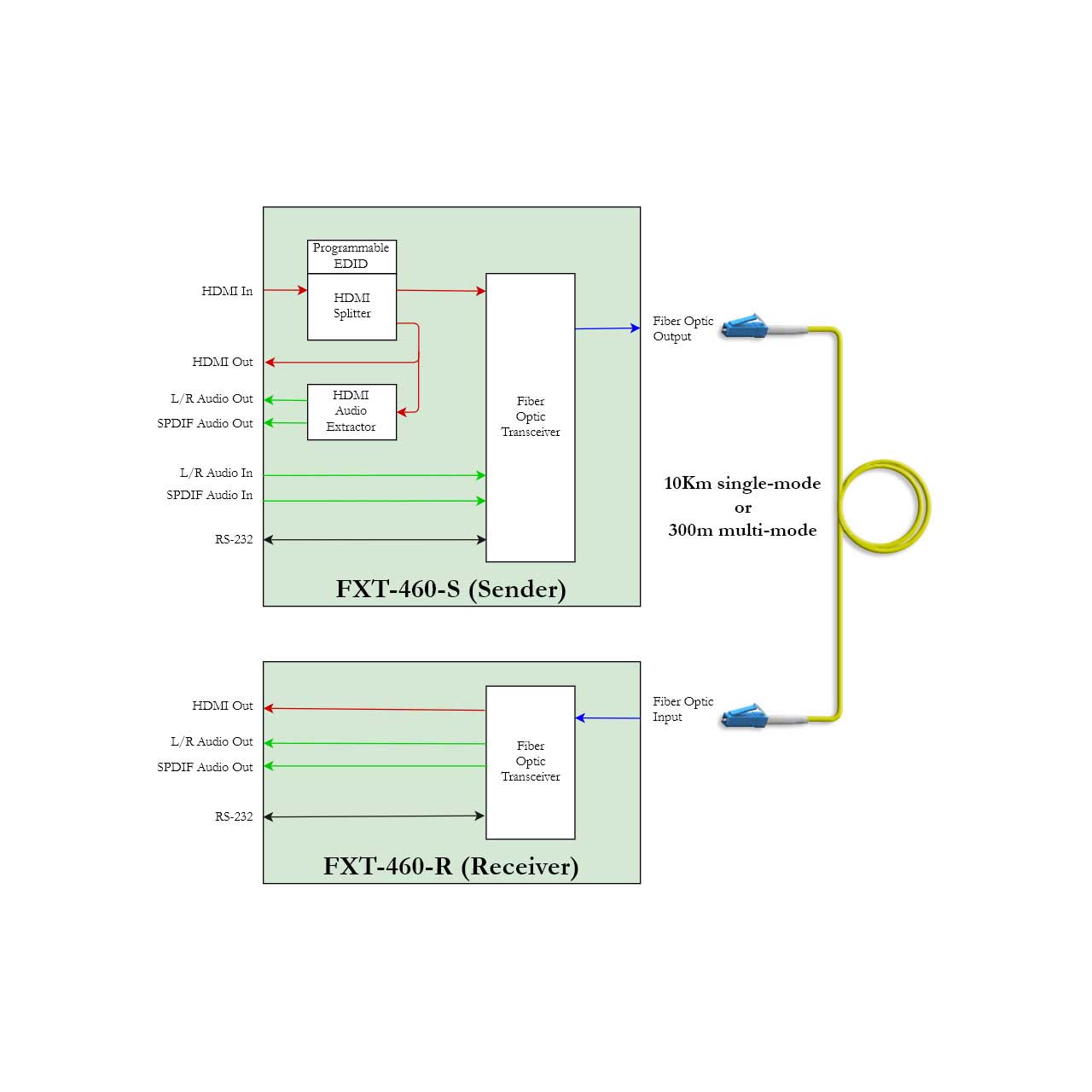

    The FXT-460 Sender provides an HDMI input with a corresponding HDMI loop output. The audio component of the HDMI input is extracted and available as both analog (L/R) and Digital SPDIF (TOSLINK) on corresponding connectors.

    The audio that is embedded in the extended HDMI to the remote Receiver can be selected by the user. You can choose from pass-through from the HDMI input (same audio content as the HDMI input), external analog audio from the 3.5mm audio input connector or external digital SPDIF audio from the Optical TOSLINK input connector.

    EDID management allows users to control the video and audio parts of the EDID independently. The EDID presented to the source connected to the HDMI input can pass from the downstream device or emulated from internal memory. The device can also "Learn" the EDID connected to its HDMI output. The product has a video bandwidth of 18 Gbps and supports input resolutions of up to 4K @ 60 Hz 4:4:4 with HDR. It supports HDCP 2.2 as well as HDCP 1.4. All resolutions up to and including 4K @ 30Hz with 4:4:4 or 4K @ 60 Hz with 4:2:0 are extended with no compression.

    The device has the ability to generate a blank HDMI output signal with audio embedded even if there is no HDMI input; often referred to as "HDMI Audio Bridging". This is a convenient means to distribute audio only signals over an HDMI network.

    • Features:

      • 4K x 2K @ 60 Hz 4:4:4 / 18.2 Gbps / HDCP 2.2
      • Extends up to 33,000 ft (10 Km) over single mode or 1000 ft (300 M) Multi-Mode
      • Bi-Directional RS-232 and EDID Management
      • Can pass original HDMI audio or embed/substitute audio from external inputs
      • "HDMI Audio Bridging"
      • HDMI Loop Output on Sender
      • De-embedded HDMI audio available at both ends (Sender and Receiver)
      • EDID Emulation with LEARN function

    • Specifications:

      • Video Standards
      • DVI (single link)
      • HDMI 1.4 and HDMI 2.0b including 12 bit color depth, 3D video and HDCP 2.2

        Connectors

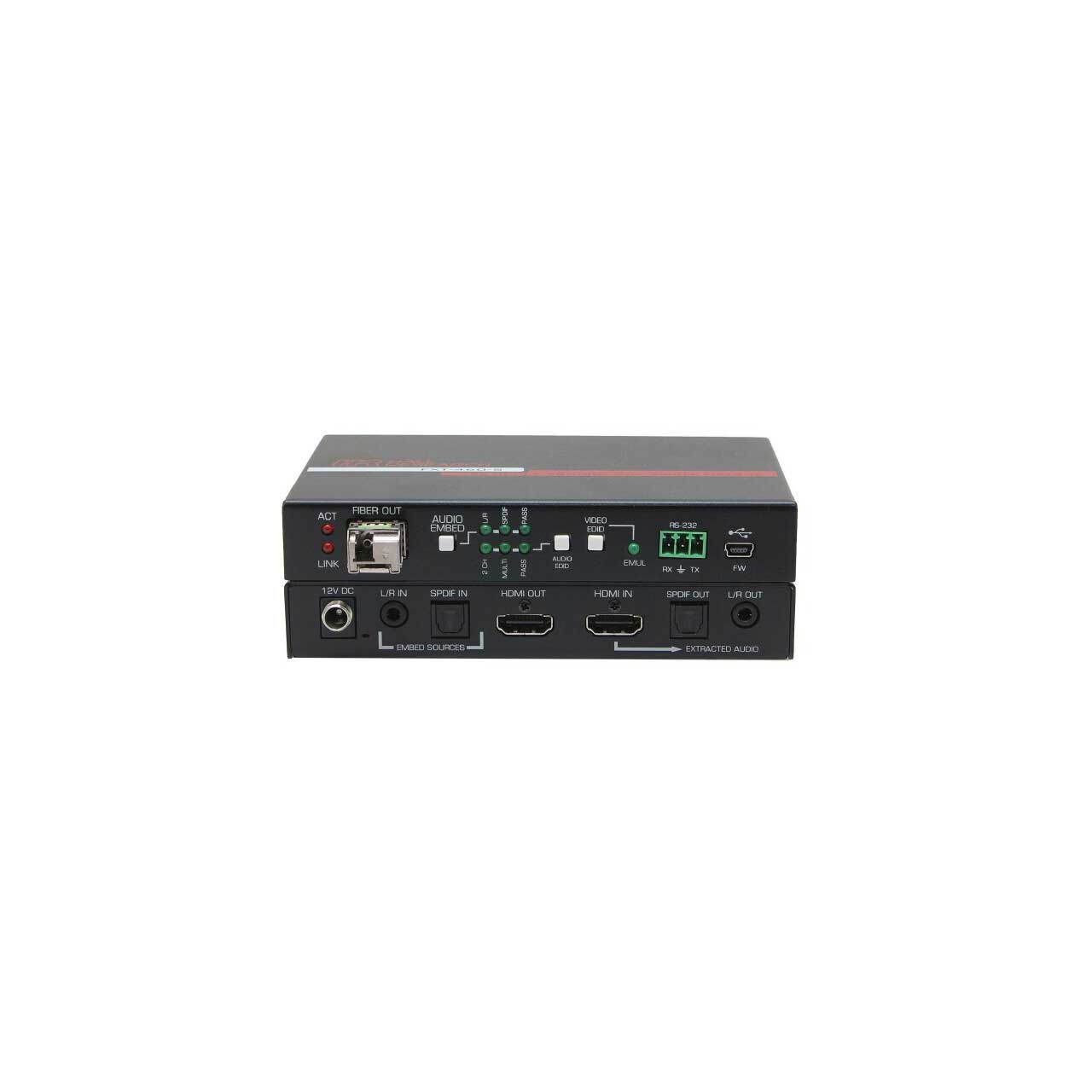

        FXT-460-S
      • 1x HDMI Input
      • 1x HDMI Output
      • 1x 3.5 mm L/R Audio Output
      • 1x TOSLINK Audio Output
      • 1x Fiber Optic Simplex LC Bidirectional SFP Transmitter

        FXT-460-R
      • 1x HDMI Output
      • 1x 3.5 mm L/R Audio Output
      • 1x TOSLINK Audio Output
      • 1x Fiber Optic Simplex LC Bidirectional SFP Receiver

        Resolutions
      • DVI Signal: VGA (640x480) thru WUXGA (1920x1200)
      • HDTV Signal: 480p through 4K 60 Hz 4:4:4

        Audio Formats
      • LPCM 2CH Audio: (32, 44.1 and 48 KHz sample rate)
      • Digital Audio: multi-channel 2.1, 5.1, 7.1
      • Other Signals: RS-232, (1) RX, TX and GND on Terminal Strip
      • RS-232 Baud Rate: 115200, N, 8, 1

        Temperature/Humidity
      • Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, non-condensing
      • Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing
      • Power Supply: 100 VAC to 240 VAC, 47-63 Hz, External; 12 VDC 1.0 ADC
      • Enclosure Type: Metal (Steel)
      • Dimensions: Device (ea) (HxWxD) 0.9 x 5.35 x 3.11inches
      • Shipping: 4.0 x 12.0 x 10inches

        Weight
      • Device (ea): 0.75 lb
      • Shipping (ea): 2.1 lb
      • Safety:CE
      • EMC/EMI:CE, FCC Class A
      • MTBF:90,000 hours (estimate)
