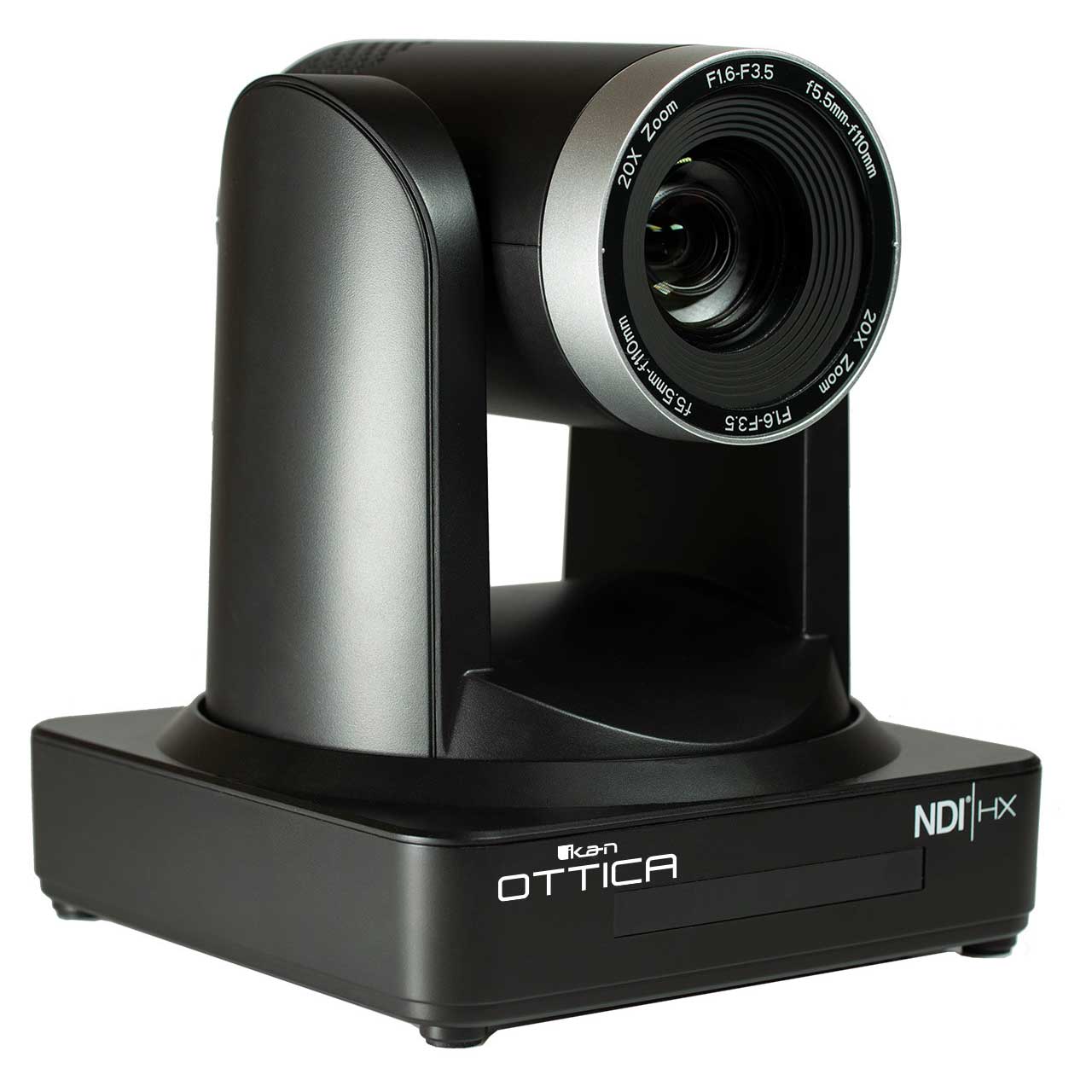

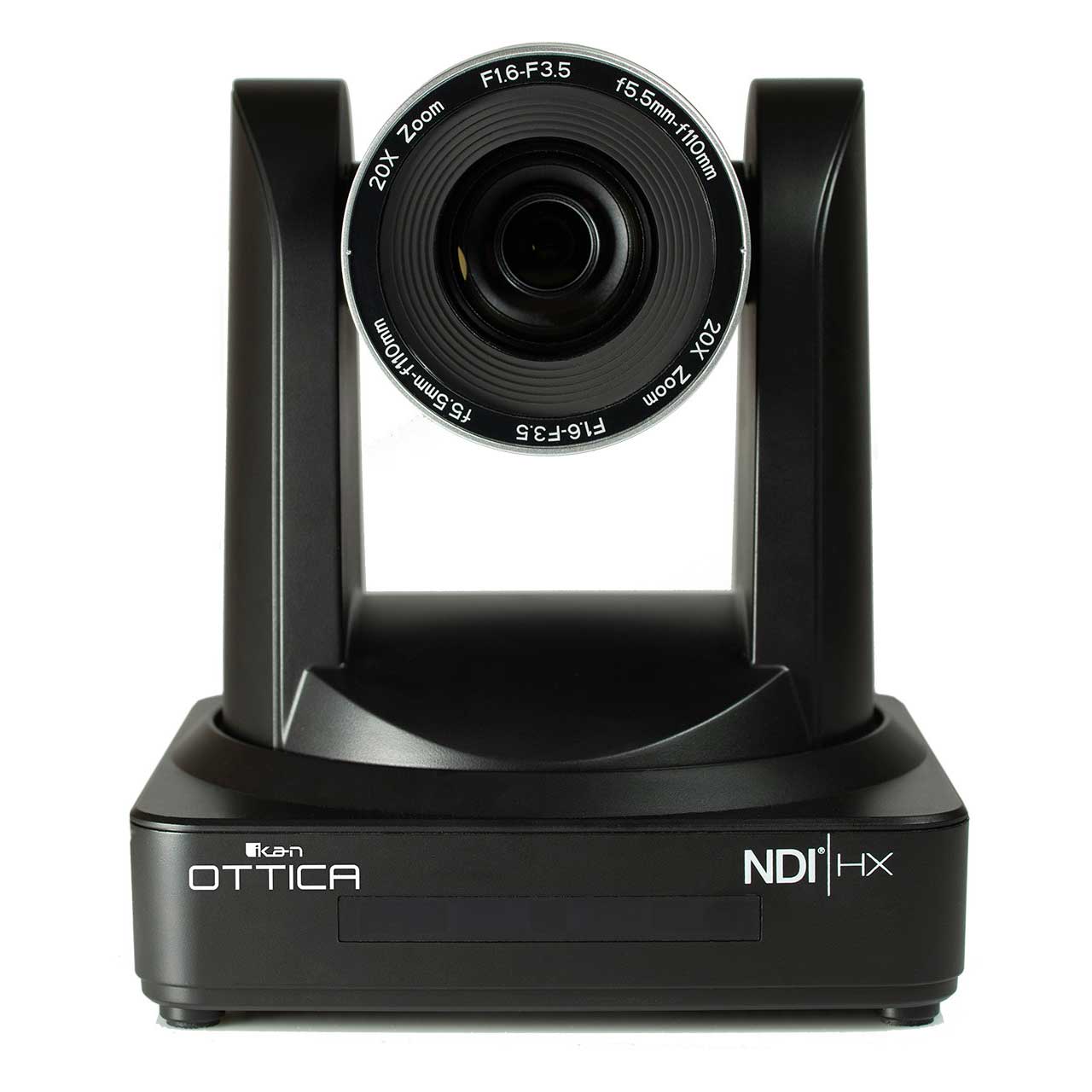

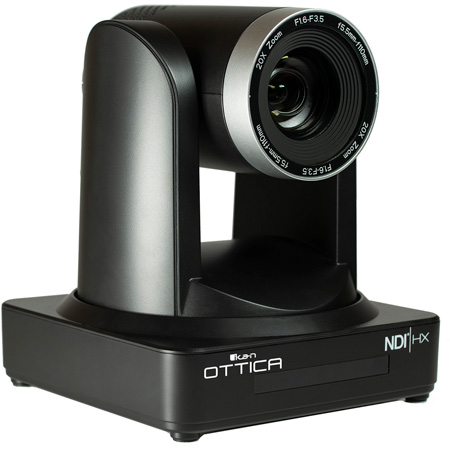

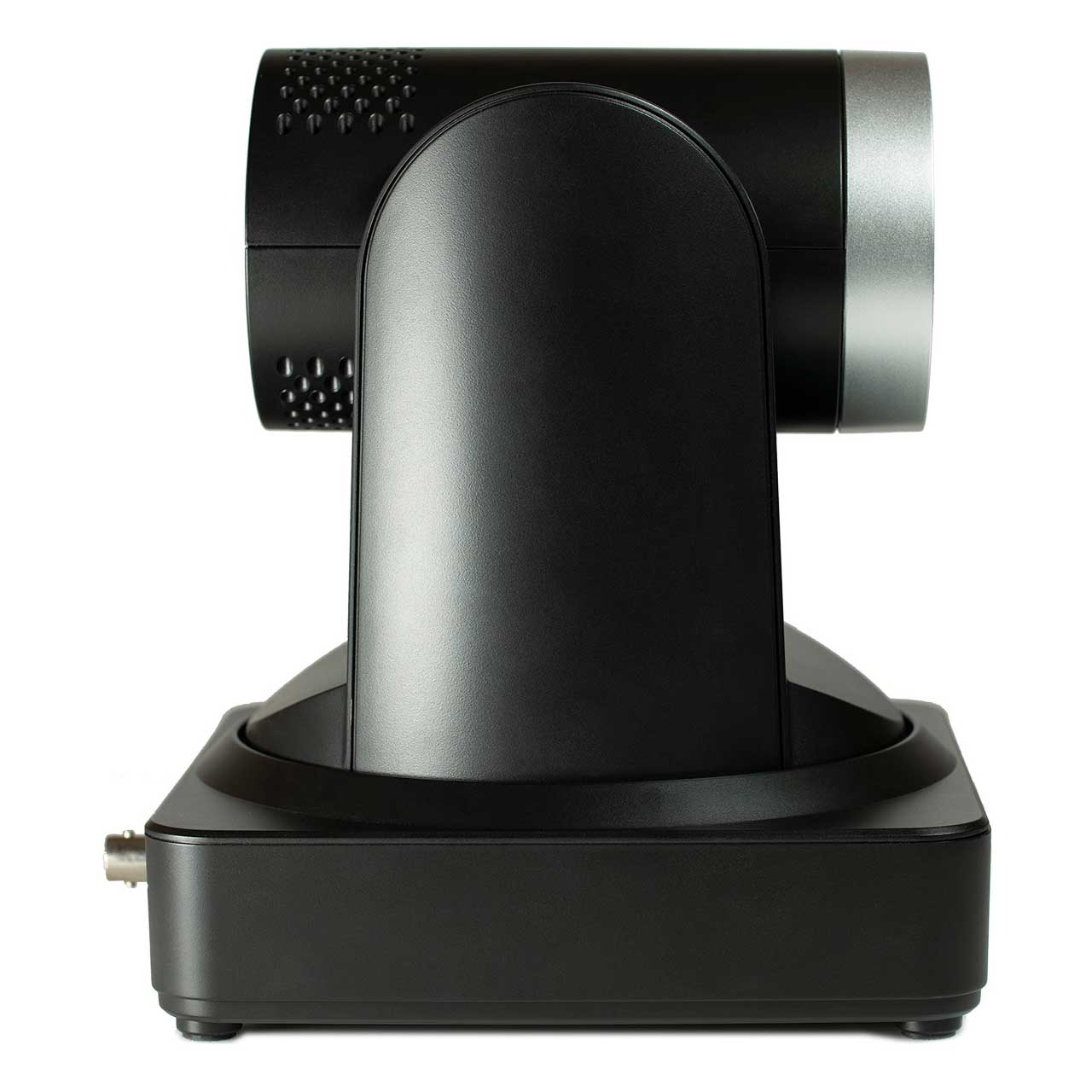

ikan OTTICA NDI HX PTZ Camera 20x Optical Zoom POE 1080/60p - Black

ITEM #: IKAN-OTTICA MFG #: OTTICA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,299.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    OTTICA - Overview

    The ikan OTTICA™ PTZ Video Camera from Ikan features a 1/2.8" CMOS sensor and 5.5-110mm varifocal lens with 20x zoom to capture videos at a maximum resolution of 1080p at 60fps. It supports HDMI, SDI, Ethernet, RS-232, RS-485, and audio-in connectivity. The camera uses a step drive motor mechanism and motor drive controller for smooth and noiseless PTZ operation. In addition, it supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats.

    • Features:

      • NDI®|HX Compatibility with POE (Power Over Ethernet)
      • 1/2.8" CMOS Sensor
      • 1080/60P Resolution/Frame Rate
      • Fast, Stable, & Accurate Auto-focus
      • Silent PTZ Motor Mechanism
      • 5.5-110mm Varifocal Len with 20x Zoom

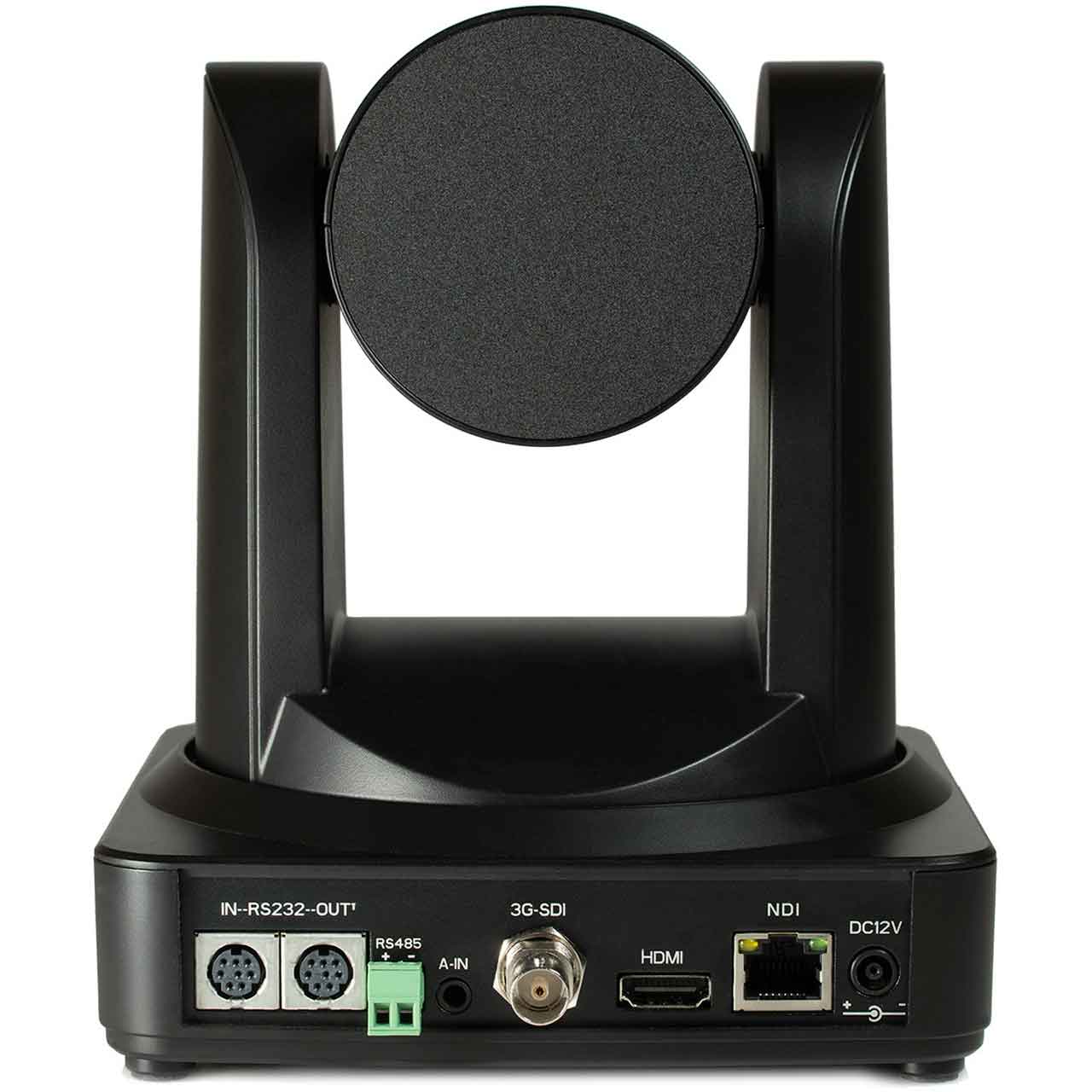

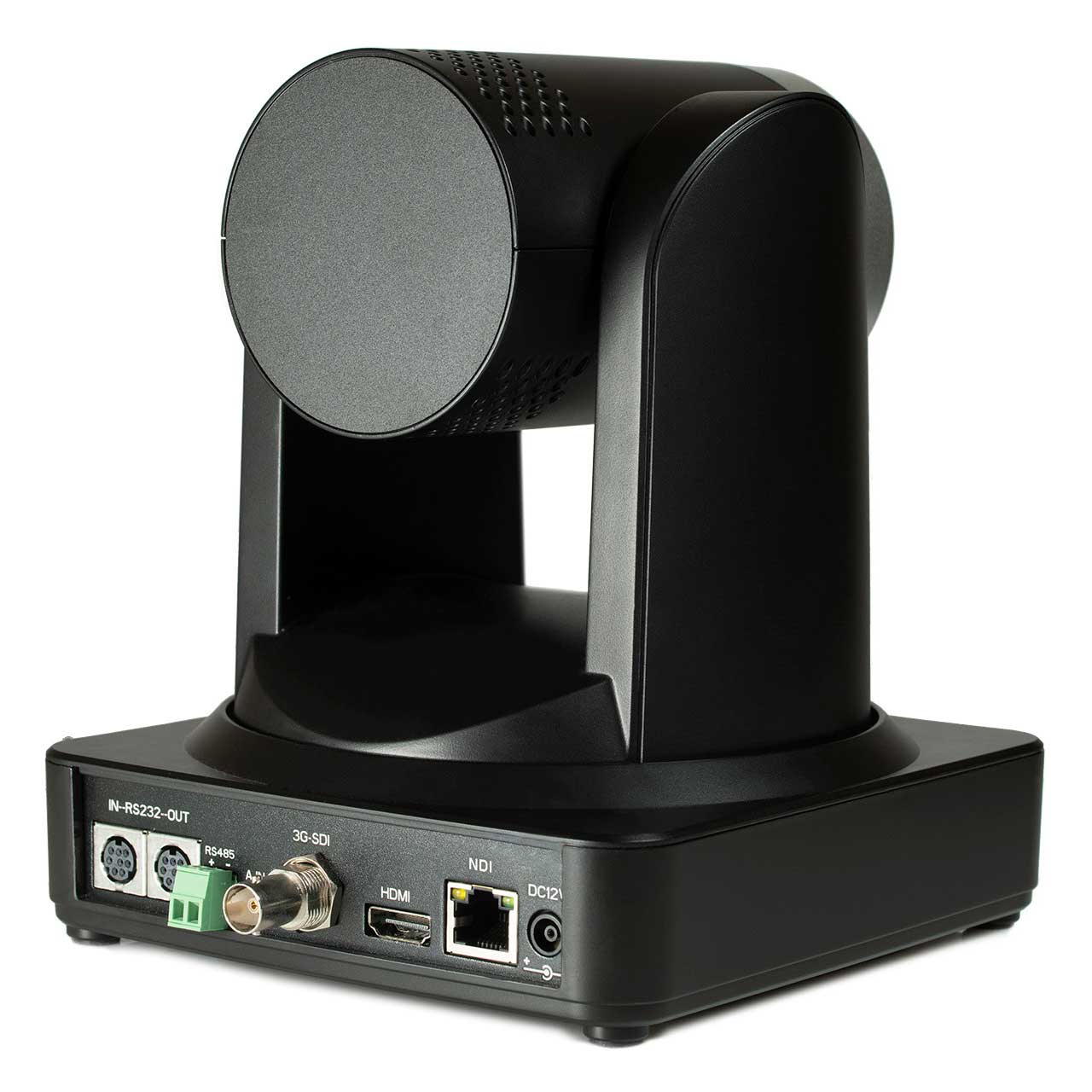

      • HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
      • 2D/3D Noise Reduction

    • Specifications:

      • Shipping Weight: 6Lbs
      • Shipping Dimensions: 15 x 12 x 10"
      • Aspect Ratio: 16:9
      • Audio Output: Yes
      • Auxiliary Power: Yes
      • Base Connection Type: 1/4"-20 Screw Mount
      • Color Temperature: 2400k - 7100k
      • Control: IR Remote Controller, PELCO-D Protocol, PELCO-P Protocol, VISCA Protocol
      • Data Output Interface: NDI|HX, 3G-SDI, HDMI, RS-232, RS485
      • Digital Resolution: 1920x1080p
      • Focusing: Auto, Manual
      • Input Audio Format: 1/8"
      • Inputs: 1/8" Audio, RS-232 Cascade, DC12V,
      • Motor Type: Step-Driving Motor Mechanism
      • Noise Db: SNR >55dB
      • Output Video Format: LAN, HDMI, 3G-SDI, 1080p60, H.264, H.265
      • Output Voltage: DC12V
      • Outputs: RS-232, RS485, 3G-SDI, HDMI, NDI
      • Remote Control: IR Remote Included
      • Resolution: 1080p 60fps
      • Viewing Angle: 3.3° - 54.7°
      • Voltage: DC12V

    • Item Includes:

      • 1x Power Adapter
      • 1x RS232 Cable
      • 1x IR Remote Controller
      • 1x Wall Mounting Bracket
      • 1x RS485 Connector
      • 1x Cascade Cable

    • GTIN:

      0847983031610
