Juice Goose iP-1520-RX Surge Protection and Rackmount Web Based Power Controller - 20 Amp

ITEM #: JG-IP-1520-RX MFG #: IP-1520-RX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    IP-1520-RX - Overview

    The Goose Juice iP 1520-RX combines microcontroller based power management with the proven performance of Juice Goose RX Series surge protection and filtration. This product can be accessed via internet or intranet communications using Ethernet or RS232 connection so that individual AC receptacles can be turned on and off and monitored for electrical current flow.

    The iP 1520-RX provides local, intranet or Internet based power control to six receptacles grouped into three individual Power Pods. Each of these Pods can be turned on and off individually. In addition, current draw can be monitored from 0.2 to 20.0 amps per power POD.

    Using third party programs the iP 1520-RX can be scheduled to turn on and off at specific times. Also, its outlets can be sequenced on and off if required for application in audio systems. This remote control can also be used to reboot DSPs or other processor based electronics as well as to save energy costs by scheduling electronic equipment to turn off when not in use.

    Web Server
    All iP Series products have an on board web server that provides graphic user interface for controlling and monitoring equipment connected to the iP Series unit. This feature is available for remote use as soon as the IP address of the unit is entered in a web browser.

    TCP / IP Control
    It is possible to control and monitor iP-1520-RX over Ethernet using raw TCP protocol. In this mode, any PC ( Windows, Linux, Mac ) can connect to the iP-1520-RX over a TCP/IP connection using a suitable TCP/IP client program. Once the connection is made, the console commands are available to the user over TCP/IP as if the user was connected to IP-1520-RX over the local serial connection.

    RS232 Control

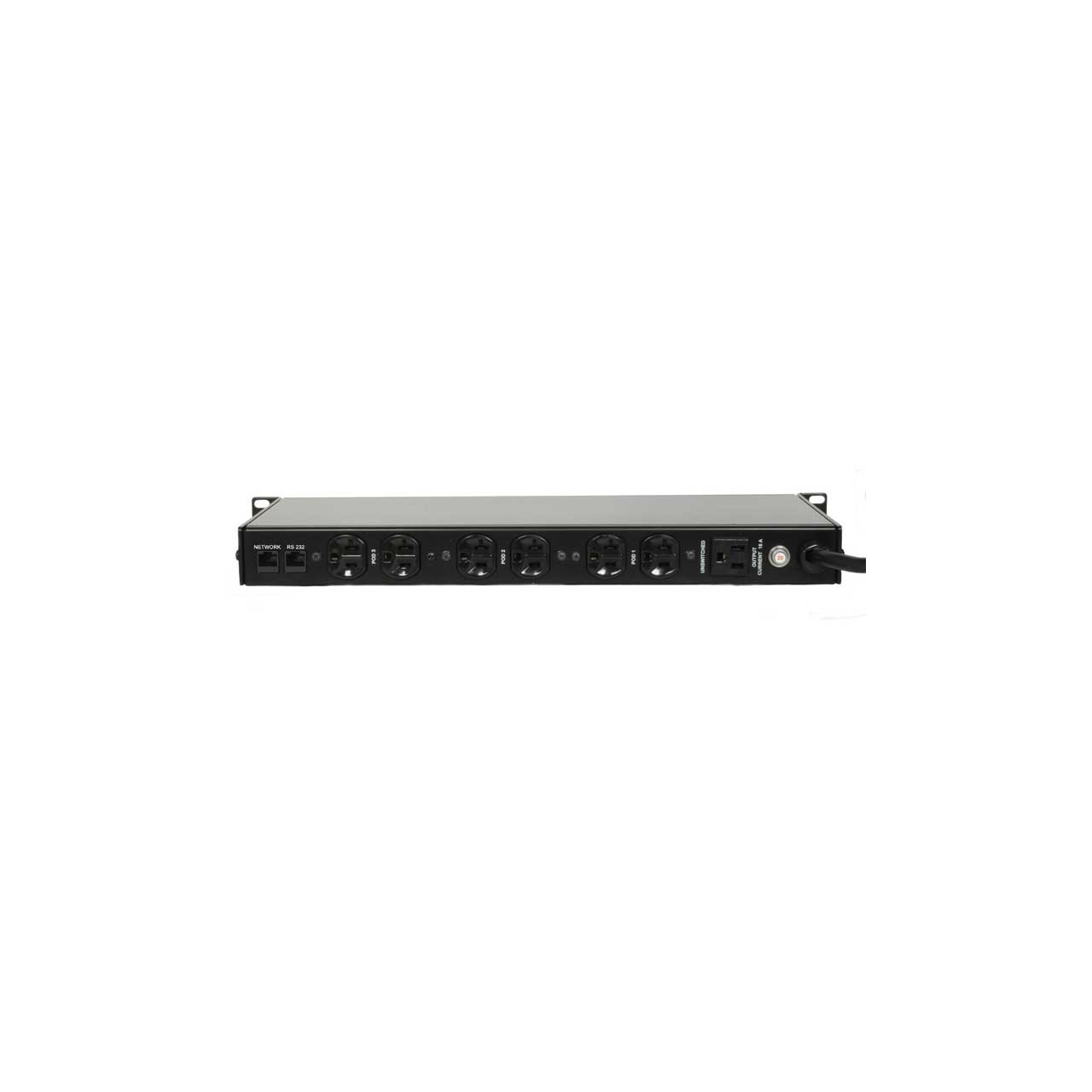

    The RJ11 style connector on the back of the iP1520-RX chassis (labeled "RS232") can be used for remote control of this unit via RS232 protocol over distances of no more than 50 feet. Commands for this control are detailed in the iP 1520-RX Manual in the section titled "RS232 Control and Monitoring".

    Local and Remote Monitoring

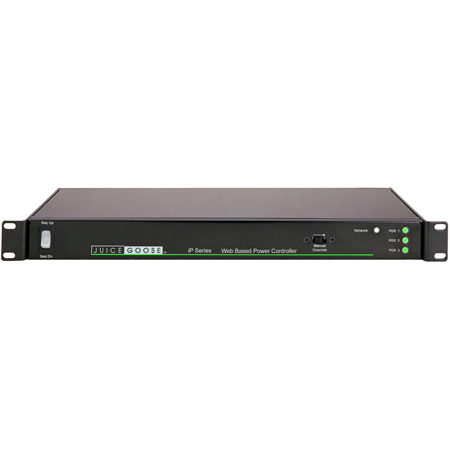

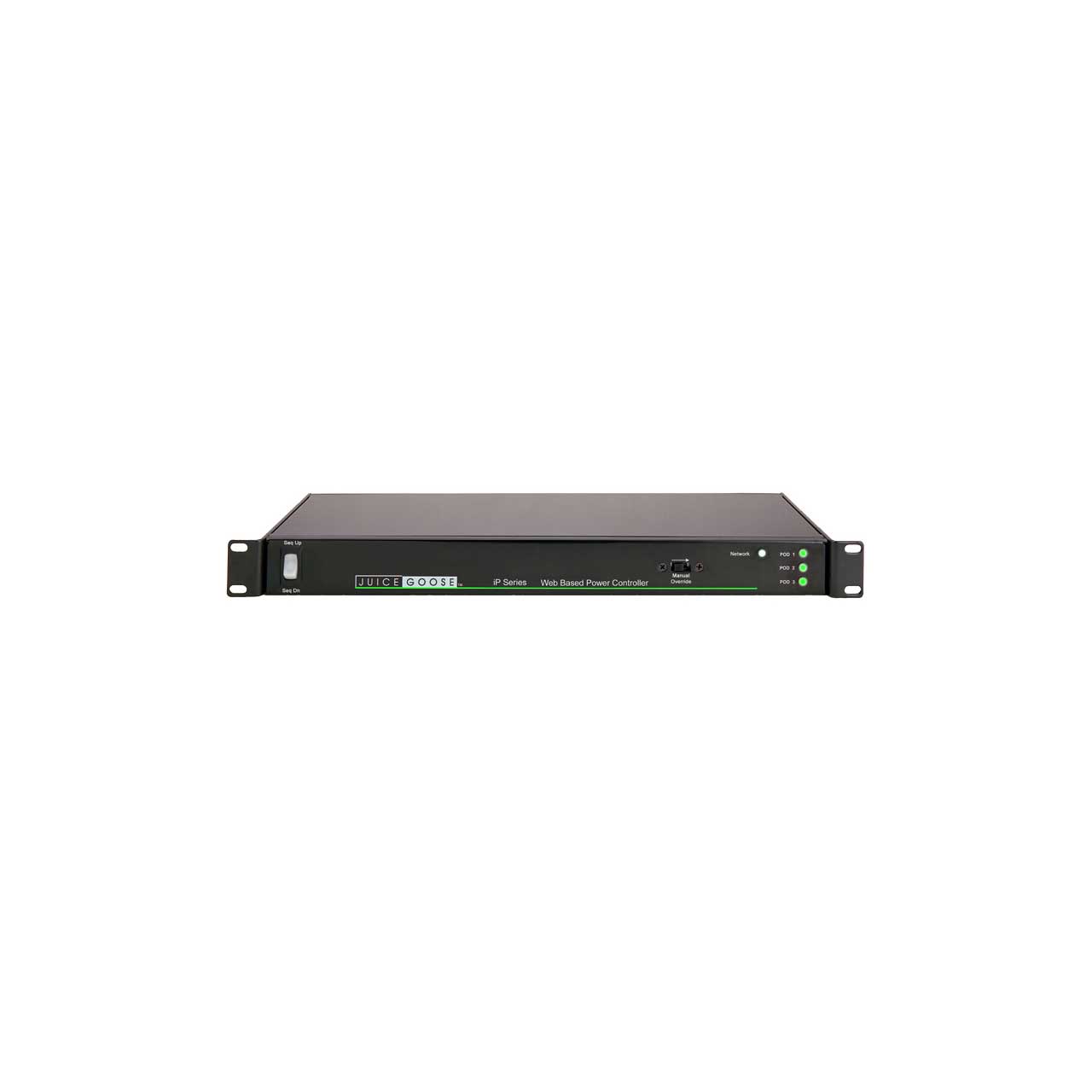

    Operation and status of the iP 1520-RX and connected equipment can be observed in several ways. Each of three lights on the front of the iP 1520-RX turn on to indicate which of the three Power Pods have been turned on. A fourth LED indicates power on and active data network communications.

    By way of the on board web server or an appropriate third party interface, each of the three Power Pods can be monitored to determine if connected equipment is on and consuming power.

    Juice Goose developed an SNMP enabled subset of the iP Series products. Those models can be addressed with SNMP or RS232 protocol but lack some of the features of the standard iP Series models.
    Power Conditioning
    The iP 1520-RX provides best of breed AC line protection and filtration across hot, neutral and ground.

    he RX power protection technology is particularly valuable because it works against common mode (ground) as well as normal mode (line to neutral) events.
    While it protects against dramatic surge events of 6,000 volts at 3,000 amps on hot and neutral, it also limits ground line surges to one-half (0.50) volt to prevent operating faults in digital processing equipment such as DSPs.

    Power protection circuitry in the iP 1520-RX includes a differential transformer, lots of filtering capacitance and control circuitry providing protection from dangerous surges, high frequency interference, building wiring faults and over voltage. RX technology is proven to deliver protection comparable to an isolation transformer.

    In addition to guarding against dangerous voltage surges, this unit reduces high frequency common and normal mode noise by up to 70 dB in a range up to 30 Mhz.

    Twenty Amp Power Rating
    The 20 amp capacity of the iP 1520-RX requires it to be assembled with a 12 gauge power cable and a NEMA 5/20P plug at the end of the power cord. This cable can be inserted into any AC receptacle with a comparable rating and the configuration of the duplex receptacle on the right, below.

    Made in America

    • Features:

      • Local, intranet and Internet power control
      • Local fail safe sequencing and manual override
      • On-board web server for easy set up, control, sequencing and monitoring
      • Front panel indicators for network connection and outlets on
      • Amperage monitoring from 0.20 to 20.0 amps per power POD
      • Administrator and User login options
      • Automatic Power Cycle to reboot a network data router if network connection is lost
      • Available Crestron control module
      • Ten volt maximum line to neutral voltage surge
      • One half volt maximum ground line voltage surge
      • Transient Energy Absorption of 1,020 Joules
      • AC line filtration of 60dB to 80dB @ 30MHz
    • Specifications:

      • Chassis: 16 gauge steel with 11 gauge rack mount brackets
      • Dimensions: 17.5" H x 19" W x 7" D
      • Weight: 10 lbs
      • Circuit Breaker: 20A thermal on back of the chassis
      • Technical Current Rating: 16A
      • Number of Addressable Power Pods: Three
      • AC Power Filtration @ 30 MHz: 80dB common mode, 60dB normal mode
      • Transient Energy Absorption: 1,020 Joules
      • Max AC Surge Let Through: 10 volts normal mode, 1/2 volt common mode (ground)
      • Power Input: Seven foot power cord with NEMA 5/20P (Requires 5/20R receptacle)
      • Power Output: Six switched plus one unswitched NEMA 5/20R
      • Input Voltage: 120 VAC @ 60Hz
      • Signal Connections: Ethernet (RJ-45) RS 232 (RJ-11)
      • Network Protocol: HTML, TCP, UDP, RS232, SNMP (special model)
      • Monitor Features: Local and remote, network connection and current level. Current level monitoring is not available on SNMP models.
      • Operating Temperature Range: -10C to +40C
    • GTIN:
