JK Audio Outerloop 3.5 Universal Intercom Beltpack for 5 Pin or 4 Pin Male XLR Headsets

ITEM #: JK-OUTERLOOP-35F MFG #: OTL3.5-F

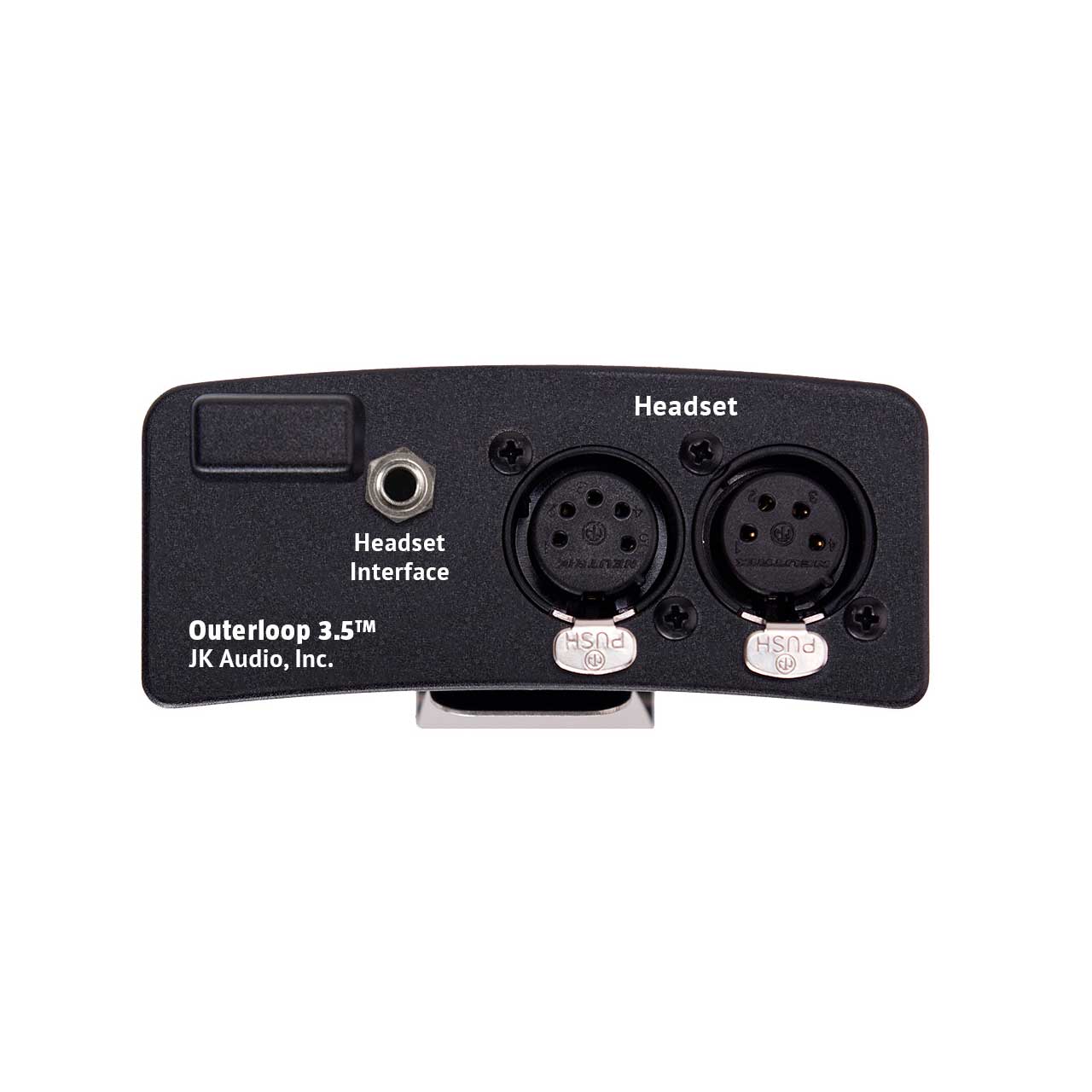

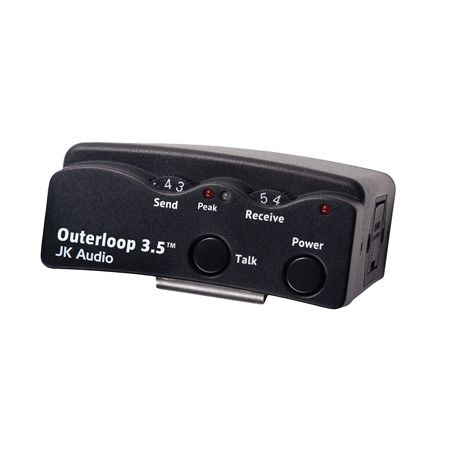

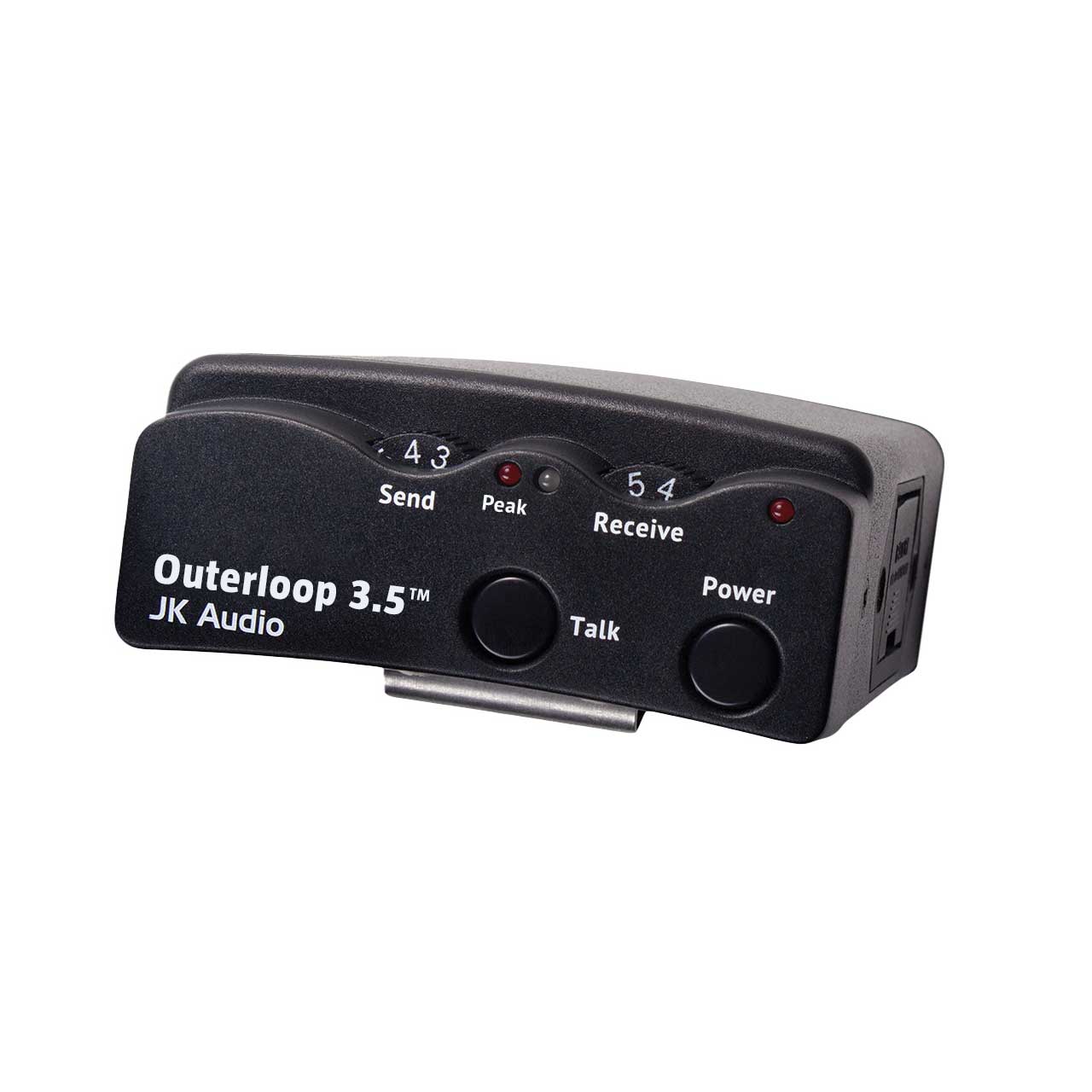

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$355.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    OTL3.5-F - Overview

    The JK Audio Outerloop 3.5 provides you with a wireless link to your intercom system. This universal belt pack provides XLR connections for your existing 4-pin or 5-pin intercom headset, routing audio through a wired connection to your mobile device. Use your mobile device to call into your intercom phone bridge, station phone coupler, or any phone-based intercom app such as Clear-Com Agent-IC.

    Outerloop 3.5 includes a cable that plugs into the 3.5 mm TRRS headset/earbud jack of your mobile device, providing two-way communications. Separate Send and Receive level controls, a push-on, push-off Talk button, as well as a recessed sidetone level control let you adapt to any situation whether you are around the corner or around the world.

    Adapting to the mixed-up intercom world, model OUTERLOOP-3.5-F features both 4-pin and 5-pin Female XLR headset jacks, for male see JK-OUTERLOOP-35M which features both 4-pin and 5-pin Male XLR headset jacks.

    • Features:

      • HD Voice Compatible (7 kHz Wide-Band Speech)
      • Connects to Phones and Notebooks with 4-conductor 3.5mm Headset Interface
      • 4-pin and 5-pin Male or Female Headset Jacks
      • Send and Receive Volume Controls
      • Push-On, Push-Off Talk Button
      • Recessed Sidetone Level control
      • Made in America

    • Specifications:

      • Model Outerloop 3.5-F
      • Headset 4-pin Female XLR, 5-pin Female XLR
      • Headset Microphone
      • Impedance 50-2000 ohms
      • Headset Earpiece
      • Load Impedance 50-600 ohms
      • Power >50 mW into 150 ohms
      • Misc
      • Frequency Response 50Hz - 15 kHz
      • Power >20 hours on one 9 VDC Battery
      • Size 4.7" x 3.75" x 1.65" (12 x 9.5 x 4.2 cm)
      • Weight 10 oz (275 g)
