KanexPro AUD-DCODE-ANA Digital to Analog Audio Decoder with Dolby Digital and DTS - Plug and Play

Name: KanexPro AUD-DCODE-ANA Digital to Analog Audio Decoder with Dolby Digital and DTS - Plug and Play
Brand: KanexPro
SKU: KAN-AUD-DCODEANA
Price: 79.95 USD
Availability: Backorder

ITEM #: KAN-AUD-DCODEANA MFG #: AUD-DCODE-ANA

KanexPro

Our Price:

$79.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

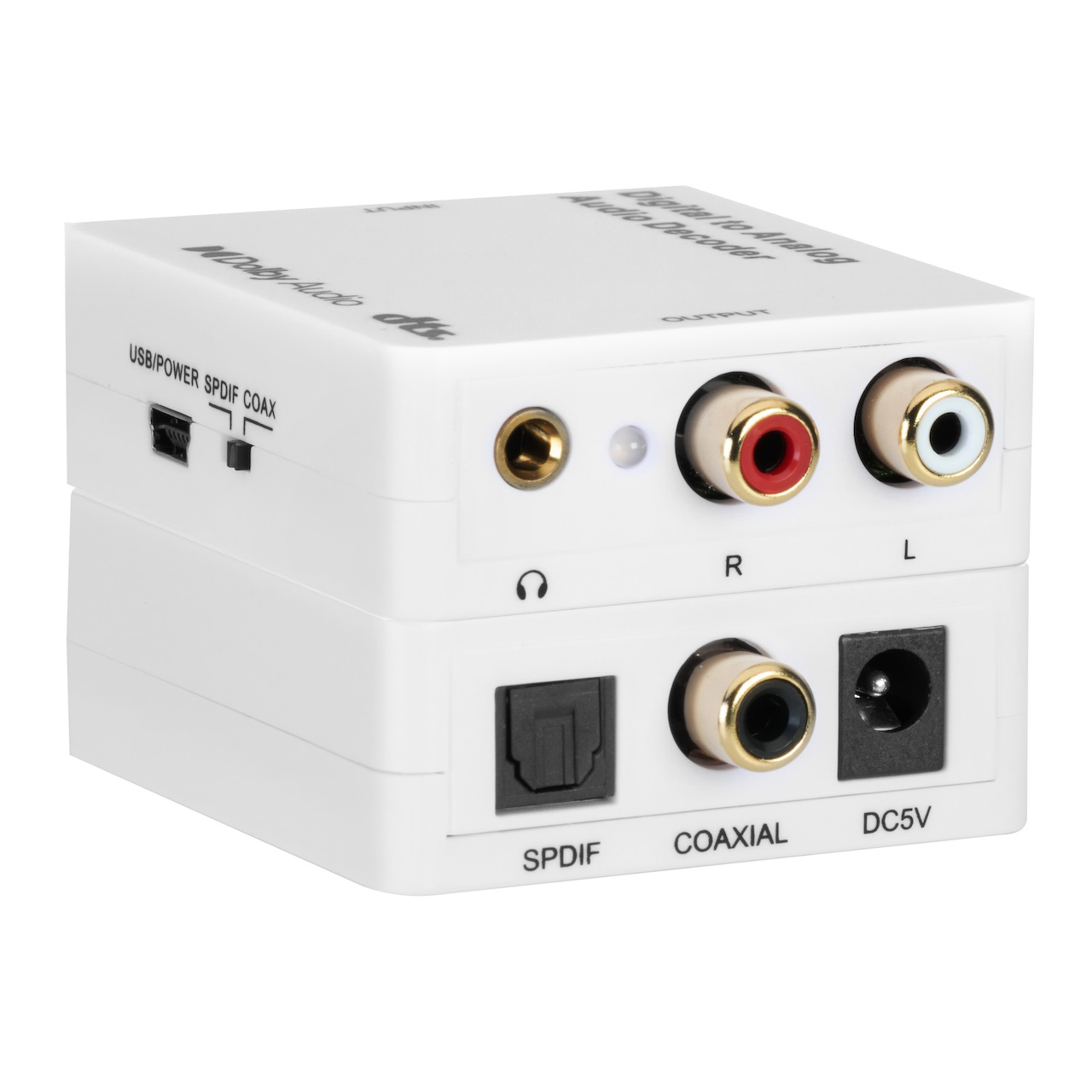

AUD-DCODE-ANA - Overview

The KanexPro AUD-DCODE-ANA is a compact, licensed Dolby Digital and DTS audio decoder featuring an integrated 24-bit audio DSP for high-fidelity digital-to-analog conversion. It converts optical (Toslink) or coaxial digital audio input to simultaneous stereo RCA and 3.5mm headphone analog output, making it ideal for home theaters, conference rooms, gaming setups, and multimedia systems.

With support for PCM sample rates up to 192kHz and surround decoding up to DTS-ES 6.1 channels, this ultra-compact 40g decoder bridges modern digital audio sources to legacy analog speaker systems and headphones without requiring a full-size AV receiver. Driver-free, plug-and-play operation with no software installation needed.

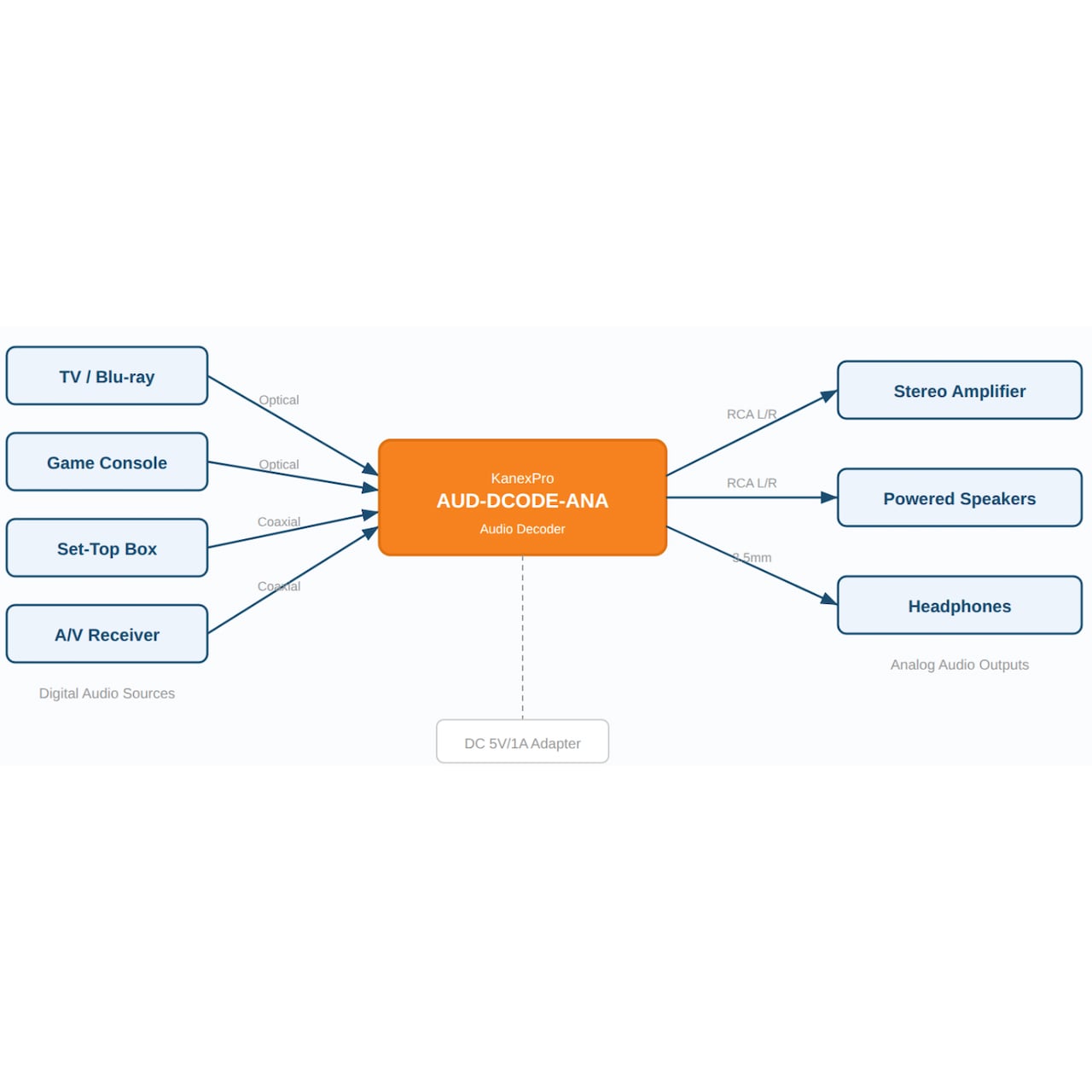

Applications:
• Home Theater Audio Bridge
• Gaming Console Audio
• Conference Room Legacy Audio
• Bar and Retail Background Music

Features:
- Decodes Dolby Digital (AC-3), DTS, and PCM digital audio to 2-channel stereo analog output
- Supports PCM sample rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Dolby Digital 5.1 and DTS-ES 6.1 channel surround decoding and downmix to stereo
- Dual simultaneous outputs: stereo RCA (L/R) and 3.5mm headphone jack
- Dual digital inputs: optical (Toslink) and coaxial with manual selector switch
- LED status indicator: Red solid (PCM/No signal), Red blink (Dolby), Green blink (DTS)
- Integrated 24-bit audio DSP for high-fidelity conversion
- Driver-free, portable, plug-and-play - no software required
Specifications:
- Audio Decoding: Dolby Digital (AC-3) DTS DTS-ES 6.1 PCM
- PCM Sample Rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- DAC Resolution: 24-bit
- S/N Ratio: 103dB
- Channel Separation: 95dB
- Frequency Response: 20Hz - 20kHz, ±0.5dB
- Input Ports:
  - 1x Optical (Toslink)
  - 1x Digital Coaxial (RCA)
- Output Ports:
  - 1x Stereo RCA (L/R)
  - 1x 3.5mm Headphone
- Input Selector: Manual slide switch (Optical/Coaxial)
- Enclosure: Plastic, Black
- Dimensions (DxWxH): 2.83" x 2.17" x 0.79" (72mm x 55mm x 20mm)
- Weight: 0.09lbs (40g)
- Power: DC 5V/1A (adapter included)
Item Includes:
- 1x Audio Decoder
- 1x 5V/1A DC Power Adapter
- 1x User Manual
Warranty:
- 2 Year Warranty
