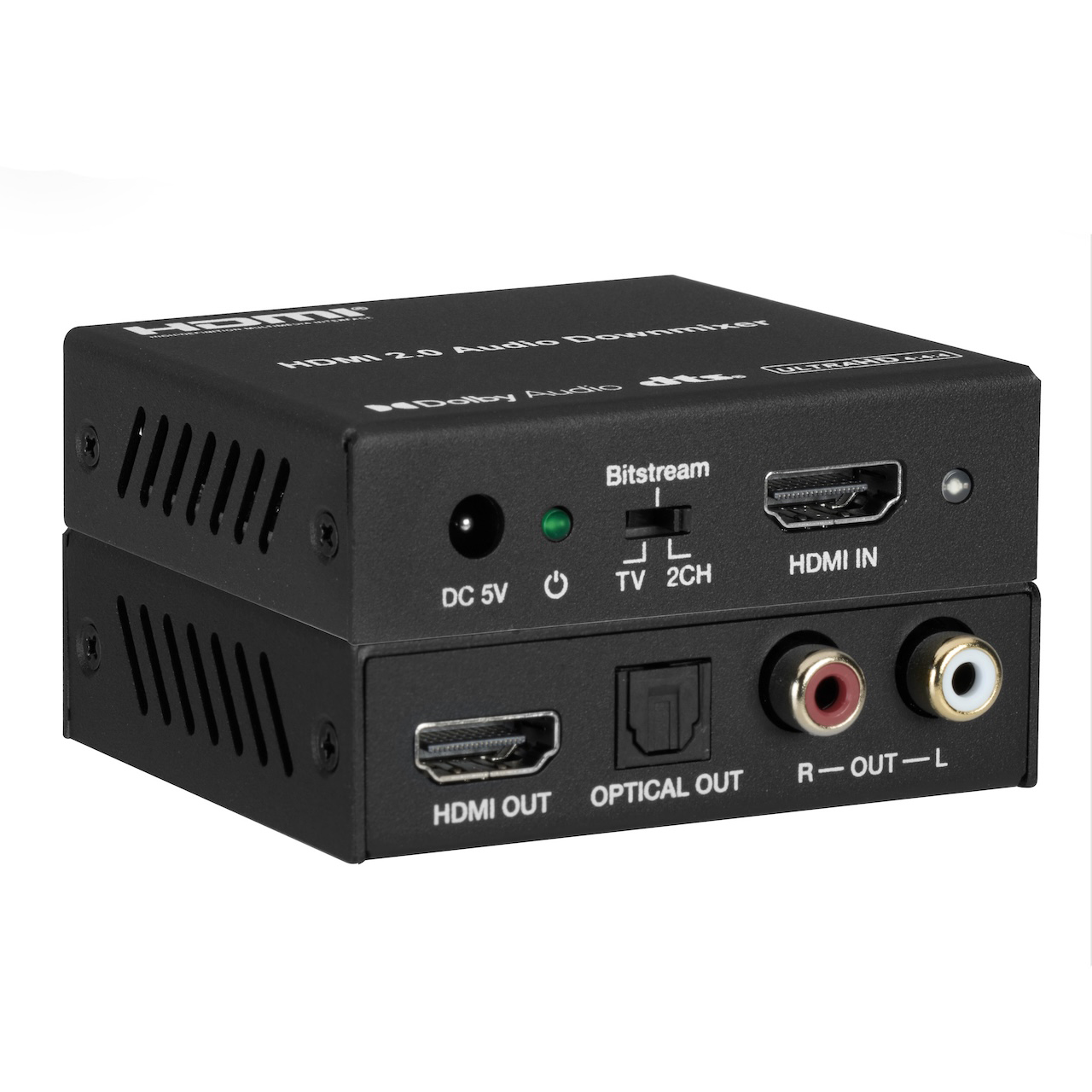

KanexPro AUD-DCODEHDMI-4K 4K HDMI Audio Decoder and Down Mixer with Dolby / DTS - Up to 18Gbps

AUD-DCODEHDMI-4K - Overview

• Features:

  • HDMI 2.0b (18Gbps), HDCP 2.2, and DVI compliant
  • Video resolutions up to 4K2K@50/60Hz (YUV 4:4:4)

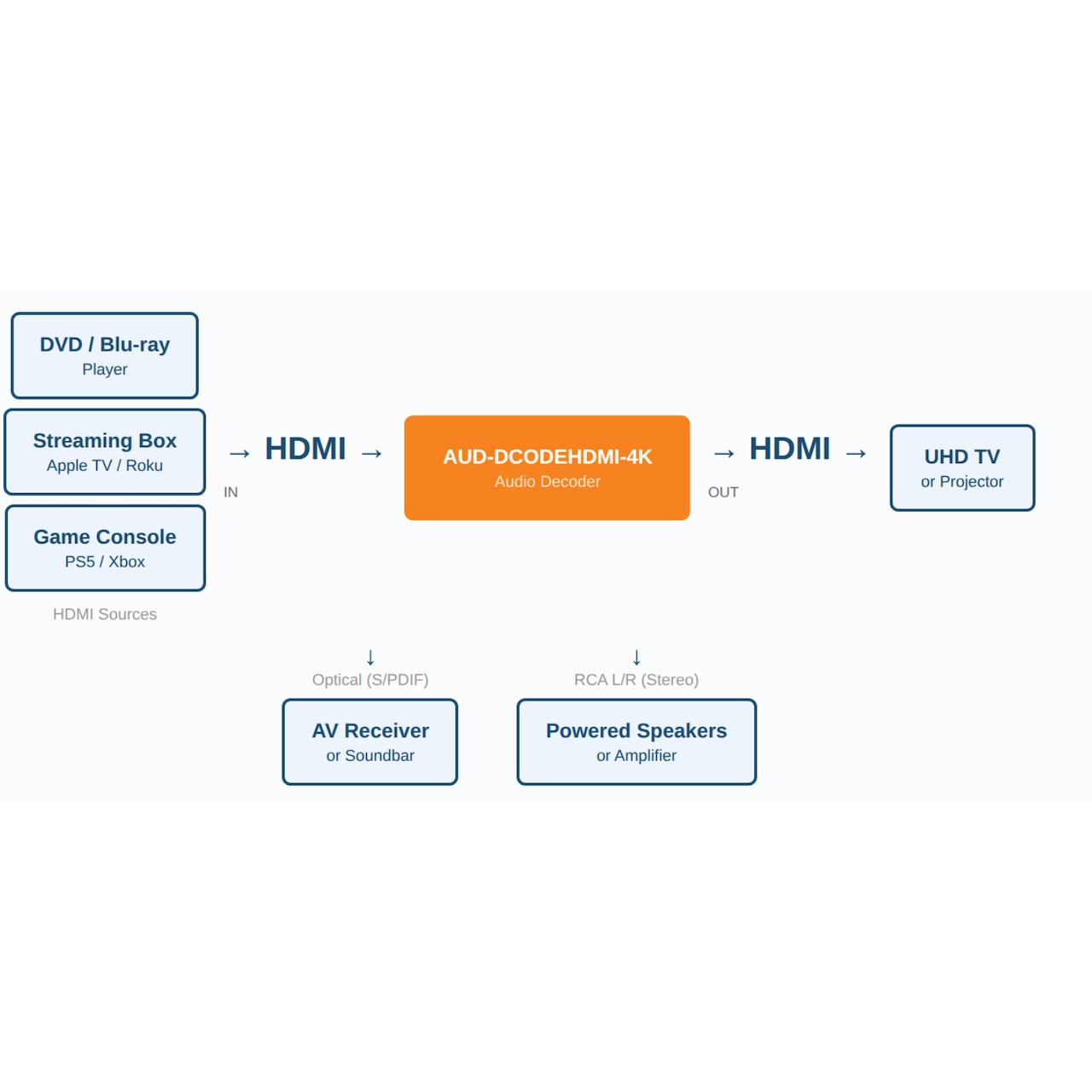

  • Extract HDMI audio to multi-channel optical (S/PDIF) or L/R analog audio
  • Bitstream audio down-mix to L/R analog output (Dolby/DTS decode)
  • Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • HDMI High Bit Rate (HBR) audio pass-through
  • Audio sample rates up to 192kHz
  • 10-bit HDR (High Dynamic Range) pass-through
  • CEC pass-through for single-remote control


• Specifications:

  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolutions: Up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 10-bit, 12-bit
  • HDMI Audio (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Optical Audio Formats: LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • L/R Audio Formats: Analog Stereo 2CH
  • ESD Protection: ±8kV (air-gap) & ±4kV (contact)

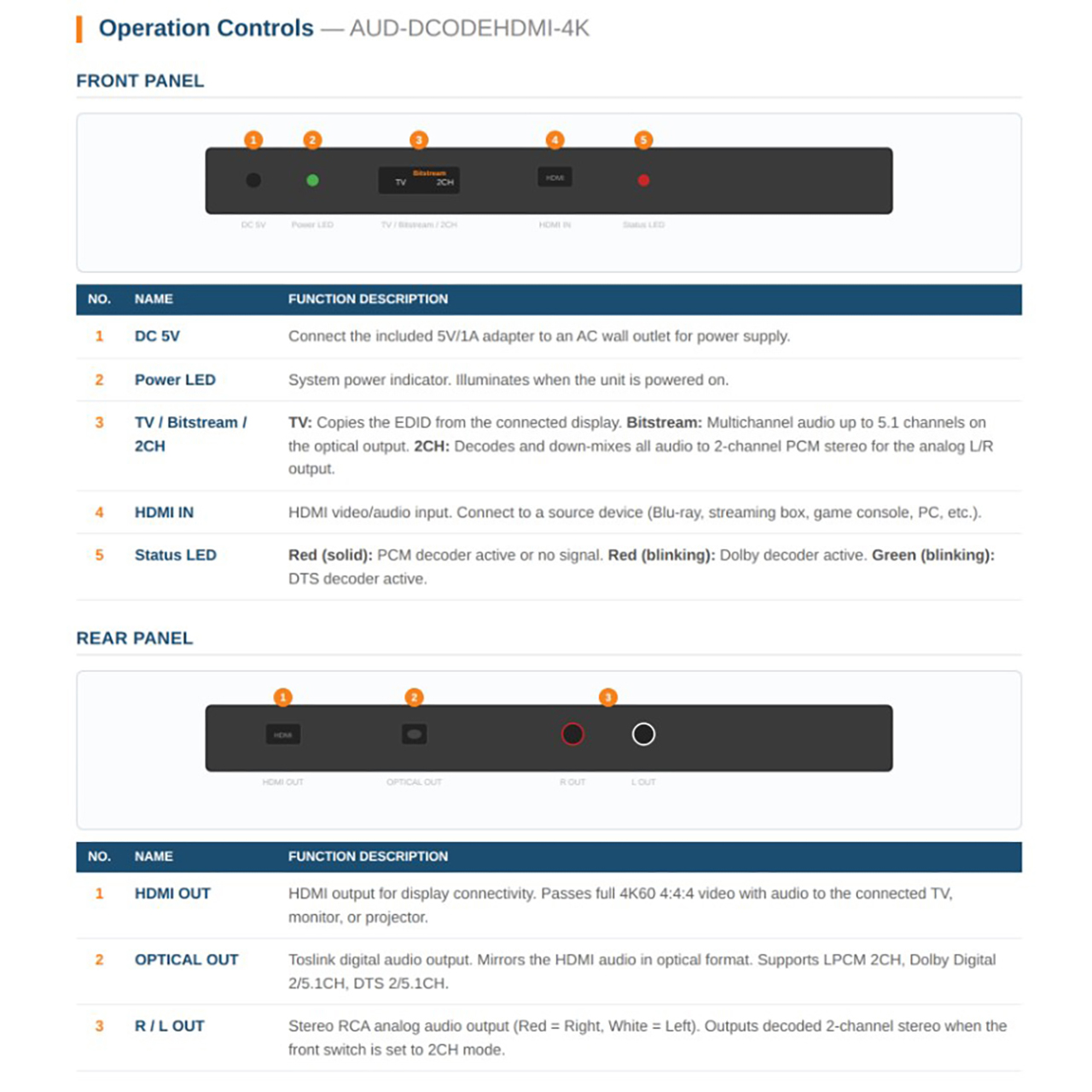

  • Inputs: 1x HDMI Type A (19-pin female)
  • Outputs:
    - 1x HDMI Type A
    - 1x Optical (S/PDIF)
    - 1x L/R Audio (RCA)
  • Housing: Metal Enclosure
  • Dimensions (WxHxD): 2.89" x 2.39" x 0.79" (73.5mm x 60.7mm x 20mm)
  • Weight: 0.30lbs (135g)
  • Power Supply: AC 100V - 240V, 50/60Hz; DC 5V/1A (CE/FCC/UL)
  • Power Consumption: 1.25W (Max)
  • Operating Temp: 32°F - 104°F (0°C - 40°C)
  • Storage Temp: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (no condensation)


• Item Includes:

  • 1x HDMI 18Gbps Audio Extractor
  • 1x 5V/1A Power Adapter
  • 1x User Manual


• Warranty:

  • 2 Year Warranty
