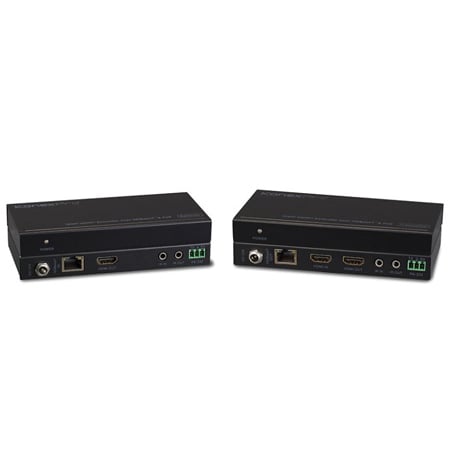

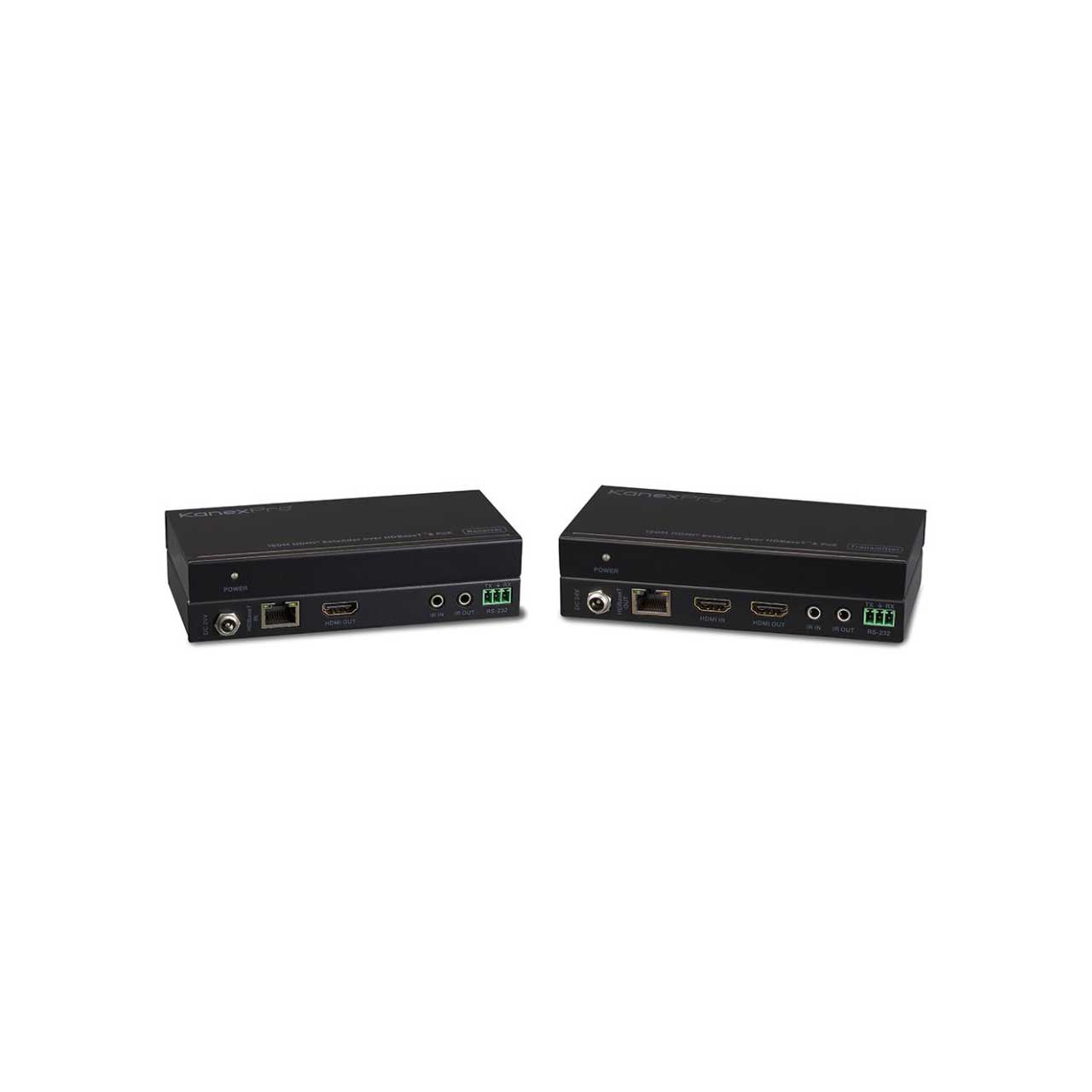

KanexPro EXT-HDBT150M HDMI 150m Extender Over HDBaseT with Loop Out

ITEM #: KAN-EXT-HDBT150M MFG #: EXT-HDBT150M

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$314.95

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    EXT-HDBT150M - Overview

    The KanexPro EXT-HDBT150M is a transmitter - receiver set which enables you to extend 1080p/60 HD signals up to 492 feet (150 meters) over single CAT6 cable using HDBaseT Technology. It supports HDCP 1.4 with EDID pass-through.The extender supports PoE (power over Ethernet) requiring you to power from either the sender or receiver side. Locking power supplies gives you the utmost flexibility and secures HDMI cables in place to eliminate intermittent signal loss or disconnected HDMI cables. For control, the extender offers IR support and RS-232C for bi-directional control of devices to and from the extender.

    HDMI Local Loop out

    The 150m extender also features a local HDMI output on the sender for preview monitor or local display support enabling you to see what you are extending over CATx cable. Beneficial for large lecture halls, house of worship centers and conference rooms.

    Applications:

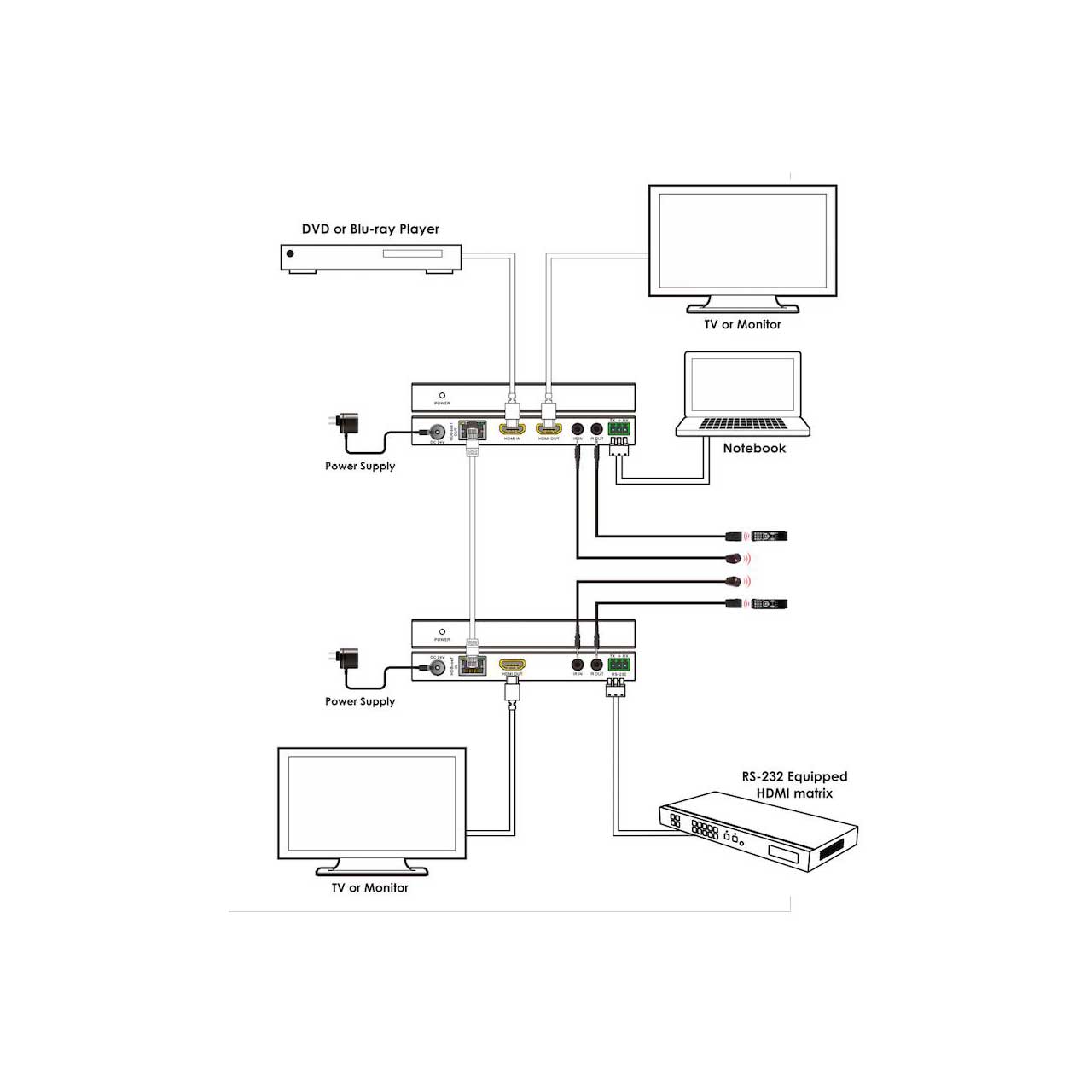

    As mentioned above, this extender can be used in any environment where there is a need to extend high-resolution HDMI signals up to 492 ft. (150m) from an HDMI device like a computer to a remote display located far away.

    Note: Please use a CAT5e/6 cable with low impedance (Shielded twisted pair is recommended with proper grounding) for excellent transmission of AV signals.

    • Features:

      • Compact 150m HDMI extender over CAT6
      • Extends up to 492ft. (150m) with full HD 1080p/60
      • Local HDMI loop out on Tx (sender)
      • Bi-directional PoE (Power over Ethernet)
      • HDCP 1.4 & EDID compliant
      • IR input/output - embedded over CATx extension
      • Dolby TrueHD & DTS Master Audio support
      • Supports uncompressed audio - LPCM
      • Bi-directional RS-232 & IR control
      • One locking power supply included

    • Specifications:

      • Transmitter Inputs
      • 1 x HDMI Type A (19-pin female)
      • 1 x HDMI Type A (19-pin female) - For loop or local output
      • 1 x IR INPUT (3.5mm Stereo Mini-jack)
      • 1 x RS232 (Phoenix connector)
        Receiver Inputs:
      • 1 x HDBaseT in (RJ45)
      • 1 x IR INPUT (3.5mm Stereo Mini-jack)
      • 1 x RS232 (Phoenix jack)
        Transmitter Outputs:
      • 1 x HDBaseT Out (RJ45)
      • 1 x HDMI Type A (19-pin female)
      • 1 x IR OUTPUT (3.5mm Stereo Mini-jack)
        Receiver Outputs:
      • 1 x HDMI Type A (19-pin female)
      • 1 x IR OUTPUT (3.5mm Stereo Mini-jack)
        Compliance:
      • HDMI Compliance: HDMI 1.4
      • HDCP Compliance: HDCP 1.4
      • Video Bandwidth: 225MHz per channel
      • Video Resolutions up to: [email protected], YUV4:4:4, RGB4:4:4
      • Color Space: RGB, YUV4:4:4, YUV 4:2:2
      • Color Depth: 8-bit
        HDMI Audio Formats (Pass-through):
      • LPCM 2/5.1/7.1CH, Dolby Digital
      • DTS 5.1, Dolby Digital+, Dolby True HD
      • DTS-HD Master Audio
      • Dolby Atmos
      • DTS:X
        Mechanical:
      • Chassis: Metal Enclosure
      • ESD Protection - Human body model:
      • ±8kV (air-gap discharge)
      • ±4kV (contact discharge)
      • Color: Black
      • Dimensions: W: 5.51"x H: 2.55" x D: 0.70"
      • Weight: 0.89 lbs. (406g)
        Power & Temperature
      • Power Supply Input: AC100 - 240V 50/60Hz
      • Output: DC 24V/1A (US/EU standards, CE/FCC/UL Certified)
      • Power Consumption: 6W
      • Operating Temperature: 32 - 104°F / 0 - 40°C
      • Storage temperature -4 - 140°F / -20 - 60°C
      • Relative Humidity 20 - 90% RH (no condensation)

    • Item Includes:

      • 1 x HDMI Extender Transmitter
      • 1 x HDMI Extender Receiver
      • 1 x Wideband IR Emitter cable
      • 1 x Wideband IR Receiver cable
      • 1 x 24V/1A Power Adaptor
      • 1 x User Manual

    • GTIN:

      0813982021518
