    EXT-HDBT70C - Overview

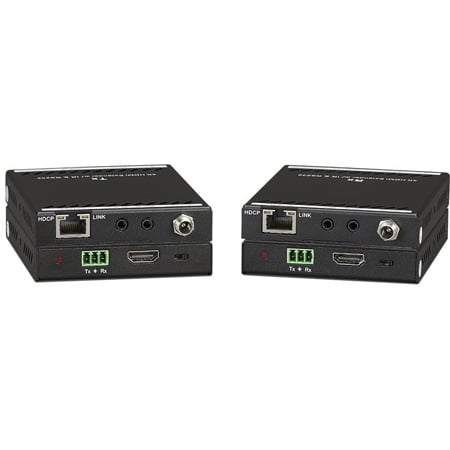

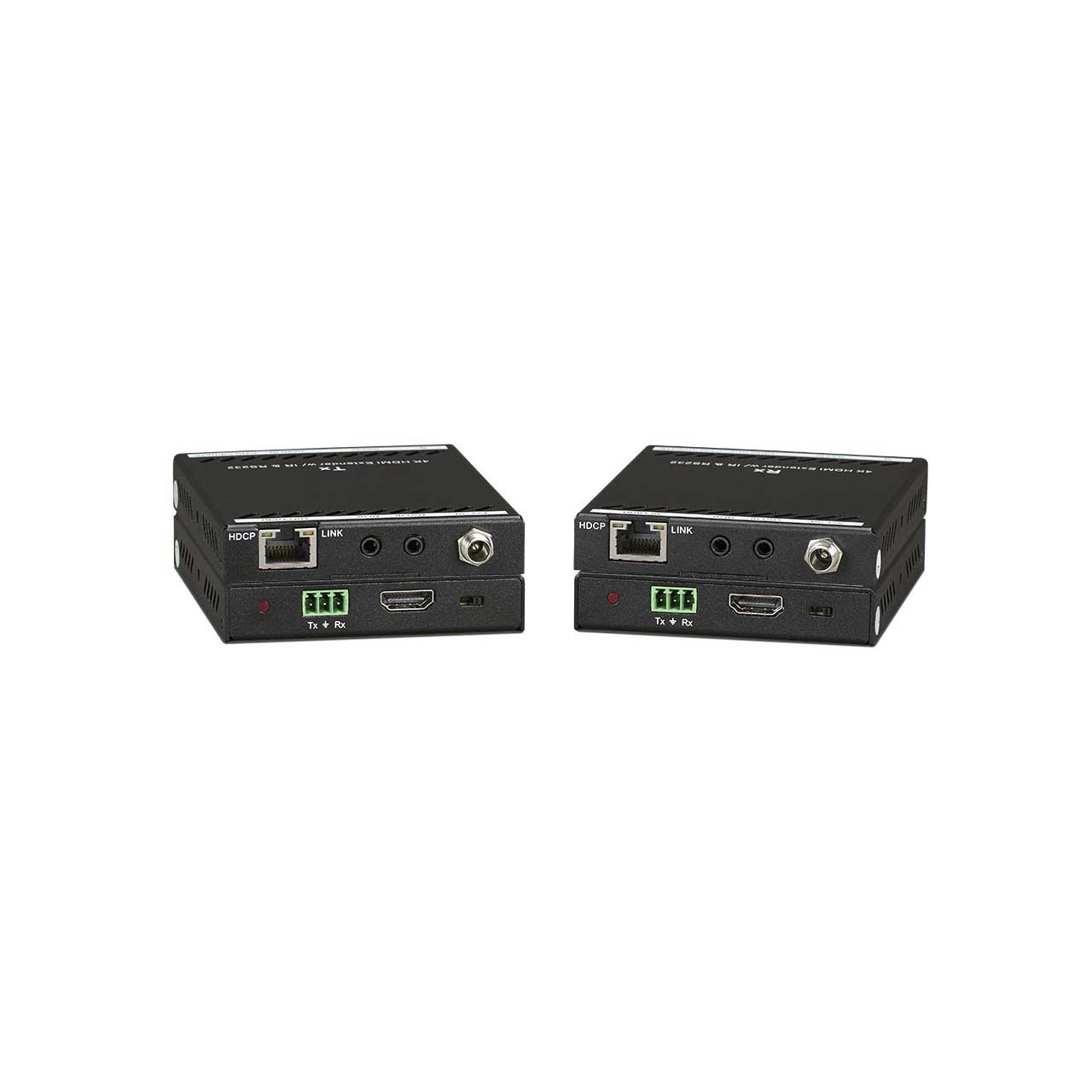

    The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, the extender set supports PoE (power over ethernet) from either side of the sender or receiver, CEC, bi- directional RS232 & IR control.

    Applications
    Perfect for home and residential applications where 4K video and audio can be distributed throughout the home. Digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.

    Note: Use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

    • Features:

      • Basic point-to-point HDMI extender over HDBaseT
      • Extend full HD 1080p up to 70m (230ft.)
      • Extend 4K/30 up to 40m (131ft.)
      • Supports Ultra HD [email protected] resolutions &
      • Video resolutions from 1080p/[email protected]
      • Bi-directional PoH (power over cable)
      • HDCP 2.2 & EDID compliant
      • Bandwidth 10.2 Gbps
      • Bi-directional RS-232 & IR control
      • Supports CEC/IR/RS-232 pass-thru
      • IR input/output - embedded over CATx extension
      • Dolby TrueHD & DTS Master Audio ready
      • Supports uncompressed audio - LPCM

    • Specifications:

      • Transmitter Input Signal: (1) HDMI; (1) IR; (1) RS232
      • Transmitter Input Connector: (1) HDMI female; (1) 3.5mm mini jack; (1) 3p captive screw connector
      • Transmitter Output: (1) RJ-45; (1) IR; (1) RS232
      • Transmitter Output Connector: (1) RJ-45; (1) 3.5mm mini jack; (1) 3-pin captive screw connector
      • Transmitter Audio: (1) Digital audio,transmit through HDMI audio
      • Receiver Input Signal: (1) IR; (1) RJ-45; (1) RS232
      • Receiver Input Connector: (1) 3.5mm mini jack; (1) RJ-45; (1) 3p captive screw connector
      • Receiver Output: (1) HDMI; (1) IR; (1) RS232
      • Receiver Output Connector: (1) HDMI female; (1) 3.5mm mini jack; (1) 3-pin captive screw connector
      • Resolution Range: 640 x [email protected] ~ 4K x [email protected]
      • Transmission Mode: HDBaseT
      • Transmission Distance: 1080p ≤ 70m; 4Kx2K ≤ 40m
      • Bandwidth: 10.2Gbps
      • HDMI Standards: Supports HDMI1.4 and HDCP2.2
      • Impedance: 75Ω
      • Temperature: 32°F - 122°F (0°C - 50°C)
      • Humidity: 10% ~ 90%
      • External Power Supply Input: 100VAC~240VAC, 50/60Hz; Output: DC 24V, 1.25A
      • Power Consumption: 14w (max)
      • Dimensions (W x H x D): 4.17 in x 0.60 in x 3.30 in
      • Net Weight: 0.55 lbs (250g)

    • Item Includes:

      • Separate mounting ears
      • One locking power supply

    • Warranty:

      • KanexPro 3-year parts and labor

    • GTIN:

      0813982021624
