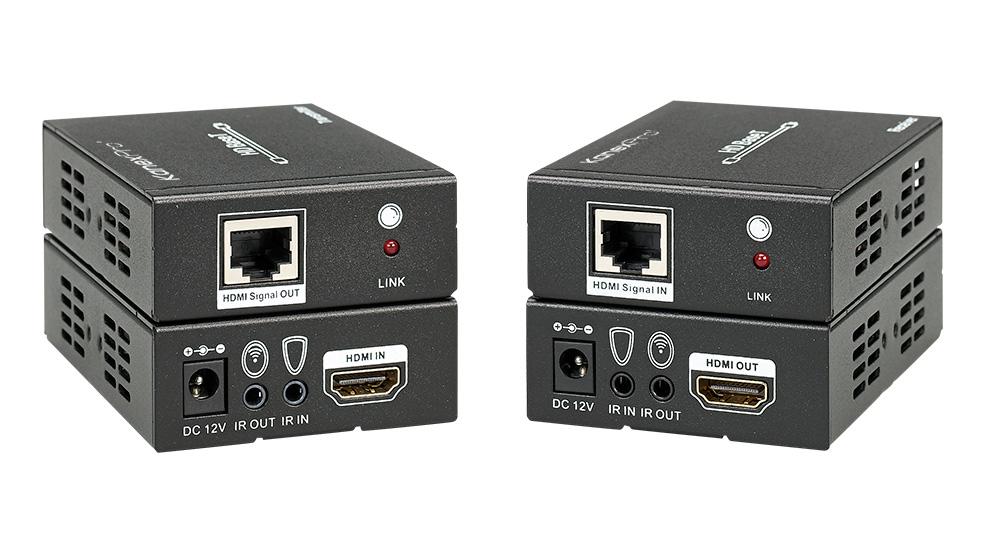

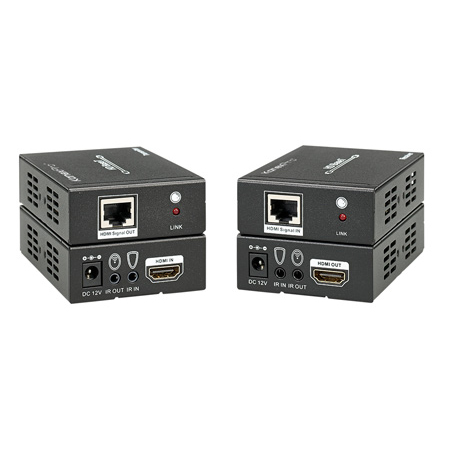

KanexPro EXT-HD100MHBT 4K Compliant HDBaseT 100-Meter HDMI Extender w/ PoE Support

EXTHD100MHBT - Overview

EXTHD100MHBT - Overview

• Features:

  • Extend HDMI signals up to 330 ft. (100m) on single CAT6 cable
  • Supports Power over Ethernet from Tx or Rx
  • Infrared Signal Input/Output, embedded over extension
  • Supports resolutions from 1080p/[email protected]
  • 4K x 2K UHD resolutions
  • High bandwidth up to 10.2 Gbps
  • Enables 3D pass-through
  • Supports CEC pass-through
  • HDCP and EDID compliant
  • Audio support: Dolby TrueHD & DTS Master Audio, 7.1 compliant
  • Uncompressed audio support such as LPCM
  • Front panel-LEDs for link activity and HDCP authentication


  • HELPFUL TIPS & RECOMMENDATIONS:
  • CAT-5 cables should not exceed 330 feet or (100m).
  • Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
  • Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).
  • Do not use crossover cables, patch cables or Ethernet couplers to extend two CAT5 cables. This may damage the Tx & Rx.
  • If the power LED indicator on the Tx/Rx unit is not on, check to make sure that the CAT5 cables are not crossed i.e., Ethernet to Link instead of Ethernet to Ethernet.


• Specifications:

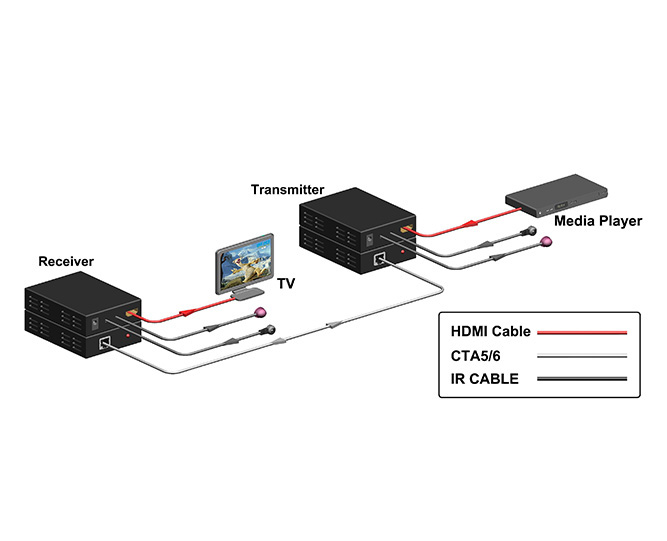

  • Transmitter:
  • Input: HDMI
  • Output: HDBaseT (Cat 5e/6)
  • Receiver:
  • Input: HDBaseT (Cat 5e/6)
  • Output: HDMI
  • Video Amplifier Bandwidth: 10.2 Gbps all channel
  • Vertical Frequency Range: 50/60Hz
  • Resolutions (HDTV): 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 4K at 30Hz/ 60Hz
  • Computer Resolution: WUXGA (1920x1200)
  • Power: 12V [email protected]
  • Power Consumption: 9W (Maximum)
  • Regulatory Approvals:
  • Converter: FCC, CE, UL
  • Power Supply: FCC, CE, UL
  • Dimensions: 3.93"x2.5"x1.0" (100x65x25.5mm)
  • Weight: 0.37 lbs. (170g)
  • Warranty: 1 Year limited


• Item Includes:

  • One external power supply included


• GTIN:

  0813982020030
