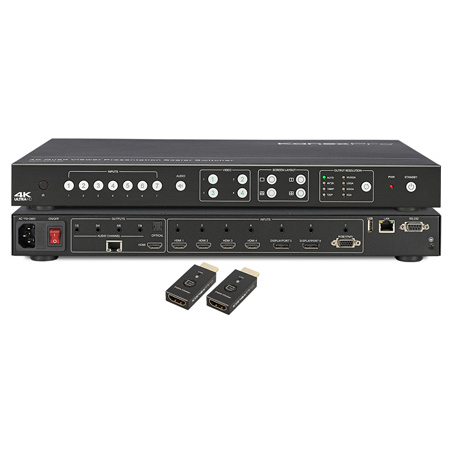

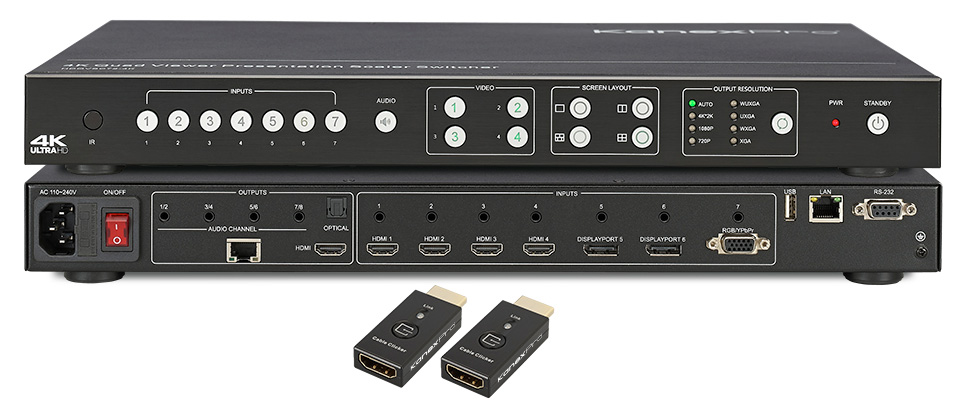

KanexPro HDBT-VTSC72-4K 4K Video Tiler and Scaler Switcher with HDBaseT

ITEM #: KAN-HDBTVTSC724K MFG #: HDBT-VTSC72-4K

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KAN-HDBTVTSC724K

HDBT-VTSC72-4K - Overview

The KanexPro HDBT- VTSC72-4K is a 7-input, 2-mirrored (HDMI & HDBaseT) output presentation scaler- switcher engineered to upscale HDMI / DisplayPort and VGA devices such as laptops, Blu-ray players and desktops to a true 4K@30Hz resolution and creating a Quad Window experience in any collaboration space.

Inputs include 4 HDMI, 2 DisplayPort and 1 VGA with mirrored HDMI and HDBaseT output supporting distances over CAT6 up to 70 meters with PoC.compliant with the latest HDCP specifications, this Quad-Viewer can also be controlled via RS-232 and TCP/IP. It supports native 4K inputs and outputs with audio de-embedder and breakaway audio switching to support unbalanced stereo. Ideally used in collaboration, meeting rooms, classrooms and video conferencing applications.

The switcher includes two 4K-HDCLICKERs, which are HDMI based cable controllers designed to connect and fast-switch HDMI source devices. When connected to the presentation system just click-to-show the content instantly on to the 4K display showing up to four different pre-configured window layouts. The HDBT- VTSC72-4K optimizes the way we do video collaboration and presentations. These 4K-HDCLICKERs product brings together people, space, and information to amplify collaboration, and help distributed teams accelerate innovation while displaying their content directly from laptops, DisplayPort and HDMI based devices such as tablets to the main display.

  • Features:

    • 4K Multiviewer Switcher with integrated switching
    • Elite 4K scaling engine to support up-scaling & down-scaling
    • Includes two 4K-HDCLICKERS for Click-to-Show me your content
    • Supports Quad-View Windowing from 4 inputs
    • Multiple Inputs: 4xHDMI, 2xDisplayPort, 1xRGB/YPbPr
    • Mirrored outputs: 1xHDMI & 1xHDBase-T with standard 48v PoC
    • Supports HDMI, DisplayPort with input resolutions up to 3840x2160@30Hz
    • Supports multiple HDMI output resolutions: 4Kx2K@30Hz &1080p/60Hz
    • Output scaler up to 3840x2160@30Hz
    • Lets you independently select the source to be assigned on any viewer
    • Incorporates DP 1.2a resolutions up to 3840x2160@60Hz
    • Supports MHL inputs via HDMI

  • Specifications:

    • Supported Formats
    • Video Input Formats: 1x VGA HD15 - RGB, H, V; 4x HDMI; 2x DisplayPort
    • Format Compliance: HDMI v1.4; DVI v1.0; DisplayPort v1.2; HDCP v1.4; HDBaseT Class A (Optional)
    • Video Output Formats: 1x HDMI; 1x HDBaseT Class A (Optional)
    • Supported Color Depth: 8-bit / 10-bit / 12-bit
    • HDCP Compliance: HDCP 1.4
    • EDID Memory: Advanced EDID Management utilities
    • Audio Input Formats: HDMI and DisplayPort: embedded digital audio; External analog stereo audio - 20 kO impedance
    • Audio Output Formats: HDMI - embedded digital audio; 7.1 Surround sound (analog) audio - 20 kO impedance; TOSLINK - Digital Optical Audio
    • Audio Bandwidth: 20 Hz to 20 kHz
    • Audio Sampling Rate: 48 kHz, 8CH, LPCM
    • Audio Levels: Stereo Audio - unity, nominal; Stereo Audio - 0.5 - 1.0 Vpp
    • Audio Delay Adjustment: User-adjustable from 0 - 400ms in increments of 40ms

      Inputs Connectors
    • HDMI / DVI Input: 4x HDMI 19-pin female connectors
    • DisplayPort Input: 2x 20-pin DisplayPort female connectors with locking mechanism
    • Analog RGB Input: 1x HD15 (VGA) female connector
    • Analog Audio Input: 7x Stereo Audio on 3.5mm PC audio female connectors
    • Power Input: 1x IEC C14 power connector

      Outputs Connectors
    • HDMI Output: 1x HDMI 19-pin female connector
    • HDBaseT Output (Optional): 1x Shielded CAT-6A connector
    • Digital Audio Output: 1x TOSLINK Optical female connector
    • Analog Audio Output: 7.1 Surround sound (analog) audio on 4x 3.5mm PC audio female connectors

      Scaling and Processing
    • Phase Lock Loops: 12-bit, Triple-Analog-to-Digital Converter
    • De-Interlacing: 3D Motion-Adaptive De-Interlacing
    • Pull-Down: Automatic 3:2 pull-down and 2:2 pull-down detection and recovery
    • Noise Reduction: 3D
    • Display Settings: Output Resolution, Window Layout, Video Input Position, Aspect Ratio, VGA Auto Adjust
    • Window Layout (optional): Preset up to 16 different layouts under quad viewer

      Control
    • Front Panel: 18x Backlit Buttons
    • IR Remote Control: IR Remote Control with 19x buttons for control
    • RS-232: Serial communication, 9-pin D-sub connector
    • Ethernet: Web-based GUI or Telnet

      Mechanical
    • Dimensions (H x W x D) Without Feet or Rack Ears: 1.7" x 17.3" x 11.0"; With Feet: H = 2.0"; With Rack Ears: W = 19.0"
    • Weight: 7.3 lbs.
    • Construction: 1mm metal enclosure with matte black finish, 10mm aluminum alloy front panel with draw black finish
    • Mounting Options: Mountable Rack Ears, 1U full width

      Environmental
    • Operating Temperature: +32° to +104° F
    • Storage Temperature: -4° to +140° F
    • Humidity (Storage / Operating): 20% to 90% (non-condensing)

      Power
    • AC Power: Input: 100~240VAC / 50-60Hz
    • Power Consumption: 15 Watts (max.)
    • Power Over HDBaseT (POH): Optional HDBaseT Output functions as a PSE Type 1 device (13 watts)

  • Item Includes:

    • 1x External AC Power Cord
    • 1x IR Remote Control Unit
    • 1x User Guide
    • 2x Rack Mount Ears

  • Warranty:

    • 3 Years

  • GTIN:

    0813982020573
