48Gbps, HDCP 2.3, HDR/SDR Converting

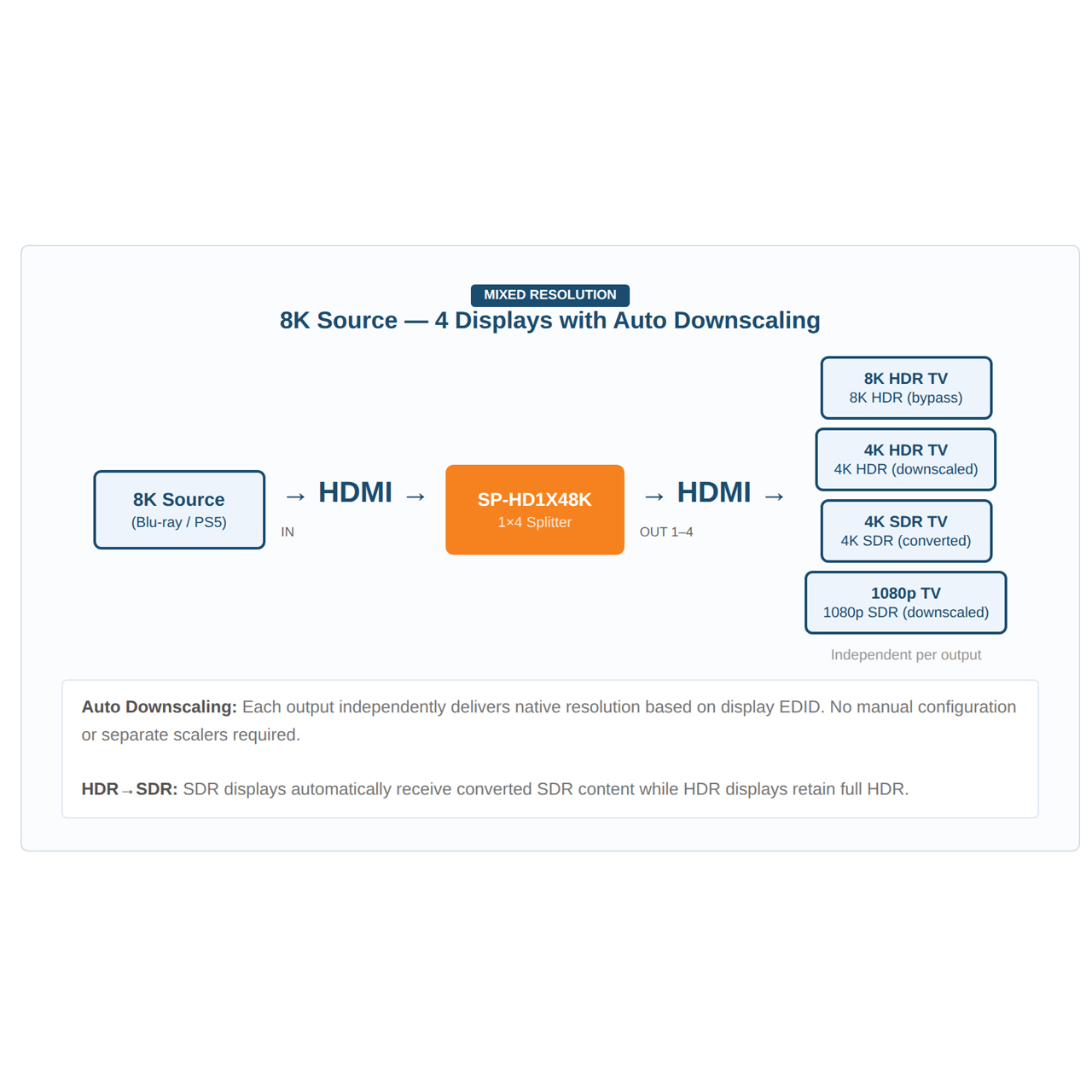

Split one 8K HDMI 2.1 source to four displays with automatic downscaling and HDR-to-SDR conversion - enabling mixed-resolution environments without manual configuration. The KanexPro SP-HD1X48K delivers 48Gbps bandwidth and supports resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit across all 4x outputs. Auto downscaling independently adjusts each output based on connected display capabilities.
-
- HDCP 2.3 compliant
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
- Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- 8K to 4K or 8K/4K to 1080p auto downscaling on all outputs
- HDR to SDR auto converting on all outputs
- Advanced EDID management
- Compact design for easy and flexible installation
-
Technical- HDMI Compliance: HDMI 2.1
- HDCP Compliance: HDCP 2.3
- Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
- Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8/10/12-bit
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- ESD Protection: IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact)

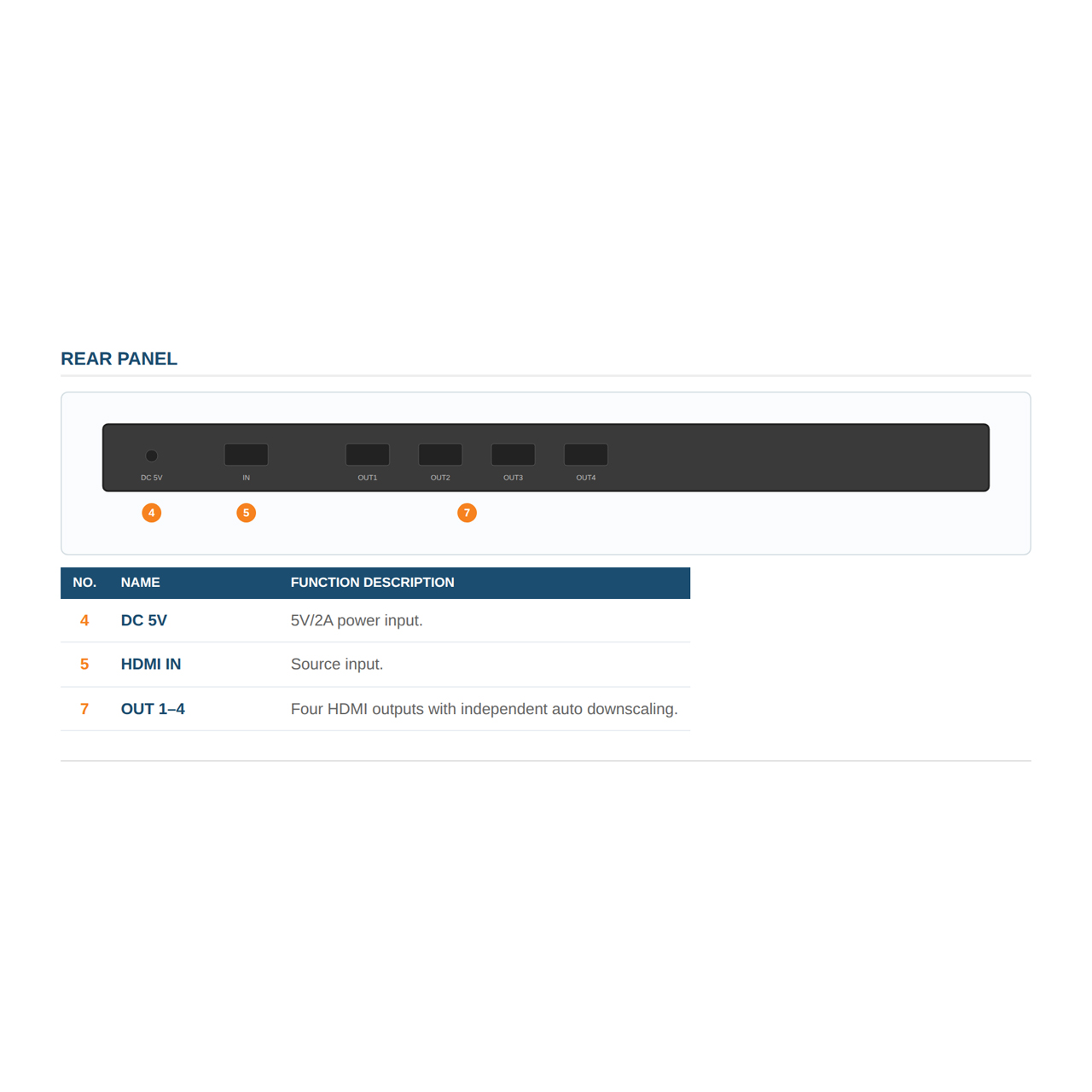

Connections - Input: 1x HDMI IN (Type A, 19-pin female)
- Output: 4x HDMI OUT (Type A, 19-pin female)
- Control: 1x SERVICE (USB Type-C, Update port)
Mechanical - Housing: Metal Enclosure
- Color: Black
- Dimensions: 5.7" x 2.7" x 0.7" (145mm x 68mm x 17mm)
- Weight: 0.6lbs (263g)
- Power Supply:
- Input: AC 100V - 240V 50/60Hz
- Output: DC 5V/2A (CE/FCC/UL certified) - Power Consumption: 5.5W (Max)
-
- 1x 48Gbps 1x4 Splitter
- 1x 5V/2A Multinational Power Supply
- 1x User Manual
-
-
