KanexPro SP-HDPOC1x4 HDMI 1x4 Distribution Amplifier over CAT5e/6 Outputs and POC with 60 Meter Range

ITEM #: KAN-SP-HDPOC1X4 MFG #: SP-HDPOC1X4

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$629.95

Our Price:

$566.95

Availability: In Stock
iAvailability Description Popup


    SP-HDPOC1X4 - Overview

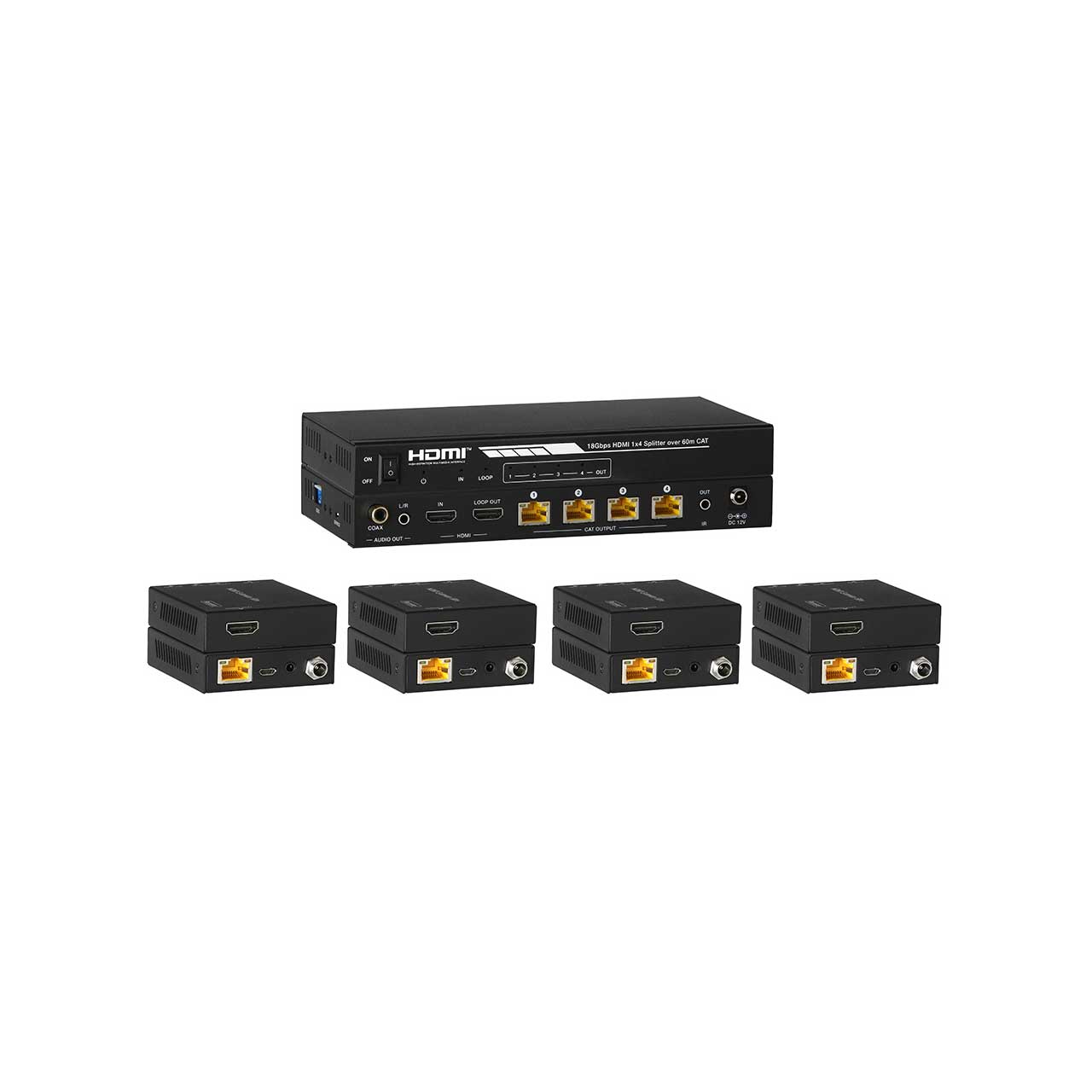

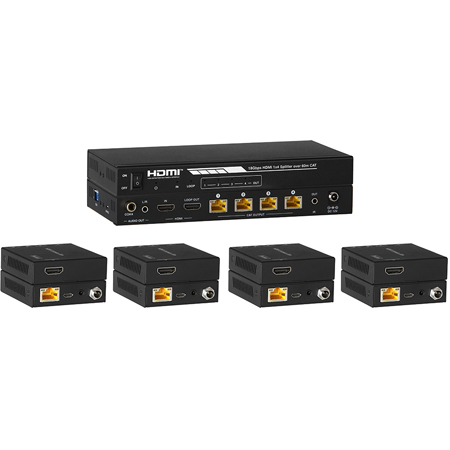

    The KanexPro 1x4 Distribution Amplifier (SP-HDPOC1X4) is a 18Gbps HDMI 1x4 Splitter that can distribute a single HDMI source signal to any 4 display devices. Support video resolution up to [email protected]/60Hz 4:4:4. It is designed with 1 HDMI loop output and 4 CAT outputs. It can extend the signal transmission distance up to 35 meters at the resolution of [email protected] 60Hz, or 50 meters at [email protected], or 60 meters at [email protected] via a single CAT6/6a/7 cable. The product supports one-way IR control signal pass-through, audio extract function and advanced EDID management.

    Industry Standard HDCP 2.2 & 4K/60
    HDCP 2.2 authentication is present always on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- [email protected], 30, 50 or 60Hz, [email protected], 25,30, 50 or 60Hz and [email protected] displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.

    Applications
    Perfect for house of worship centers, retail stores and residential /smart home theater applications where one HDMI device can be distributed to four displays over a single network cable up to 164ft. without losing signal integrity.

    Professional Performance
    Built to commercial standards, KanexPro products offer premium features like locking power connectors, metal enclosures, and passive cooling designs which are a must for long term reliable and stable installations.

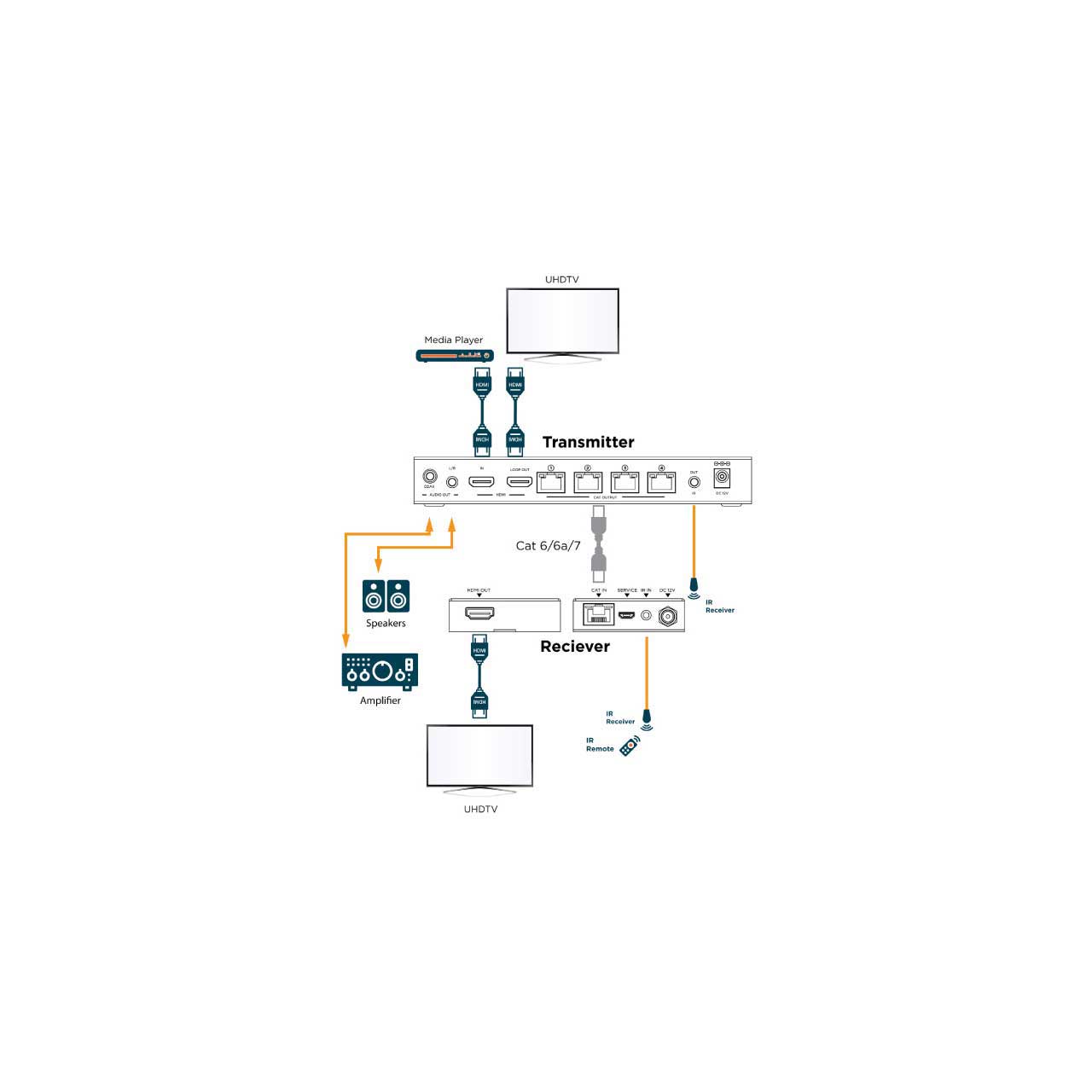

    -Home Theater installations:Share a video source with displays in various locations within single or multiple room installations.
    -Entertainment Spaces:Share a single cable box or source amongst multiple displays in an outdoor patio, dining area, or entertainment hall.
    -Reduce Complexity:An all-in-one splitter extender system reduces the complexity and the number of cables and components needed for a system with multiple displays.

    Please Note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

    • Features:

      • Distribute & Extend HDMI over Single CAT5e/6 to four HD displays
      • Includes 4-independent receivers
      • Supports transmission distance up to 192 ft. (60m)
      • Supports UHD 4K ( 4K x 2K @ 60Hz)
      • Control via IR (kits included)
      • Supports 5.1, 7.1 digital audio and uncompressed LPCM
      • HDCP 2.2 & EDID support for multiple displays
      • Simple set up with zero configuration
      • Low Power consumption - No Power supplied Needed for the RXs
      • Power over Cable
      • Compact design for flexible installations
      • Support digital and analog audio de-embedded outputs
      • Backed by KanexPro's 3 Year limited warranty

    • Specifications:

      • Functional Performance
      • HDMI Compliance: HDMI 2.0
      • HDCP Compliance: HDCP 2.2/1.X
      • Video Bandwidth: 594MHz/18Gbps
      • Color Depth: 8-bit,10-bit,12-bit([email protected]) 8-bit ([email protected] YUV4:4:4) 8-bit,10-bit,12-bit([email protected] YCbCr 4:2:2/4:2:0)
      • Color Space: RGB, YCbCr 4:4:4 / 4:2:2 YUV 4:2:0
      • HDR Support HDR 10, HDR 10+, HLG, Dolby Vision
      • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
      • Coaxial Audio Formats: LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH
      • Analog Audio Formats: PCM 2.0

        Interface
      • Transmitter x 1:
        Input: HDMI x1
        Output: Cat5e/6 x4
        Audio: Digital Coax
        Audio: 3.5mm L/R Stereo Mini-Jack
      • Receiver x 4:
        Input: Cat5e/6 x1 per receiver
        Output: HDMI x1

      • Transport Protocol: Non-Ethernet based protocol
      • Video Resolutions (HDTV): Up to [email protected]/60hz 4:4:4

        Power Supply for Splitter Amplifier
      • Input Voltage:100-240V , 50/60Hz, 0.3A
      • Output Voltage: 12V [email protected]
      • Power consumption: 14 Watts

        Physical
      • Operating Temperature: 0°C to +60°C
      • Regulatory Approvals: FCC, CE, UL
      • Dimensions for 4 Ports Splitter Amplifier: 8.3" x 4" x 1"
      • Dimensions for receiver: 3.5" x 2.4" x 0.7"
      • Total Weight: Tx: 1.3 lbs., Rx: 0.34 lbs.

    • Item Includes:

      • 1x 18Gbps 1x4 HDMI Splitter over 60m CAT
      • 4x Receiver Units
      • 1x IR Blaster Cable (1.5 meters)
      • 4x 20K-60KHz IR Receiver Cable (1.5 meters)
      • 1x 12V/2.5A DC Locking Power Adapter
      • 1x User Manual


    SP-HDPOC1X4 - Required Accessories

      SP-HDPOC1X4 - Recommended Accessories
