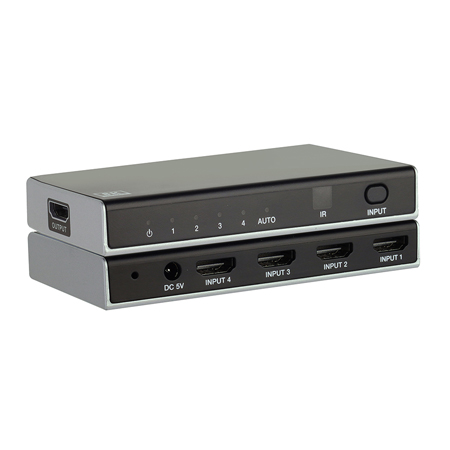

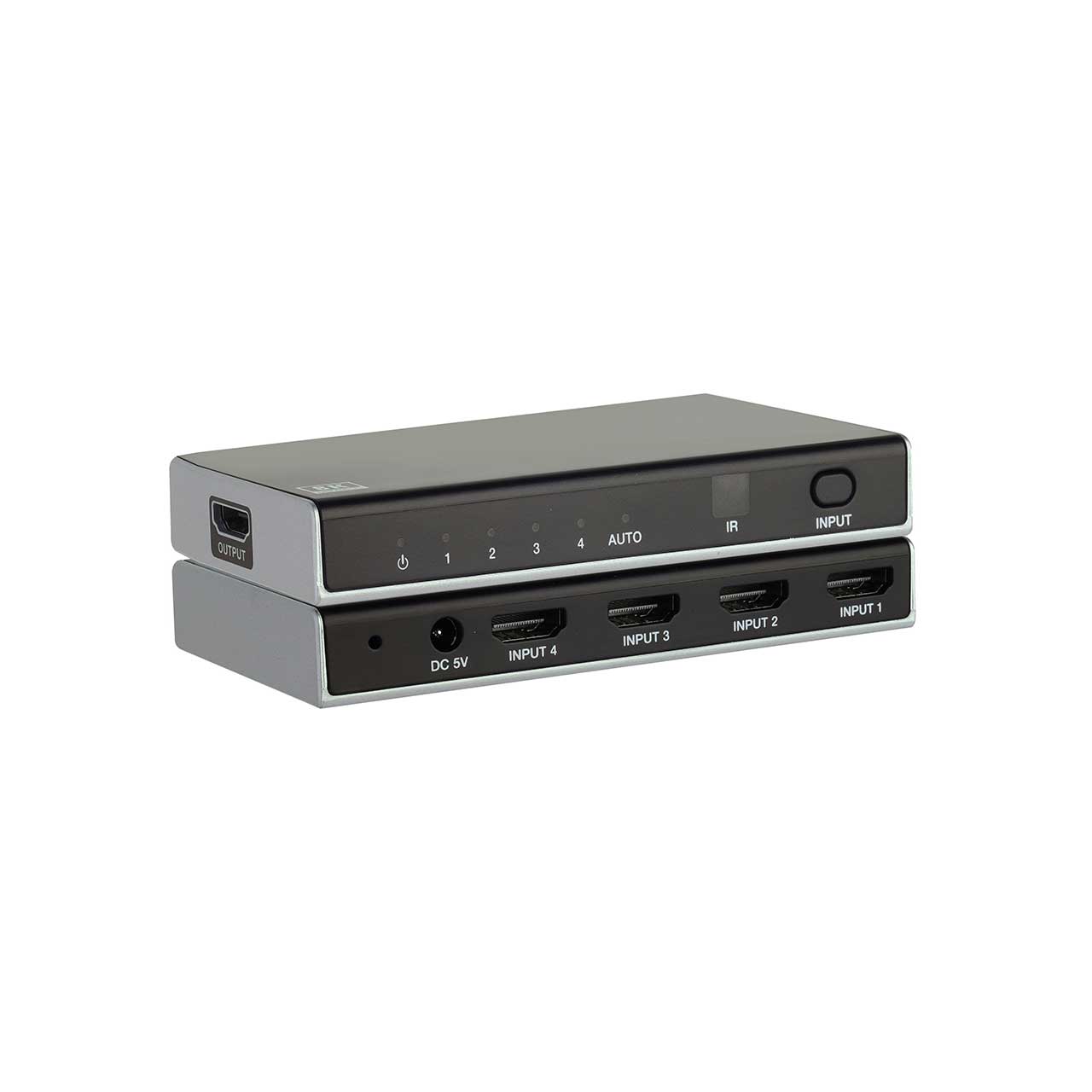

KanexPro SW-4X18K HDMI 4x1 Switcher 8k

SW-4X18K - Overview

• Features:

  • HDMI 2.1 and HDCP 2.3 compliant: The device meets the standards of HDMI 2.1 and HDCP 2.3, ensuring compatibility and support for the latest HDMI and content protection technologies.
  • Support 48Gbps video bandwidth: The device can handle high-speed data transfer up to 48Gbps, allowing for seamless transmission of high-quality audio and video signals.
  • 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support: The device supports various video formats and resolutions, including 8K content at different frame rates and color depths, as well as 4K content at high refresh rates and color precision.
  • Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through: The device is capable of passing through High Dynamic Range (HDR) signals, including popular HDR formats such as HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG), allowing for enhanced color and contrast reproduction on compatible displays.
  • VRR, FVA, ALLM support: The device supports Variable Refresh Rate (VRR), Fast Frame Transport (FVA), and Auto Low Latency Mode (ALLM). VRR enables smoother gameplay by synchronizing the display's refresh rate with the source device, FVA reduces latency, and ALLM automatically activates game mode on compatible devices.
  • Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio: The device can handle various HDMI audio formats, including uncompressed LPCM 7.1-channel audio, as well as high-definition audio formats like Dolby TrueHD and DTS-HD Master Audio, providing immersive sound experiences.
  • 4x1 switch output, auto switch supported: The device features a 4x1 switch output, allowing you to connect up to four HDMI sources and switch between them as needed. It also supports automatic switching, which detects the active input and switches accordingly.
  • Built-in Equalizer and Driver: The device includes a built-in equalizer and driver, which help compensate for signal loss and maintain optimal signal quality over longer cable lengths.
  • Auto EDID management: The device automatically manages Extended Display Identification Data (EDID), which ensures that the connected devices communicate and negotiate the best video and audio settings for optimal performance.
  • Compact design for easy and flexible installation: The device is designed to be compact, making it easy to install in various settings and environments. Its small form factor offers flexibility in terms of placement and integration into existing setups.


• Specifications:

  • Technical
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 48Gbps
  • Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
  • Color Depth: 8-bit, 10-bit, 12-bit
  • Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

    Connection

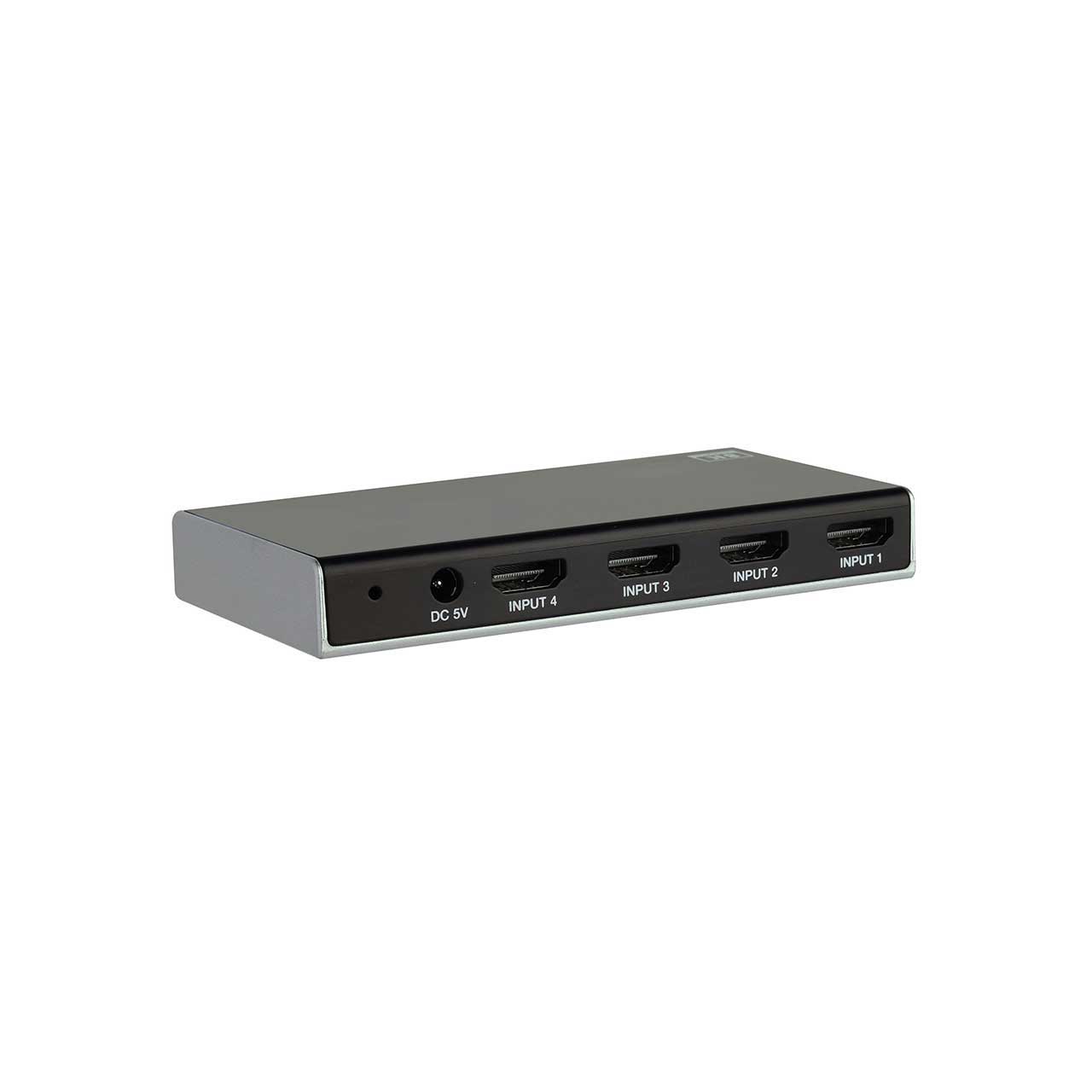

  • Input: 4xHDMI INPUT [Type A, 19-pin female]

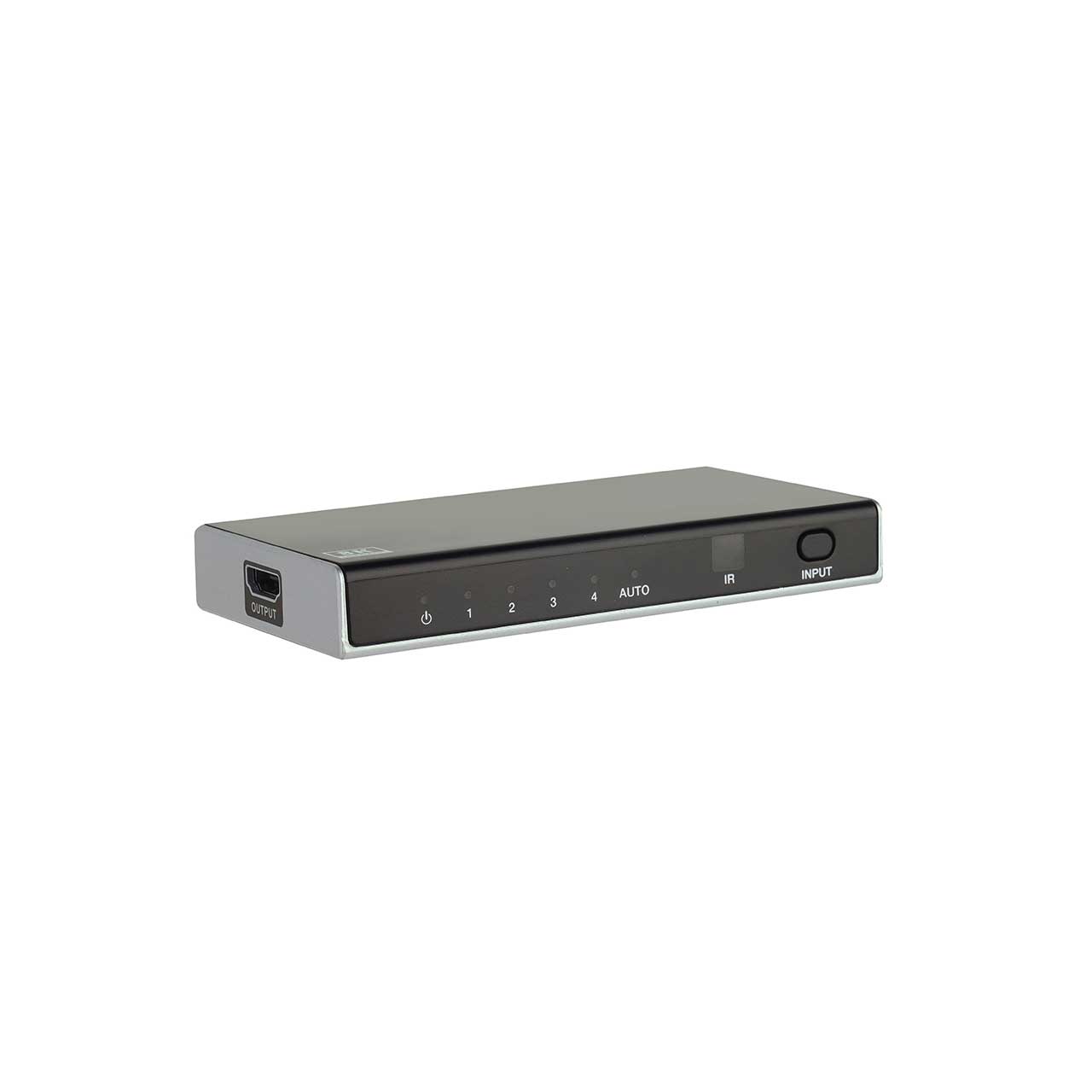

  • Output: 1xHDMI OUTPUT [Type A, 19-pin female]

    Mechanical
  • Housing: Plastic Enclosure
  • Silkscreen Color: Black
  • Dimensions: 4.80 x 2.55 x 0.75" (122 x 65 x 19mm)
  • Weight: .19Lbs (88g)
  • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 3.4W (Max)
  • Operation Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Relative Humidity: 20 to 90% RH (non-condensing)
