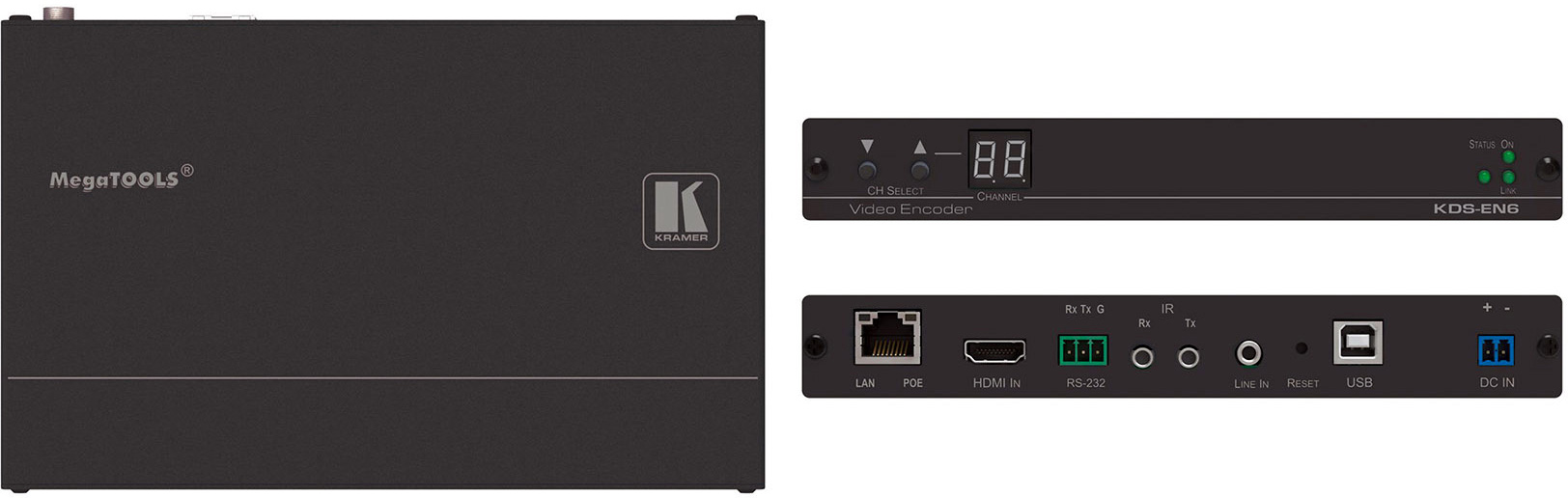

Kramer KDS-EN6 4K60 4:2:0 HDCP 2.2 Video Encoder
  • Kramer KDS-EN6 4K60 4:2:0 HDCP 2.2 Video Encoder
  • Kramer KDS-EN6 4K60 4:2:0 HDCP 2.2 Video Encoder

Questions? Ask a Markertek Expert:
800-522-2025 Email

Kramer KDS-EN6 4K60 4:2:0 HDCP 2.2 Video Encoder

Manufacturer: Kramer

Item #: KR-KDS-EN6   •   MFG #: KDS-EN6



List Price:$900.00
Our Price:$720.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

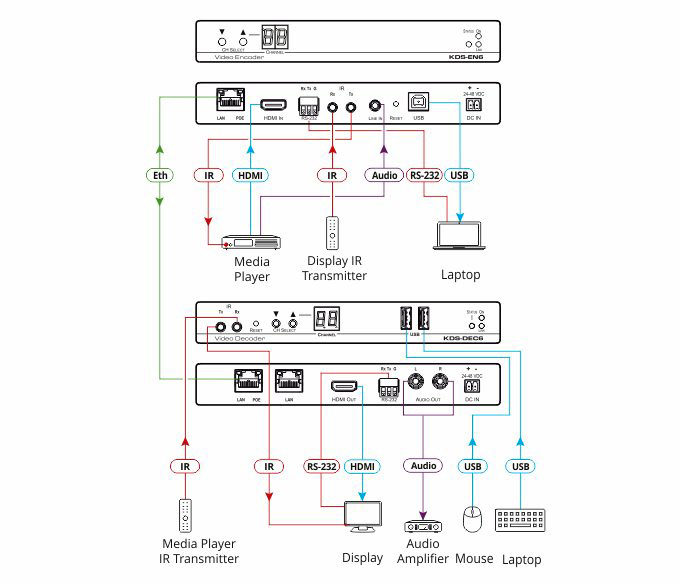

    The KDS-EN6 encoder provides streaming over an IP network that carries [email protected] (4:2:0) video, audio, IR, RS-232, USB over IP with HDCP 2.2 in unicast (one-to-one) or multicast (many-to-many) configurations.


    • Features

      • High-performance, real-time 4K60 4:2:0 video/audio/RS-232/IR/USB over standard 1G network
      • Supports HDCP 2.2

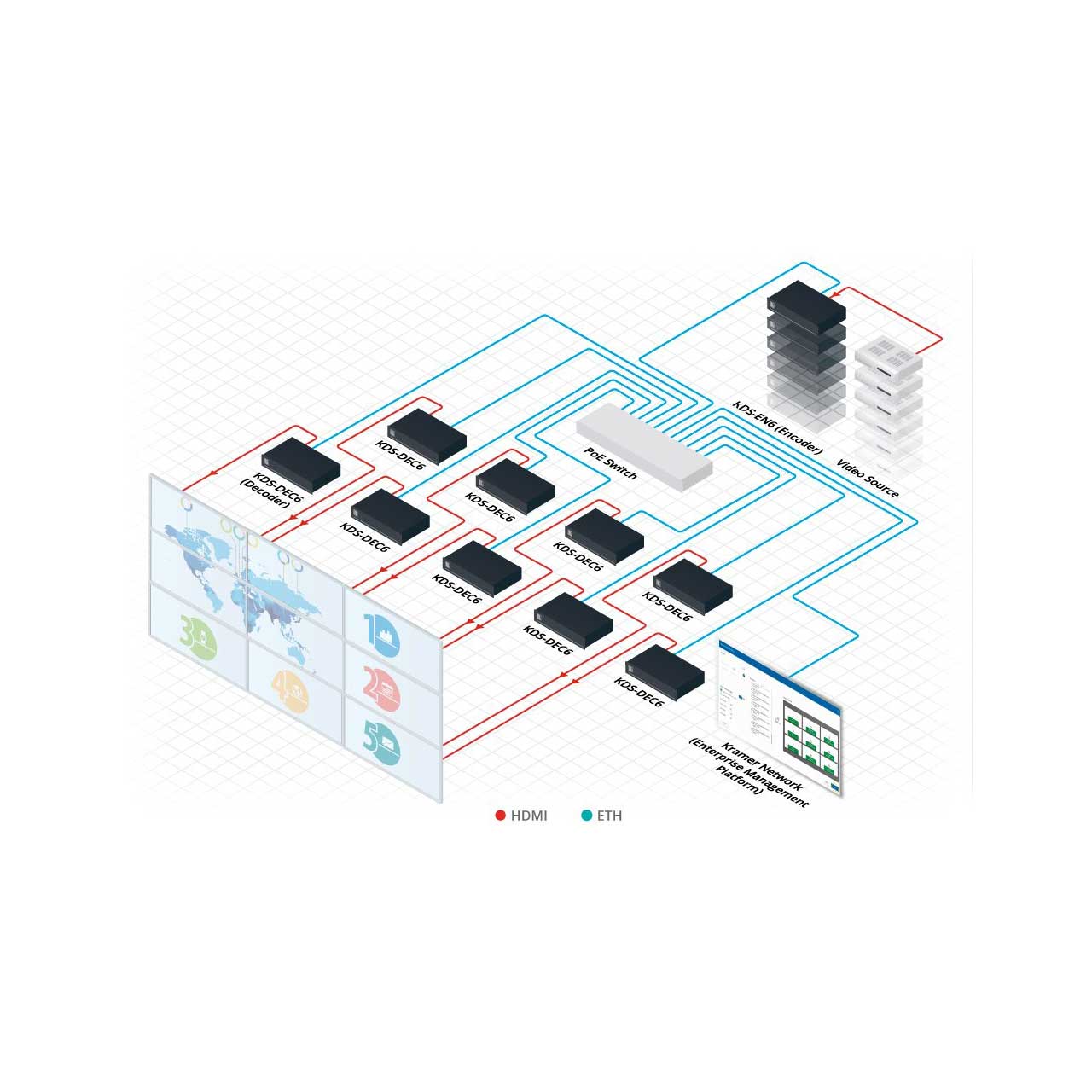

      • Scalable enterprise grade one to many/many to many/video wall/KVM-over IP media distribution
      • Managed via Open API/Kramer AV services/Kramer Control
      • Size - MegaTOOLS - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
      • Audio - U/E

    • Specifications

      • Inputs: 1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack (line in), 1 RS-232 on terminal block connectors, 1 USB (type B) port, 1 IR on 3.5mm mini jack (Rx)
      • Outputs: 1 Ethernet (LAN/PoE) on an RJ-45 connector, 1 IR on 3.5mm mini jack (Tx)
      • Network: 10M/100M/1000M
      • Network Switch: 1G multicast, IMGP snooping non-blocking, Layer 2
      • Streaming: Unicast and multicast through RTSP (Real Time Streaming Protocol)
      • Controls: Reset button, up and down channel buttons, channel 7-segment display, STATUS, LINK and ON LEDs
      • IR: Wide-band 20kHz to 60kHz bidirectional IR transmission
      • Management: API, Kramer Control, Kramer AV services (powered by Kramer Network)
      • Video Encoding/Decoding: Compression standard MJPEG
      • HDCP: HDCP 2.2
      • Scaling and Cropping: Built in scaling and cropping for flexible display of source content on the decoder output
      • Bit Rates: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
      • Audio Encoding/Decoding: Compression standard (analog in/out): AAC-LC
      • Channels (HDMI Embedded Audio): PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital True-HD,DTS 5.1 Channel, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio
      • Power Options: PoE, external PS
      • Power Consumption: 48V DC, 280mA max
      • Operating Temperature: 32°F to 104°F
      • Storage Temperature: -40°F to 158°F
      • Humidity: 10% to 90%, RHL non-condensing
      • Products Dimension (WxDxH): 7.48" x 4.06" x 0.91"
      • Product Weight: 1.2lbs approx
      • Shipping Dimension (WxDxH): 13.58" x 6.50" x 2.05"
      • Shipping Weight: 1.7lbs approx

    • Item Includes

      • 1x - KDS-EN6 Video Encoder
      • 1x - Bracket set for TOOLS
      • 1x - Quick start guide
