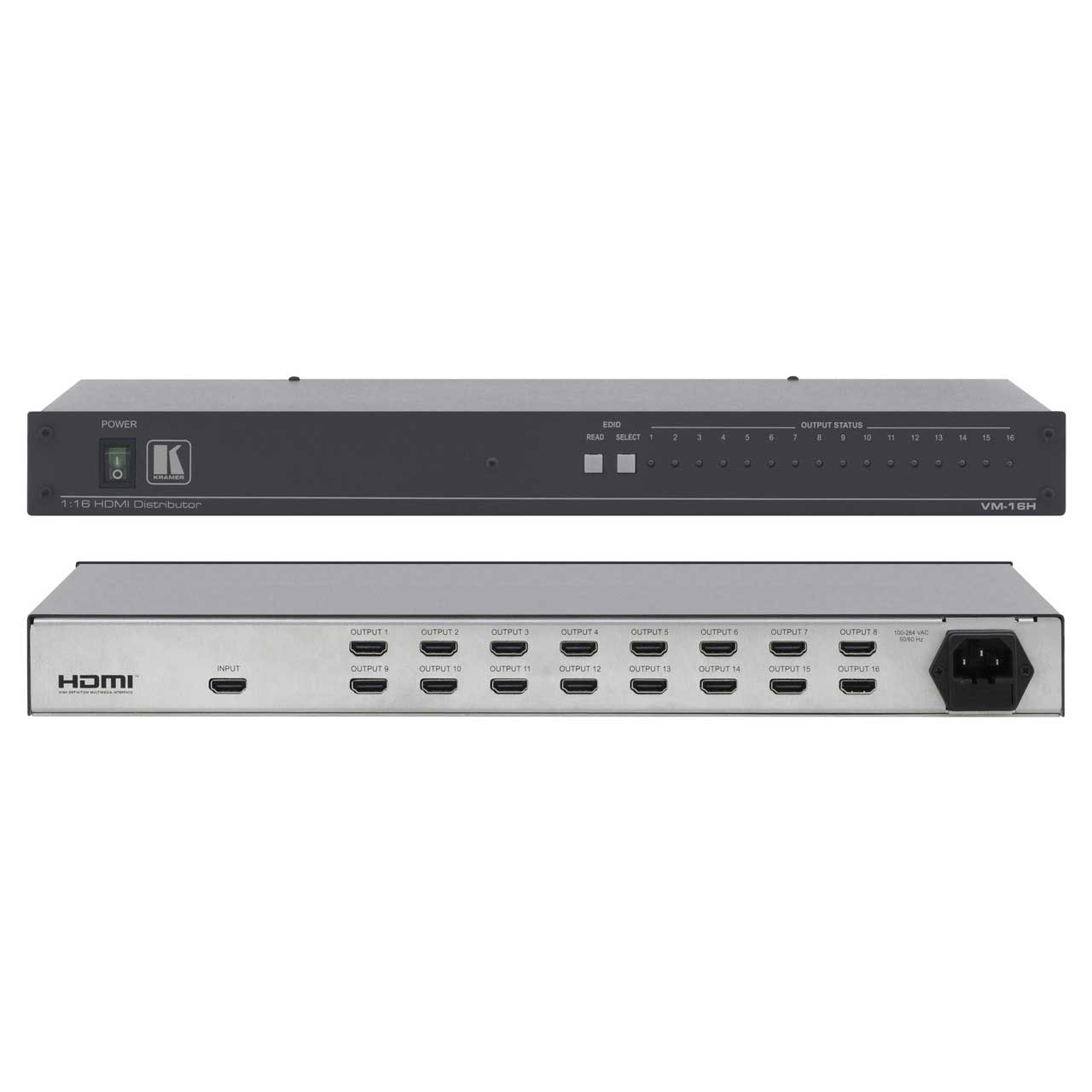

Kramer VM-16H 1x16 HDMI Distribution Amplifier

VM-16H - Overview

HDCP Compliant

• Features:

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color™, Lip Sync, CEC.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Active Output LED Indicators.
  • Worldwide Power Supply - 100-240V AC.


• Specifications:

  • INPUT
  • HDMI Connector


  • OUTPUT
  • 8/16 HDMI connectors


  • BANDWIDTH
  • 6.75Gbps (2.25Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP


  • CONTROLS
  • SELECT and READ buttons for selecting and storing EDID information


  • INDICATOR LEDS
  • OUTPUT STATUS 1 to 8/16


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • POWER CONSUMPTION
  • 100-240V AC, 50/60Hz 48VA


• Item Includes:

  • VM-16H
  • Power Cord
  • Rack Ears (1 set)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063000516
