Kramer VM-3HDT 1:3plus 1 4K60 4:2:0 Long-Reach HDMI to HDBaseT Distribution Amp

ITEM #: KR-VM-3HDT MFG #: VM-3HDT

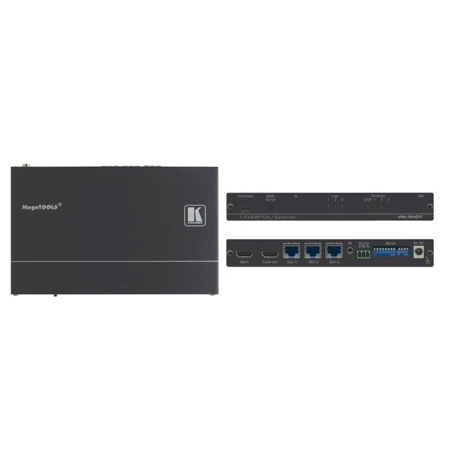

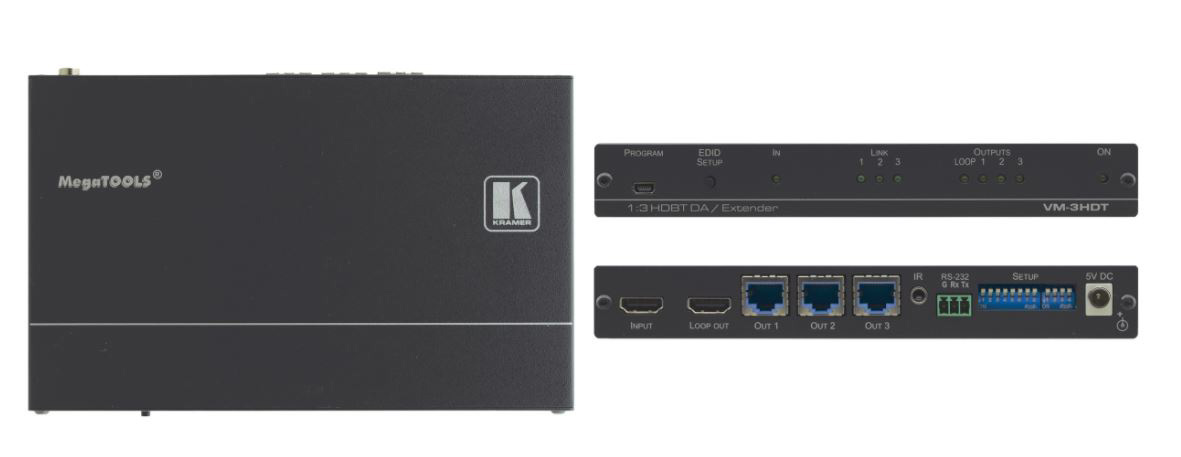

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-VM-3HDT

VM-3HDT - Overview

Kramer's VM-3HDT is a high-quality, long-reach 1:3 HDBaseT extender distributor that takes one HDMI input, with IR and RS-232 control signals, converts it to an HDBaseT extension line signal and distributes it to 3 HDBaseT outputs that connect to compatible HDBaseT receivers such as TP-580R. VM-3HDT distributes signals with resolutions of up to 4K@60Hz (4:2:0), and includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.

  • Features:

    • High Performance Distribution - Distributes one HDMI signal to three long-reach HDBaseT extension outputs with up to 4K video resolution, and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
    • Extension-line Distribution - Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long-reach, and even further for lower video resolutions.
    • Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
    • HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
    • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
    • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
    • User-Friendly Operation - Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
    • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.
    • Zoom Rooms Compatible.

  • Specifications:

    • Inputs: 1 HDMI on HDMI female connector
    • Outputs: 3 HDBT on RJ-45 female connectors; 1 Loop HDMI: On an HDMI female connector
    • Ports: 1 IR on a 3.5mm mini jack for IR link extension; 1 RS-232 on a 3-pin terminal block for serial link extension
    • Video: Max. Data Rate 10.2Gbps (3.4Gbps per graphic channel); Max. Resolution up to 4K@60Hz (4:2:0) 24bpp
    • Standards Compliance: Supports HDMI 2.0, HDCP 1.4 and HDBaseT 1.0
    • Extension line: Up to 40m (130ft): At 4K@60Hz (4:2:0) (when using Kramer HDBaseT cables); Up to 70m (230ft): At full HD (1080p @60Hz 36bpp) (when using Kramer HDBaseT cables)
    • Indicator LEDs: Outputs, inputs, communication link and power
    • Controls: EDID setup button, 12 setup DIP switches
    • 1 RS-232: On a Mini-USB female connector for firmware upgrade
    • Power Source: 5.2V DC, 4A
    • Power Consumption: 5V DC, 1.6A
    • Enclosure Size: MegaTool
    • Enclosure Type: Aluminum
    • Cooling: Convection ventilation
    • Operating Temperature: 0° to +40°C (32° to 104°F)
    • Storage Temperature: -40° to +70°C (-40° to 158°F)
    • Humidity: 10% to 90%, RHL non-condensing
    • Dimensions: 7.38" x 4.53" x 1.00" W, D, H
    • Weight: 1.0 lbs approx
    • Shipping Dimensions: 13.58" x 6.50" x 2.05" W, D, H
    • Shipping Weight: 2.8 lbs approx

  • Item Includes:

    • Power supply

  • GTIN:

    7291063084714
