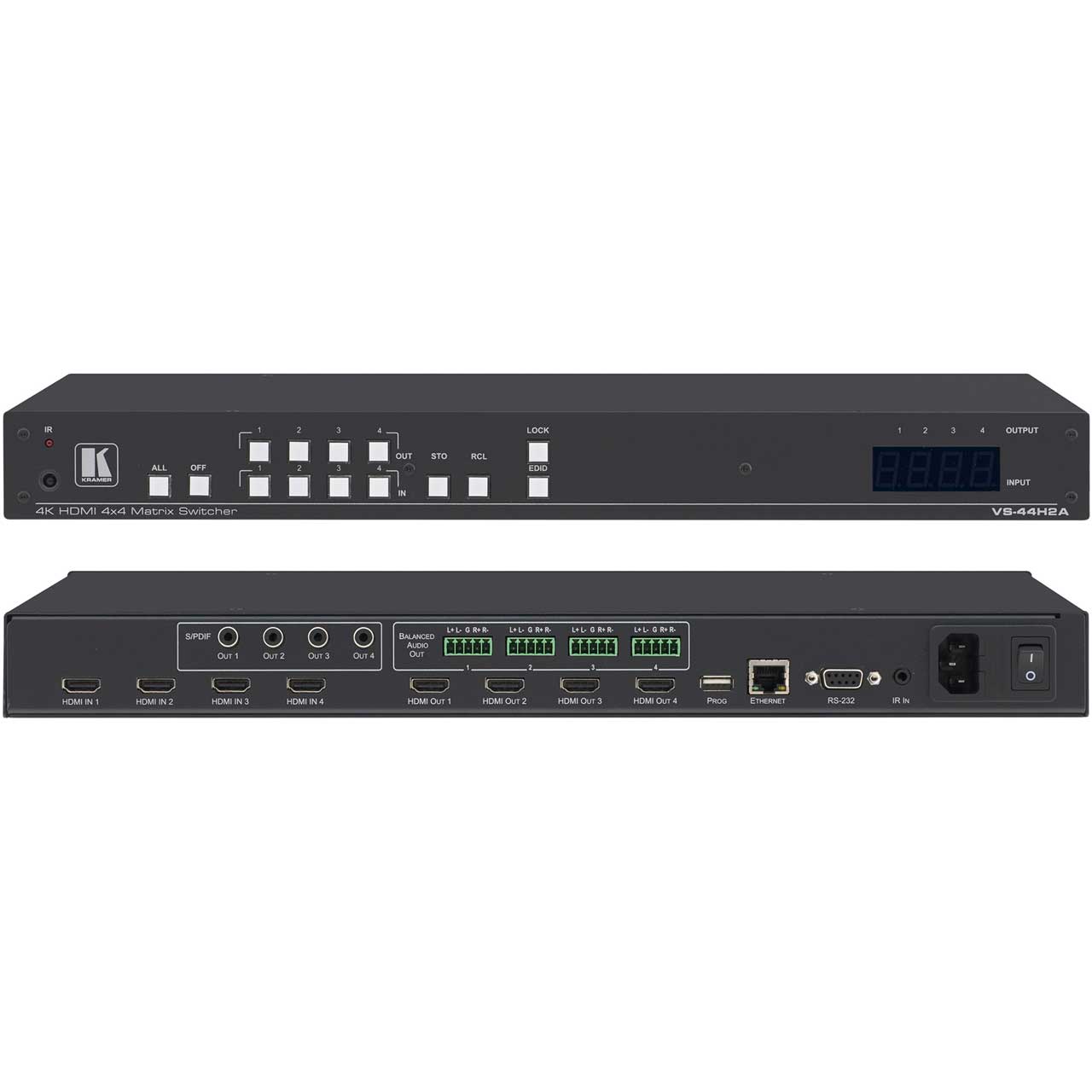

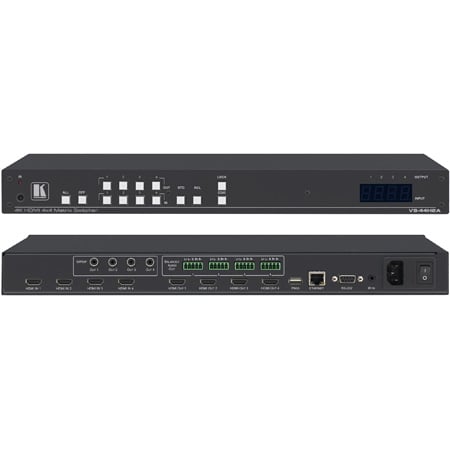

Kramer VS-44H2A 4x4 4K HDR HDMI 2.0 HDCP 2.2 Matrix Switcher with Audio De-embedding

VS-44H2A - Overview

Resolutions up to 4K60 (4:4:4)

• Features:

  • High-Performance AV Matrix - Switches 4 4K@60Hz (4:4:4) HDR HDMI HDCP-compliant signals to 4 18G 4K@60Hz (4:4:4) HDR HDMI HDCP-compliant outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant, supporting HDR10, xvYCC color, Dolby TureHD/DTS-HD Master Audio, 3D Video as specified in HDMI 2.0.
  • Analog and Digital Audio De-embedding (Extraction) - De-embeds the audio signal and outputs it as balanced analog audio with separate volume control on each of the outputs and S/PDIF digital audio.
  • Easy Step-In Collaboration Function - When used with a Kramer Step-In enabled switcher, just plug in your device and press the Step-In button. Your device becomes the active signal on the main display.
  • Features Kramer Equalization & reKlocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device.
  • Flexible Content Protection - Selectable HDCP per input.
  • Quick Access to Common Configurations - Save up to four preset configurations and recall them using front panel buttons.
  • Convenient Unit Control and Configuration Options - Local control via front panel switching, memory, lock and EDID buttons, Input/Output LED display and IR remote control. Distance control via user-friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS-232 serial commands transmitted by a PC, touch screen system or other serial controller.
  • Cost-Effective Maintenance - IR and Input Selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet or USB using a user-friendly software upgrade tool.
  • Easy Installation - 19" enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100-240V AC power connection.


• Specifications:

  • INPUTS
  • 4 HDMI: On female HDMI connectors


  • OUTPUTS
  • 4 HDMI: On female HDMI connectors
  • 4 S/PDIF: On female RCA connectors
  • 4 Balanced Stereo Audio: On 5-pin terminal block connectors


  • PORTS
  • 1 USB: On a Mini female connector
  • 1 RS-232: On a 9-pin D-sub connector
  • 1 IR IN: On a 3.5mm mini jack
  • 1 Ethernet: On an RJ-45 female connector


  • VIDEO
  • Max. Resolution: 4K@60Hz 4:4:4
  • Max. Data Rate: 18Gbps (6Gbps per graphic channel)
  • Content Protection: Supports HDCP 2.2/1.4
  • HDMI Support: HDR10, xvYCC color, Dolby TureHD/DTS-HD Master Audio, 3D Video as specified in HDMI 2.0


  • USER INTERFACE
  • Front Panel: IN and OUT selection buttons
  • Front Panel: OFF, ALL, STO, RCL EDID, LOCK buttons


  • POWER
  • Source: 100-240V AC, 50/60Hz
  • Consumption: 60VA


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RH non-condensing


  • STANDARDS COMPLIANCE
  • Safety: CE
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Size: 19" 1U
  • Type: Aluminum
  • Cooling: Fan


• Item Includes:

  • VS-44H2A Switcher
  • Power Cord (1)
  • Rack ears (1 set)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063082932
