Canare L-3.3CUHD-984-BK 75 Ohm Coaxial Cable for 12G-SDI - Black - 984 Foot

ITEM #: L-33CUHD-984-BK MFG #: L-33CUHD-984-BK

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$506.00

Our Price:

$475.00

Availability: In Stock
iAvailability Description Popup


    L-33CUHD-984-BK - Overview

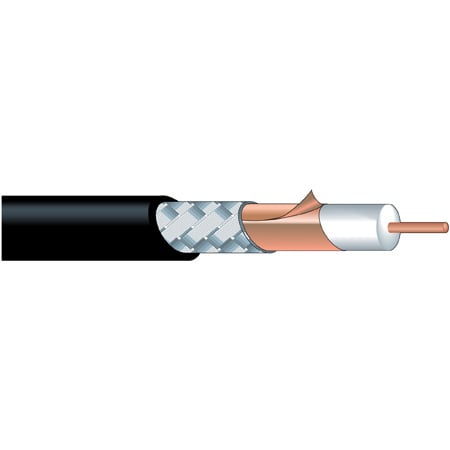

    Canare cable cements its leadership position in the industry move to 8K and 4K infrastructures with the L-CUHD Series of 12G-SDI coax cables. The Canare L-3.3CUHD-984-BK is 75 ohm 12G-SDI video coaxial cable featuring highly-foamed PE insulation to bring unprecedented improvement in attenuation characteristics. L-3.3CUHD coax features a 21 AWG center conductor with a 0.216" O.D. and supports up to 190 feet of 12G-SDI signal transmission.

    Multi-layer insulation, with each layer given a different foaming ratio, increases cable strength for the most demanding installations. Canare L-3.3CUHD delivers excellent results in most demanding tests including flame resistance UL 1666 Riser rating.

    Canare 12G-SDI 75 ohm precision digital video cable offers the professional Broadcaster a high performance, 100% Sweep Tested, low cost, low loss coax that meets the demands of today's facility migration to the highest Serial Digital Video and HDTV bandwidth requirements.

    • Features:

      • Specially designed for 12G-SDI
      • Excellent results in demanding tests.
      • Copper foil and high-density tinned copper braided shielding
      • Highly-foamed multi-layer PE insulation
      • Flame resistance UL 1666 Riser

    • Specifications:

      • Length: 984 Feet
      • Nominal O.D.: 0.217 Inch
      • Weight: 27.12 lbs
      • Inner Conductor: 21 AWG, 1/0.A Q'ty/mm
      • Inner Conductor O.D.: 0.03"
      • Insulation O.D.: 0.130"
      • Outer Conductor Resistance (ohm/km): 14.9
      • Static Capacity (pF/m): 55
      • Characteristic Impedance: 75Ω
      • Attenuation dB/100m(328ft) @6GHz: 68.5
