    L4KR01 - Overview

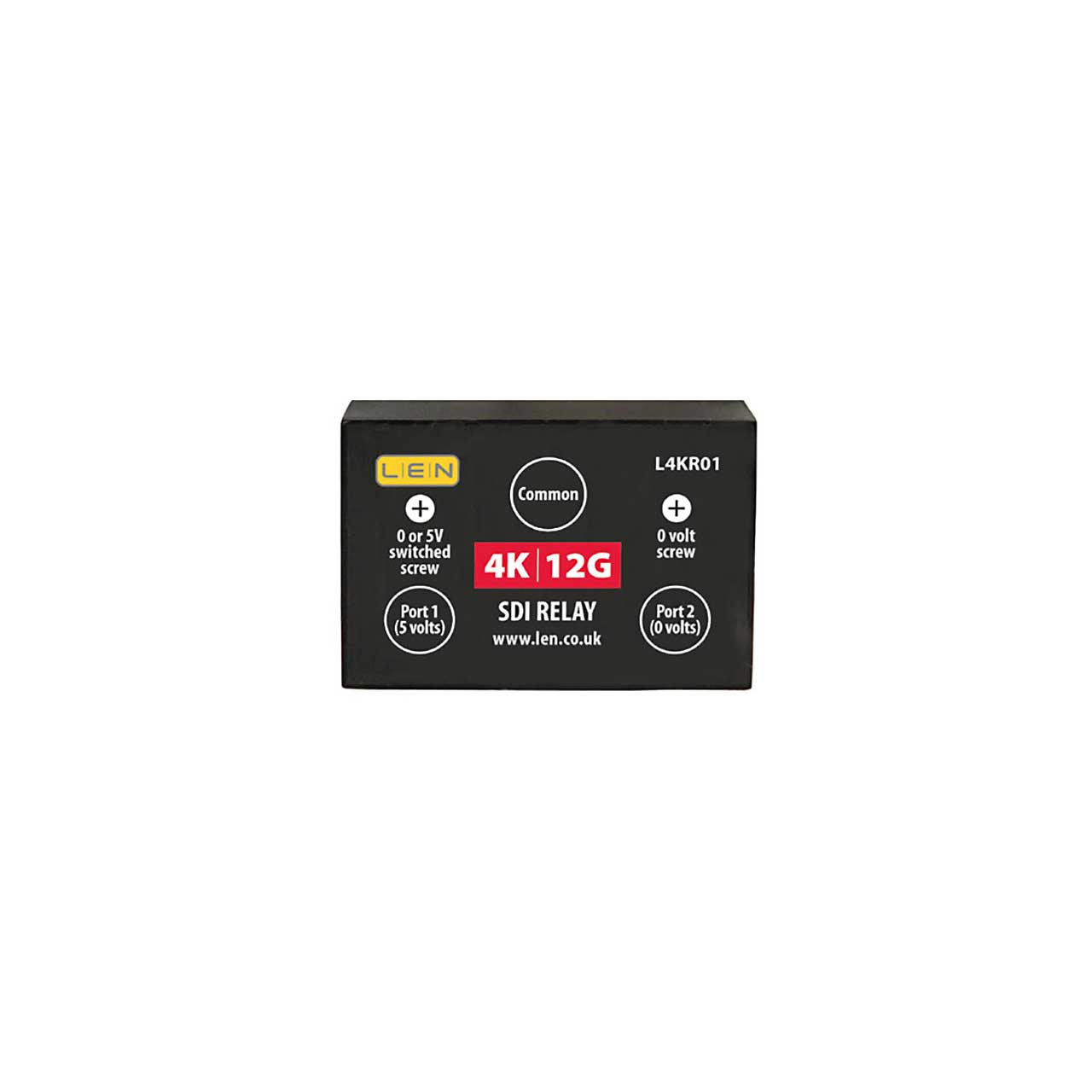

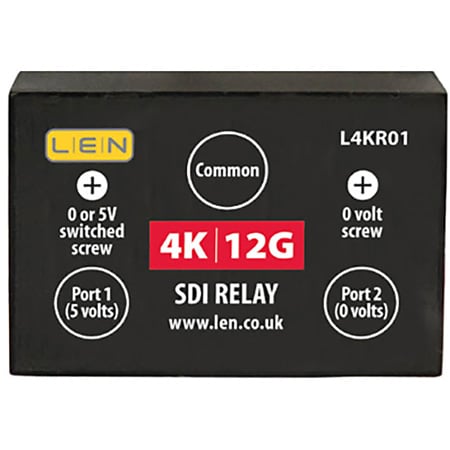

    The L E N Video Relays are miniature single-circuit, change-over relays providing full broadcast quality switching, for data rates up to 12Gb/s. They are suitable for applications such as power-failure switching and source selection. They can be used to choose between two inputs or to have a single input and choose between two outputs, controlled by a 5V DC applied to the coil.

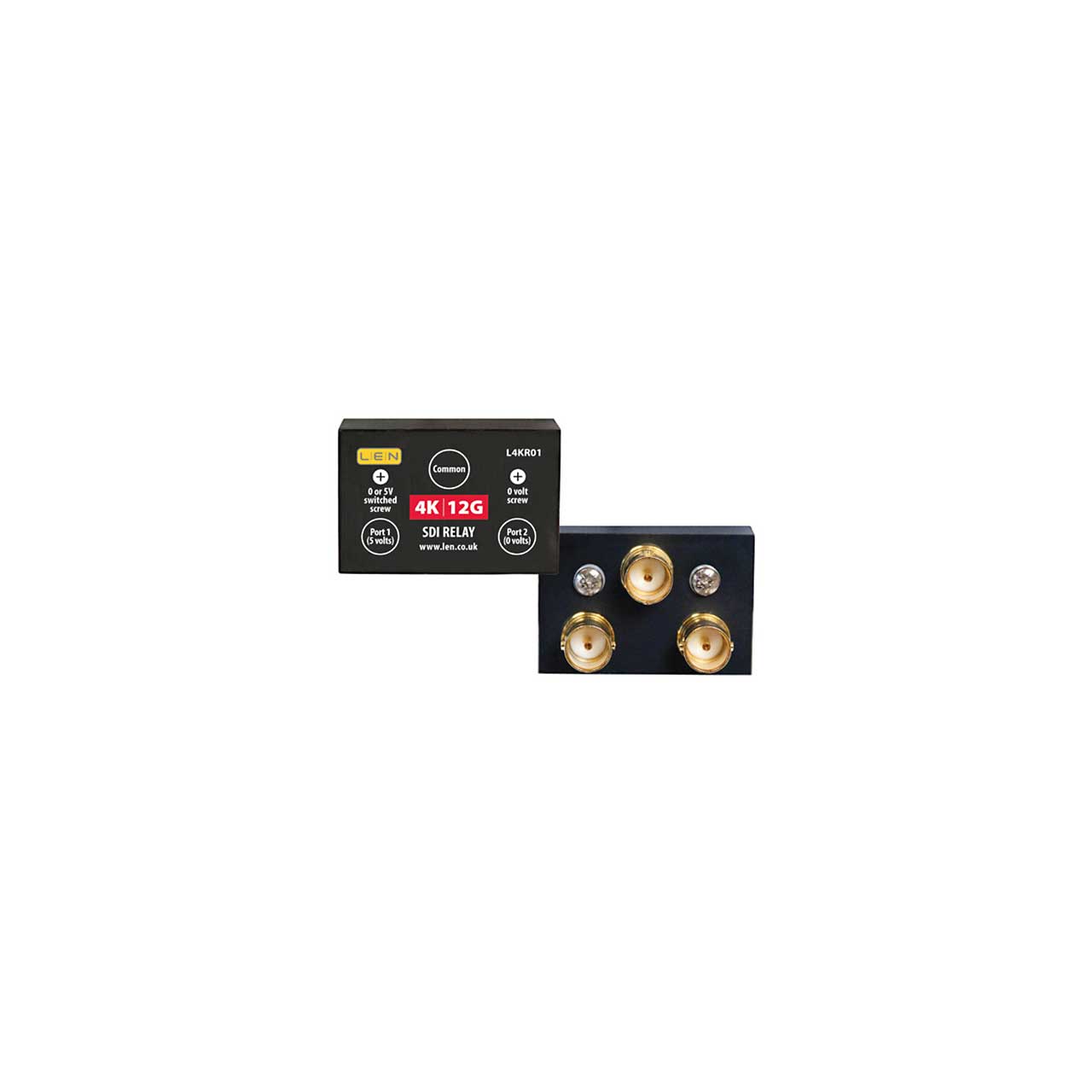

    Three models are available: The L4KR01 is for use with full 12G/4K UHD SDI video and all lower standards including 6G, 3G, HD and SD SDI. The L3GR01 may be used with 3G, HD or SD SDI signals while the LHDR01 may be used with HD or SD SDI. Each is built in an ABS enclosure fitted with three female BNC connectors, with mounting screws, which are also used to connect to the coil, on the same face of the relay as the connectors.

    • Specifications:

      • Input and output impedance: 75 Ohms
      • Return loss: 15dB, 0.1-1485 MHz
      • Amplitude roll-off, 270 - 1485 MHz (2): 0.3dB
      • Insertion loss (3): 0.4dB
      • Dimensions (L x W x H): 1.8" x 1.2" x 0.6" (45 x 30 x 15 mm)
      • Weight: 35g
