    L4KS01 - Overview

    Miniature, lightweight passive designs, requiring no power, L E N SDI splitters are a direct equivalent to the use of a Distribution Amplifier to create additional SDI signals, for most applications.

    L E N Splitters are also ideal for such applications as additional monitor feeds say in remote camera locations, and in situations where size and weight are critical factors, such as racing cars, bikes and other sporting and research applications. Offering a broadcast-quality signal, they are useful in both permanent and temporary installations. They may be used freestanding and have fixing screws for mounting through panels. An accessory panel is also available to mount eight splitters in 1U of rack space.

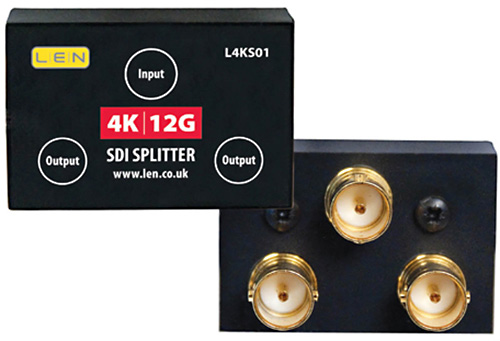

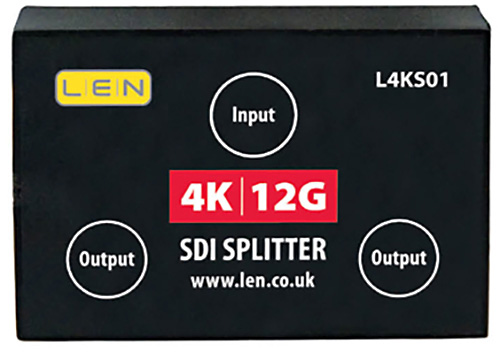

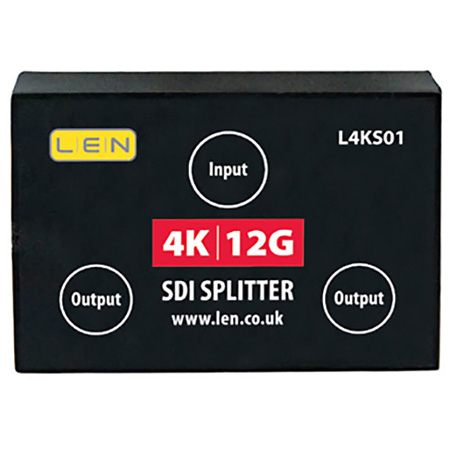

    Three models are available: The L4KS01 is for use with full 12G/4K UHD SDI video and all lower standards including 6G, 3G, HD and SD SDI. The L3GS01 may be used with 3G, HD or SD SDI signals while the LHDS01 may be used with HD or SD SDI. Each is built in an ABS enclosure fitted with three female BNC connectors.

    All the L E N Video Splitters can also be used with the ASI format.

    • Specifications:

      • Input and Output Impedance: 75 Ohms
      • Return Loss: 10dB, 5 to 12000 MHz
      • Dimensions excluding connectors (L x W x H): 1.8" x 1.2" x 0.6" (45 x 30 x 15 mm)
      • Weight: 1.1 oz (30g)
      • Amplitude roll-off, 360 MHz: -0.2 dB
      • Amplitude roll-off, 1485 MHz: -0.5 dB
      • Amplitude roll-off, 3000 MHz: -2.0 dB
      • Amplitude roll-off, 12000 MHz: -4.0 dB
      • Isolation, 270 MHz: 5 dB
      • Isolation, 1485 MHz: 10 dB
      • Isolation, 3000 MHz: 15 dB
      • Isolation, 12000 MHz: 20 dB
      • Insertion Loss: 3.8 dB
      • Drive Capability, Typical: 65 Meters
