Len LMPHDS8 Rackmount Passive HD-SDI Panel w/8 1-Channel HD Splitters


free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    LMPHDS8 - Overview

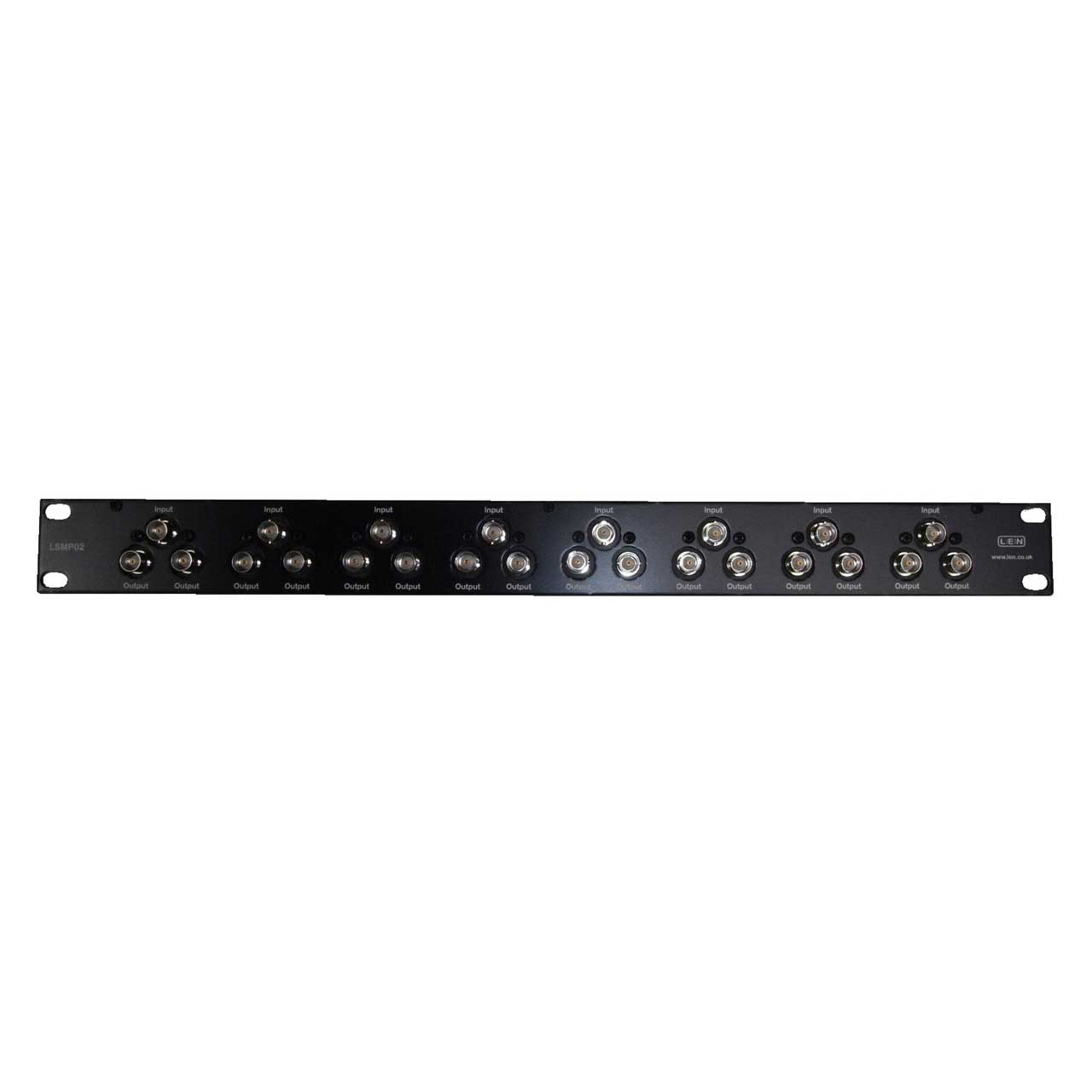

    The LEN LMPHDS8 is a 1RU rackmount panel that houses 8 Single Channel LEN-HDS01 HD-SDI splitters. HD Splitter is suitable for additional monitor feeds; remote camera locations and situations where size and weight are critical factors - such as racing cars, bikes and other sporting and research applications.Create two Broadcast quality signals from one input covering all formats up to and including HD. All connections are on the same face - ideal for permanent installations.

    Drive capability can be up to 70 meters depending on cable quality and strength of original signal.

    • Features:

      • 8 Single Channel HD-SDI Splitters in 1RU
      • Miniature passive Splitter - no power required
      • Broadcast quality signal up to 1500 MHz
      • Size 45 x 30 x 15 mm - less than 30 gm
      • Ideal for permanent and temporary installations
