Lilliput 969A/S 9.7 Inch 4:3 IPS LED Broadcast Monitor with Dual HDMI/YPbPr/3G-SDI and Component Video

ITEM #: LIL-969AS MFG #: 969A/S

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$499.00

Our Price:

$479.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    969A/S - Overview

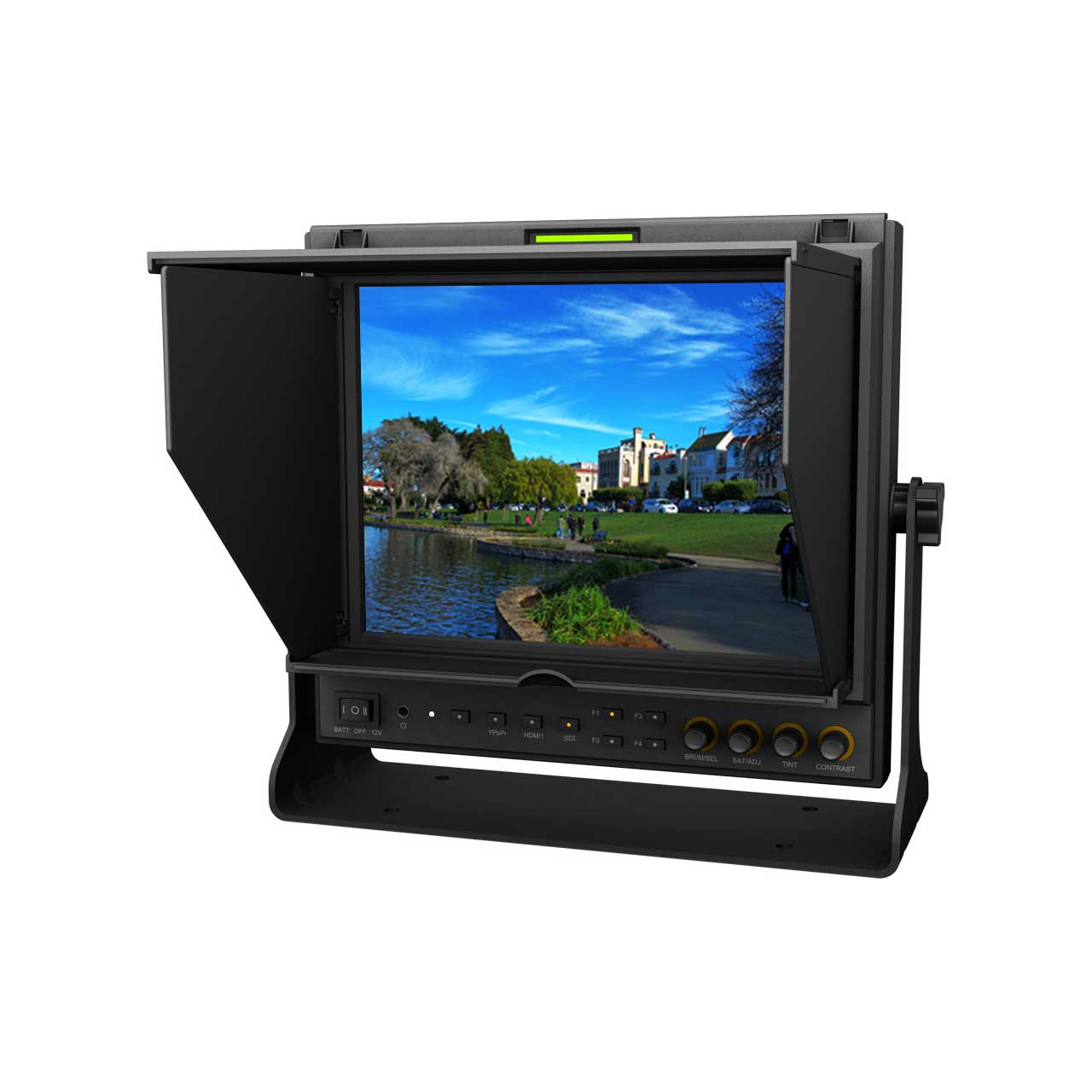

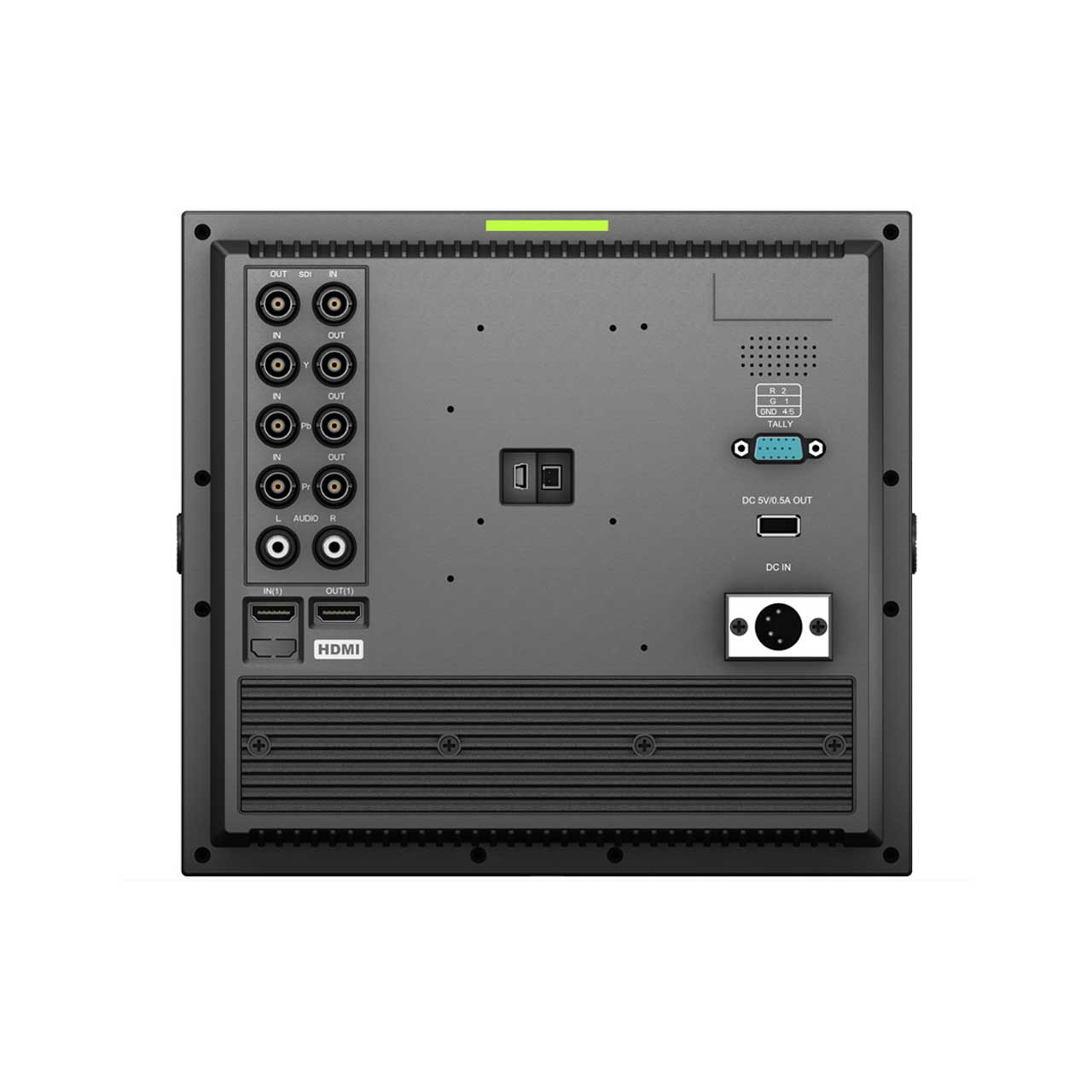

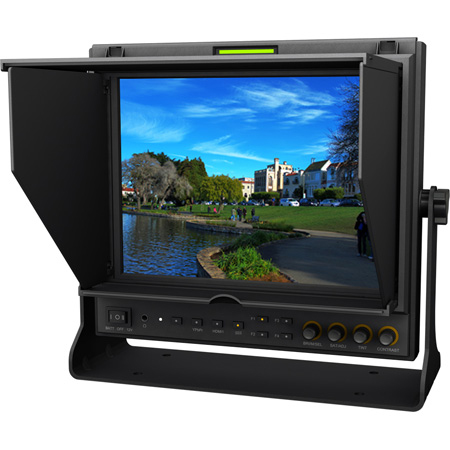

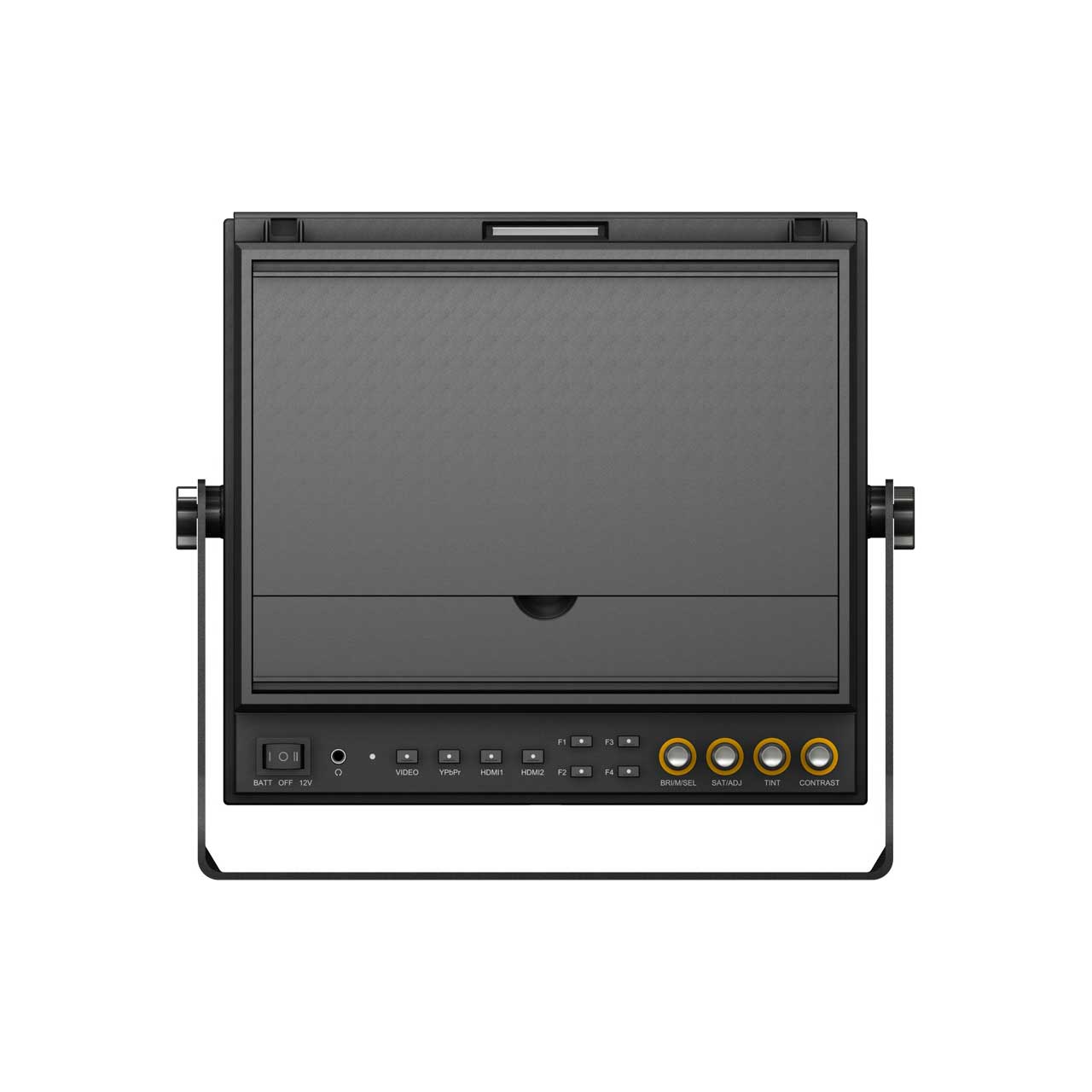

    The Lilliput 969A/S is a 9.7 inch 4:3 IPS LED LCD Broadcast Monitor with dual HDMI, YPbPr, 3G-SDI and component video.
    Designed for video editing the 969A/S is large enough to spot the fine details but small enough to easily fit on your desk. A true broadcast monitor the super high 1024x768 resolution provides clear sharp images and the 600:1 contrast ratio guarantees amazing and accurate color. The Lilliput 969A/S will help you avoid unexpected focus issue in post with 1:1 pixel mapping and LED IPS backlight technologies that supply true image details from start to finish. On board functions give you full control of Peaking, False Color, Histogram and Exposure, underscan and more. The 969A/S includes all the 3G-SDI connections a broadcast monitor needs. Composite and Component on BNC and HDMI as well as a single HDMI output, no splitters needed! The package also includes a 12v DC adapter, HDMI cable, Anton Bauer and V-mount battery brackets, F-970 and LP-E6 plates as well as a sunshade that folds into a screen protector.

    • Features:

      • IPS panel 178 degree wide viewing angles
      • High resolution 1024x768
      • High brightness 400cd/m2
      • High contrast 600:1
      • 3G-SDI & HDMI input
      • Wide voltage DC 7-24V
      • TALLY interface & 5V charging
      • Complies with IP52 standard

    • Specifications:

      • DISPLAY
      • Panel 9.7" LED backlit
      • Physical Resolution 1024x768, support up to 1920x1080
      • Aspect Ratio 4:3
      • Brightness 400cd/?
      • Contrast 600:1
      • Viewing Angle 178°/178°(H/V)
      • INPUT
      • 3G-SDI 1
      • HDMI 1
      • YPbPr 3(BNC)
      • TALLY 1
      • AUDIO 2(L/R)
      • OUTPUT
      • 3G-SDI 1
      • HDMI 1
      • YPbPr 3(BNC)
      • USB 1(5V for charging)
      • AUDIO
      • Speaker 1(build-in)
      • Ear Phone Slot 1
      • POWER
      • Current 1500mA
      • Input Voltage DC 7-24V(XLR)
      • Battery Plate V-mount / Anton Bauer mount /
      • F970 / QM91D / DU21 / LP-E6
      • Power Consumption18W
      • ENVIRONMENT
      • Operating Temperature -20?~60?
      • Storage Temperature -30?~70?
      • DIMENSION
      • Dimension(LWD) 246x224x31/167.5mm (with cover)
      • Weight 1068g/1388g (with cover)

    • Item Includes:

      • Lilliput 969A/S Monitor
      • Flexible folding sun shade
      • Anton Bauer and V-mountBattery plate brackets
      • Battery Plates F-970 and LP-E6
      • HDMI A/A cable
      • DC 12V adapter

    • GTIN:

      6950821600665
