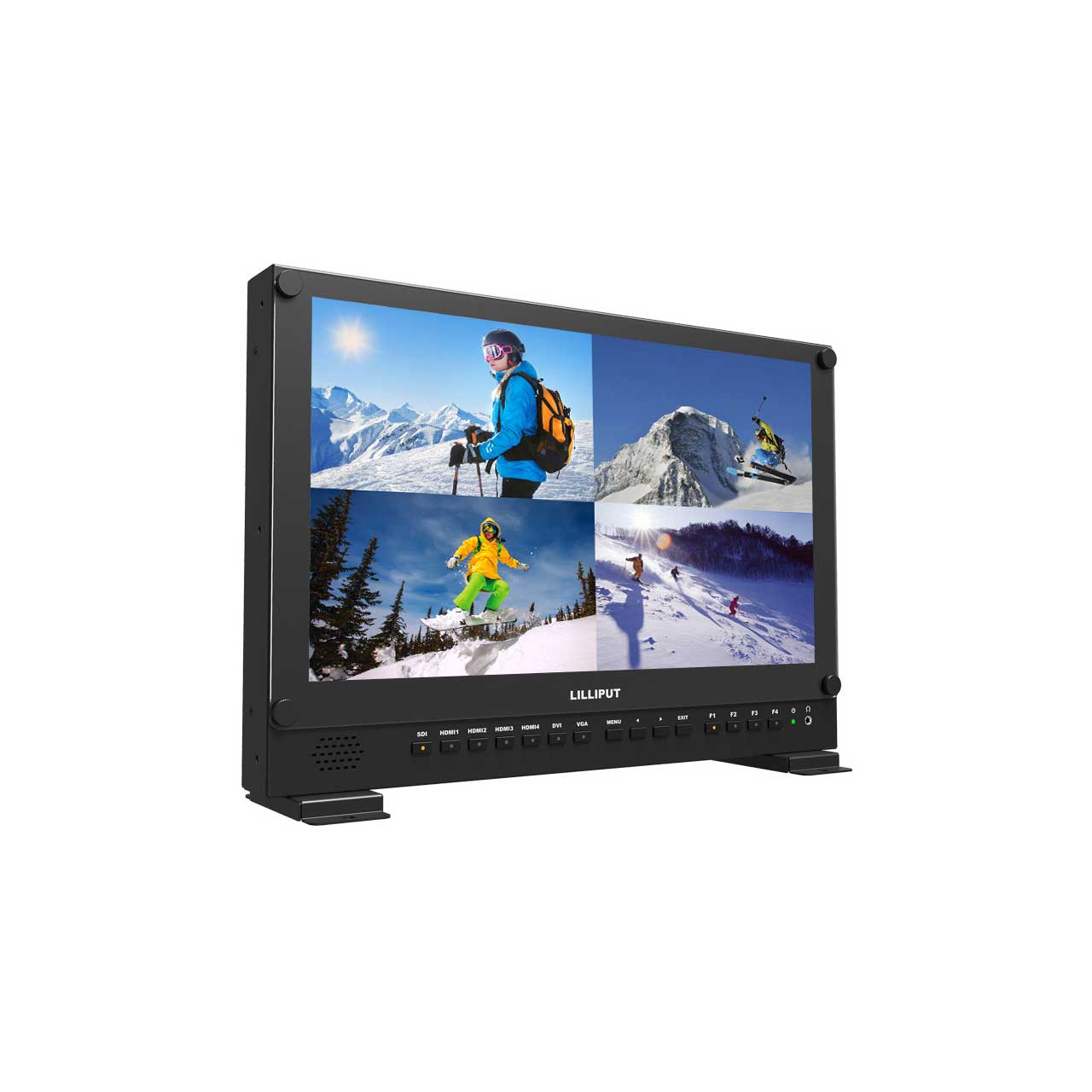

Lilliput BM150-4KS-VBP 15.6-Inch 4K HDMI Carry-On Broadcast Monitor With SDI HDR and 3D LUTS (V-Mount)

ITEM #: LIL-BM150-4KSVBP MFG #: BM150-4KSVBP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,099.00

Our Price:

$999.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    BM150-4KSVBP - Overview

    This Lilliput BM150-4KS-VBP is a 4K HDMI carry-on broadcast monitor with SDI, HDR, and 3D LUTS. This monitor comes equipped with a V-mount battery plate.

    The BM150-4KS-VBP supports multiple signal inputs 3G-SDI, HDMI, DVI and VGA. The monitor also supports uploads to the 3D-LUT table via the USB port. With image flip, it offers users the ability to place the monitor wherever it's needed by using various mounting methods. Users can view the monitor normally no matter what the angle. With multiple recordings happening at the same time, the BM150-4KS-VBP has a quad view that splits the signal simultaneously.

    This 15.6-Inch broadcast monitor is the perfect travel size, allowing you to pack it right in your suitcase. The BM150-4KS-VBP is equipped with HDR, color space, 3D-LUT, peaking, and many other functions.

    • Features:

      • Support multiple signal inputs 3G-SDI, HDMI, DVI and VGA

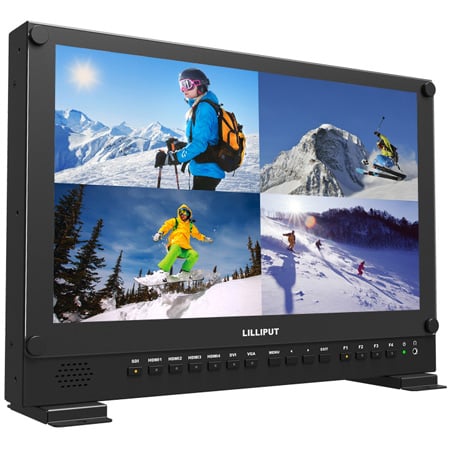

      • Multiple View Display supports quad view split from different input singles simultaneously
      • Ultra HD 4K screens containing 8.3 million pixel (3840x2160), so the resolution is four times that of Full HD

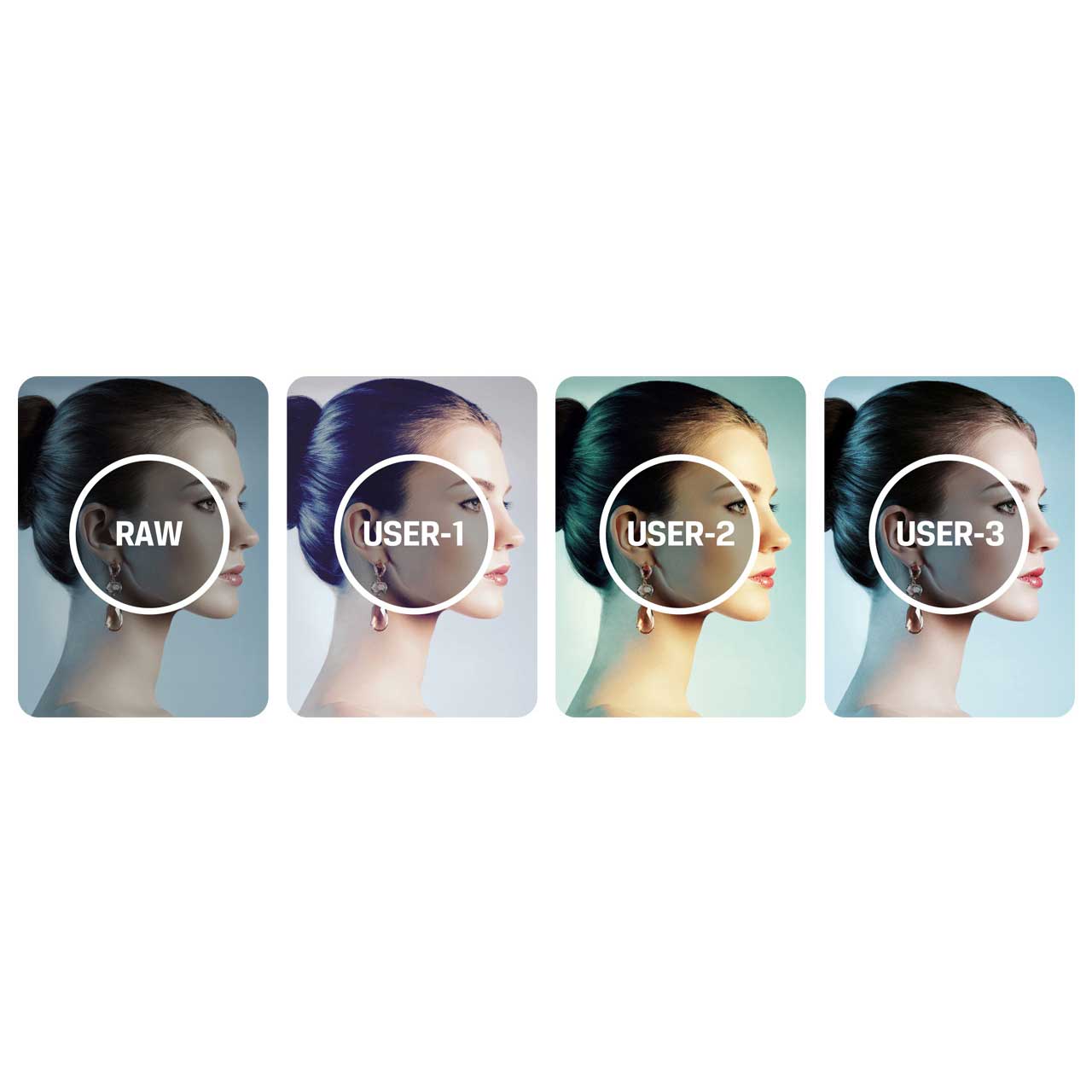

      • 3D LUT for Accurate Color Reproduction and Color space display
      • (Native/Rec.709/User1~User3)
      • Support to upload 3D LUT table via USB port
      • Equip HDR function

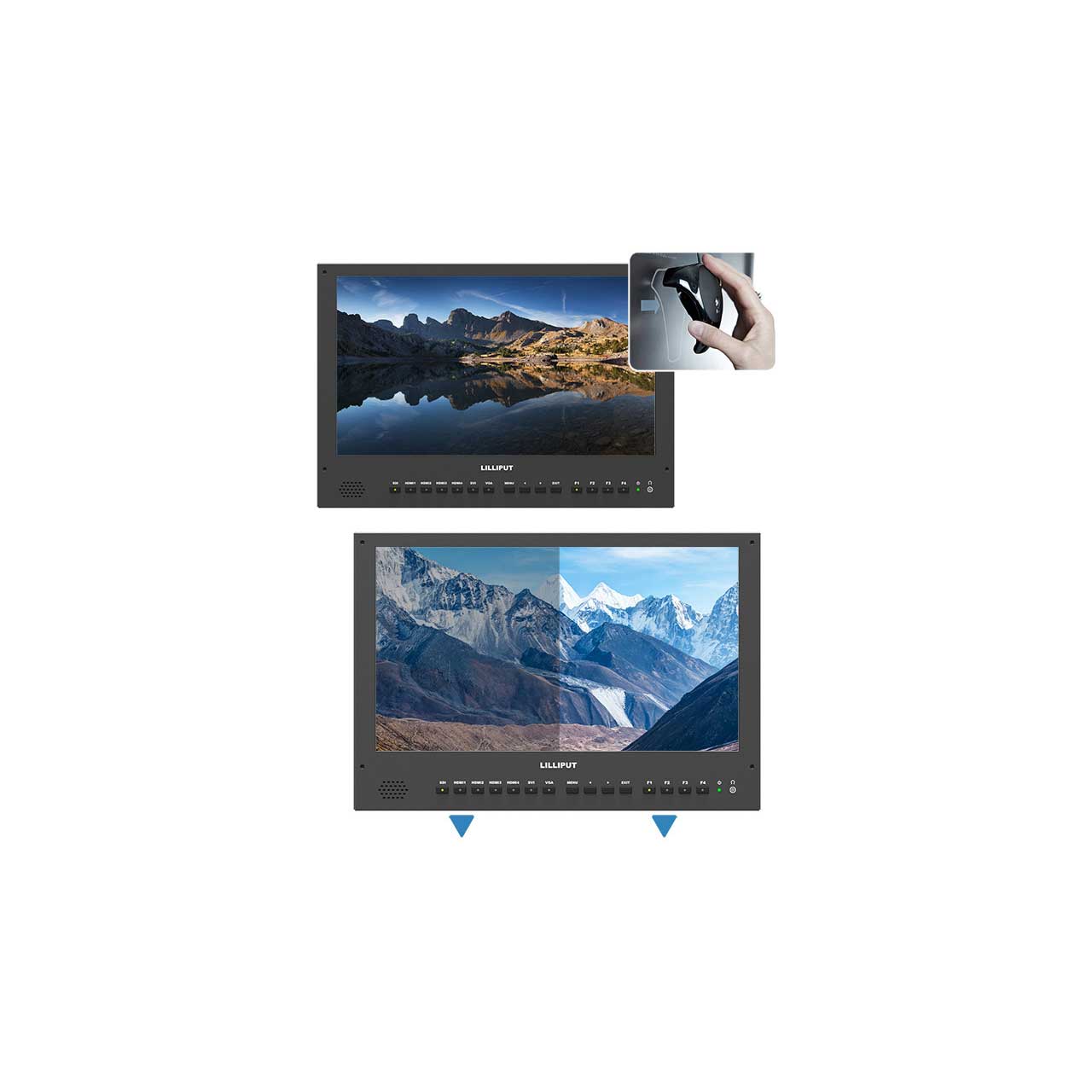

      • Image flip offers great convenience for user's to place the monitor with various mounting methods under different conditions. Users can view the monitor normally no matter what mounting angles

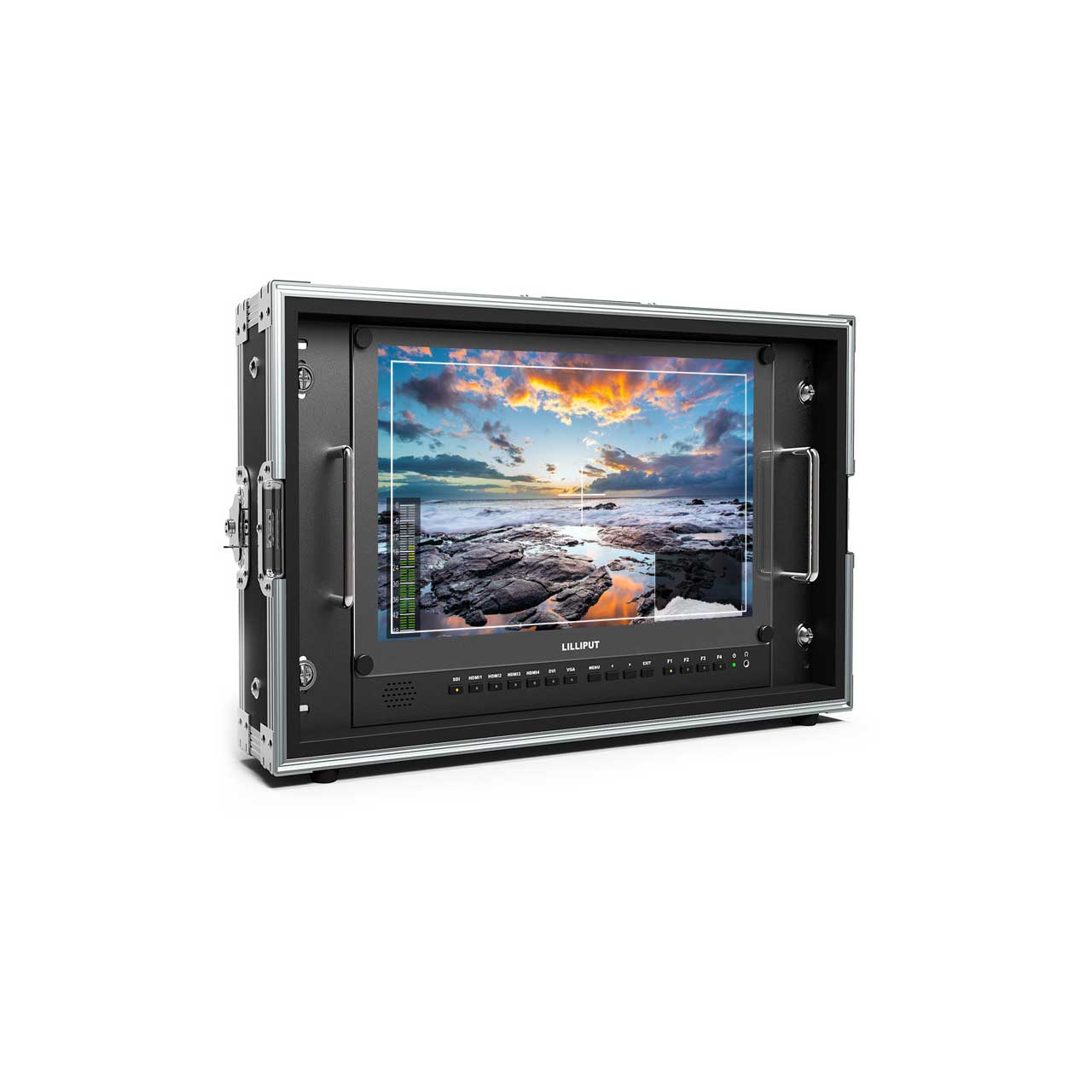

      • Perfect size for both suitcase and rack mount
      • Wireless HDMI function (optional)

    • Specifications:

      • Display
      • Display Screen: 15.6" 8bit
      • Physical Resolution: 3840x2160, 4K
      • Aspect Ratio: 16:9
      • Brightness: 330cd/m²
      • Contrast: 1000:1
      • Viewing Angle: 176°/176°(H/V)

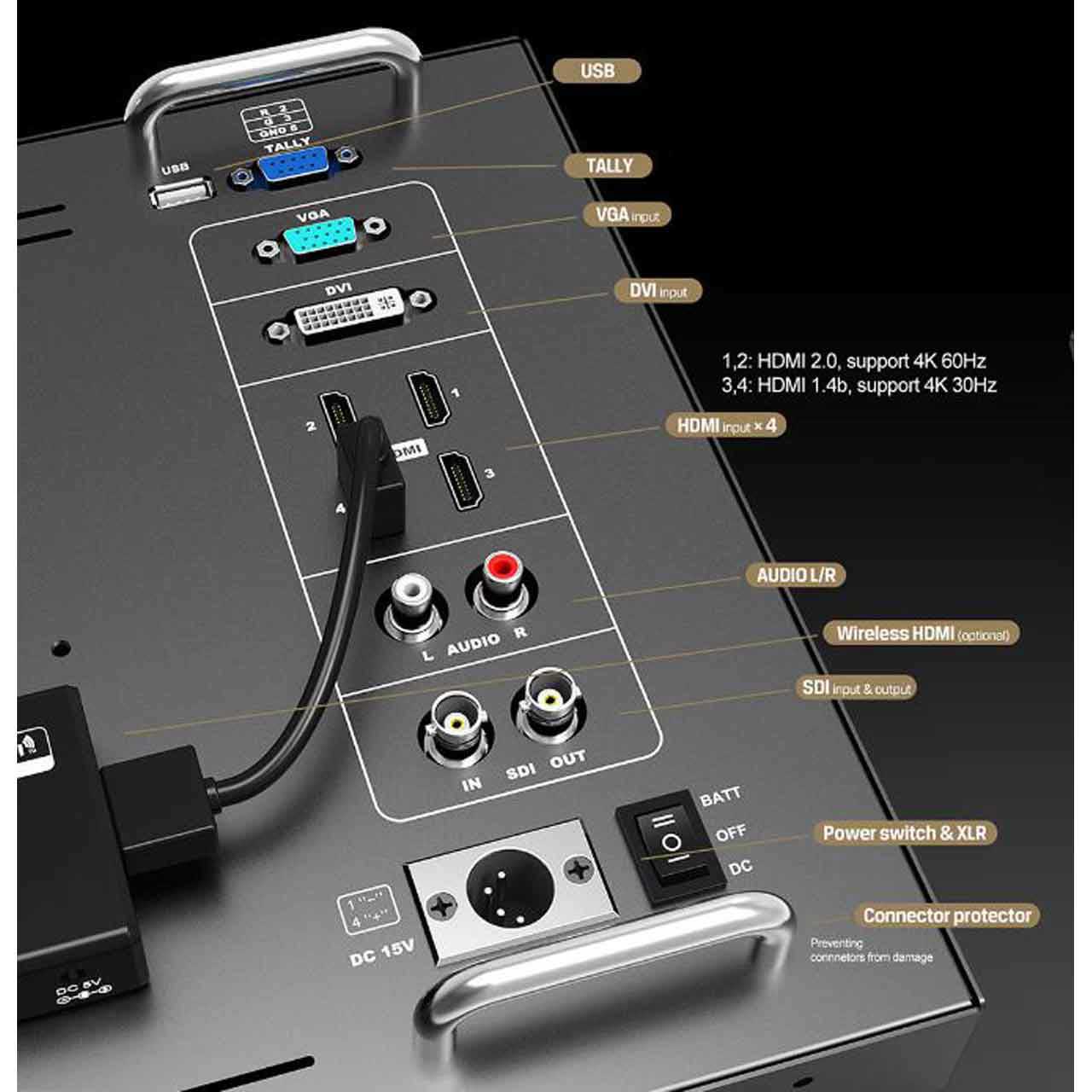

        Input
      • 3G-SDI: 1
      • Wireless HDMI: 1 (optional)
      • HDMI: HDMI 2.0x1 (4K@60Hz) HDMI 1.4x3 (4K@30Hz)
      • DVI: 1
      • VGA: 1
      • USB: 1 (3D-LUT)
      • Audio: 2 (L/R)
      • TALLY: 1

        Output
      • 3G-SDI: 1

        Audio
      • Speaker: 1
      • Ear Phone Slot: 1

        Power Current 1.2A (15V)
      • Input Voltage: DC 12-24V (XLR)
      • Battery Plate: V-mount / Anton Bauer mount
      • Power Consumption: ≤18W

        Environment
      • Operating Temperature: 32° to 140°F (0° to 60°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)

        Dimension
      • Dimension(LxWxD): 15.31 x 10.51 x 1.50" (389 x 267 x 38mm)
      • Dimension(LxWxD)(with case): 20.63 x 12 x 6.69" (524 x 305 x 170mm)
      • Weight: 7.50 LBs (3.4kg)
      • Weight (with case):26.45 LBs (12kg)

        SDI Format
      • SMPTE-125M: 480i(59.94)
      • SMPTE-274M: 1080i(60/59.94/50); 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
      • SMPTE-292M: 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
      • SMPTE-296M: 720p(60/59.94/50/30/29/25/24/23.98); 720p(60/59.94/50)
      • SMPTE-372M: 1080i(29.97/25/24/23.98); 1080p(60/59.94/50/30/29.97/25/24/23.98)
      • SMPTE-425M: 1080p(60/59.94/50)
      • ITU-R BT.656: 576i(50)

        HDMI Format
      • 4K: 4096x2160/ 3840x2160
      • Other: 1080p, 1080i, 720p, 720i, 480p

    • Item Includes:

      • 1 x Folding sun shade cover
      • 1 x TALLY connector (in bulk)
      • 1 x V-mount Power cable
      • 1 x V-mount
      • 1 x Manual
      • 1 x Carry-on suitcase
      • 1 x 15V DC adapter
      • 1 x Battery plate bracket
      • 2 x Adapter fixing belt
      • 1 x Base bracket

    • Warranty:

      • 1 year - parts and labor

    • GTIN:

      6950821601563
